Double head spring loaded pogo contact probe pogo pin

Brand Name:	UPE
Model Number:	Double Head Pogo Pin
MOQ:	10000
Price:	$0.1-$0.5
Packaging Details:	PE bags
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Name:

Double Head Pogo Pin

Material:

Brass C3604, SUS304

Contact Resistance:

50mΩ Max At Working Height

Operating Temperature:

-40℃~+130℃ Within 24 Hours.

Salt Spray Test:

Color:

Yellow

Supply Ability:

50KPCS/Day

Highlight:

double head pogo contact probe

spring loaded pogo pin

pogo pin with dual heads

Product Description

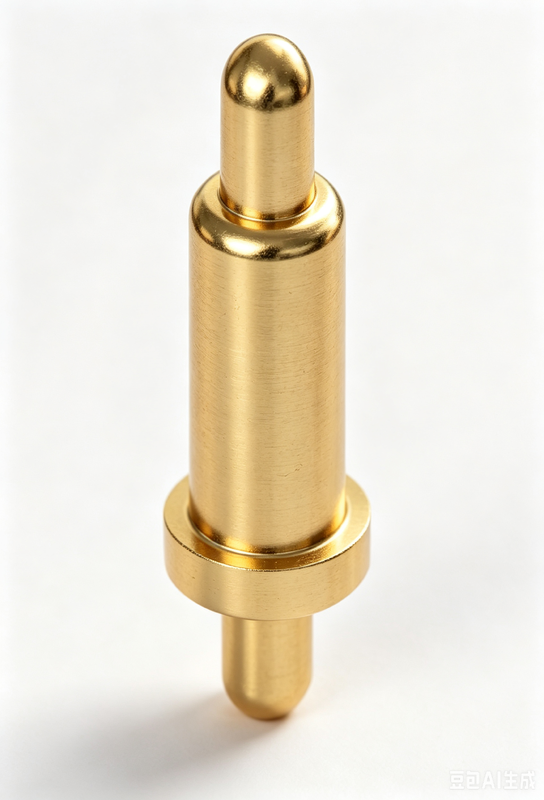

Double Head Spring Loaded Pogo Contact Probe

UPE provides professional POGO PIN customization services, offering various shapes and small structures. We customize high-current pogo pins ranging from 15A to 30A. Different products and pogo pin solutions can be designed according to specific customer requirements.

A Pogo Pin is an electrical connector used to establish temporary connections between two circuits. It consists of a spring-loaded plunger inside a barrel, allowing compression and maintaining reliable contact when pressed against conductive surfaces.

Product Specifications

Parameter	Specification
Name	Double Head Pogo Pin
Plunger Material	Brass C3604
Barrel Material	Brass C3604
Spring Material	SUS304
Mechanical Life	50,000 cycles Minimum
Contact Resistance	50mΩ Maximum
Operating Temperature	-40℃ to +130℃
Resistance to Soldering Heat	260℃±5℃ for 20s±2s
Salt Spray Test	48 Hours
Certification	ROHS or REACH Compliant
Testing	100% Open and Short Test

Available Exterior Structures

We offer 8 types of exterior structure POGO PINs for customer selection. Standard POGO PIN total height ranges from 2.8mm to 11.0mm (excluding DIP pogo pin tail length).

SMT

Flat bottom design for easy PCB board soldering with good stability.

DIP

Positioning pin prevents deviation during PCB welding with firm connection.

Double Head

Bi-directional board-to-board connection without welding requirements.

Right Angle

Bent tail design for space optimization, suitable for wire soldering.

Solder Cup

Ideal for cable products with easy wire welding capability.

Screw-type

Custom specifications to meet diverse customer requirements.

One-piece Type

High current capacity with custom design options.

Spherical Ball Type

Lateral force capability with custom design options.

Internal Structure Options

Structure A: Oblique Bevel Plunger

Conventional use with stable impedance and long life. SMT & DIP applications. Cannot exceed limit working stroke.

Structure B: Drilled Plunger

Maximum compression in limited space. SMT & DIP applications. Avoid exceeding limit stroke and excessive current.

Structure C: Flat Plunger

Easy machining for space-constrained applications. SMT & DIP applications. Avoid exceeding limit stroke and excessive current.

Structure D: Insulating Beads

Stable impedance for currents above 10A. SMT & DIP applications. Cannot exceed limit working stroke.

Structure E: Dual Compression

Space-saving design for board-to-board docking with large compression. Cannot exceed limit working stroke.

Structure F: Four-piece Combination

High press smoothness, small plunger deflection, waterproof and dustproof. Ideal for high current and high performance applications.

Structure G: Intermediate Shaft Compression

Simple structure capable of passing high current. Welding high current use. Cannot exceed limit working stroke.

Structure H: Ball Compression Contact

Simple structure with easy processing. Small working stroke applications. Cannot exceed limit working stroke.

Product Applications

PCB Boards
Digital Cameras / Medical Products / Printer Cartridges
Golf Handles / Electric Vehicles / Telephony Applications
Cardiac Defibrillators / Car Charging / Air Purifiers
LED Flat Luminaries / LED Flash Lights / Tablets / Laptops / PCs
Power Banks / Digital Products / Small Household Electrical Applications
Charging Products / Signal Transmission Products

Why Choose UPE?

Customization & Flexibility: Tailored solutions for specific requirements
Fast Samples: Accelerated time-to-market with quick prototyping
Rigorous Quality Checks: Comprehensive testing including incoming material inspection, in-process checks, 100% final testing, and compliance verification
Customer-Focused QC Flexibility: Adaptable quality control processes
Real-Time QC Collaboration: Continuous quality monitoring and improvement

Performance Parameters

Component	Material Options
Barrel Material	Brass, Beryllium Copper, Phosphor Bronze
Plunger Material	Brass, Beryllium Copper, Phosphor Bronze, Stainless Steel
Spring Options	Stainless Steel, Music Wire
Plating Requirements	Gold (Au), Silver (Ag), Palladium-Nickel (Pd-Ni)
Rated Current	1A, 2A, 3A, 5A, 15A, 30A (structure dependent)
Rated Voltage	DC 12V, 24V
Contact Resistance	30mΩ, 50mΩ Maximum (stillness)
Life Test	50,000 cycles Minimum, 1,000,000 cycles Maximum
Reflow Temperature	265°, 4-5 seconds

Reliability Testing

Test Type	Specification
Retention Force	500±50 cycles per hour, 50,000 cycles minimum
Humidity	90-95% RH at 40℃±2℃ for 96 hours
Resistance to Solder Heat	265℃+10/-0℃ for 30-35 seconds
Salt Spray	5±1% salt solution at 35+1℃/-2℃ for 48 hours
Spring Force Test	100g±20g at working height
Temperature Life	85℃±2℃ for 96 hours
Solderability	265±5℃, 60/40±5% Sn/pb solder for 4.0-5.0 seconds
Contact Resistance	Test current 100mA maximum, 20mV voltage maximum

Testing Equipment

Our independent laboratory features comprehensive testing equipment including insertion force testing machines, two-dimensional projectors, thickness meters, automatic inspection machines, insulation resistance testers, metallographic sample polishing machines, salt spray testers, current temperature rise testers, load stroke curve instruments, ROHS testers, roughness testers, elastic impedance testers, and life testers.

Competitive Advantages

High-Technology Production: Advanced manufacturing techniques for superior quality
Systematic Management System: Streamlined processes ensuring efficiency and consistency
ISO 9001 Certification: Commitment to international quality standards
RoHS Compliance: Meets environmental and safety regulations
Short Development Lead Time: Faster prototyping and production cycles
Competitive Pricing & Stable Quality: Cost-effective solutions without compromising reliability

Ordering Information

Service	Details
Payment Methods	T/T (Bank Transfer), PayPal, OCBC Bank PayPal recommended for samples, T/T for bulk orders
Sample Lead Time	Inventory sample: 2-3 working days Customized sample: 5-7 working days
Production Lead Time	10-15 working days
Markets Served	America, Europe, Asia, South Africa
Trade Terms	EXW
Freight Options	Air, Sea, Express
Services	High quality with reasonable pricing, OEM services, custom sizes, colors, and designs

Packaging & Shipping

Any questions, please contact us at: union@upetech.net
