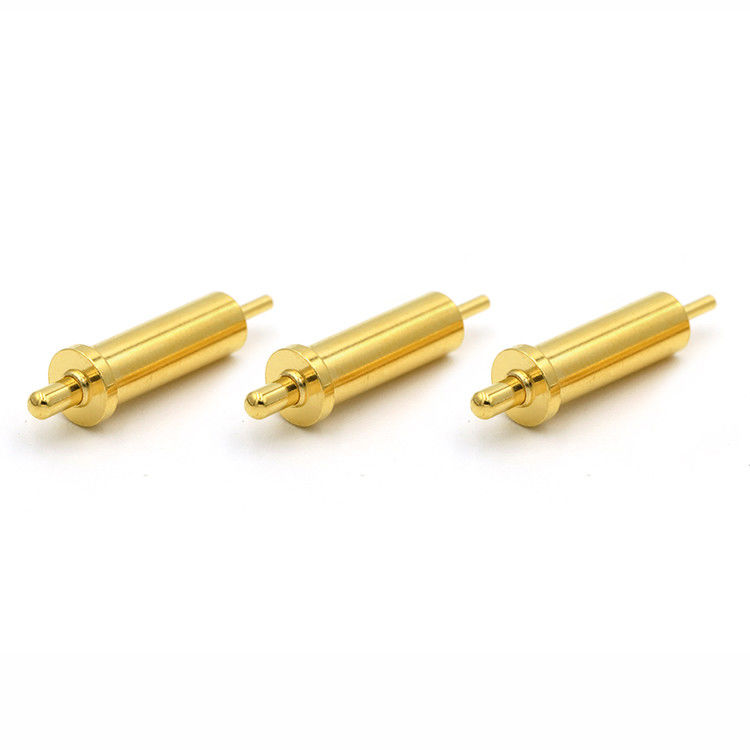

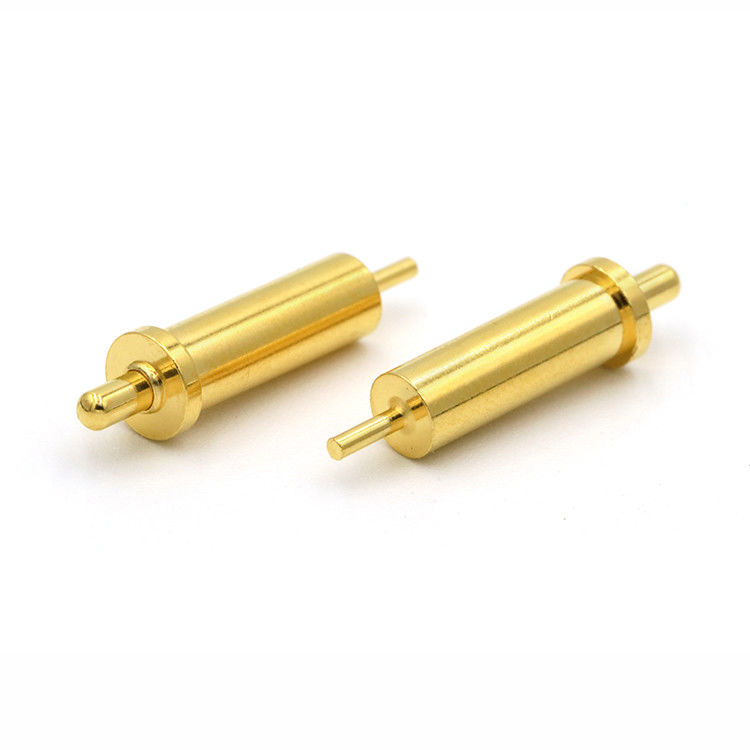

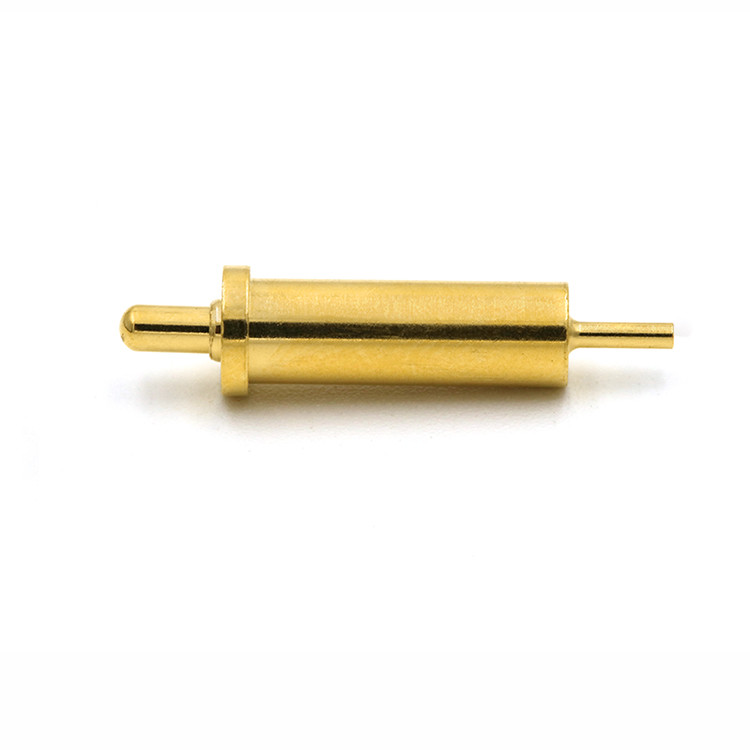

Customized high current 20A DIP through hole pogo pin for Air purifier.
UPE provide professional POGO PIN customization service, custom of various shapes is available, small structure.Different products and pogo pin solutions can be designed according to different customer needs.
Pogo pin products comply with EU ROHS, REACH, HF environmental protection standards.
Product Application:
1. Consumer Electronics
Laptops/Tablets: Battery contacts, docking stations.
Power Banks/Wearables: Charging ports, data transfer.
LED Lighting: Flashlights, flat panel luminaries.
2. Medical & Life-Saving Devices
Cardiac Defibrillators: Secure signal/power transfer.
Medical Diagnostics: Disposable probe connections.
3. Automotive & EV
EV Charging: Battery management systems (BMS).
Smart Handles/Sensors: Golf carts, vehicle telemetry.
4. Industrial & Telecommunications
Printers: Cartridge detection/alignment.
5G/IoT Devices: Modular signal transmission.
5. Smart Home & Appliances
Air Purifiers: Filter replacement detection.
Small Electronics: Toothbrushes, shavers.
6. High-Precision Equipment
Digital Cameras: Lens module connections.
PCB Testing: Bed-of-nails test jigs.
Why Choose Pogo Pin?
✅ 10,000–100,000+ Cycles (Durable spring mechanism)
✅ Low Resistance (0.5–50mΩ for efficient power/signal transfer)
✅ Customizable (Plating: Ni/Au/Ag; Shapes: Straight/Right-Angle)
Pogo Pin Parameter List:
|
Name
|
DIP Pogo Pin
|
|
Plunger
|
Brass C3604
|
|
Barrel
|
Brass C3604
|
|
Spring
|
SUS304
|
|
Mechanical life
|
50000 cycle Min..
|
|
Current
|
20A
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50m Max (PIN).
|
|
Operating Temperature
|
-40℃~+130℃within 24 hours.
|
|
Resistance to Solding hear
|
260℃±5℃ 20s±2s
|
|
Salt spray test
|
48H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
UPE Pogo Pin External Structure:
UPE Pogo Pin Internal Structure according to customer requirements to match suitable one
Why do customers choose UPE?
1. Pogo Pin professional customization service
Different products and solutions can be designed according to different customer needs
2. Fast sample production capability
Standard product 2-3 days sample, new custom sample 7 working days, mold opening product 12 days
3. Strict quality control system
The concept of quality first runs through the entire production and inspection process, and strictly controls each process to ensure the quality of customer satisfaction.
4. Processing with imported components
A small number of needle shafts are machined from imported precision lathes, and most of the needle shafts are made of imported cold stamping for higher stability.
5. High-precision test equipment
Provide accurate and precise testing to continuously improve product quality
6. Reasonable cost control procedures
Save costs, eliminate waste, optimize processes, and highlight cost competitiveness
7. Product environmental standards
The product meets the EU ROHS standard and meets halogen
Quality management process:
From material purchasing management, to open mold trail sample, and then to the whole process of production,layer by control inspection, full quality control, to ensure what the supply of products to meet customer needs, to achieve the product qualified rate of more than 98%.
Testing equipment:
Our company’s investment in advanced equipment has never been interrupted, in order to better meet the needs of market competition, and constantly improve the quality of product
Pakaging & shipping
