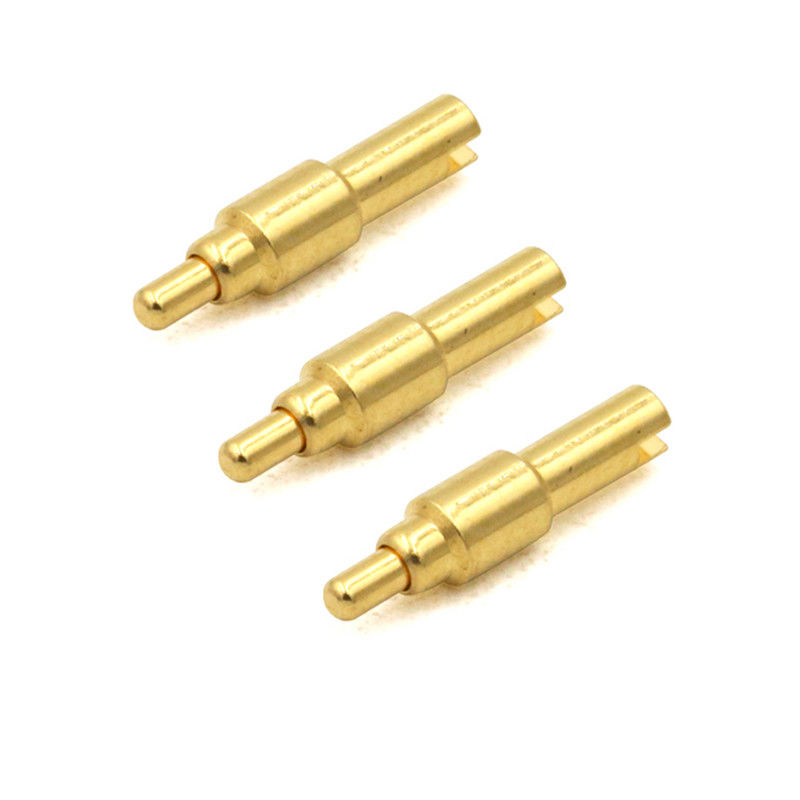

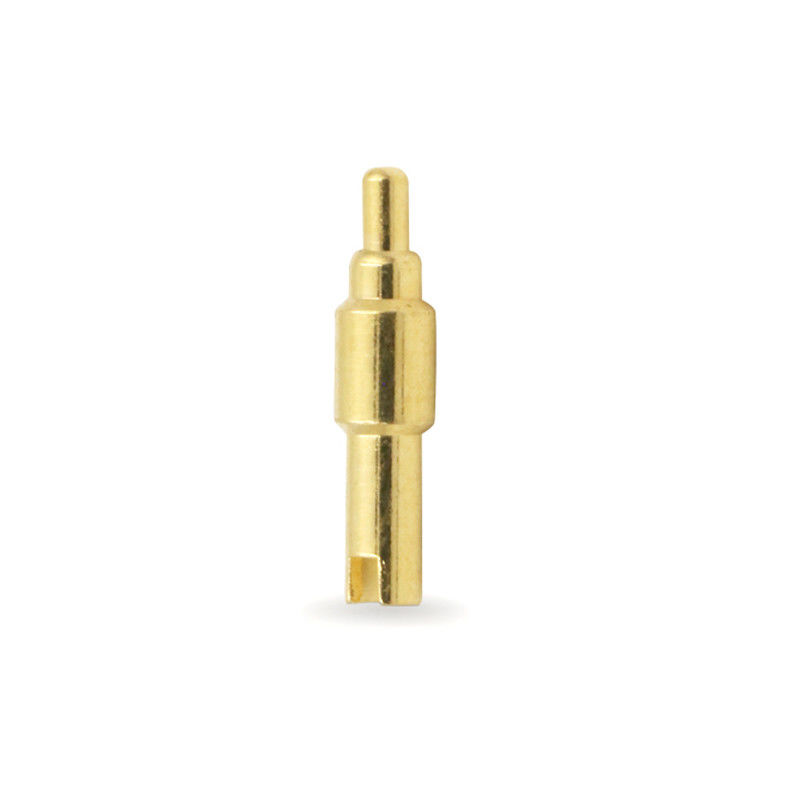

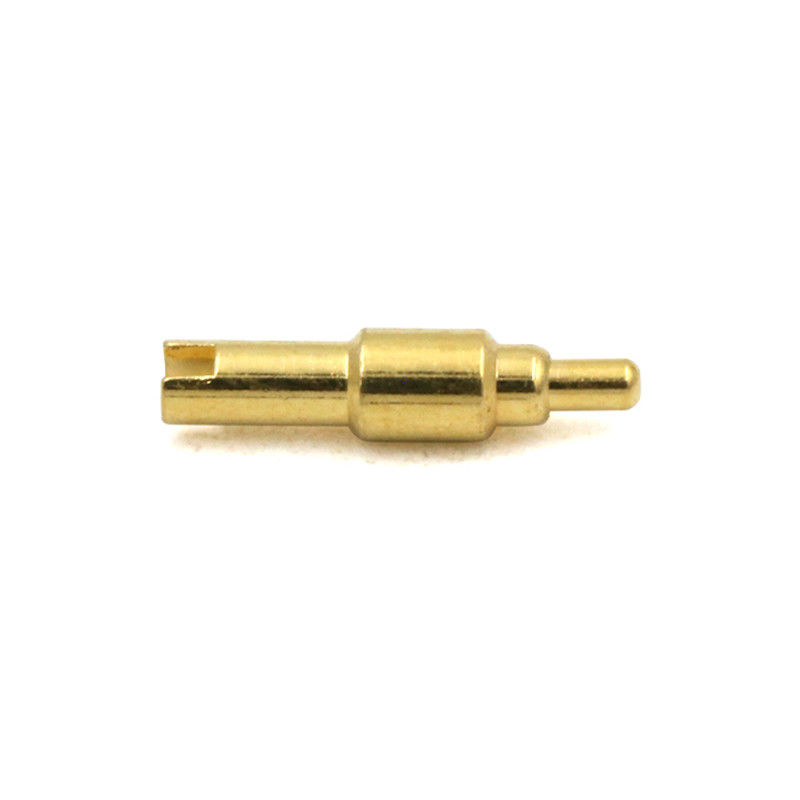

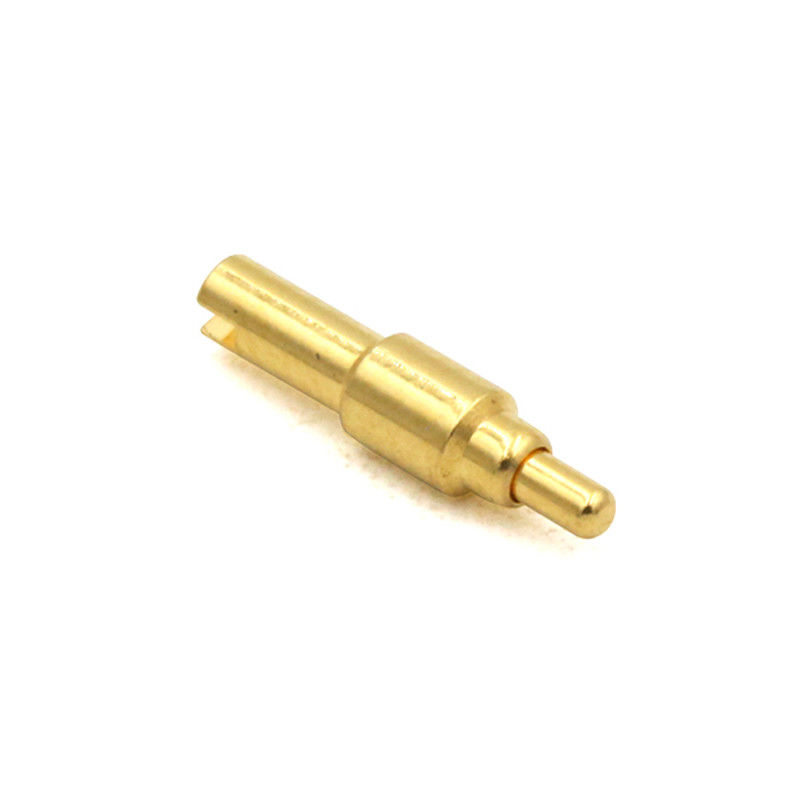

2A brass C3604 solder cup spring loaded contact pogo pin for signal transmission, UPE is committed to high-end Pogo Pin,Pogo Pin connectors,magnetic connector ,magnetic cable connector and the design, development, production and sales of supporting products as a high-tech company.
Products comply with EU ROHS, REACH, HF environmental protection standards.
Product application areas are:
1.Industrial equipment, three-proof machine, communication equipment, medical equipment, handheld terminal equipment;
2.Smart wearable devices, smart education, smart positioning devices, smart toy
3.Consumer electronics, tablet computers, shared charging, TWS Bluetooth headsets, electronic cigarettes
Why do customers choose UPE?
1. Pogo Pin professional customization service
Different products and solutions can be designed according to different customer needs
2. Fast sample production capability
Standard product 2-3 days sample, new custom sample 7 working days, mold opening product 12 days
3. Strict quality control system
The concept of quality first runs through the entire production and inspection process, and strictly controls each process to ensure the quality of customer satisfaction.
4. Processing with imported components
A small number of needle shafts are machined from imported precision lathes, and most of the needle shafts are made of imported cold stamping for higher stability.
5. High-precision test equipment
Provide accurate and precise testing to continuously improve product quality
6. Reasonable cost control procedures
Save costs, eliminate waste, optimize processes, and highlight cost competitiveness
7. Product environmental standards
The product meets the EU ROHS standard and meets halogen
Solder Cup Pogo Pin drawing size:
Pogo Pin Parameter List:
|
Name
|
Solder cup pogo pin
|
|
Plunger
|
Brass C3604,plating 1U" Min Au over 60~100U"Ni min.
|
|
Barrel
|
Brass C3604 ,plating 1U" Min Au over 60~100U"Ni min.
|
|
Spring
|
SUS304
|
|
Steel ball
|
Ceramics ball
|
|
Spring force
|
50g±20g,at 6.8mm working height
|
|
Min working height
|
6.1mm.
|
|
Mechanical life
|
30000 cycle Min..
|
|
Current
|
2A
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50m Max (PIN).
|
|
Operating Temperature
|
-40℃~+130℃within 24 hours.
|
|
Resistance to Solding hear
|
260℃±5℃ 20s±2s
|
|
Salt spray test
|
48H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
UPE Pogo Pin External Structure:
UPE Pogo Pin Internal Structure according to customer requirements to match suitable one
Quality management process:
From material purchasing management, to open mold trail sample, and then to the whole process of production,layer by control inspection, full quality control, to ensure what the supply of products to meet customer needs, to achieve the product qualified rate of more than 98%.
Testing equipment:
Our company’s investment in advanced equipment has never been interrupted, in order to better meet the needs of market competition, and constantly improve the quality of product
Pakaging & shipping
Any question, please send to union@upetech.net
