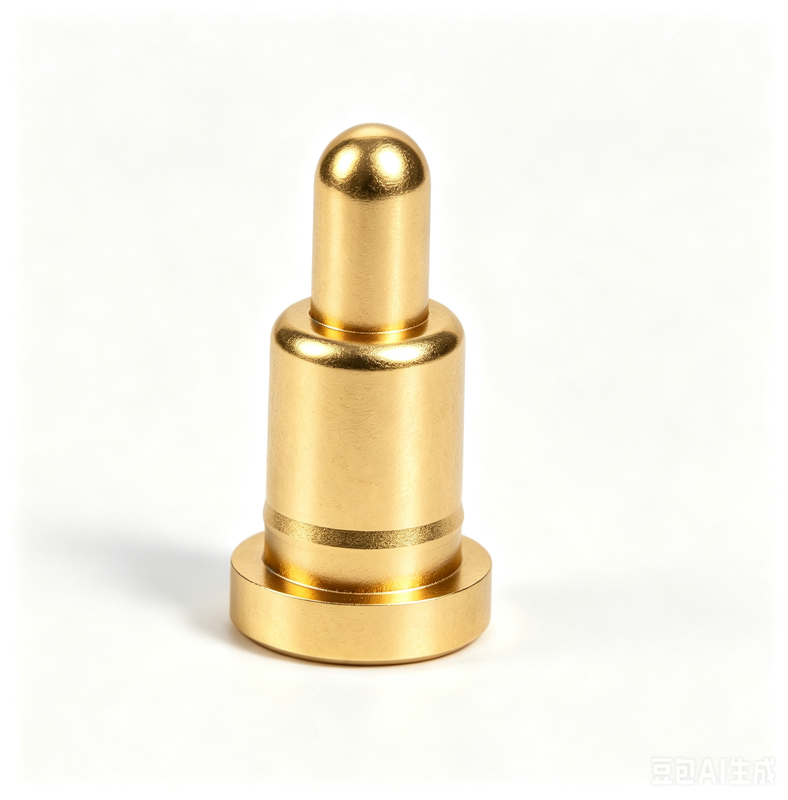

Spring loaded smt contacts pogo pin

Brand Name:	UPE
Model Number:	SMT Spring-Loaded Pogo Pin
MOQ:	10000
Price:	$0.1-$0.5
Packaging Details:	PE bags
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Name:

SMT Spring-Loaded Pogo Pin

Material:

Brass C3604, SUS304

Current:

Voltage:

Mechanical Life:

50000 Cycle Min..

Contact Resistance:

50mΩ Max At Working Height

Operating Temperature:

-40℃~+130℃ Within 24 Hours.

Salt Spray Test:

Supply Ability:

50KPCS/Day

Highlight:

spring loaded smt pogo pin

smt contacts pogo pin

pogo pin with spring contacts

Product Description

Spring Loaded SMT Contacts Pogo Pin

UPE provides professional POGO PIN customization services, offering various shapes and small structures. We customize high-current pogo pins ranging from 15A to 30A. Different products and pogo pin solutions can be designed according to specific customer requirements.

A Pogo Pin is an electrical connector used to establish temporary connections between two circuits. It consists of a spring-loaded plunger inside a barrel, allowing compression and maintaining reliable contact when pressed against conductive surfaces.

Pogo Pin Exterior Structures

We offer 8 types of exterior structure POGO PINs for customer selection. Standard POGO PINs are designed with total heights ranging from 2.8mm to 11.0mm (excluding DIP pogo pin tail length).

SMT Structure

Good stability with flat bottom barrel design for easy PCB board soldering.

DIP Structure

Features positioning pin at barrel tail for accurate PCB welding without deviation.

Double Head Structure

Provides flexibility in bi-directional board-to-board connections without welding requirements.

Right Angle Structure

Bent tail design offers space optimization options and can be soldered with wires.

Solder Cup Structure

Suitable for cable products with easy wire welding capabilities.

Screw-type Structure

Special specifications to meet diverse customer requirements with custom options.

One-piece Type Structure

Capable of passing large currents and customizable to specific customer needs.

Spherical Ball Type Structure

Supports lateral force and can be customized according to customer requirements.

Pogo Pin Internal Structures

We match suitable internal structures according to customer requirements:

Structure A: Oblique Bevel Plunger

Conventional use with stable impedance and long life. Application: SMT & DIP regular use. Precautions: Cannot exceed limit working stroke.

Structure B: Drilled Plunger

Maximum compression in limited spaces. Application: SMT & DIP regular use. Precautions: Cannot exceed limit stroke or excessive current use.

Structure C: Flat Plunger

Easy machining for space structures based on A&B. Application: SMT & DIP regular use. Precautions: Cannot exceed limit stroke or excessive current use.

Structure D: Barrel with Insulating Beads

Stable impedance suitable for currents above 10A. Application: SMT & DIP regular use. Precautions: Cannot exceed limit working stroke.

Structure E: Double-sided Compression Plunger

Space-saving design with long distance and large compression board-to-board contact. Application: Board-to-board docking. Precautions: Cannot exceed limit working stroke.

Structure F: Four-piece Combination

High press smoothness, small plunger deflection, waterproof and dustproof with extended working life. Application: High current, high performance, waterproof and dustproof requirements.

Structure G: Intermediate Shaft Compression

Simple structure capable of passing high currents. Application: Welding high current use. Precautions: Cannot exceed limit working stroke.

Structure H: Ball Compression Contact

Simple structure with easy processing. Application: Small working stroke use. Precautions: Cannot exceed limit working stroke.

Pogo Pin Application Areas

Why Choose UPE?

Customization & Flexibility
Fast Samples = Faster Time-to-Market
Every connector undergoes rigorous quality checks (Incoming Material Inspection, In-Process Quality Checks, 100% Final Testing, Traceability & Compliance)
Customer-Focused QC Flexibility
Real-Time QC Collaboration

Spring-Loaded Pogo Pin Connector Performance Parameters

Name of Parts	Parameter Performance Table
Barrel Material	Brass \| Beryllium copper \| Phosphor Bronze
Plunger Material	Brass \| Beryllium copper \| Phosphor Bronze \| Stainless steel
Spring Options	Stainless Steel \| Music wire
Plating Requirements	Gold-Au \| Silver-Ag \| Palladium-Nickel (Pd-Ni)
Rated Current	1A, 2A, 3A, 5A, 15A or 30A (different structures)
Rated Voltage	DC 12V 24V
Contact Resistance	30mΩ 50mΩ Max. (stillness)
Life Test	50,000 cycles Min. 1,000,000 cycles Max
Reflow Temp.	265°, 4~5sec

POGO PIN Reliability Testing

Test Type	Specifications
Retention Force	At rated cycling of 500±50 per hour, 50,000 cycles minimum
Humidity	EIA-364-31, Test method II, Condition A: 90-95% RH at 40℃ ± 2℃ for 96 hours
Resistance to Solder Heat	EIA-364-56, Procedure 5, Level 2: 265℃+10/-0℃ for 30-35 seconds
Salt Spray	EIA-364-26, Test condition B: 5±1% salt solution at 35+1℃/-2℃ for 48 hours
Spring Force Test	Normal Force Test Procedure, 100g±20g at working height
Temperature Life	EIA-364-17, Test method A, condition 4: 85℃± 2℃ for 96 hours
Solderability	EIA-364-52: Dip into 265±5℃, 60/40±5% Sn/pb solder for 4.0-5.0 seconds
Contact Resistance	EIA-364-23: Test current 100 mA maximum, 20 mV voltage maximum

Testing Equipment

We maintain an independent laboratory equipped with experimental equipment including:

Insertion force testing machine
Two-dimensional projector
Thickness meter
Automatic inspection machine
Insulation Resistance Tester
Metallographic sample polishing machine
Salt spray tester
Current temperature rise tester
Load stroke curve instrument
ROHS tester
Roughness tester
Elastic impedance tester
Life tester

UPE Company Competitive Advantages

High-Technology Production utilizing advanced manufacturing techniques
Systematic Management System ensuring efficiency and consistency
ISO 9001 Certification demonstrating international quality standards
RoHS Compliance meeting environmental and safety regulations
Short Development Lead Time for faster prototyping and production
Competitive Pricing & Stable Quality without compromising reliability

Payment Methods

T/T (Bank Transfer), PayPal, OCBC Bank

Recommendation: Use PayPal for samples (safer), Use T/T for bulk orders (lower fees)

Lead Times & Service Details

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days

Production Lead Time: 10-15 working days

Markets Served: America, Europe, Asia, South Africa

Trade Term: EXW

Freight Options: Air, Sea, Express

Services: High quality with reasonable price, OEM service, any special size, color, designs accepted
