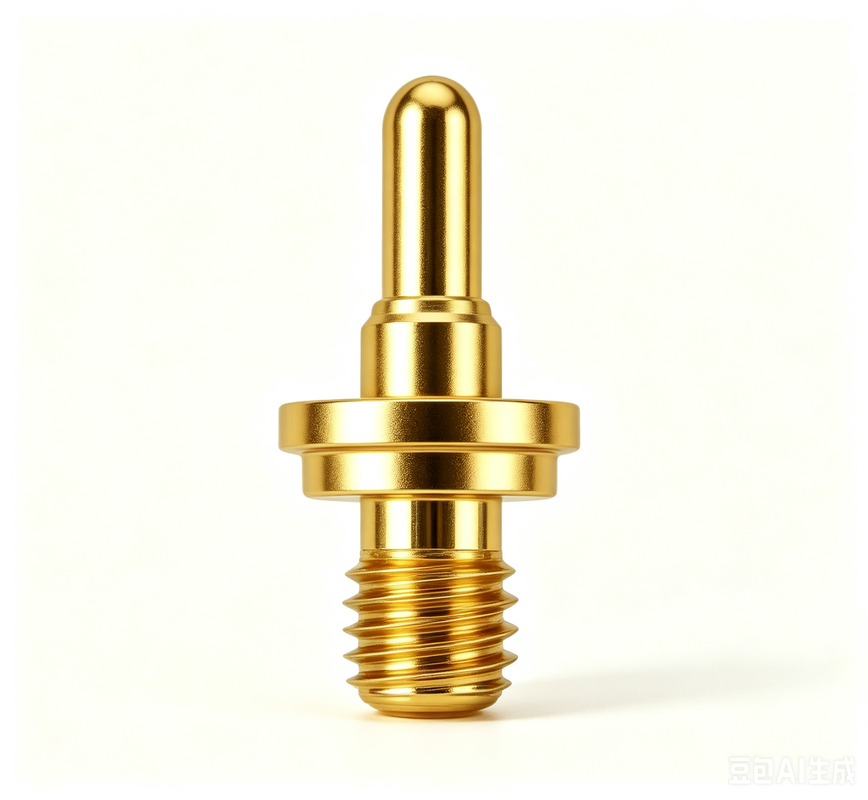

screw thread spring plunger electrical contact pogo pin

Brand Name:	UPE
Model Number:	screw thread Spring-Loaded Pogo Pin
MOQ:	10000
Price:	$0.1-$0.5
Packaging Details:	PE bags
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Name:

Screw Thread Spring-Loaded Pogo Pin

Material:

Brass C3604, SUS304

Current:

Voltage:

Mechanical Life:

50000 Cycle Min..

Contact Resistance:

50mΩ Max At Working Height

Operating Temperature:

-40℃~+130℃ Within 24 Hours.

Salt Spray Test:

Supply Ability:

50KPCS/Day

Highlight:

screw thread spring plunger

electrical contact pogo pin

pogo pin with warranty

Product Description

Screw Thread Spring Plunger Electrical Contact Pogo Pin

Professional POGO PIN customization service for various shapes and structures. Customized high current solutions from 15A-30A. Different products and pogo pin solutions designed according to customer requirements.

A Pogo Pin is an electrical connector that establishes temporary connections between circuits. It features a spring-loaded plunger inside a barrel, compressing to maintain reliable contact when pressed against conductive surfaces.

8 Exterior Structure Types

SMT: Good stability with flat bottom design for easy PCB board soldering
DIP: Positioning pin prevents deviation during PCB welding with firm positioning
Double Head: Bi-directional board-to-board connection without welding required
Right Angle: Bent tail design for space optimization, can be soldered with wire
Solder Cup: Suitable for cable products with easy wire welding
Screw-type: Special specifications to meet diverse customer requirements
One-piece type: High current capacity with custom specifications
Spherical ball type: Lateral force capability with custom requirements

Internal Structure Options

Structure A: Plunger with Oblique Bevel

Advantages: Conventional use, stable impedance, long life

Application: SMT & DIP Regular use

Precautions: Cannot exceed limit working stroke

Structure B: Plunger with Drilled Design

Advantages: Maximum compression in limited space

Application: SMT & DIP Regular use

Precautions: Cannot exceed limit stroke or excessive current

Structure C: Plunger with Flat Design

Advantages: Easy machining for space structures

Application: SMT & DIP Regular use

Precautions: Cannot exceed limit stroke or excessive current

Structure D: Barrel with Insulating Beads

Advantages: Stable impedance for currents above 10A

Application: SMT & DIP Regular use

Precautions: Cannot exceed limit working stroke

Structure E: Double-Sided Compression

Advantages: Space saving, long distance, large compression board contact

Application: Board to board docking

Precautions: Cannot exceed limit working stroke

Structure F: Four-Piece Combination

Advantages: High press smoothness, small plunger deflection, waterproof, dustproof, extended life

Application: High current, high performance, waterproof and dustproof applications

Structure G: Intermediate Shaft Compression

Advantages: Simple structure with high current capacity

Application: Welding high current use

Precautions: Cannot exceed limit working stroke

Structure H: Ball Compression Contact

Advantages: Simple structure with easy processing

Application: Small working stroke applications

Precautions: Cannot exceed limit working stroke

Application Areas

Why Choose UPE?

Customization & Flexibility: Tailored solutions for specific requirements
Fast Samples: Faster time-to-market with quick prototyping
Rigorous Quality Checks: Comprehensive testing including incoming material inspection, in-process checks, 100% final testing, and compliance tracking
Customer-Focused QC: Flexible quality control processes
Real-Time QC Collaboration: Immediate quality control support

Performance Parameters

Component	Material Options
Barrel Material	Brass, Beryllium copper, Phosphor Bronze
Plunger Material	Brass, Beryllium copper, Phosphor Bronze, Stainless steel
Spring Options	Stainless steel, Music wire
Plating Requirements	Gold-Au, Silver-Ag, Palladium-Nickel (Pd-Ni)
Rated Current	1A, 2A, 3A, 5A, 15A or 30A (structure dependent)
Rated Voltage	DC 12V, 24V
Contact Resistance	30mΩ, 50mΩ Max. (stillness)
Life Test	50,000 cycles Min., 1,000,000 cycles Max
Reflow Temperature	265°, 4-5 seconds

Reliability Testing

Test Type	Specifications
Retention Force	500±50 cycles per hour, 50,000 cycles minimum
Humidity	EIA-364-31, 90-95% RH at 40℃ ± 2℃ for 96 hours
Solder Heat Resistance	EIA-364-56, 265℃+10/-0℃ for 30-35 seconds
Salt Spray	EIA-364-26, 5±1% salt solution at 35+1℃/-2℃ for 48 hours
Spring Force Test	100g±20g at working height
Temperature Life	EIA-364-17, 85℃± 2℃ for 96 hours
Solderability	EIA-364-52, 265±5℃, 60/40±5% Sn/pb solder for 4.0-5.0 seconds
Contact Resistance	EIA-364-23, 100 mA maximum test current, 20 mV maximum voltage

Testing Equipment

Independent laboratory equipped with comprehensive testing equipment including:

Insertion force testing machine
Two-dimensional projector
Thickness meter
Automatic inspection machine
Insulation Resistance Tester
Metallographic sample polishing machine
Salt spray tester
Current temperature rise tester
Load stroke curve instrument
ROHS tester
Roughness tester
Elastic impedance tester
Life tester

Competitive Advantages

High-Technology Production: Advanced manufacturing techniques for superior quality
Systematic Management: Streamlined processes for efficiency and consistency
ISO 9001 Certification: International quality management standards
RoHS Compliance: Meets environmental and safety regulations
Short Development Lead Time: Faster prototyping and production cycles
Competitive Pricing & Stable Quality: Cost-effective reliable solutions

Ordering Information

Payment Methods: T/T (Bank Transfer), PayPal, OCBC Bank

Recommendation: PayPal for samples (safer), T/T for bulk orders (lower fees)

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days

Production Lead Time: 10-15 working days

Markets: America, Europe, Asia, South Africa

Trade Term: EXW

Freight Options: Air, Sea, Express

Services: High quality with reasonable pricing, OEM services, custom sizes, colors, and designs

Packaging & Shipping

For inquiries, please contact: union@upetech.net
