Screw type gold plating spring pogo pin

Brand Name:	UPE
Model Number:	Double Head Pogo Pin
MOQ:	10000
Price:	$0.1-$0.5
Packaging Details:	PE bags
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Name:

Screw Type Pogo Pin

Material:

Brass C3604, SUS304

Contact Resistance:

50mΩ Max At Working Height

Operating Temperature:

-40℃~+130℃ Within 24 Hours.

Salt Spray Test:

48 H

Color:

Yellow

Supply Ability:

50KPCS/Day

Highlight:

screw type gold plating pogo pin

spring pogo pin with gold plating

gold plating pogo pin connector

Product Description

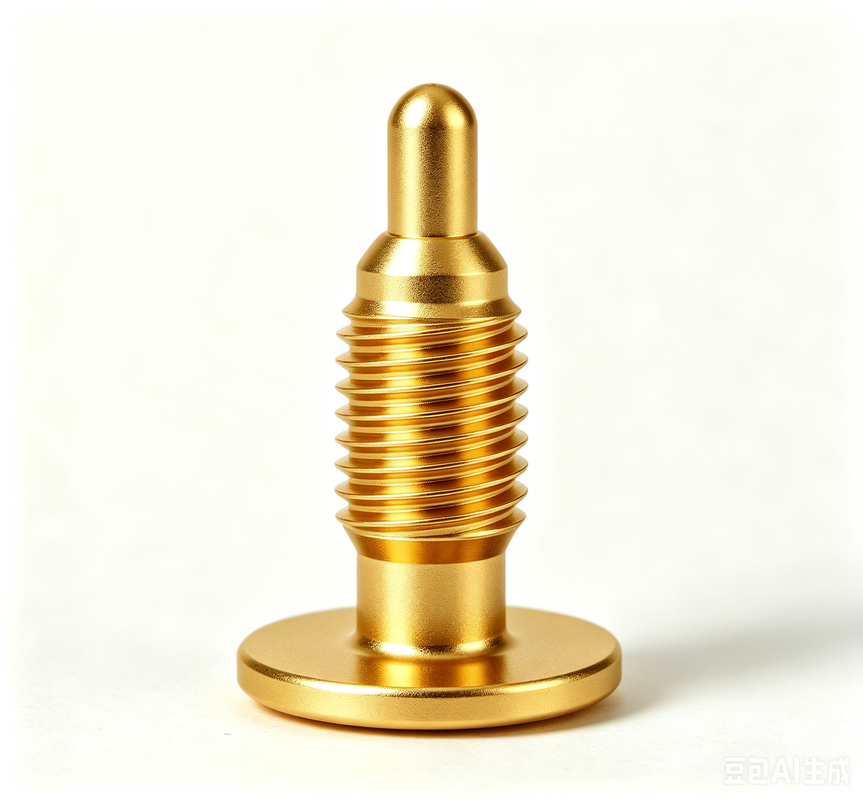

Screw Type Gold Plating Spring Pogo Pin

Professional POGO PIN customization service with various shapes and small structures available. Customized high current solutions from 15A to 30A. Different products and pogo pin solutions designed according to customer requirements.

What is a Pogo Pin?

A Pogo Pin is an electrical connector used to establish temporary connections between two circuits. It consists of a spring-loaded plunger inside a barrel, allowing compression and maintaining reliable contact when pressed against conductive surfaces.

Technical Specifications

Parameter	Specification
Name	Screw type pogo pin
Plunger	Brass C3604
Barrel	Brass C3604
Spring	SUS304
Mechanical life	50,000 cycles Min.
Contact resistance	50mΩ Max (PIN)
Operating Temperature	-40℃~+130℃ within 24 hours
Resistance to Soldering Heat	260℃±5℃ 20s±2s
Salt spray test	48H
Certification	ROHS or REACH compliant
Test	100% open and short test

Available Structure Types

Standard POGO PIN total height: 2.8mm ~ 11.0mm (excluding DIP pogo pin's tail length)

SMT: Good stability with flat bottom design for easy PCB board soldering
DIP: Positioning pin prevents deviation during PCB welding
Double Head: Flexible bi-directional board-to-board connection without welding
Right Angle: Bent tail for space optimization, can be soldered with wire
Solder Cup: Suitable for cable products, easy wire welding
Screw-type: Special specifications to meet diverse customer needs
One-piece type: High current capacity with custom requirements
Spherical ball type: Lateral force capability with custom options

Internal Structure Options

Structure A: Plunger with Oblique Bevel

Advantages: Conventional use, stable impedance, long life

Application: SMT & DIP Regular use

Structure B: Plunger with Drilled Design

Advantages: Maximum compression in limited space

Application: SMT & DIP Regular use

Structure C: Plunger with Flat Design

Advantages: Easy machining for space-constrained structures

Application: SMT & DIP Regular use

Structure D: Barrel with Insulating Beads

Advantages: Stable impedance, suitable for currents above 10A

Application: SMT & DIP Regular use

Structure E: Double-Sided Compression

Advantages: Space saving, long distance, large compression board contact

Application: Board-to-board docking

Structure F: Four-Piece Combination

Advantages: High press smoothness, small plunger deflection, waterproof, dustproof, extended life

Application: High current, high performance, waterproof and dustproof applications

Structure G: Intermediate Shaft Compression

Advantages: Simple structure, high current capacity

Application: Welding high current use

Structure H: Ball Compression Contact

Advantages: Simple structure, easy processing

Application: Small working stroke applications

Product Applications

PCB boards
Digital cameras / Medical products / Printer cartridges
Golf handles / Electric vehicles / Telephony applications
Cardiac defibrillators / Car charging / Air purifiers
LED flat luminaries / LED flash lights / Tablets / Laptops / PCs
Power banks / Digital products / Small household electrical applications
Charging products / Signal transmission products

Why Choose UPE?

Customization & Flexibility: Tailored solutions for specific requirements
Fast Samples: Faster time-to-market with quick prototyping
Rigorous Quality Checks: Comprehensive testing throughout production
Customer-Focused QC Flexibility: Adaptable quality control processes
Real-Time QC Collaboration: Continuous quality monitoring and feedback

Performance Parameters

Component	Material Options
Barrel Material	Brass, Beryllium copper, Phosphor Bronze
Plunger Material	Brass, Beryllium copper, Phosphor Bronze, Stainless steel
Spring Options	Stainless steel, Music wire
Plating Requirements	Gold-Au, Silver-Ag, Palladium-Nickel (Pd-Ni)
Rated Current	1A, 2A, 3A, 5A, 15A or 30A (different structures)
Rated Voltage	DC 12V, 24V
Contact Resistance	30mΩ, 50mΩ Max. (stillness)
Life Test	50,000 cycles Min., 1,000,000 cycles Max
Reflow Temperature	265°, 4~5 seconds

Reliability Testing

Test Type	Specification
Retention Force	50,000 cycles minimum at 500±50 cycles per hour
Humidity	90-95% RH at 40℃±2℃ for 96 hours
Resistance to Solder Heat	265℃+10/-0℃ for 30-35 seconds
Salt Spray	5±1% salt solution at 35+1℃/-2℃ for 48 hours
Spring Force Test	100g±20g at working height
Temperature Life	85℃±2℃ for 96 hours
Solderability	265±5℃, 60/40±5% Sn/pb solder for 4.0-5.0 seconds
Contact Resistance	Test current: 100 mA max, Voltage: 20 mV max

Testing Equipment

Independent laboratory equipped with comprehensive testing equipment including:

Insertion force testing machine
Two-dimensional projector
Thickness meter
Automatic inspection machine
Insulation Resistance Tester
Metallographic sample polishing machine
Salt spray tester
Current temperature rise tester
Load stroke curve instrument
ROHS tester
Roughness tester
Elastic impedance tester
Life tester

Competitive Advantages

High-Technology Production: Advanced manufacturing techniques for superior quality
Systematic Management System: Streamlined processes for efficiency and consistency
ISO 9001 Certification: Commitment to international quality standards
RoHS Compliance: Meets environmental and safety regulations
Short Development Lead Time: Faster prototyping and production cycles
Competitive Pricing & Stable Quality: Cost-effective solutions without compromising reliability

Ordering Information

Payment Methods

T/T (Bank Transfer)
PayPal
OCBC Bank

Recommendation: PayPal for samples (safer), T/T for bulk orders (lower fees)

Lead Times

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
Production Lead Time: 10-15 working days

Trade Terms

Markets: America, Europe, Asia, South Africa
Trade Term: EXW
Freight: Air, Sea, Express
Service: High quality with reasonable price, OEM service, custom sizes, colors, and designs available

Packaging & Shipping

Contact Information

For any questions, please contact: union@upetech.net
