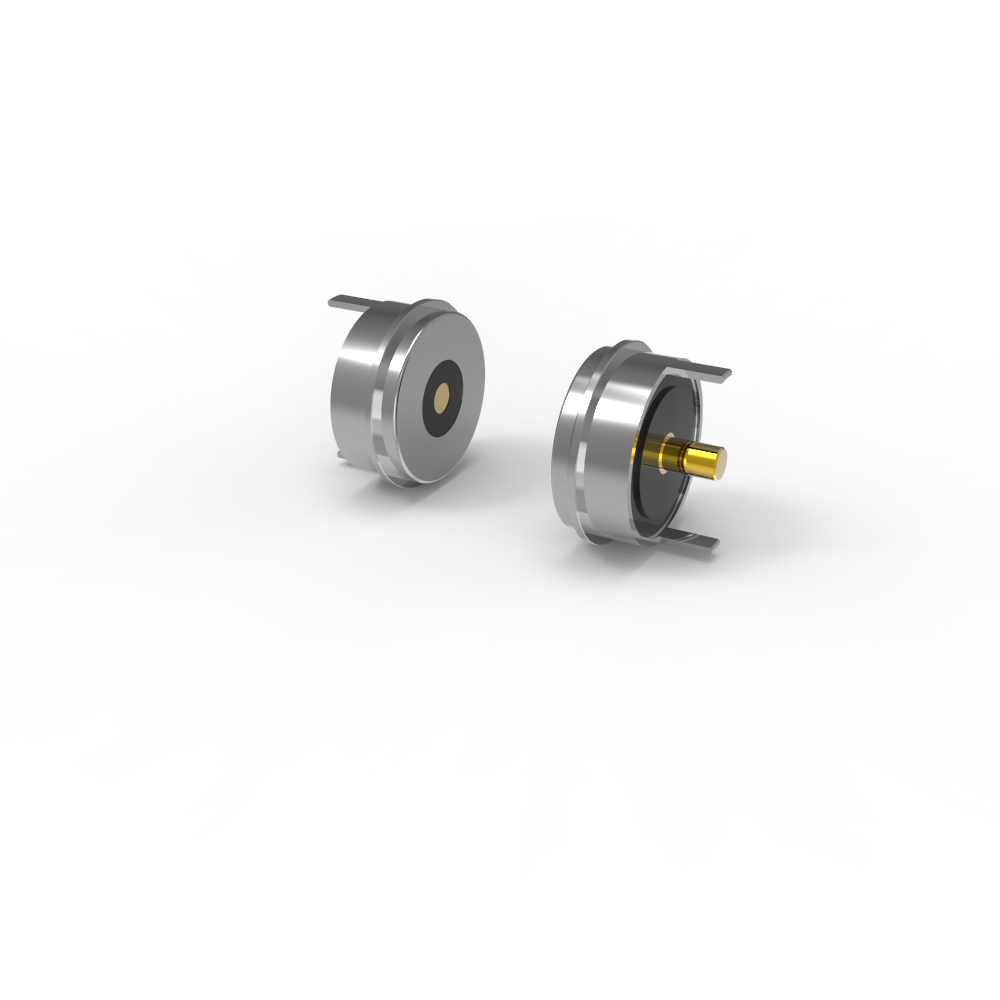

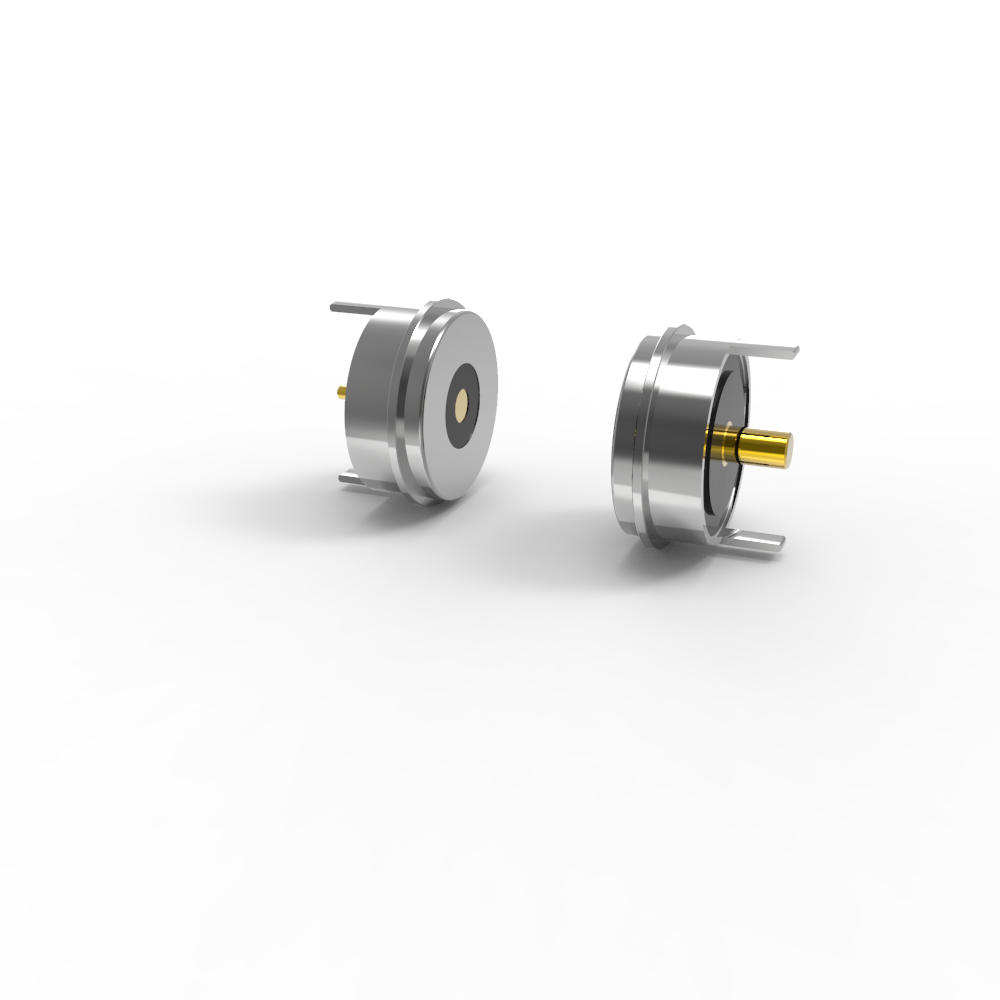

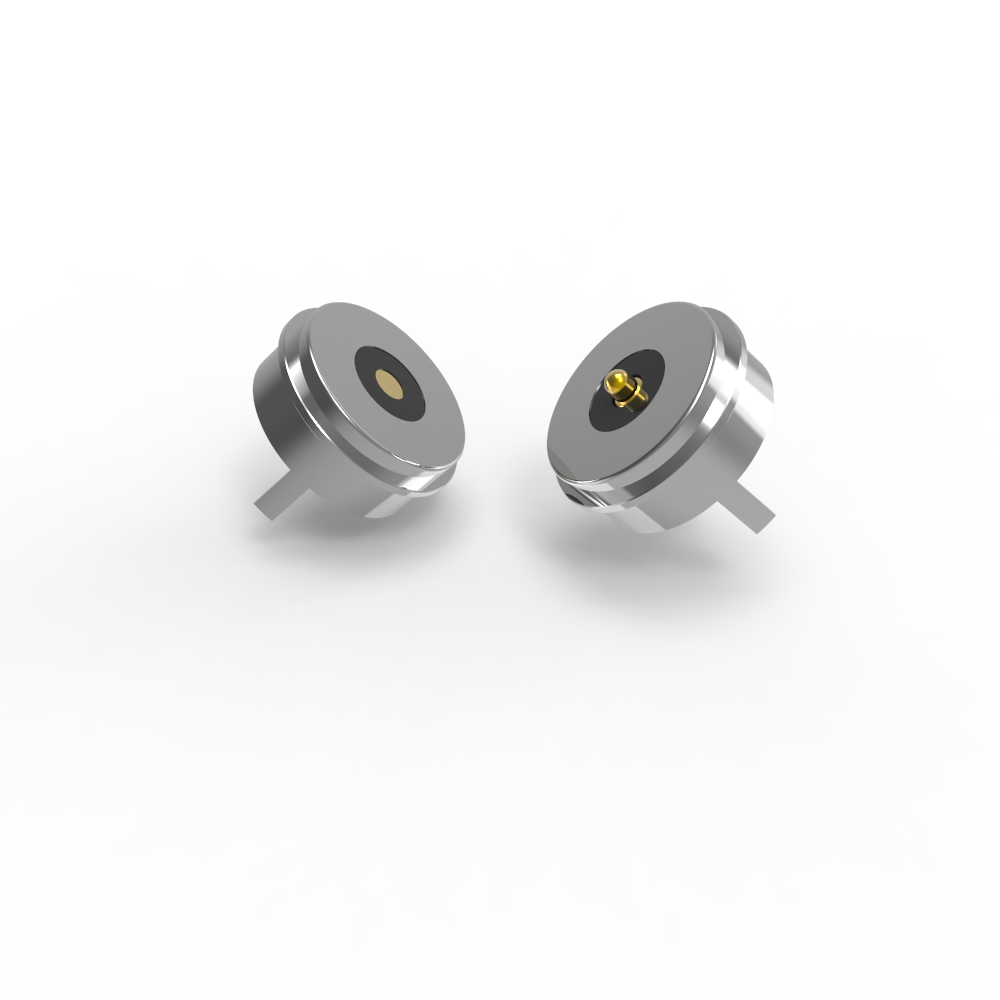

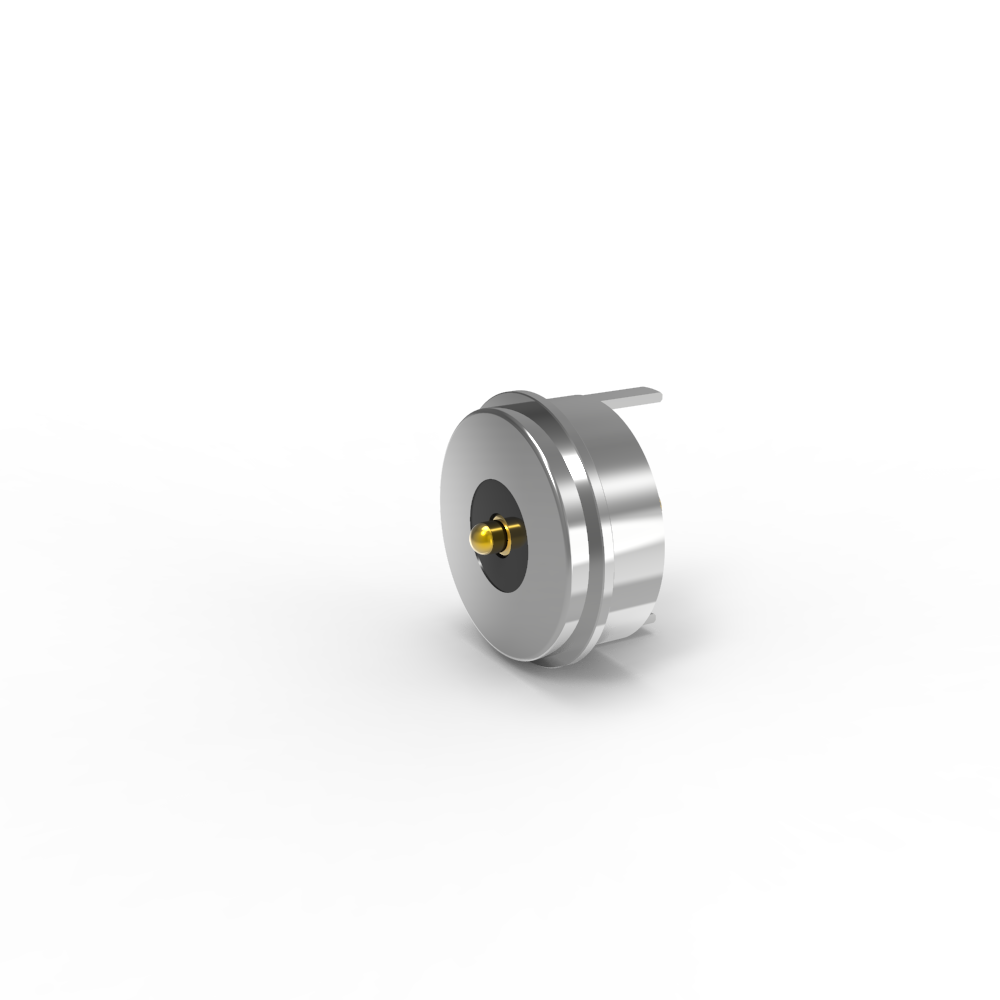

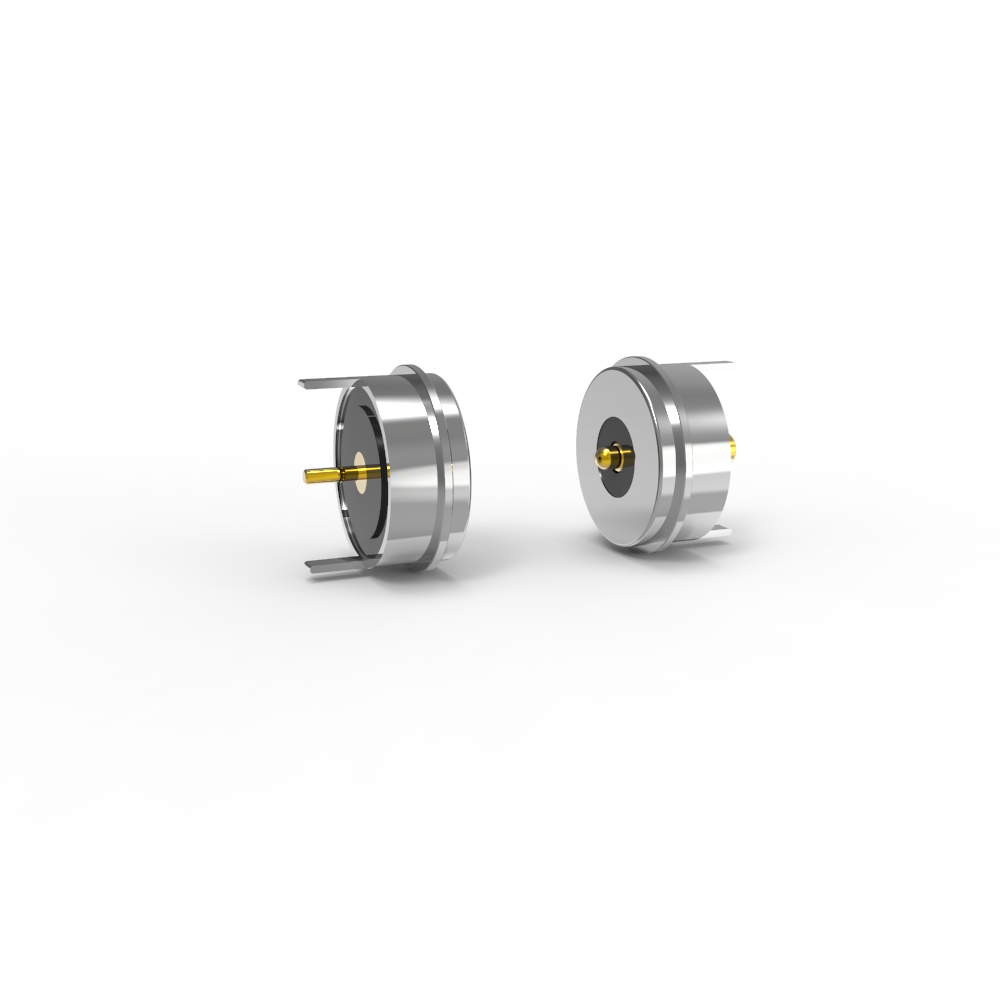

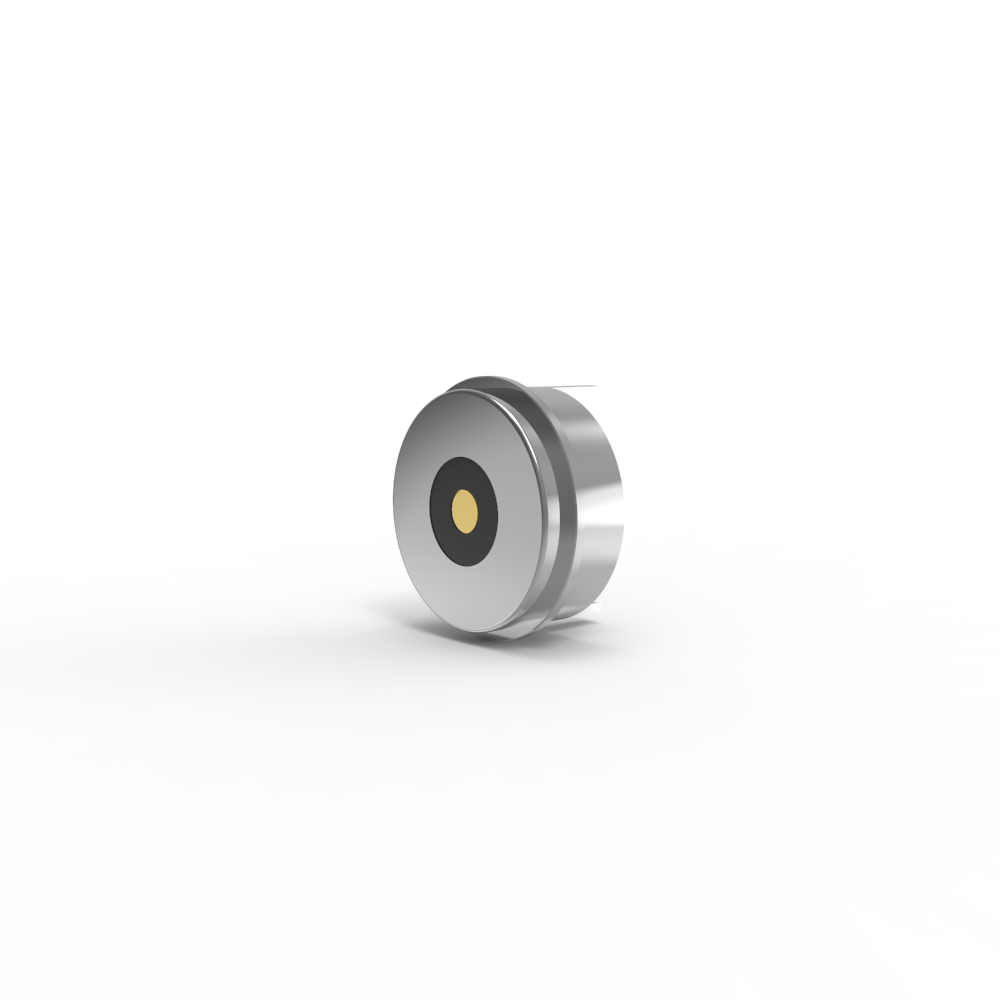

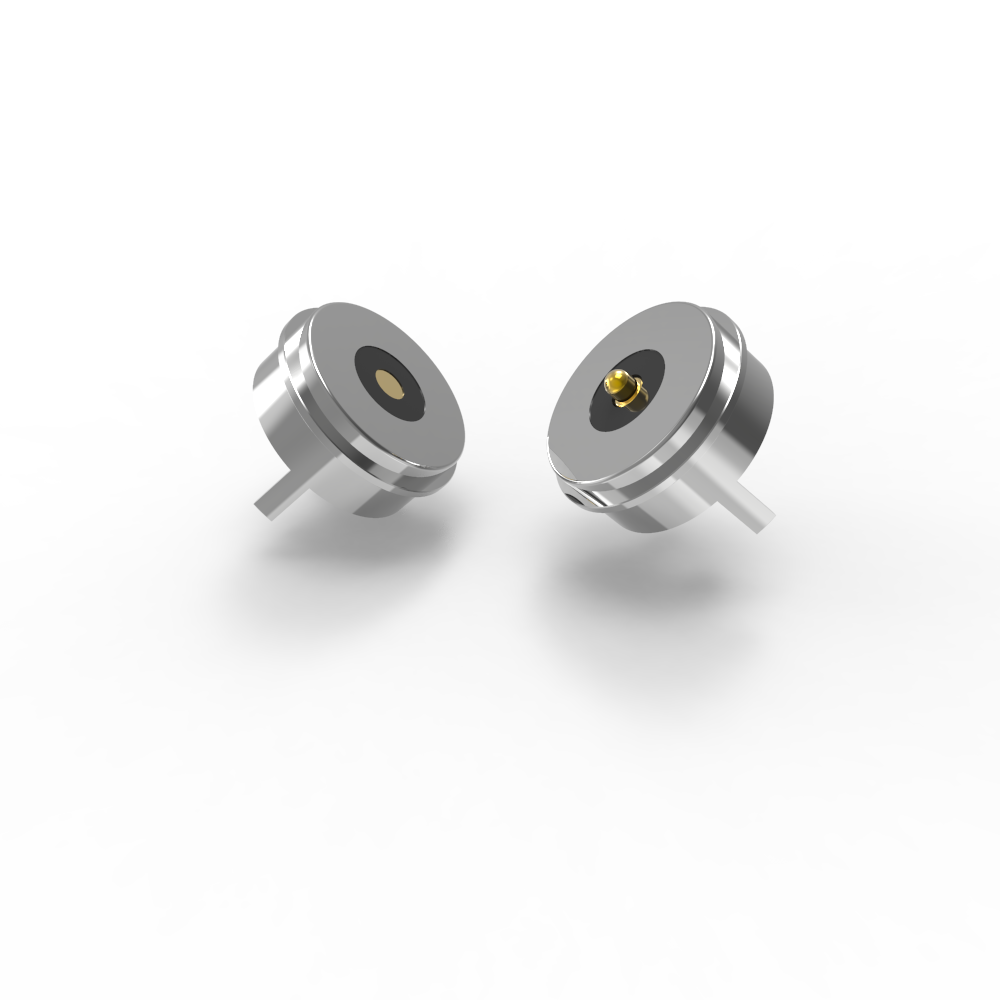

DC12V 5V magnetic connector magnet pcb 2 pin charging connector dia 10.0mm

DC12V 5V magnetic connector magnet pcb 2 pin charging connector dia 10.0mm.

Professional Magnetic Connector Manufacturer: UPE specializes in the design and production of high-quality magnetic connectors and magnetic cable connectors.

Customization is Our Strength:

We employ our own team of professional designers dedicated to understanding and fulfilling your unique requirements.

We offer comprehensive magnetic connector customization services.

We develop tailored magnetic pogo pin connector solutions designed specifically to meet diverse customer needs.

Commitment to Quality & Compliance:

All materials used in our magnetic connectors strictly comply with RoHS & REACH environmental and safety regulations.

Every connector undergoes 100% Short & Open Circuit Testing, ensuring maximum reliability and performance right out of the box.

Male Magnetic Connector Part

...Material:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;
Barrel:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;
Spring:SUS 304 plating 1U"Au;
Housing: Black HTN+30%GF UL94 V-0;
Shell: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Mechanical:
Spring force:80g±20g,at 1.0mm working stroke.
Full storke:1.2mm.
Mechanical life:50000 cycle Min.
...Electrical:
Voltage:12.0 V.
Current:5.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.

Female Magnetic Connector Part

...Materials :
PIN:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;
Housing: Black HTN+30%GF UL94 V-0;
Shell: Lead-freeC6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
....Electrical:
Voltage:12.0 V.
Current:5.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48H.
...& Key inspection dimension .
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

DC Magnetic  Connectors Parameter:

Circular Male Magnetic Connector Technical Drawing

Circular Female Magnetic Connector Technical Drawing

PCB Layout:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products application:

Why UPE shall be your partner?

1. Professional customization service

Benefit:Tailors solutions to your exact specifications, ensuring the product fits your unique needs without compromises. Ideal for niche applications or innovative projects.

2. Fast sample production capability

Benefit: Accelerates your R&D cycle and time-to-market. Rapid prototyping allows for quick iterations, reducing development costs and beating competitors.

3. Strict quality control system

Benefit: Guarantees consistency and reliability. Minimizes defects, returns, and costly recalls, protecting your brand reputation.

4. Processing with imported components

Benefit: Enhances product performance and longevity. High-grade materials (e.g., German/Japanese components) ensure durability and compliance with international standards.

5. High-precision test equipment

Benefit: Validates product accuracy and safety. Critical for industries like aerospace, medical devices, or automotive where tolerances are non-negotiable.

6. Reasonable cost control procedures

Benefit: Optimizes your budget without sacrificing quality. Efficient resource management translates to competitive pricing for you.

7. Product environmental standards

Benefit: Ensures compliance with global regulations (e.g., RoHS, REACH). Future-proofs your supply chain and appeals to eco-conscious markets.

How to Place Your Magnetic Connector Order with UPE

1. Submit Your Requirements

Contact our sales team via:

Email: [union@upetech.net]

Phone: [+86 13434524996]

Online Form: [www.pogopinsconnector.com]

Provide details:

✔ Application (e.g., medical, automotive, consumer electronics)

✔ Connector type (e.g., magnetic pogo pin, charging cable)

✔ Specifications (voltage, current, size, waterproof rating, etc.)

✔ Quantity & lead time

2. Get a Custom Solution (If Needed)

Our engineers will review your needs and propose a custom design (if required).

We’ll share 3D models, samples, or technical drawings for approval.

Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.

Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
