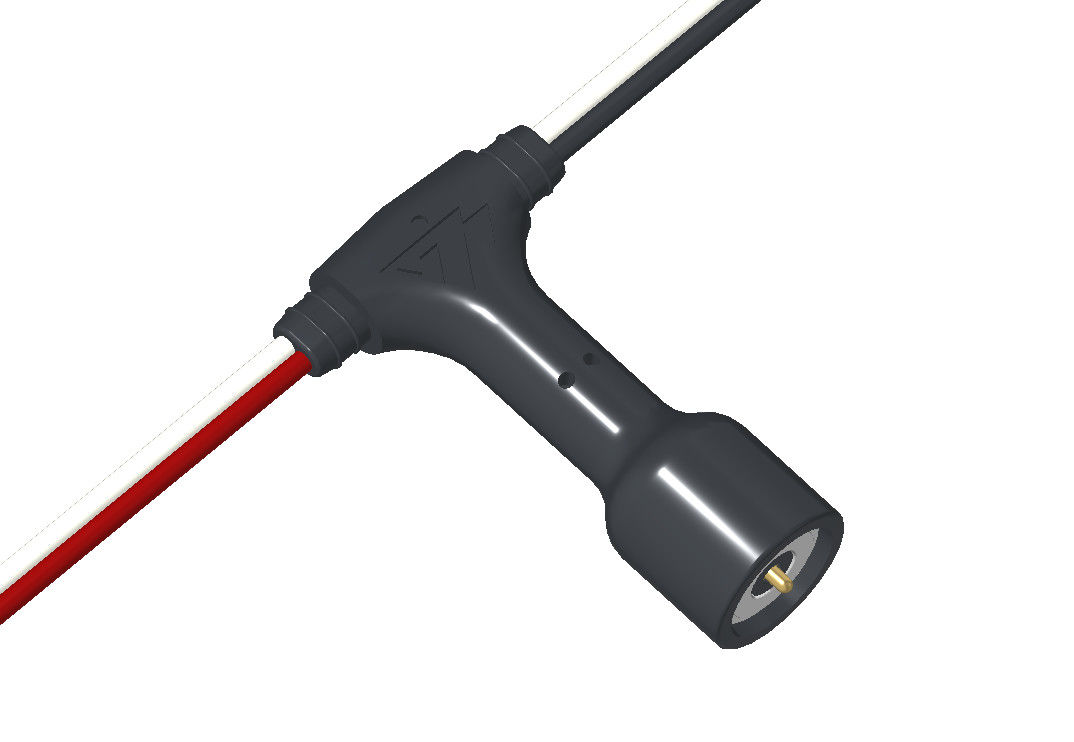

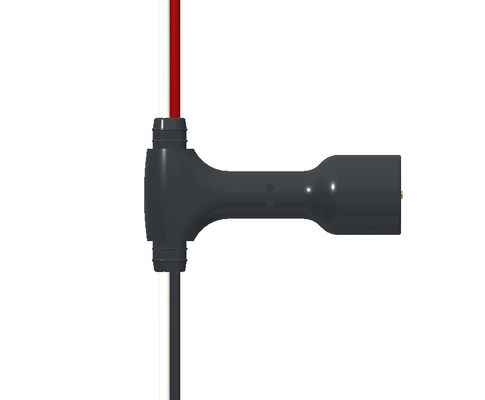

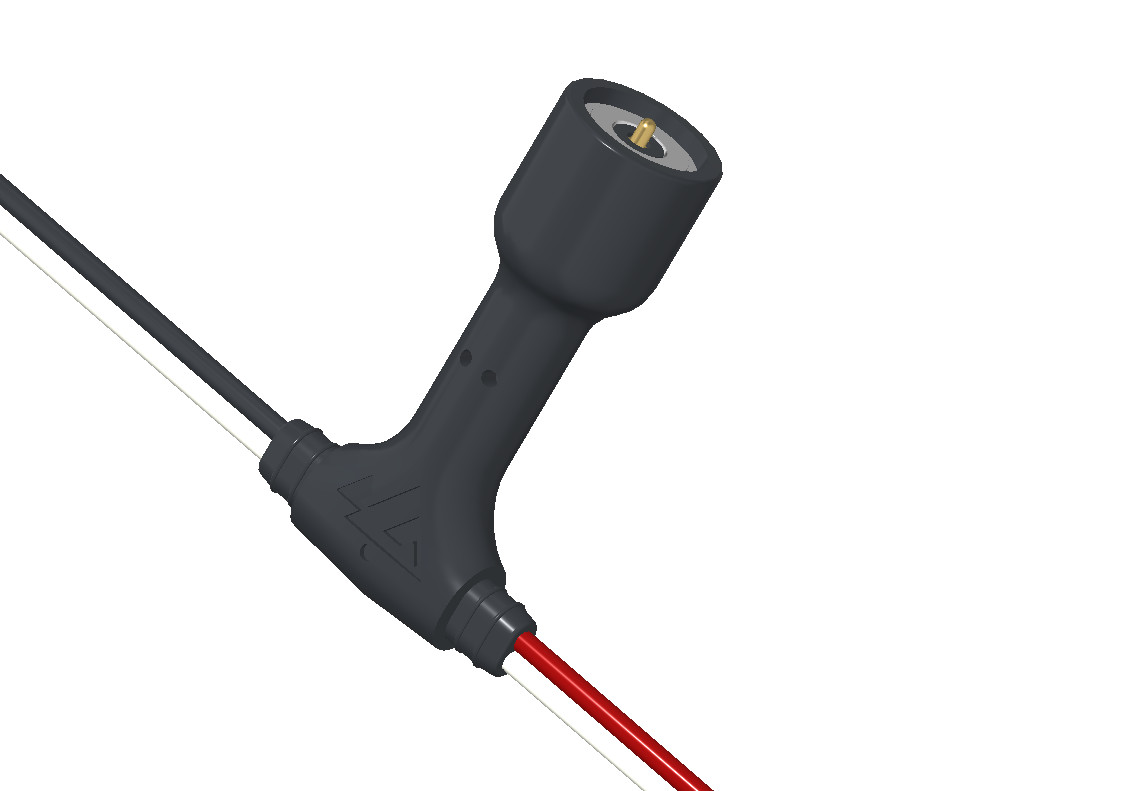

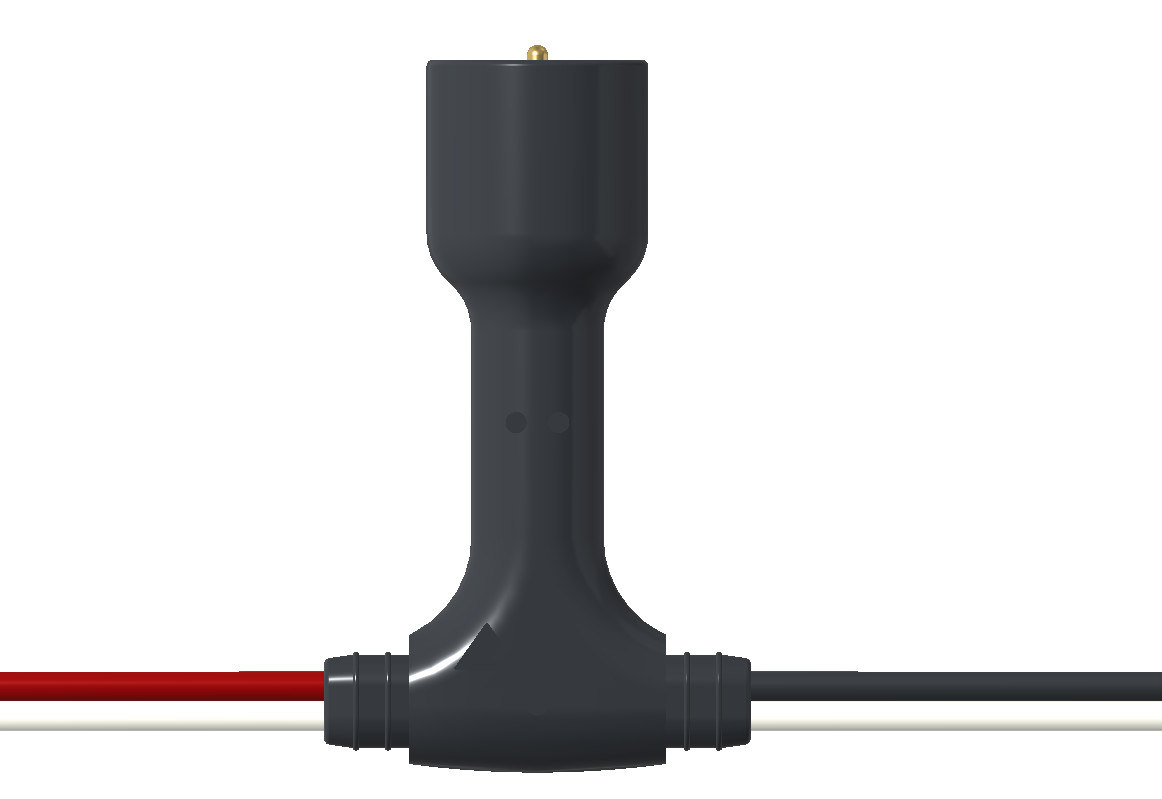

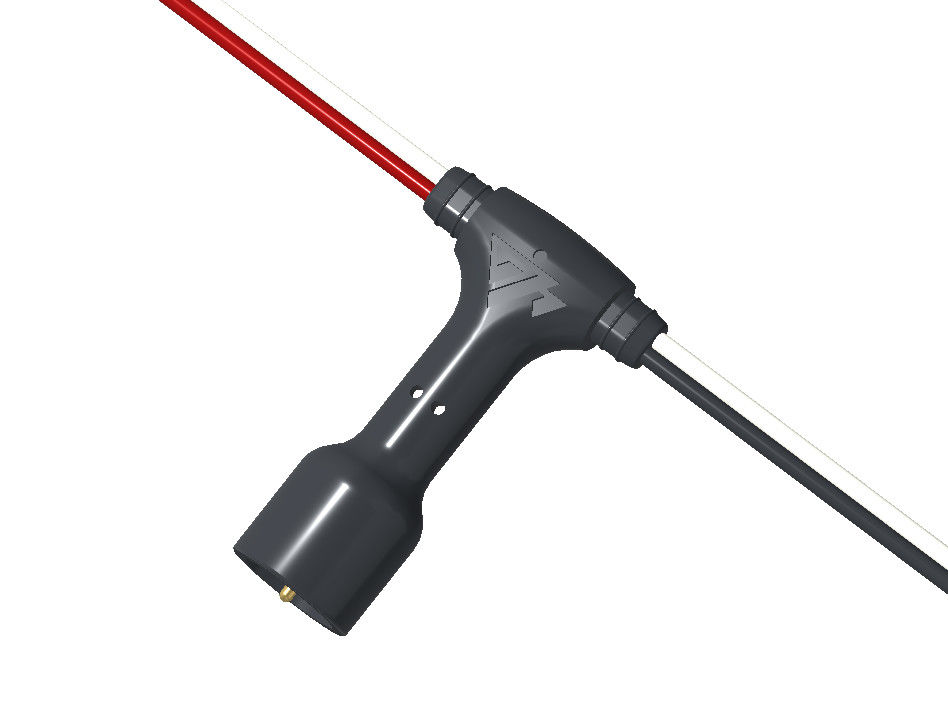

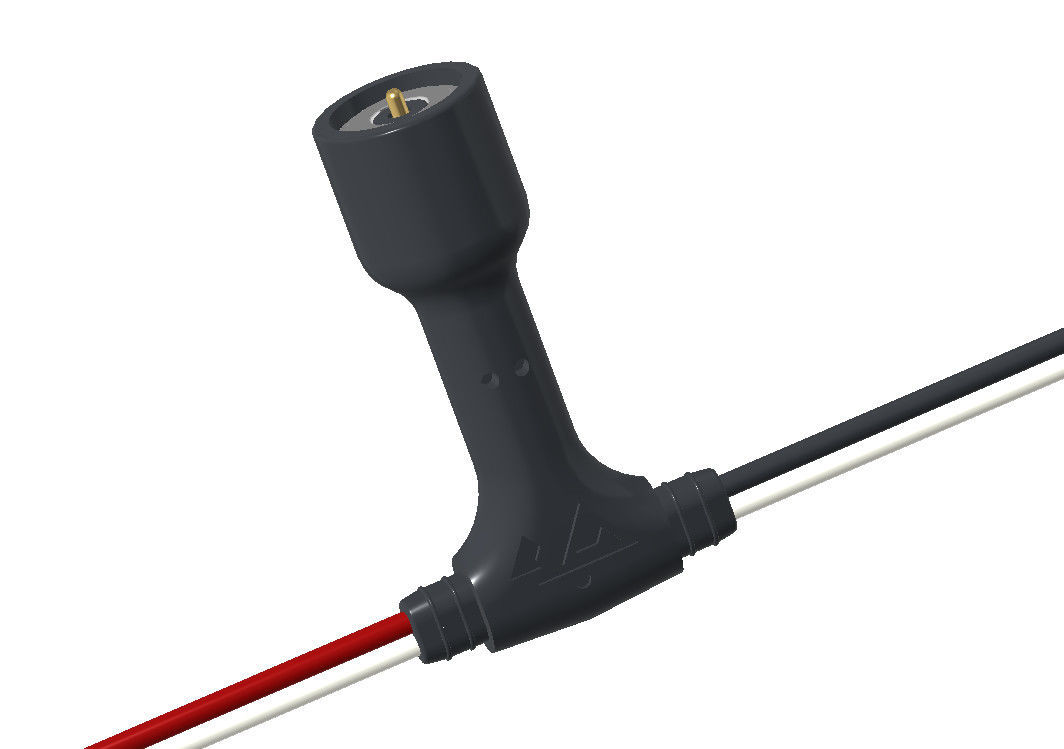

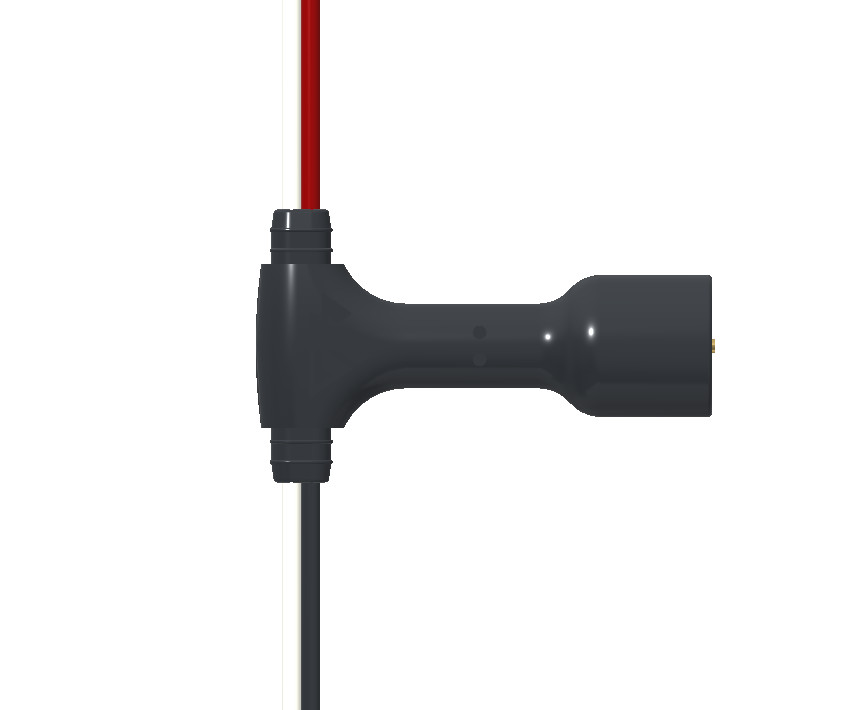

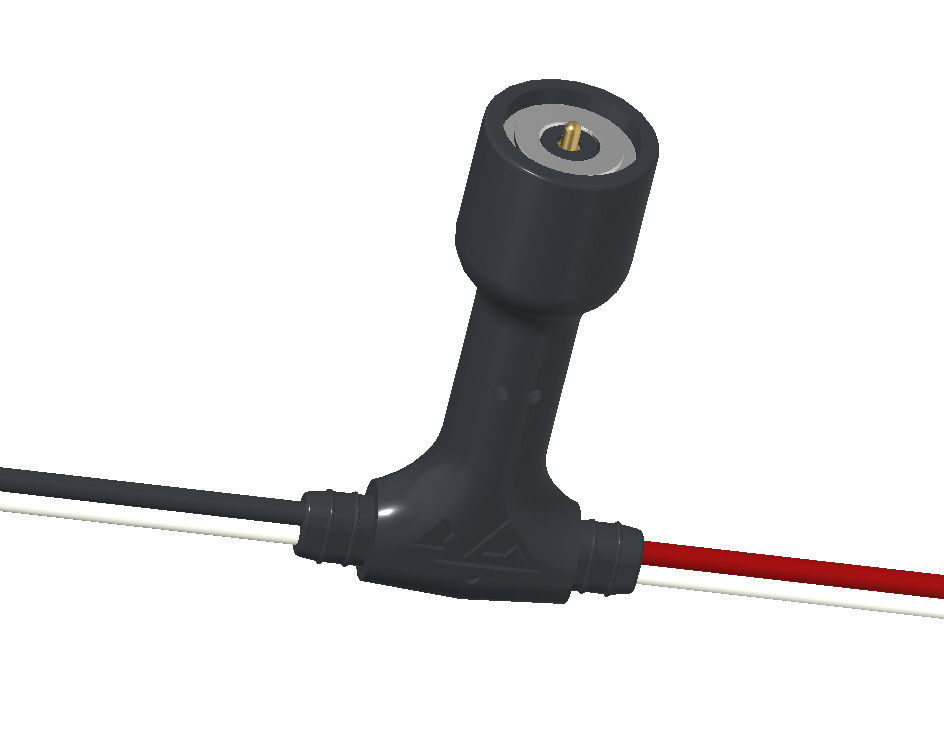

400g Magnetic Force Round Connector Black 1.5A Connector With Wire

400g magnetic force 1.5A current DC round male magnetic connector with wire

Materil and coating conform to ROHS and REACH standards;

To ensure the best usage,please operate it based on the working height;

Based on the engineering drawings,shall not exceed the maximum allowed compression.

Mechanical:

-Contact force:80g±20g at 1.1mm working storke

-Life test:10,000cycle

-Adsorption capacity test:The female docking adsorption is 400g±20%

Electrical:

-Rated Voltage: DC 12V – The device is designed to operate at a nominal voltage of 12V DC.

-Rated Current: 1.5A Max – The maximum continuous current the device can handle is 1.5 Amperes.

-Contact Resistance of Spring Pin: 50 milliohm Max – The electrical resistance between the spring pin contacts should not exceed 0.05 ohms (50 mΩ).

DC Male Magnetic Cable Connectors Parameter:

DC Magnetic  Cable Connector Technical Drawing

DC Magnetic Cable Connector Mnode of Connection

Packaging view:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products are widely used in various industries due to their convenience, reliability, and ability to prevent damage from accidental tugs. Here are some common applications:

1. Consumer Electronics
●Smartphones & Tablets: Used for charging (e.g., MagSafe for iPhones, magnetic charging adapters).

●Wearables: Smartwatches, wireless earbuds (e.g., Apple Watch charger).

●Laptops & Accessories: Magnetic charging ports (older MacBook MagSafe connectors).

2. Medical Devices
●Wearable Health Monitors: ECG patches, glucose monitors.

●Surgical & Diagnostic Tools: Secure, quick-disconnect power/data connections.

●Hearing Aids: Magnetic charging solutions.

3. Industrial & Automotive
●Automotive Sensors & Diagnostics: Easy-to-connect test equipment.

●Robotics & Drones: Secure power/data transfer with quick-release safety.

●LED Lighting Systems: Modular magnetic power connectors.

4. Marine & Outdoor Equipment
●Waterproof Devices: Magnetic charging for rugged electronics (avoiding port corrosion).

●Diving & Military Gear: Secure connections in harsh environments.

5. IoT & Smart Home Devices
●Smart Locks & Cameras: Tamper-resistant power connections.

●Modular Appliances: Easy-to-attach peripherals (e.g., magnetic kitchen gadgets).

6. Energy & Power Tools
●Battery Packs: Quick-swap magnetic connections for tools & drones.

●Solar Panels: Easy-install magnetic connectors.

Why UPE shall be your partner?

● Reliability and durability

● Rapid design and delivery

● Reliable and honest partnership

How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

*Negotiate pricing & terms (bulk discounts may apply).

*Confirm order details (connector type, quantity, customization).

*Make payment (via PayPal, bank transfer, or other secure methods).

*Shipping & Quality Check
*Track the shipment.

*Inspect the product upon arrival to ensure quality.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
