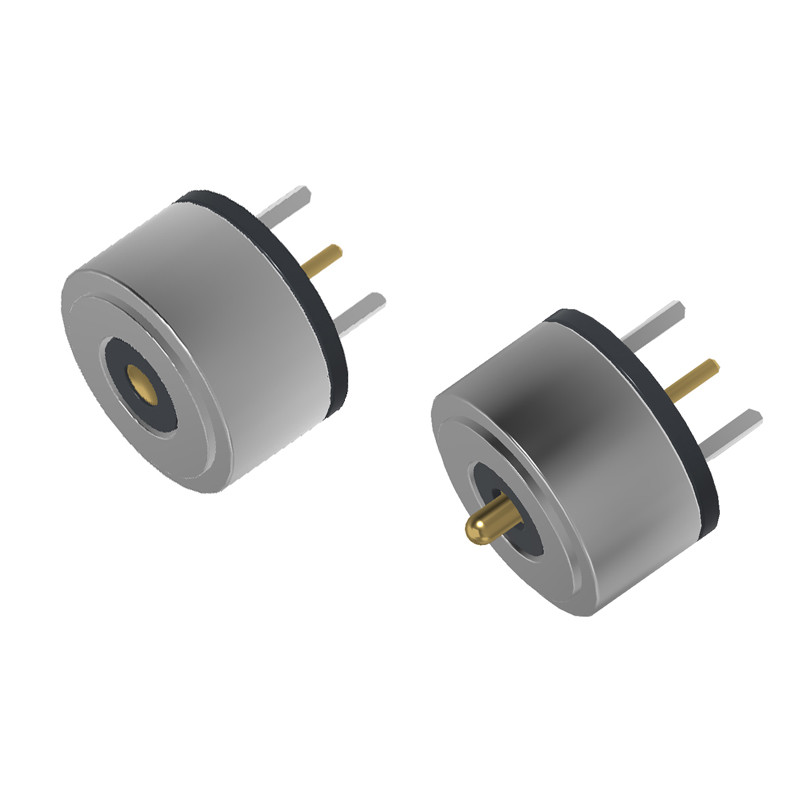

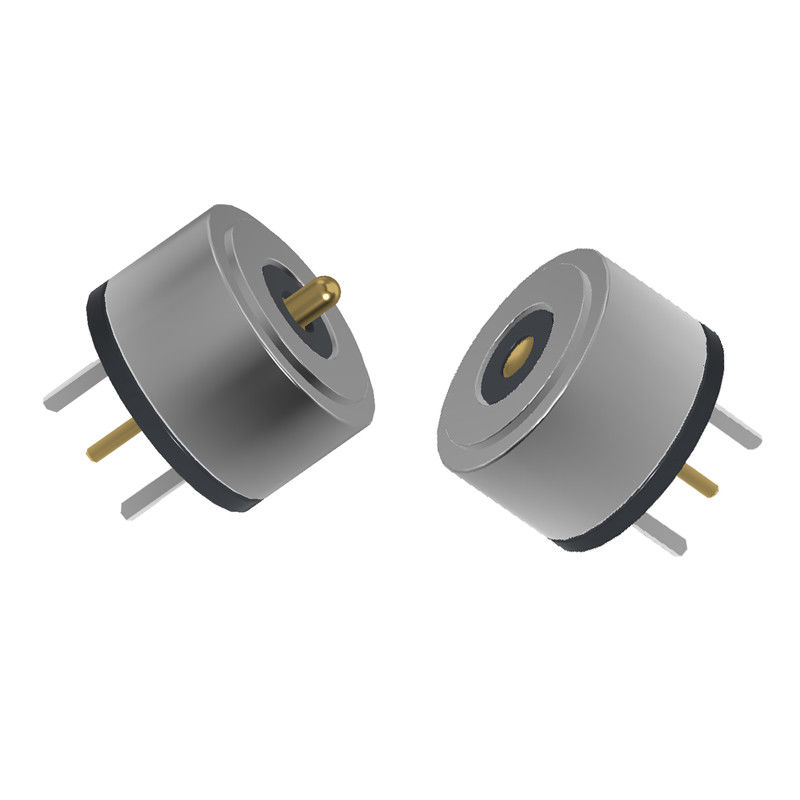

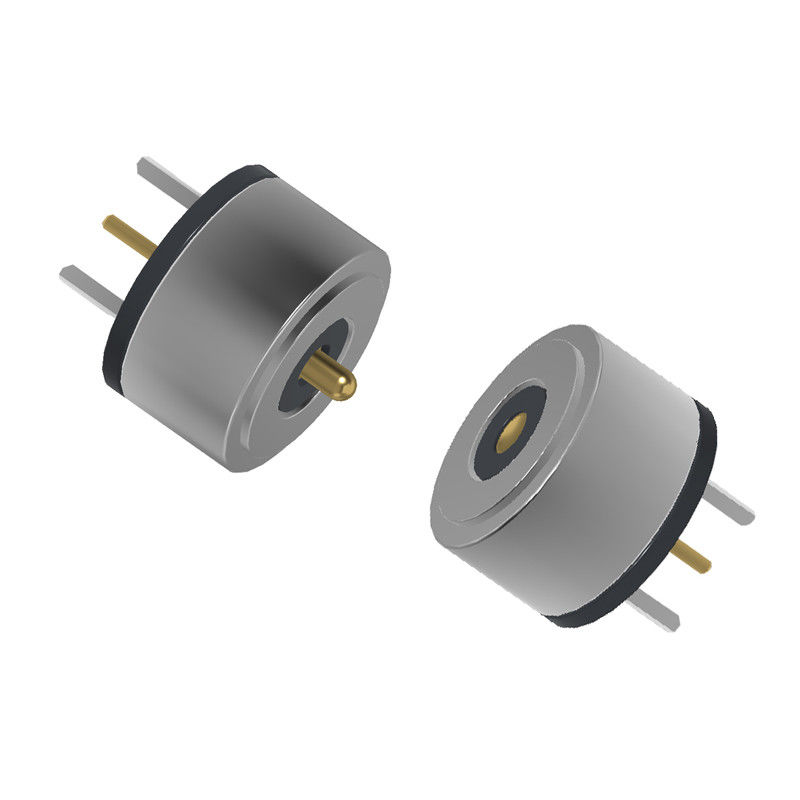

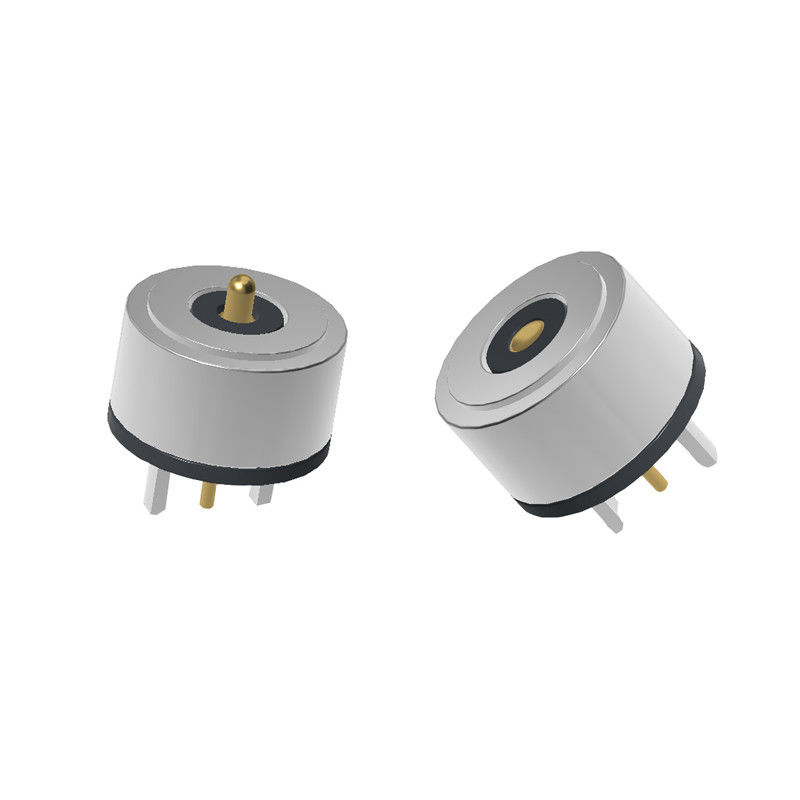

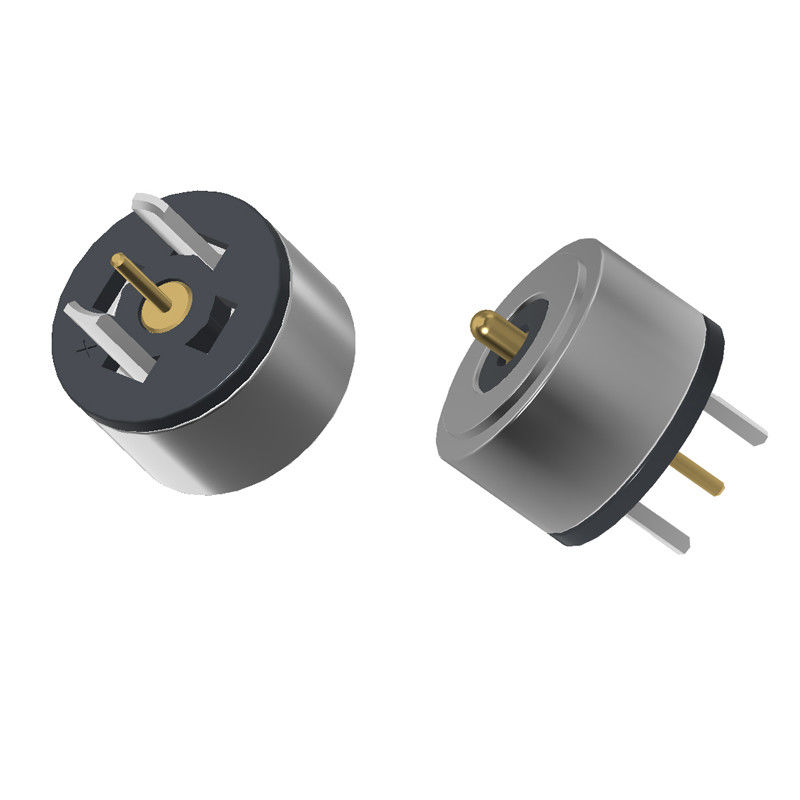

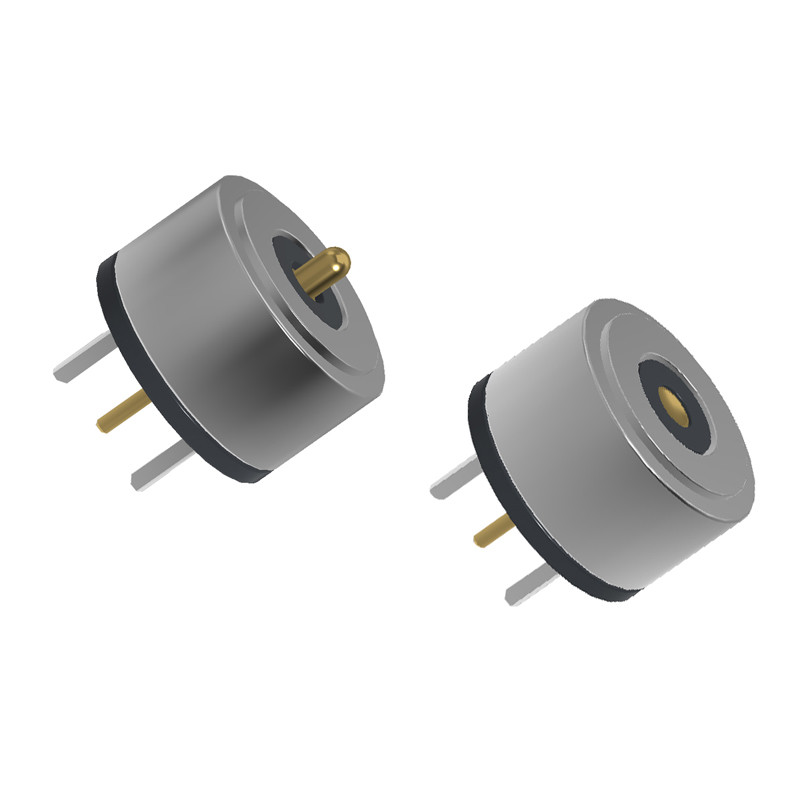

3A 2 Pin Magnetic Connector Circular Female And Male Connector Customized For Electronic Device

3A Charging 2pin Male And Female Magnetic Connector For Electronic Device

Pogo pin magnetic round female male power charging DC magnetic connector,UPE focus on high current magnetic connector and magnetic cable pogo pin connector

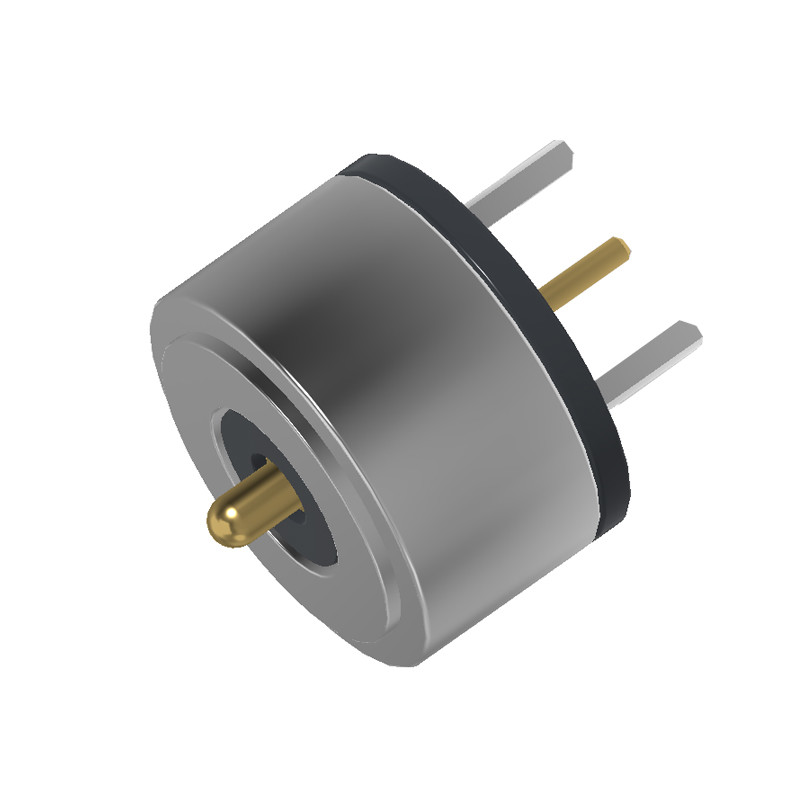

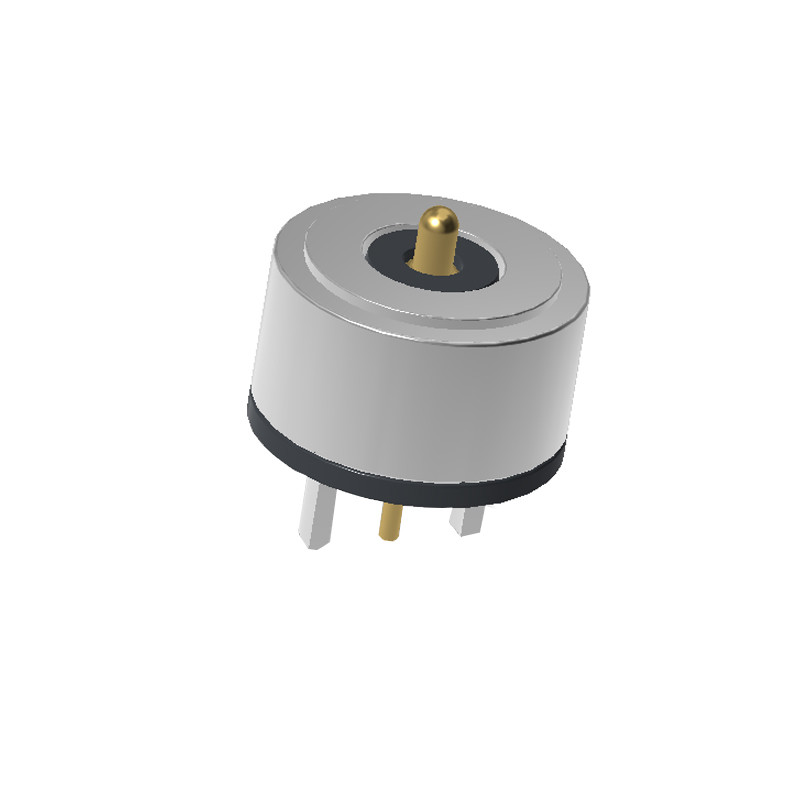

Male Part: 8.0mm magnetic connector drawing size

Female Part: female magnetic connector

Magnetic connector parameter list:

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof  (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic connector application:

Why do customers choose UNION?

1. Professional customization service

Different products and solutions can be designed according to different customer needs

2. Fast sample production capability

Standard product 2-3 days sample, new custom sample 7 working days, mold opening product 12 days

3. Strict quality control system

The concept of quality first runs through the entire production and inspection process, and strictly controls each process to ensure the quality of customer satisfaction.

4. Processing with imported components

A small number of needle shafts are machined from imported precision lathes,
and most of the needle shafts are made of imported cold stamping for higher stability.

5. High-precision test equipment

Provide accurate and precise testing to continuously improve product quality

6. Reasonable cost control procedures

Save costs, eliminate waste, optimize processes, and highlight cost competitiveness

7. Product environmental standards

The product meets the EU ROHS standard and meets halogen
