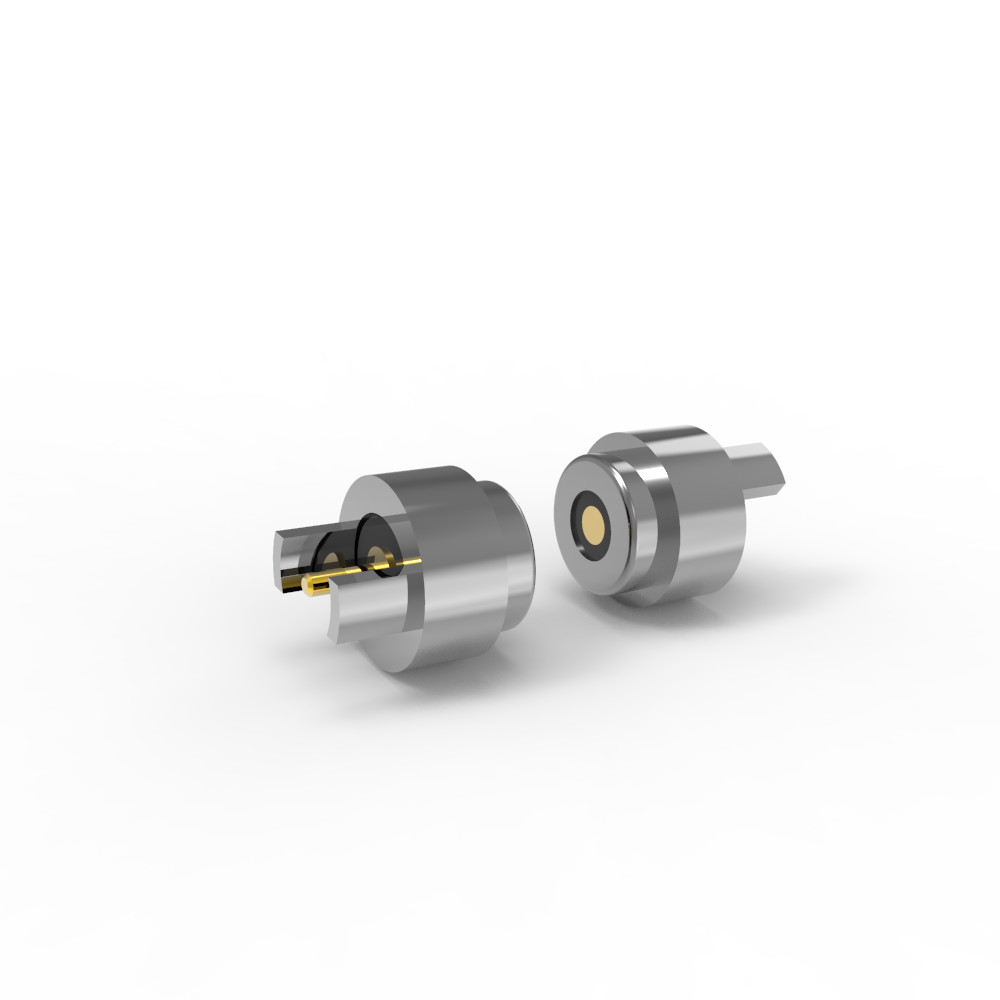

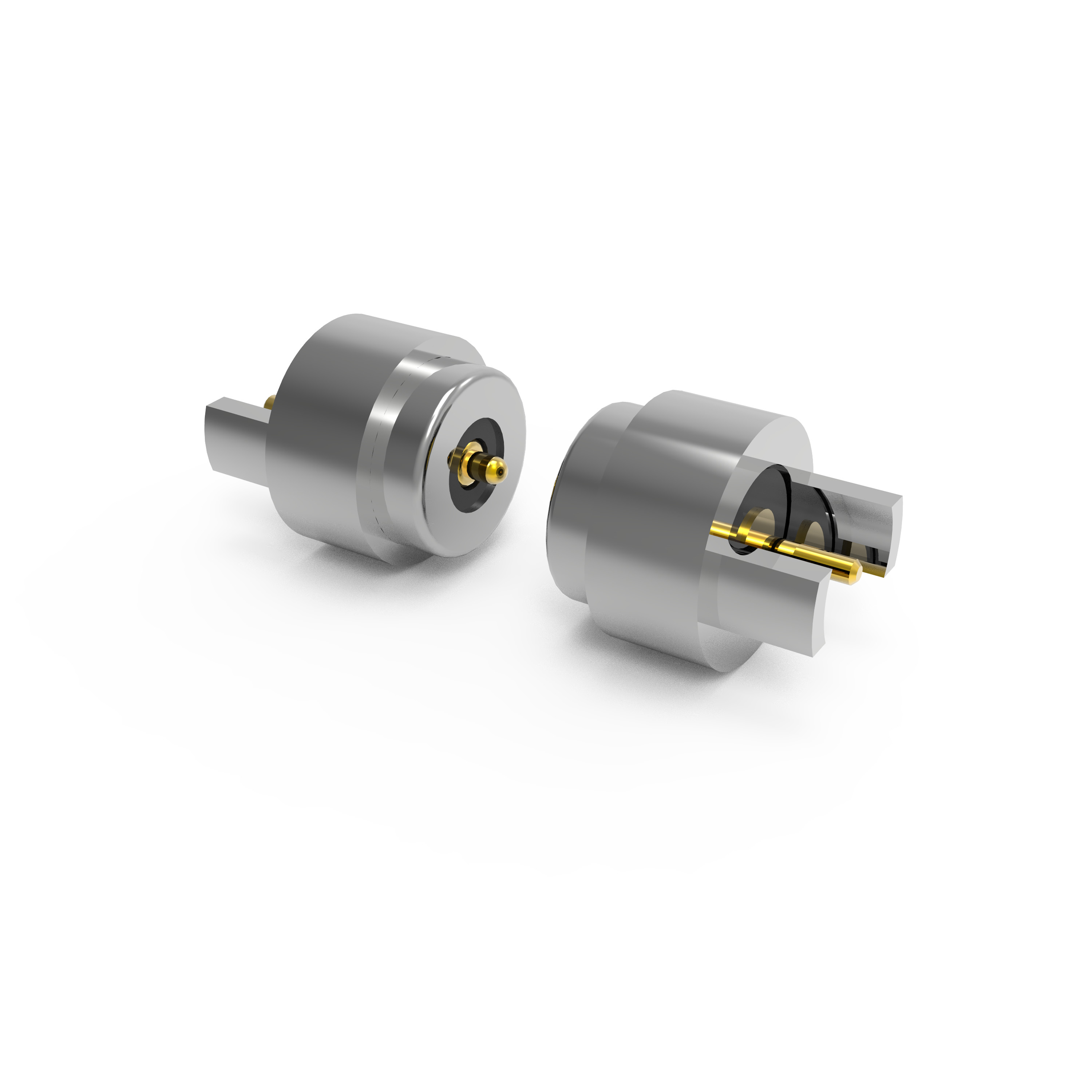

Customized Round Magnetic Connector 4.0mm Male And Female Connectors 1A

Brand Name:	UPE
Model Number:	VIC1088A / VIC1800B
MOQ:	5000
Price:	$1-$5
Packaging Details:	PE
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9002

Document:

VIC1800A.pdf

Name:

Round Magnetic Connector

Material:

Lead-free C6801, C3604, Barss C3602, SUS304, NdFeB N52

Spring Force:

50g±10g,at 0.7mm Working Stroke

Full Storke:

0.9mm

Mechanical Life:

50000 Cycle Min.

Volatge:

12V

Current:

Contact Resistance:

50mΩ Max (PIN)

Salt Spray Test:

48H

Supply Ability:

5KPCS/Day

Highlight:

Customized Round Magnetic Connector

Round Magnetic Connector 4.0mm

Male And Female Connectors 1A

Product Description

Lead-Free C6801 Circular 4.0mm Male Female Magnetic Connector For Shoes

Round type magnetic charger connector,plating 5U" Min Au over 60~100U"N for brass and plunger, the housing material is black HTN+30%GFUL94 V-0, the shell is brass C3602Plating Ni, the male and female magnetic connector is applied to shoes,heating the throw pillow, charging, etc.

Magnetic connector application description (not limited to the following):
1.Plug-in welding PCB board;
2. Forming and encapsulating after welding wires;
3.A transfer terminal of that PCBboard can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly

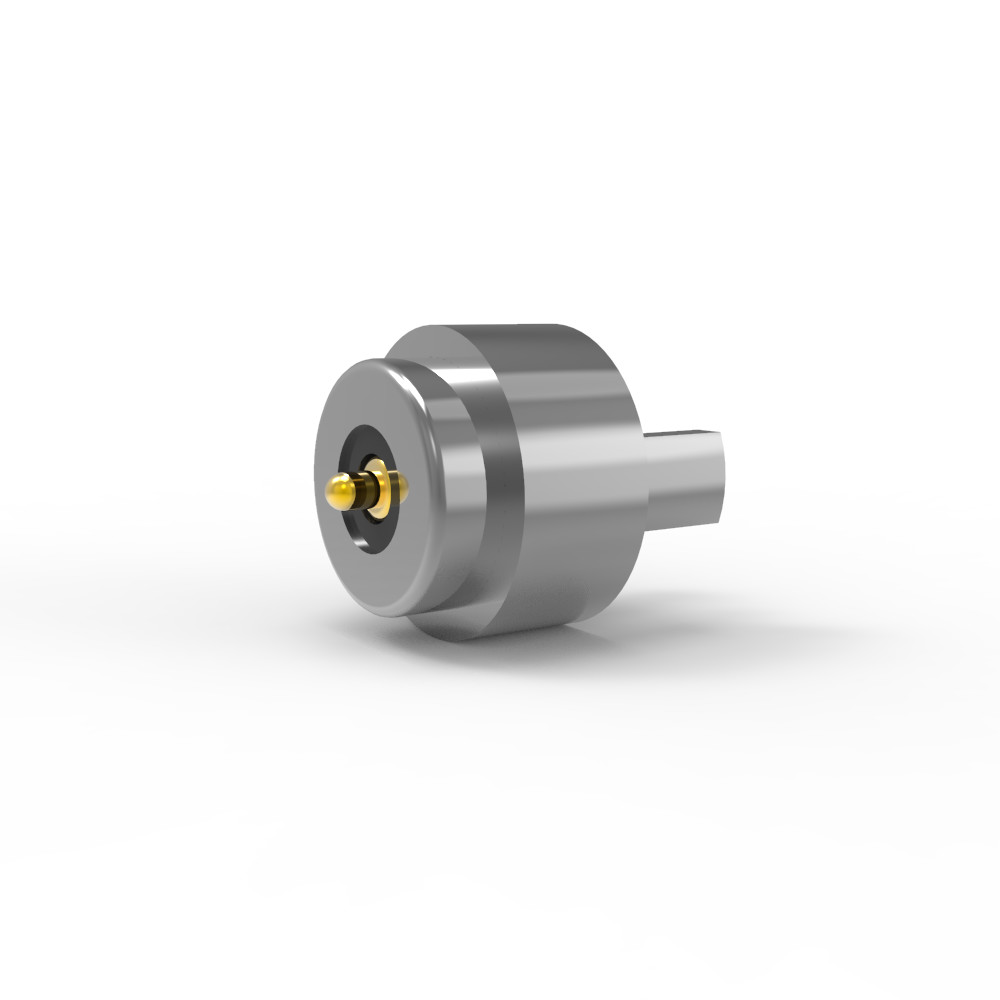

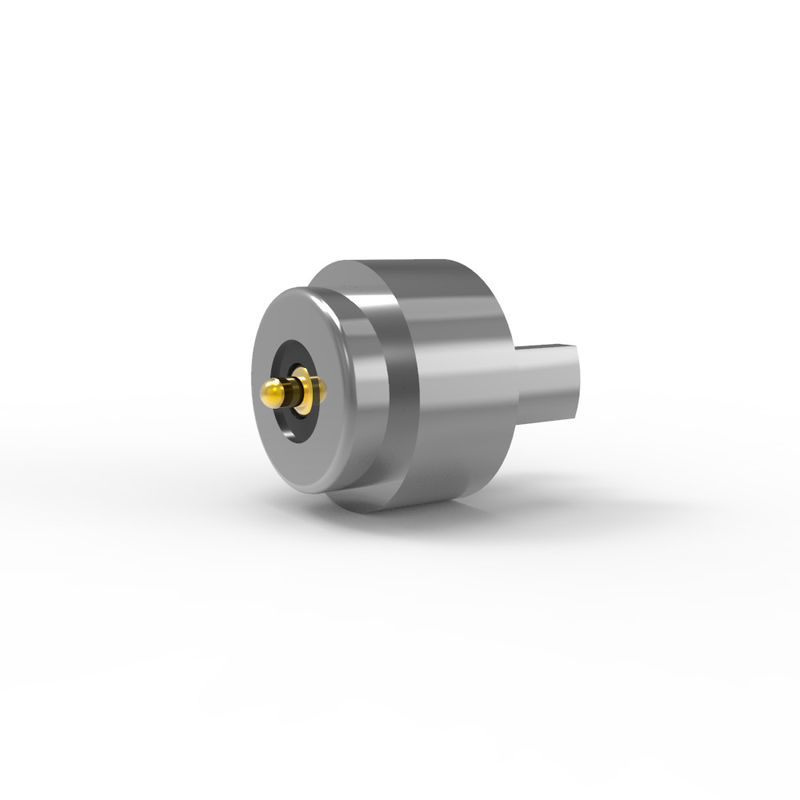

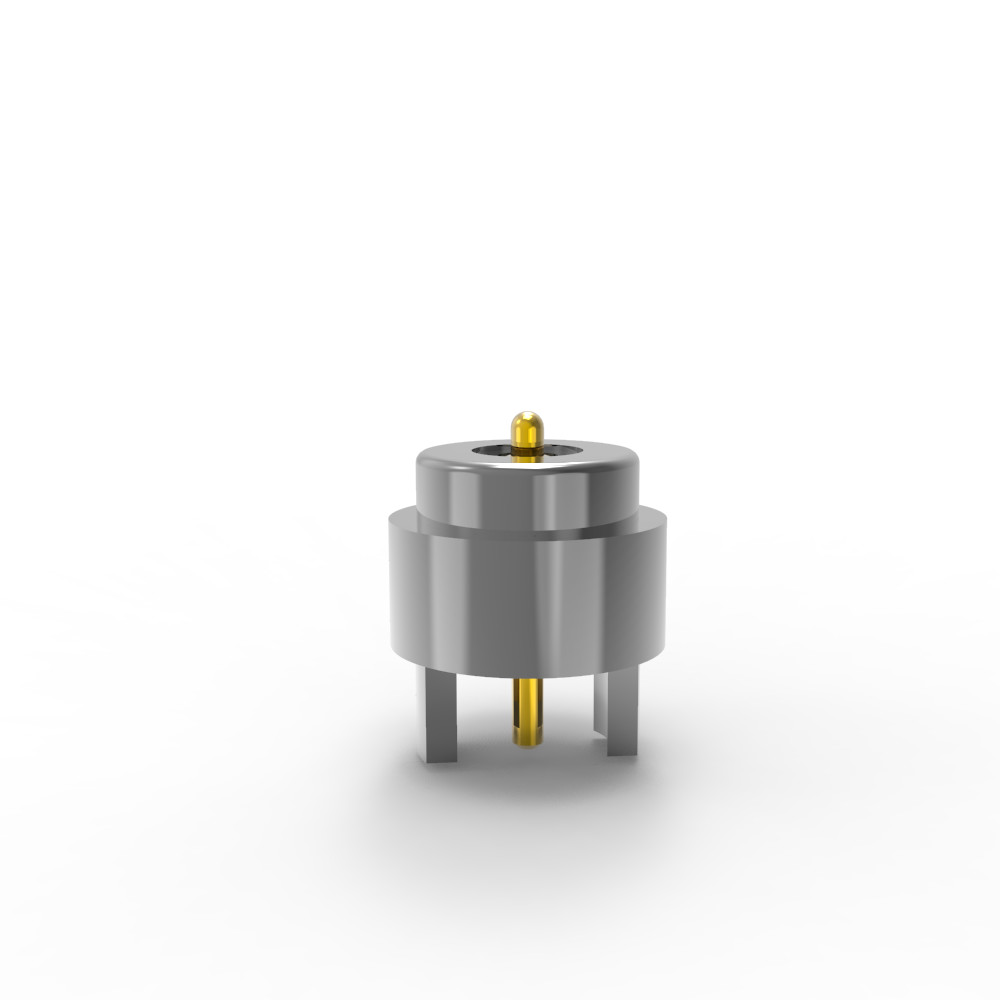

Male DC magnetic connector spec:

Customized Round Magnetic Connector 4.0mm Male And Female Connectors 1A 0

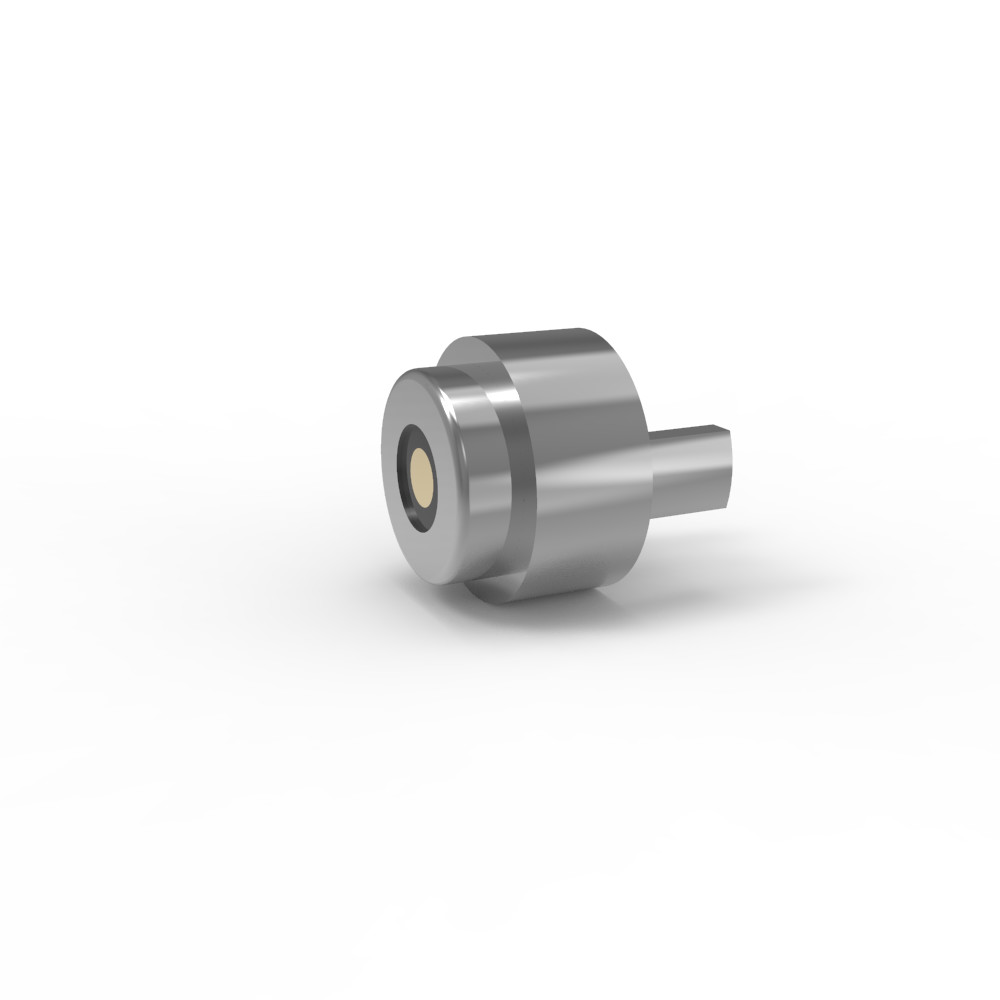

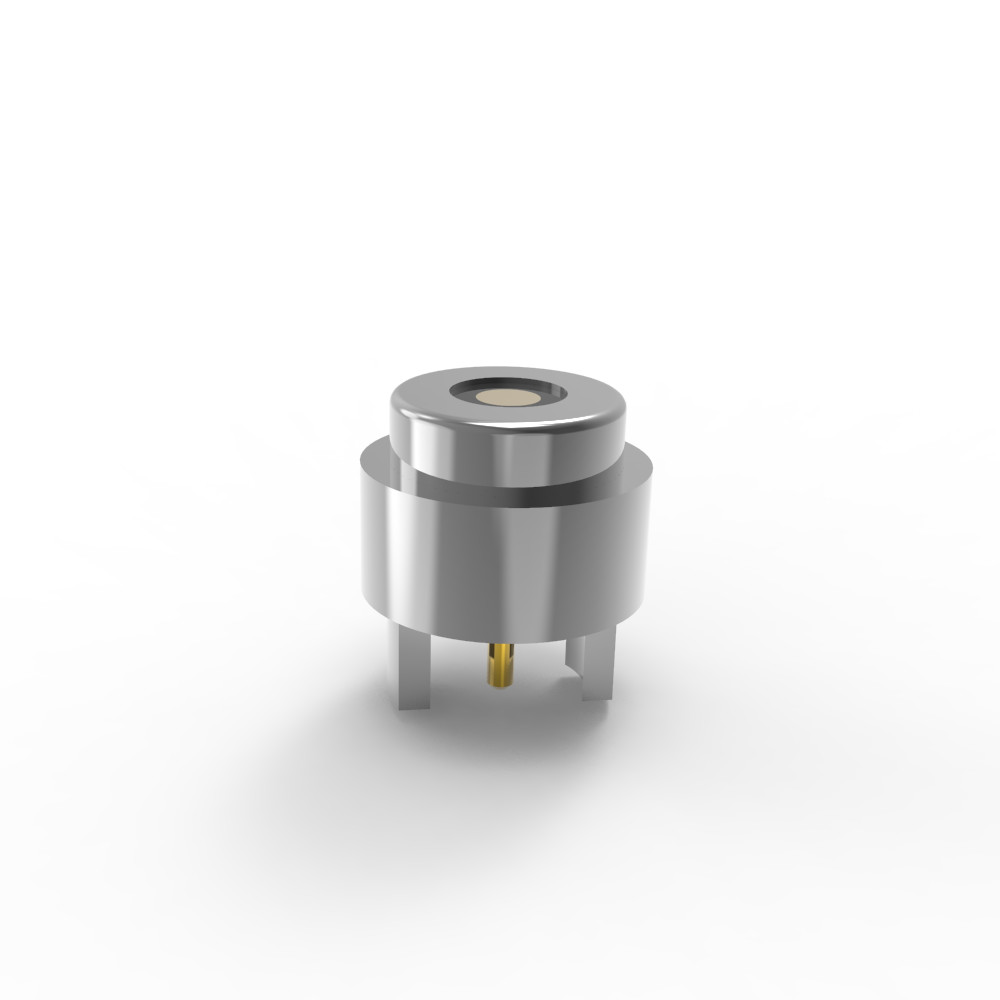

Female 2pin magnetic connector spec:

Customized Round Magnetic Connector 4.0mm Male And Female Connectors 1A 1

Magnetic connector parameter list:

Pogo Pin	Lead-free C6801
Housing	Black HTN+30%GF UL94 V-0
Shell	BrassC3602Plating Ni;
Magnet	NdFeB N52 Plating Ni
Spring force	50g±10g,at 0.7mm working storke.
Full storke	0.9mm
Mechanical life	50000 cycle Min..
Current	1A
Voltage	DC 12V
Contact resistance	50m Max (PIN).
Salt spray test	48H
Certification	ROHS or REACH compliant product
Test	100% open and short test

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

DC 2PIN Magnetic cable connector application:

Customized Round Magnetic Connector 4.0mm Male And Female Connectors 1A 2

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

7. Product environmental standards

Any question, please send to union@upetech.net
