10.0mm round male and female magnetic pogo pin connector for smart hush buckle

Basic Information
Place of Origin: China
Brand Name: UPE
Certification: ISO9002
Model Number: VIC2650C / VIC2650D
Document: VIC2650C.pdf
Minimum Order Quantity: 5000
Price: $1-$5
Packaging Details: PE bags
Delivery Time: 12-15 working days
Payment Terms: T/T
Supply Ability: 5KPCS/Day
Detail Information
Name: Rounded Magnetic Connector Color: White
Material: Lead-free C6801,SUS 304 ,White LCP, NdFeB N52 Current: 3.0A
Volatge: 12V Spring Force: 70g±20g
Working Storke: 1.0mm Salt Spray Test: 48H
Mechanical Life: 50000 Cycle Min. Contact Resistance: 50mΩ Max (PIN)

Product Description

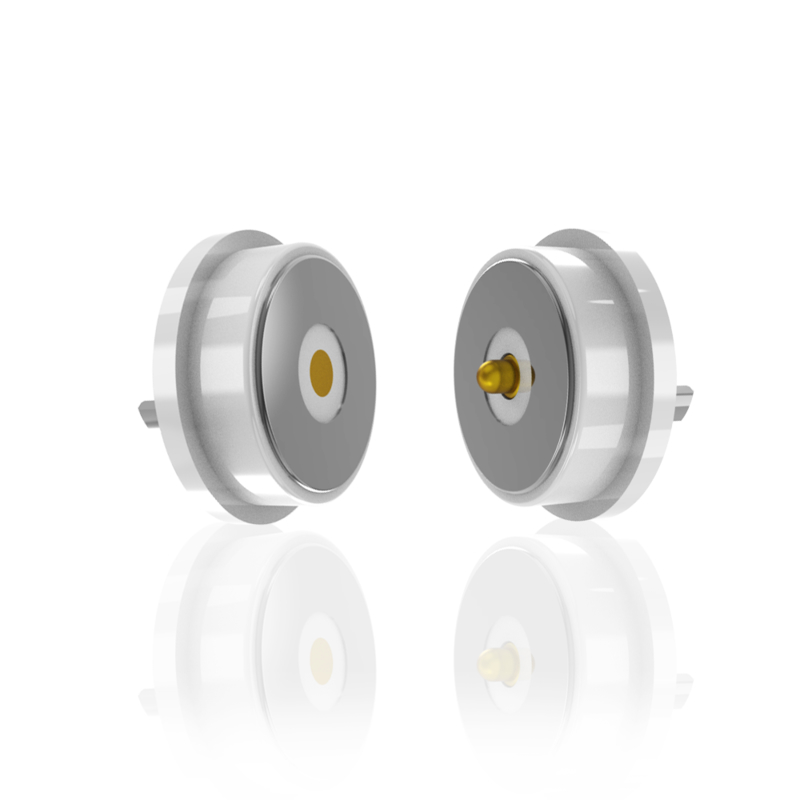

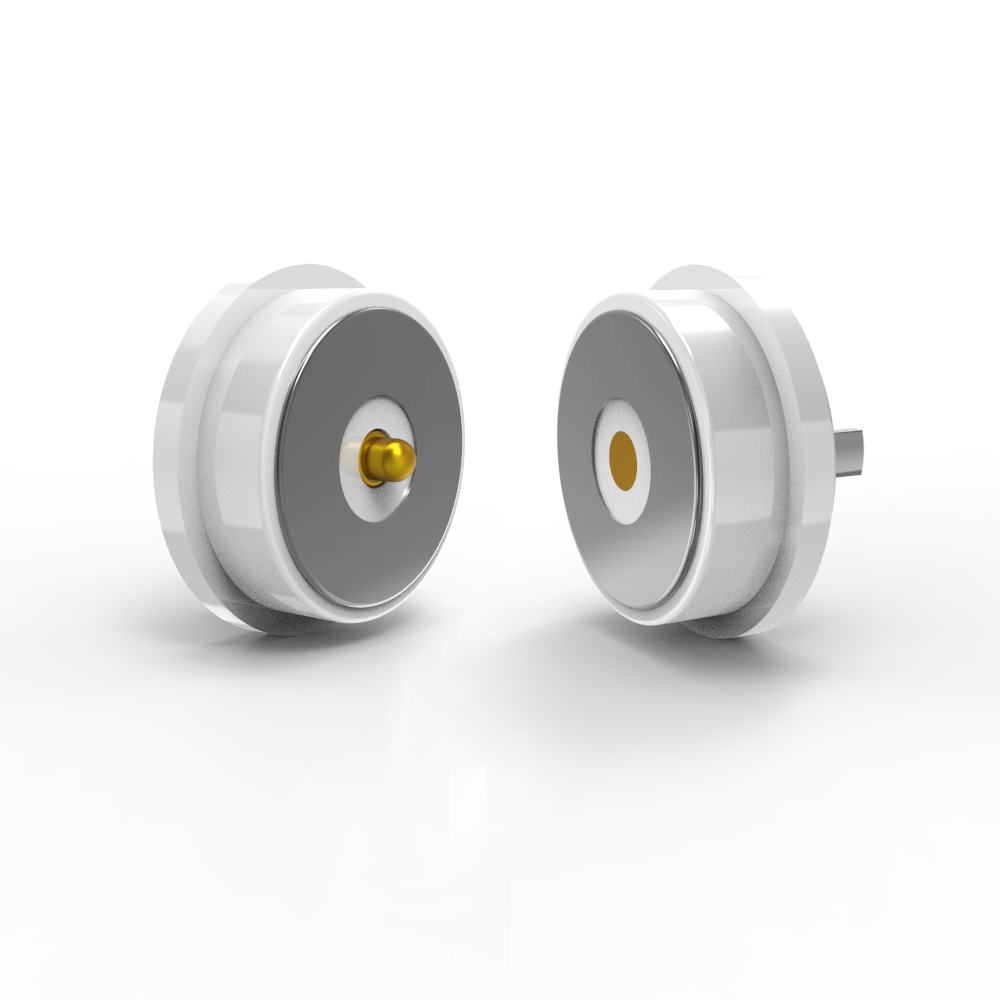

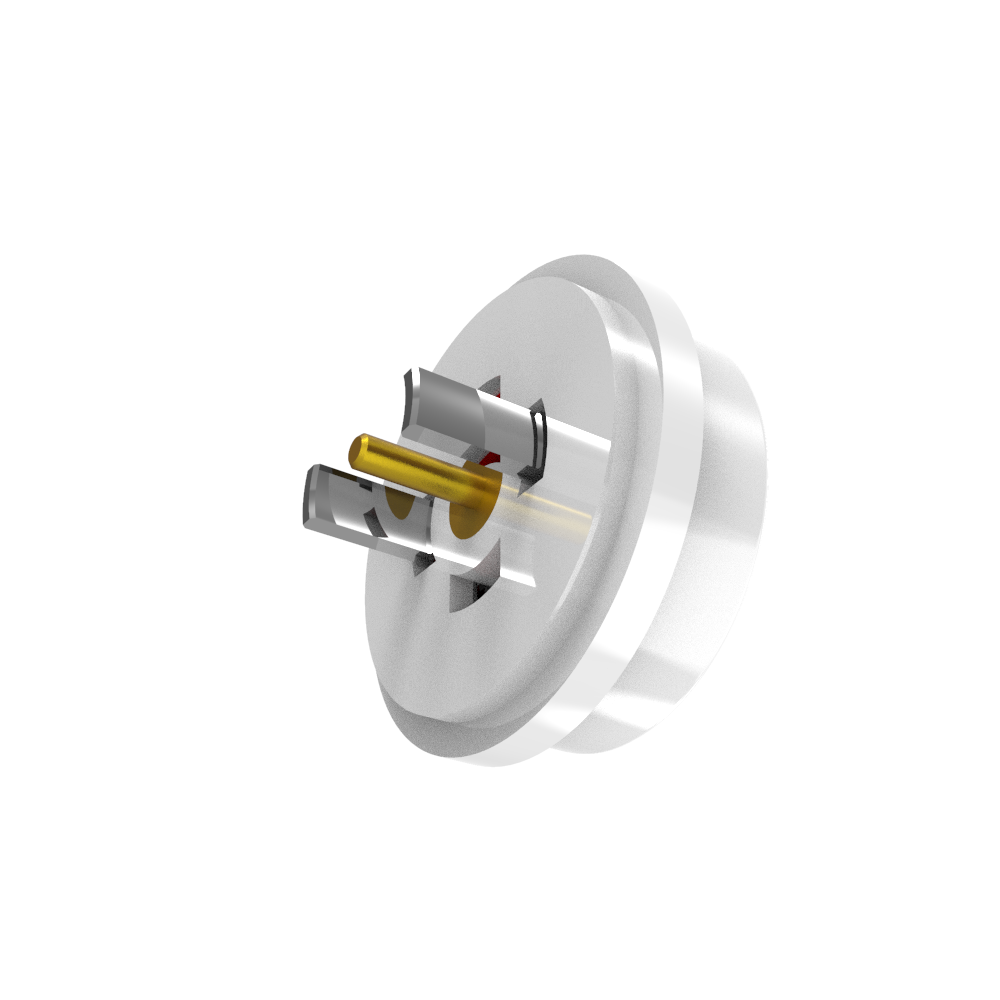

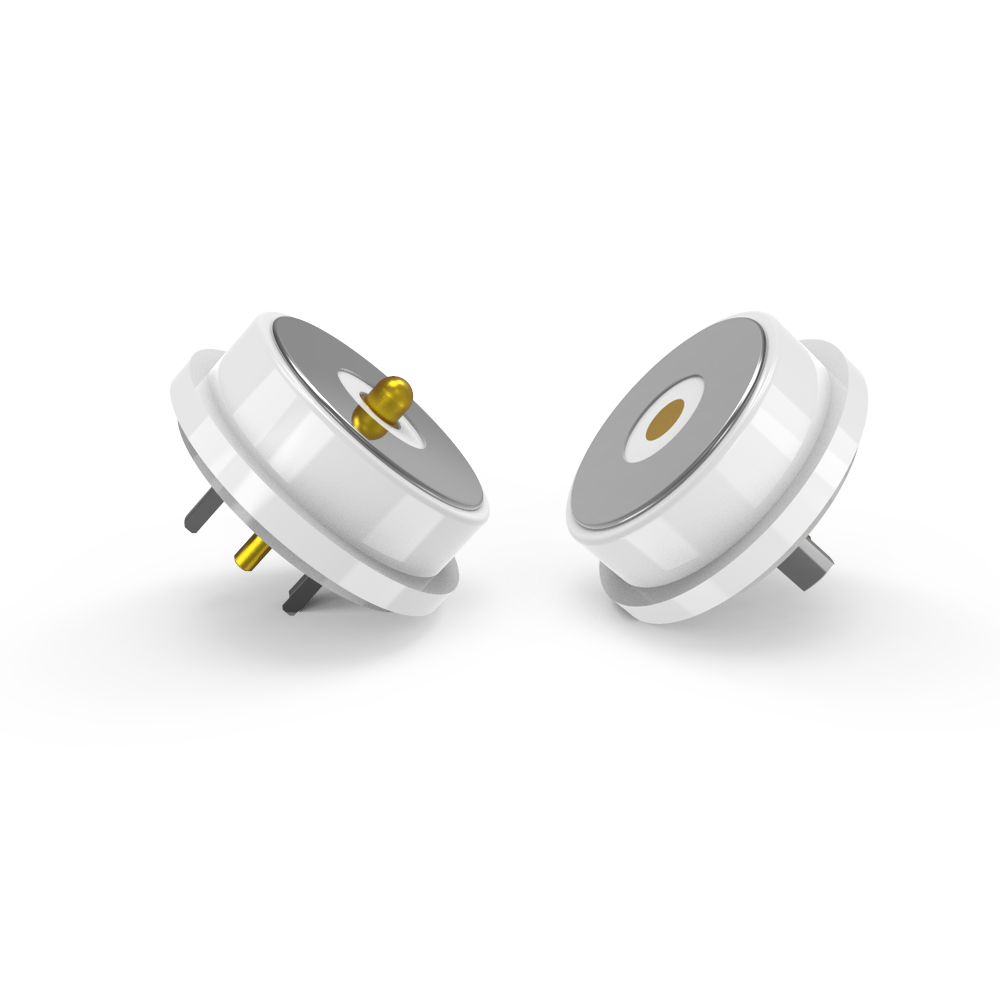

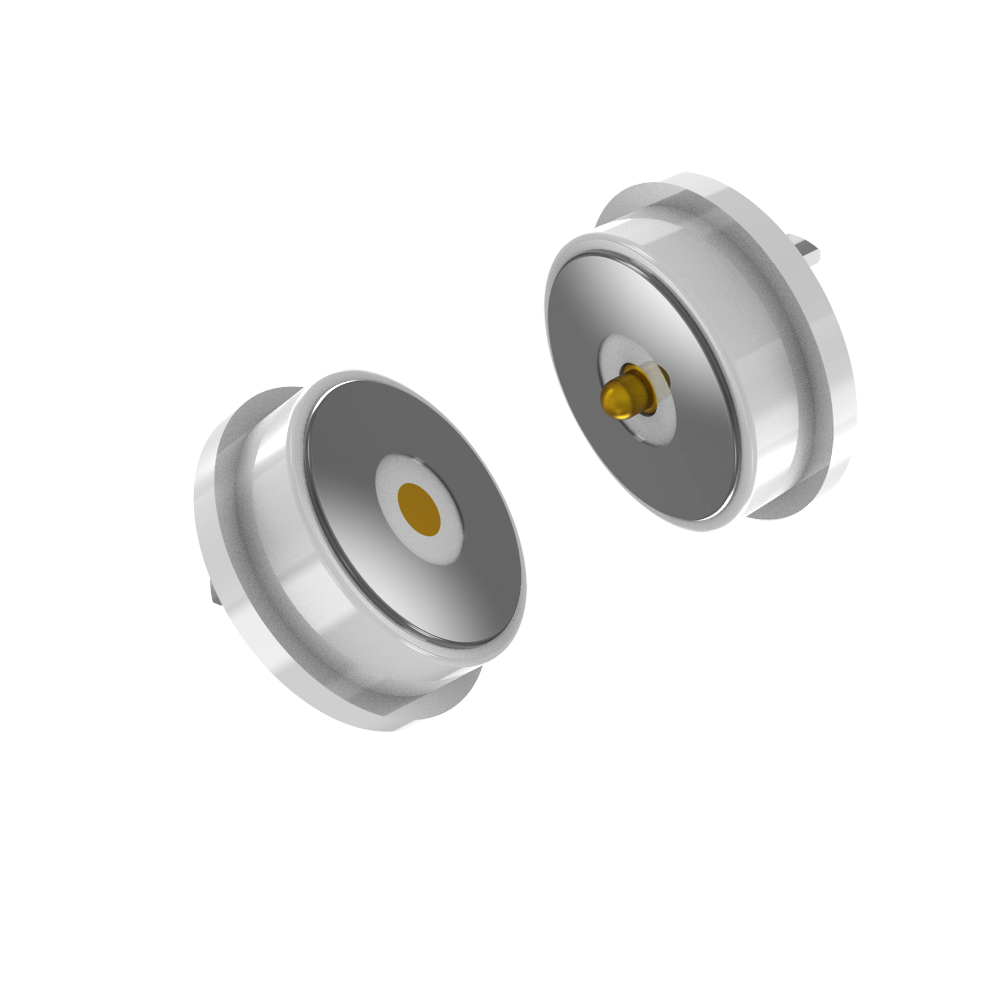

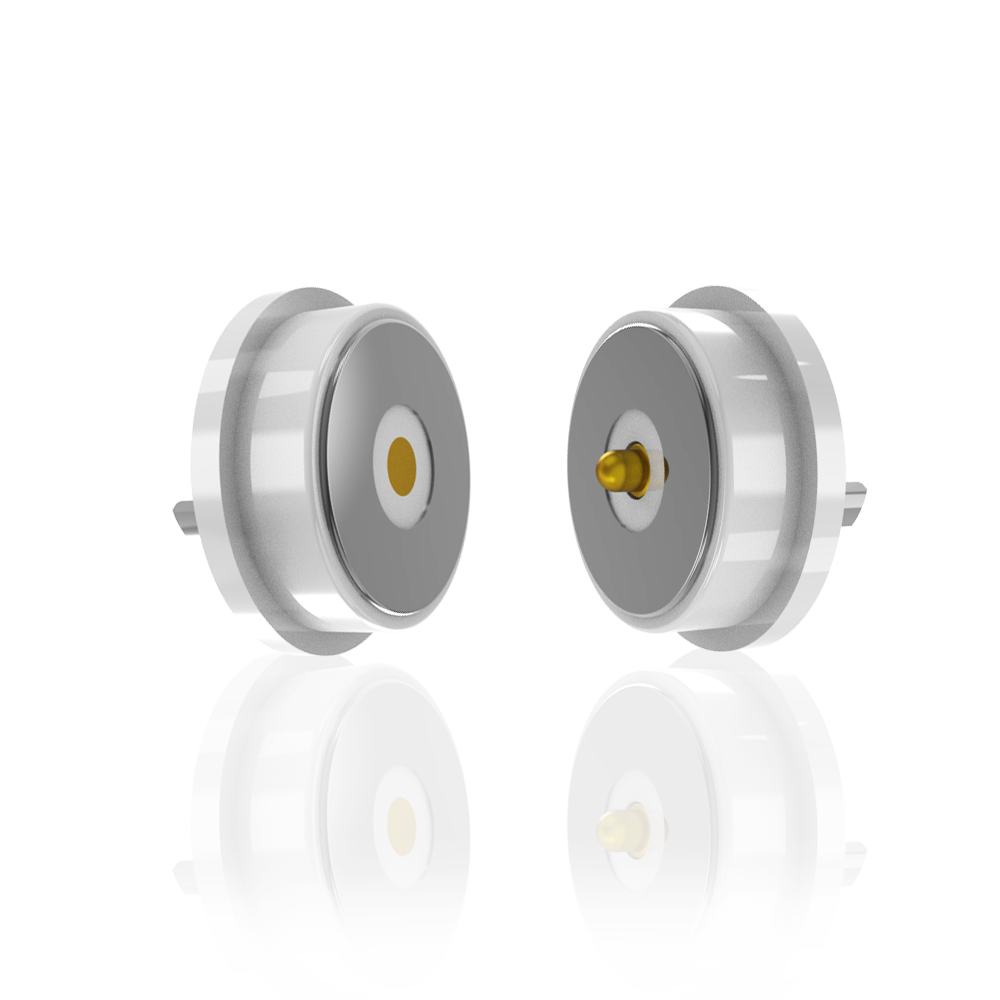

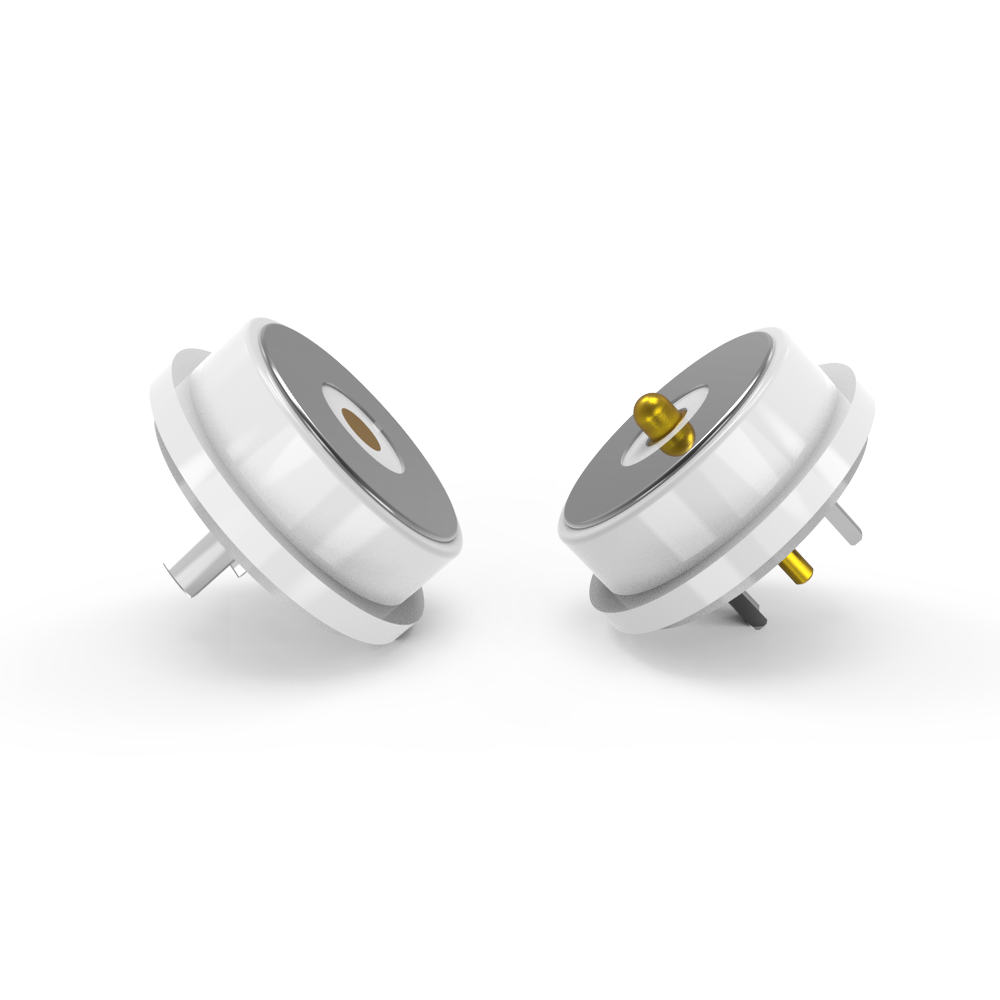

10.0mm round male and female magnetic pogo pin connector for smart hush buckle.


UPE professional design and manufacture magnetic connector, magnetic cable connector for customer.
You just need provide us your ID and description your products application with your requirements to us, then our engineer will give you suggestion and we also can help you to finish your products design, or UPE design it for you if you needed.


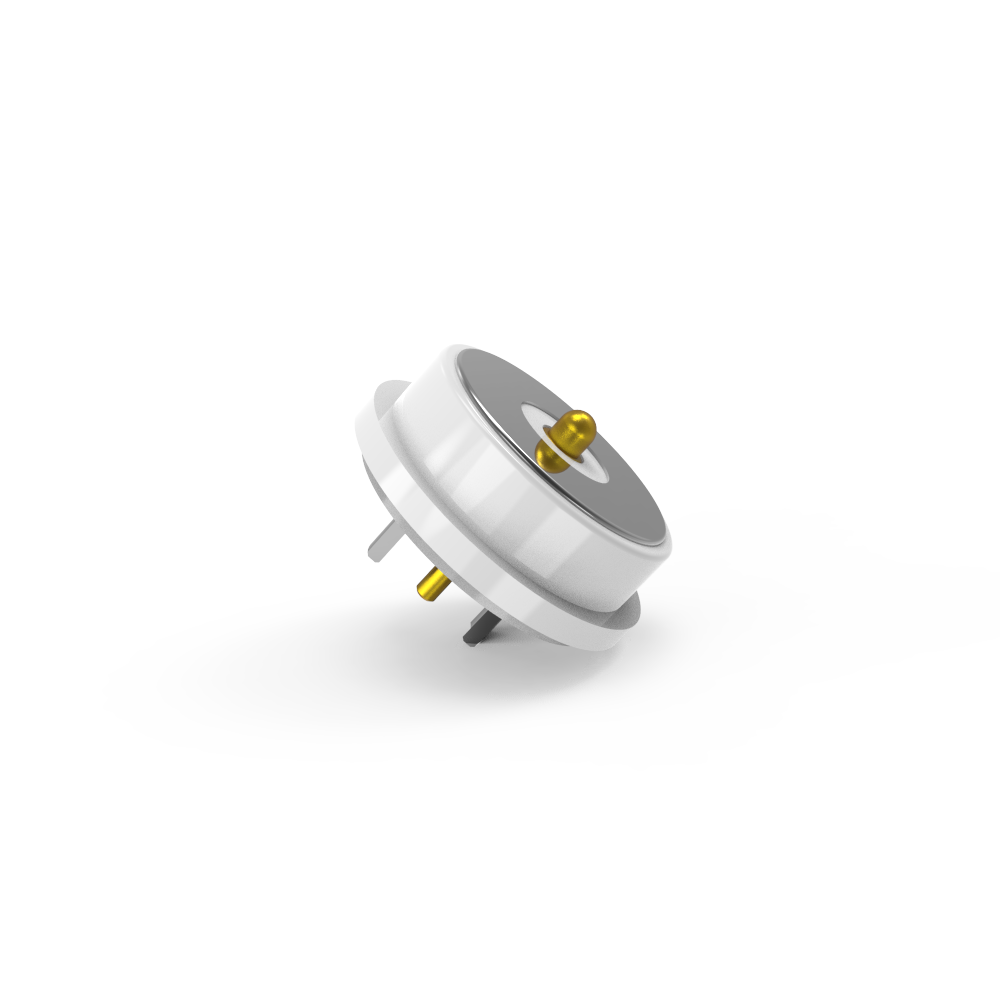

Male Magnetic Connector Part

...Material:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;
Barrel:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;
Spring:SUS 304 plating 1U"Au;
Housing: White LCP+30%GF UL94 V-0;
Shell: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Mechanical:
Spring force:70g±20g,at 1.0mm working stroke.
Full storke:1.2mm.
Mechanical life:50000 cycle Min.
...Electrical:
Voltage:12.0 V.
Current:3.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48H.
..& Key inspection dimension .
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.


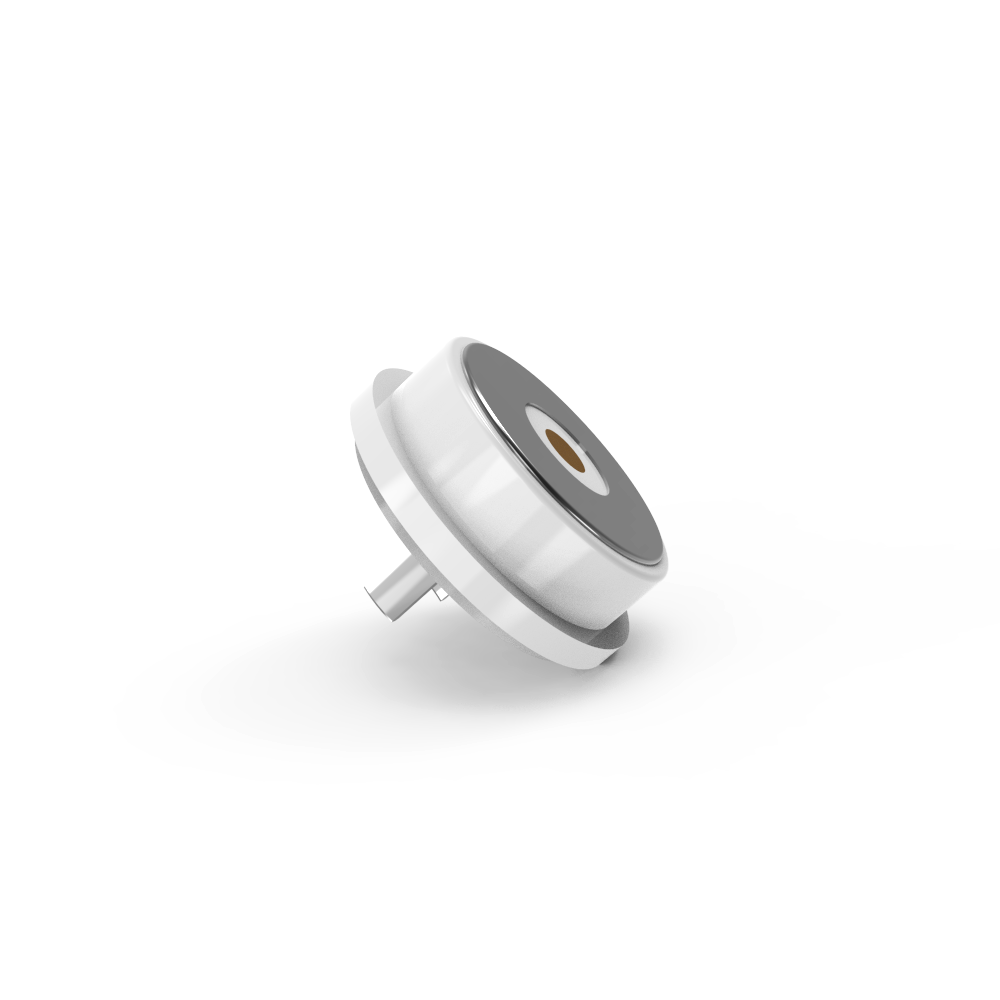

Female Magnetic Connector Part

...Materials :
PIN:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;

Housing: White LCP+30%GF UL94 V-0;
Shell: Lead-freeC6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
....Electrical:
Voltage:12.0 V.
Current:3.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48H.
...& Key inspection dimension .
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.


DC Magnetic  Connectors Parameter:

Name

Circular Magnetic Connector

Type

Male/Female

Pin

2pin

Diameter

10.0mm

Color

White

Pogo pin

Brass C6801 Plating Au 0.125um

Turning Parts

Brass C6801 Plating Ni

Housing

White LCP+30%GF UL94 V-0;

Spring force

7020g,at 1.0mm working storke.

Full storke

1.2mm

Mechanical life

50000 cycle Min..

Current

3.0A Max

Voltage

DC 12V

Contact resistance

50mΩ Max (PIN).

Operation Temperature

-25℃to +80℃

Salt spray test

24H

Certification

ROHS or REACH compliant product

Test

100% open and short test


Circular Male Magnetic Connector Technical Drawing

10.0mm round male and female magnetic pogo pin connector for smart hush buckle 0

Circular Female Magnetic Connector Technical Drawing

10.0mm round male and female magnetic pogo pin connector for smart hush buckle 1

PCB Layout:

10.0mm round male and female magnetic pogo pin connector for smart hush buckle 2


Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

Product anti-short circuit structure design and foolproof;

Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Space-saving female connectors and PCB adapters can achieve pogo type and SMT DIP patch cord connections

The excellent corrosion resistance grade (48H-120H) meets the requirements for use in harsh environments

Excellent expandable interfaces, which can implement (Power Signal, Video Audio, Jack, Etc.)

The development time is short, the mold-making cost is low, and it is suitable for customization


Magnetic connector products application:

1.Aerospace, medical devices, automotive on-board electronics, small household appliances, automated industrial equipment, data communication equipment, industrial inspection equipment, wireless devices, track-moving intelligent vehicles
2: Virtual reality devices (VR), unmanned aerial vehicle devices, intelligent robot devices
3: Smart wearable products, smart positioning products (children's smartwatches, smart bracelets, wearable mobile phones, Bluetooth headphones, etc.)
4: Smart home devices, smart handheld terminal devices, smart sanitation equipment, smart outdoor sports equipment, smart physiotherapy and beauty devices
5: Consumer electronics, small household appliances (printers, smart phones, computers, cameras, audio-visual equipment, PDA)


Why UPE shall be your partner?

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.


How to Place Your Magnetic Connector Order with UPE

1. Submit Your Requirements

Contact our sales team via:

Email: [union@upetech.net]

Phone: [+86 13434524996]

Online Form: [www.pogopinsconnector.com]



Provide details:

✔ Application (e.g., medical, automotive, consumer electronics)

✔ Connector type (e.g., magnetic pogo pin, charging cable)

✔ Specifications (voltage, current, size, waterproof rating, etc.)

✔ Quantity & lead time



2. Get a Custom Solution (If Needed)

Our engineers will review your needs and propose a custom design (if required).

We’ll share 3D models, samples, or technical drawings for approval.


Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.


Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).


Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable


Shipping

10.0mm round male and female magnetic pogo pin connector for smart hush buckle 3
