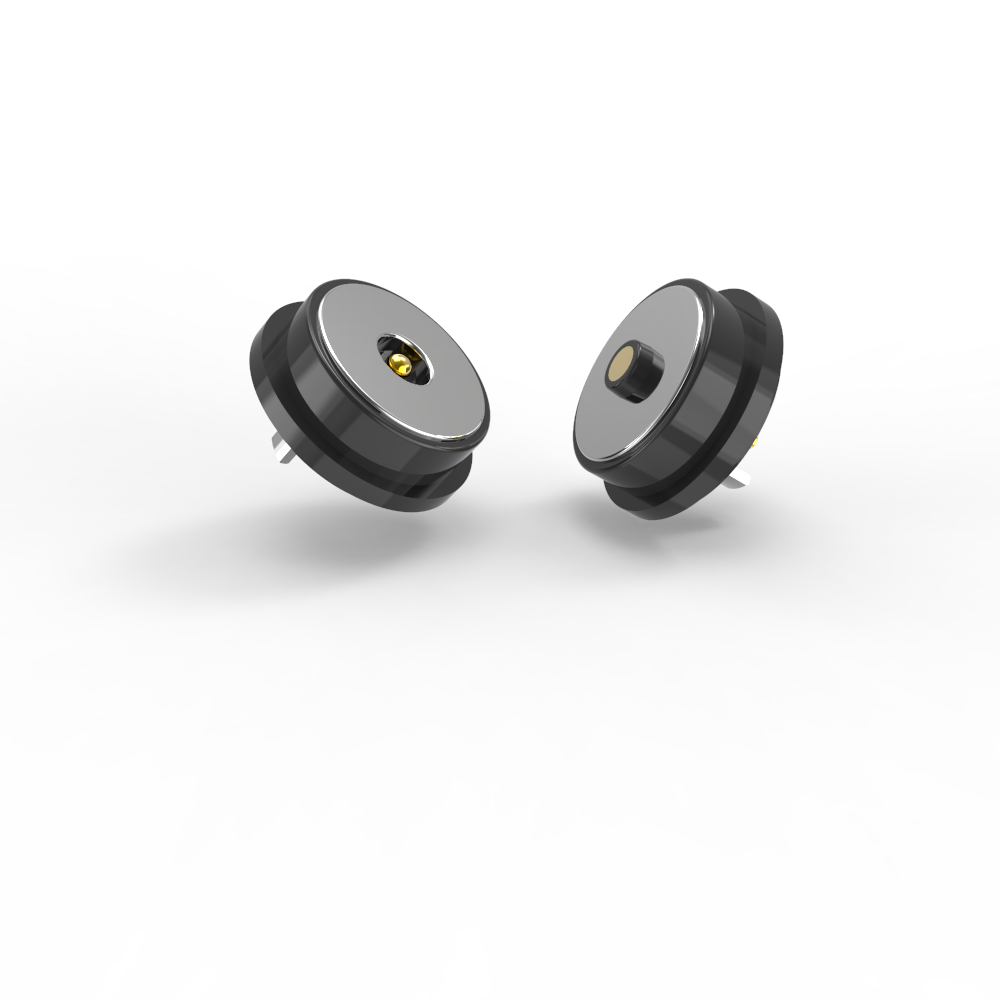

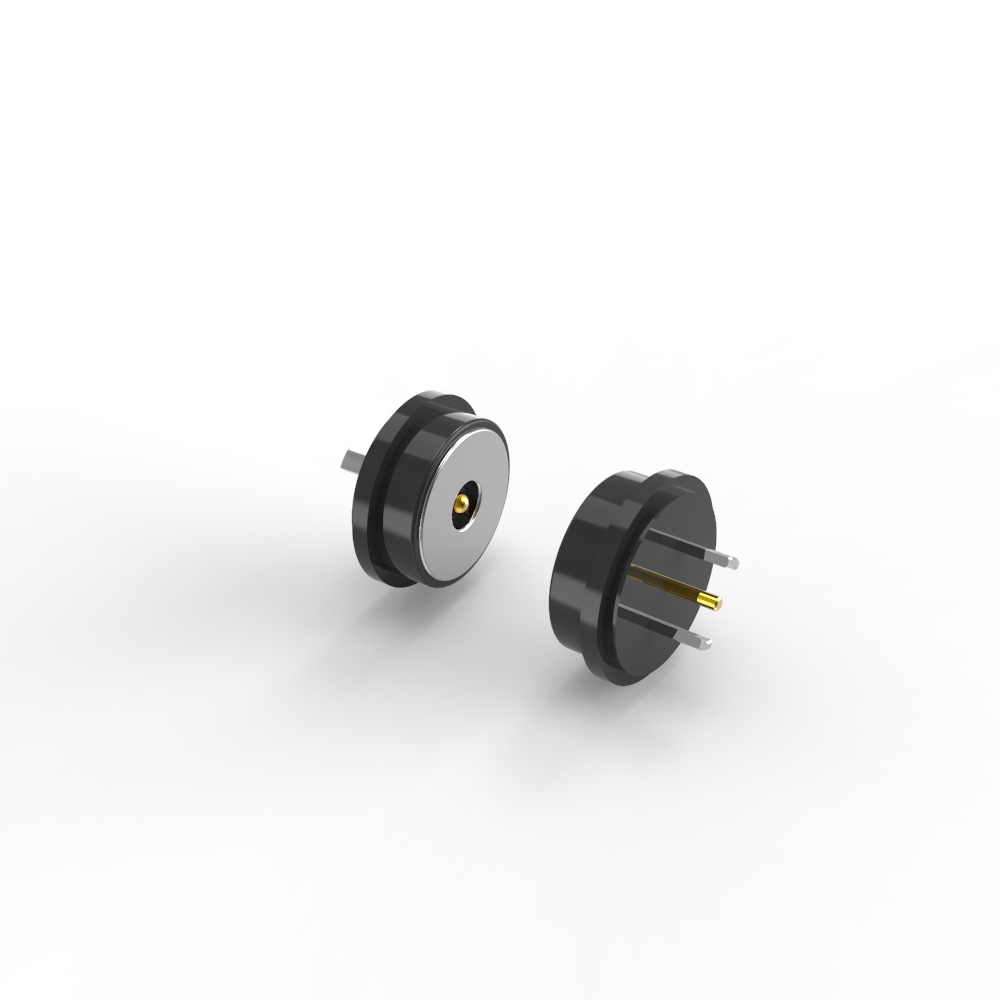

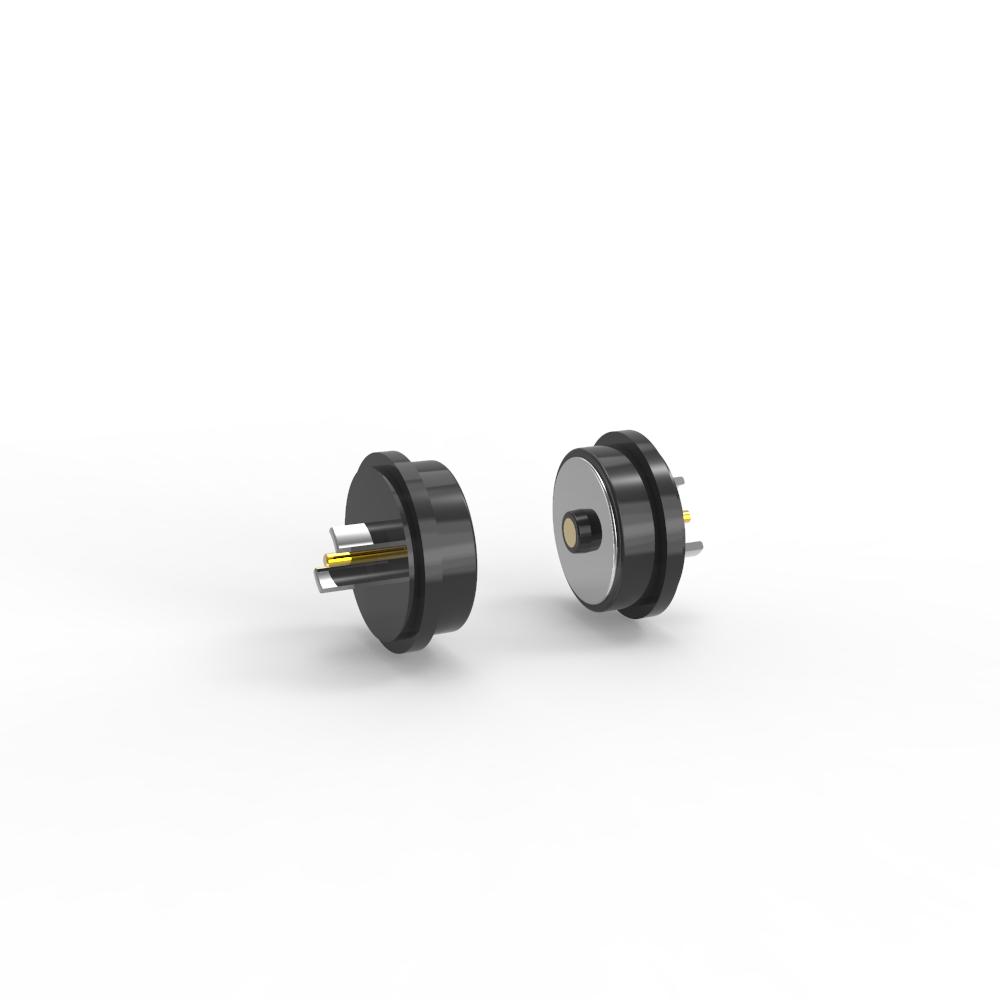

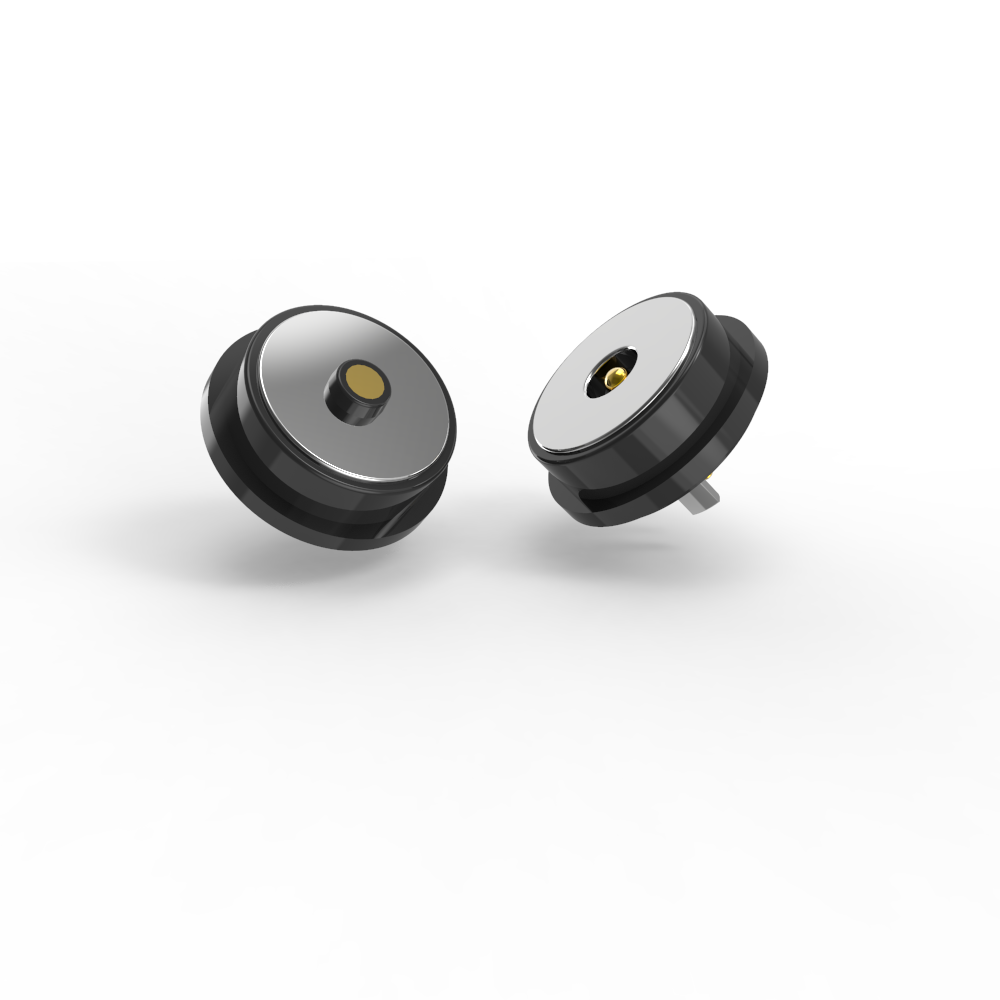

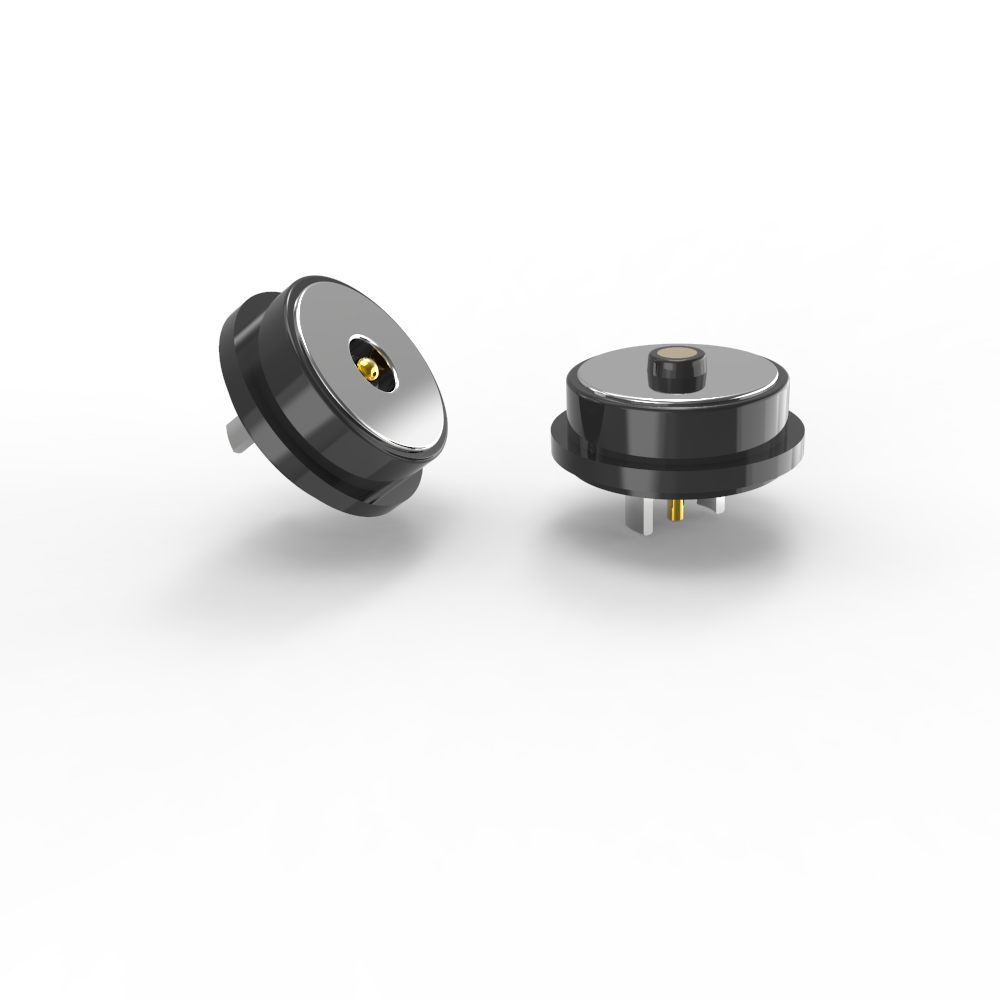

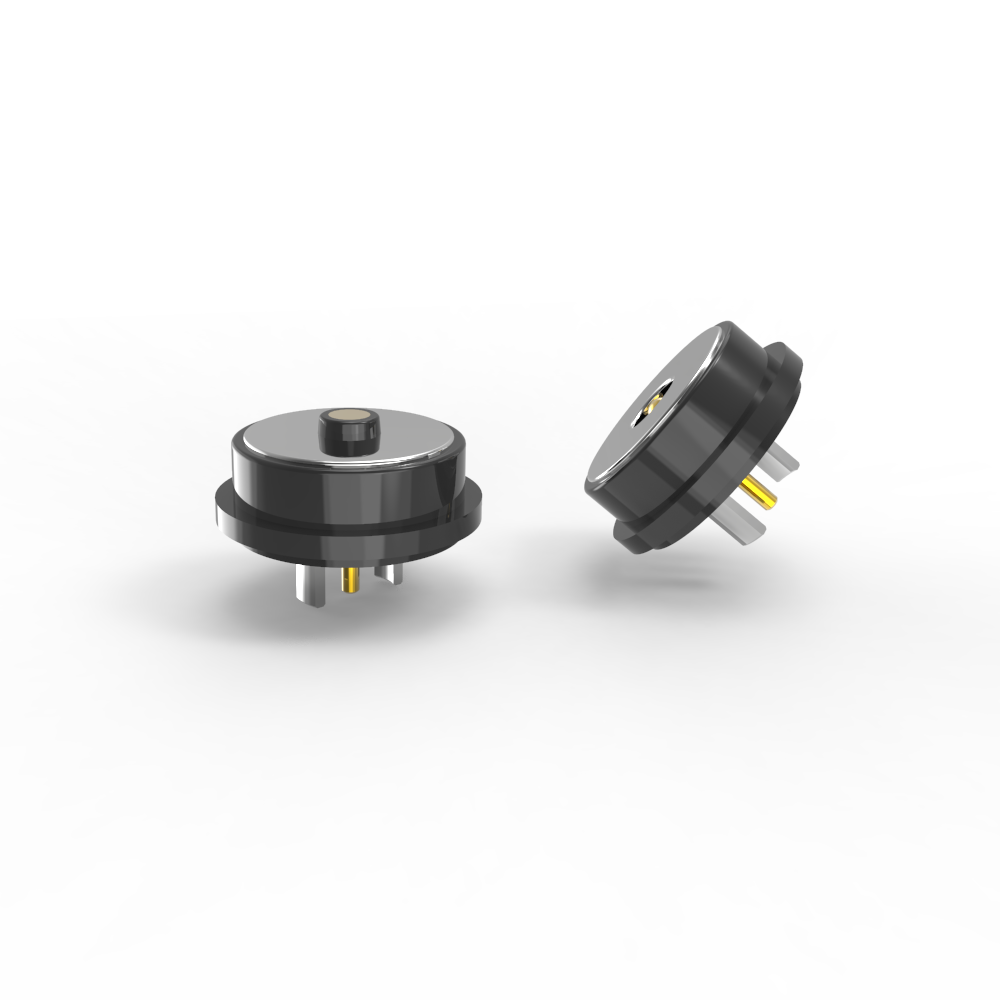

Diameter 10.0mm black round male female magnetic connector for electronic device

Diameter 10.0mm black round male female magnetic connector for electronic device.

UPE is professional magnetic connector & magnetic cable connector manufacturer.

We have our own professional designers to meet any of your requirements and provide magnetic connector customization service. Different magnetic pogo pin connector products and solutions can be designed according to different customer needs.

Magnetic connector all materials complies RoHS & REACH Compliance.

All the magnetic connector passed 100% Short & Open Circuit Testing.

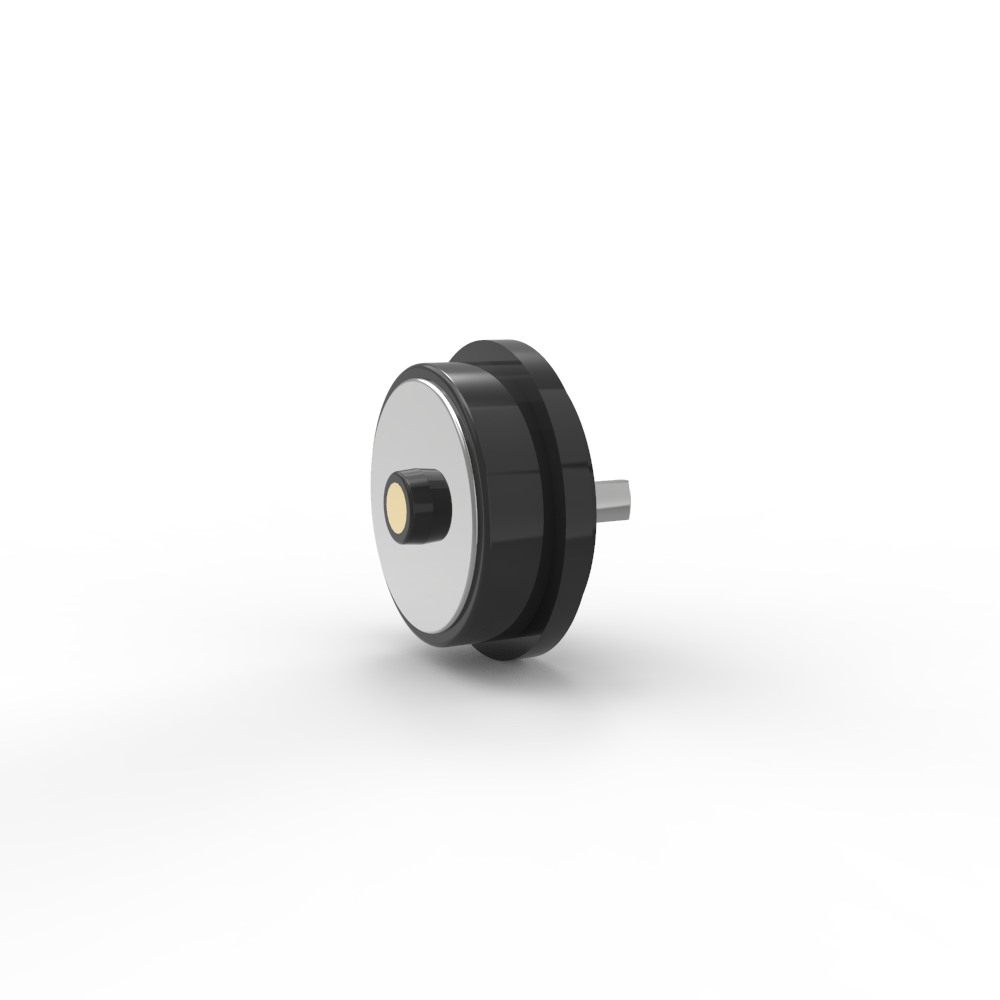

Male Magnetic Connector Part

...Material:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;
Barrel:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;
Spring:SUS 304 plating 1U"Au;
Housing: Black HTN+30%GF UL94 V-0;
Shell: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Mechanical:
Spring force:70g±20g,at 1.0mm working stroke.
Full storke:1.2mm.
Mechanical life:50000 cycle Min.
...Electrical:
Voltage:12.0 V.
Current:3.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48H.
..& Key inspection dimension .
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

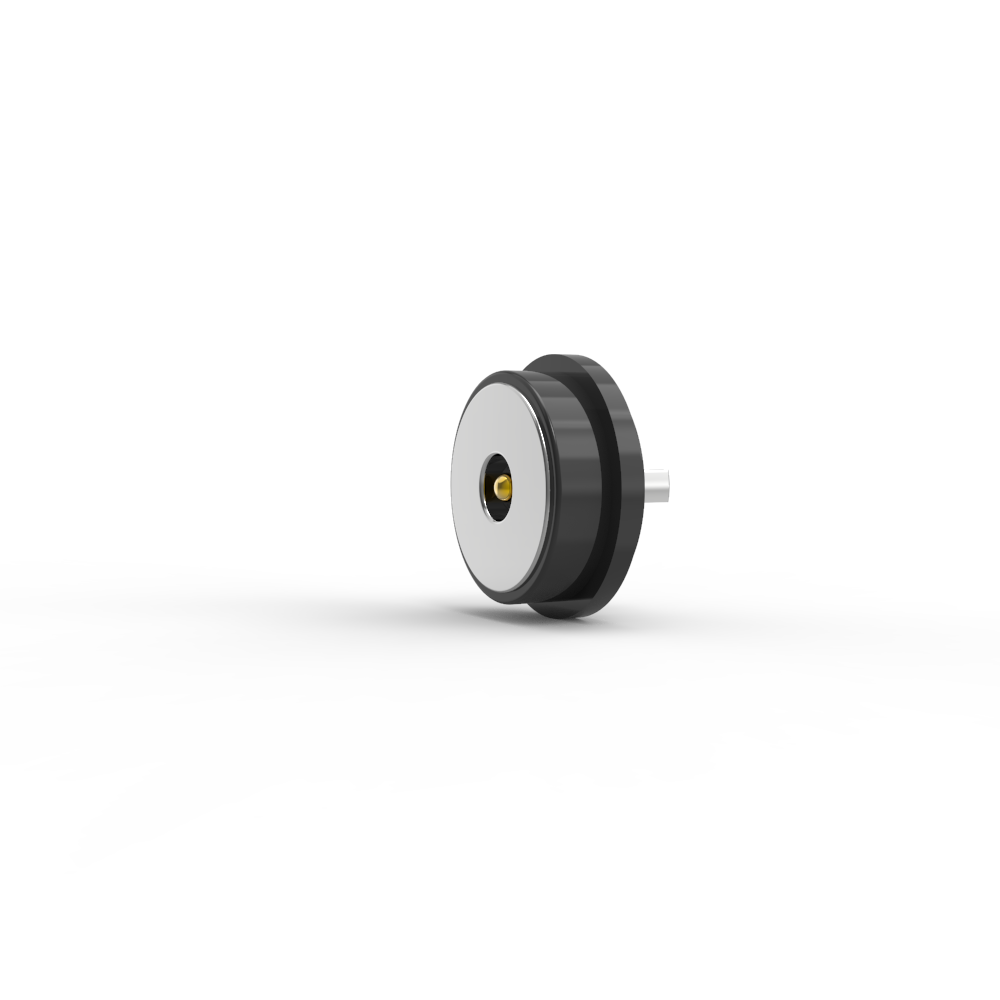

Female Magnetic Connector Part

...Materials :
PIN:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;
Housing: Black HTN+30%GF UL94 V-0;
Shell: Lead-freeC6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
....Electrical:
Voltage:12.0 V.
Current:3.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48H.
...& Key inspection dimension .
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

DC Magnetic  Connectors Parameter:

Circular Male Magnetic Connector Technical Drawing

Circular Female Magnetic Connector Technical Drawing

PCB Layout:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)
