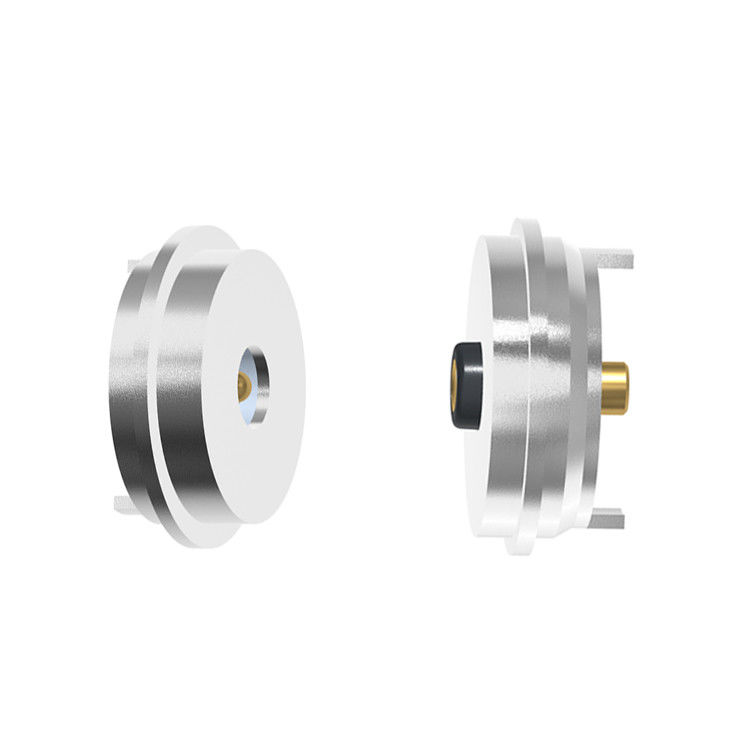

2A Round Magnetic Connector Gold Plating Magnetic Power Connector 2 Pin

2A rounded male female 2pin gold plating  DC power pogo pin magnetic connector.

UPE company is a professional manufacturer of magnetic connector,the magnetic connector is composed of Pogo Pin, Female Pin, Spring, Housing, Shell, Magnet.

Materials & Construction:

Pogo pin: BrassC6801 Plating Au 0.125um

Turning Parts:Brass C3602 Plating Ni

Spring:SUS 304Au;

Housing: Black HTN+30%UL94 V-0 black, which can withstand high temperatures

Mechanical:

Spring force: 60g±20g,at 0.6mm working storke.

Mechanical life: 10000 cycle Min..

Adsorption capacityt est:The parent docking adsorption is 300g±20%

Electrical:

Voltage:12 V.

Current: 2.0 A.

Contact resistance:50mΩ Max (PIN) .

Environmental performance:

Operation Temperature:-25℃to +80℃

SaltSpray: 24H

ROHS or REACH compliant product.

Male Magnetic Connector Size:

Female Magnetic Connector Size:

Round Magnetic Connector Parameter:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic Connector Application:

Why do customers choose us?

1.Customization & Flexibility

2.Fast Samples = Faster Time-to-Market

3.Every connector undergoes rigorous quality checks

4.Incoming Material Inspection

5.In-Process Quality Checks

6.100% Final Testing

7.Traceability & Compliance

8.Customer-Focused QC Flexibility

How to place the magnetic cable connector order

* You send us drawing or sample

* We carry through project assessment

* We make the sample and send it to you

* You think the sample is good then place an order and pay us 30% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to courier company

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
