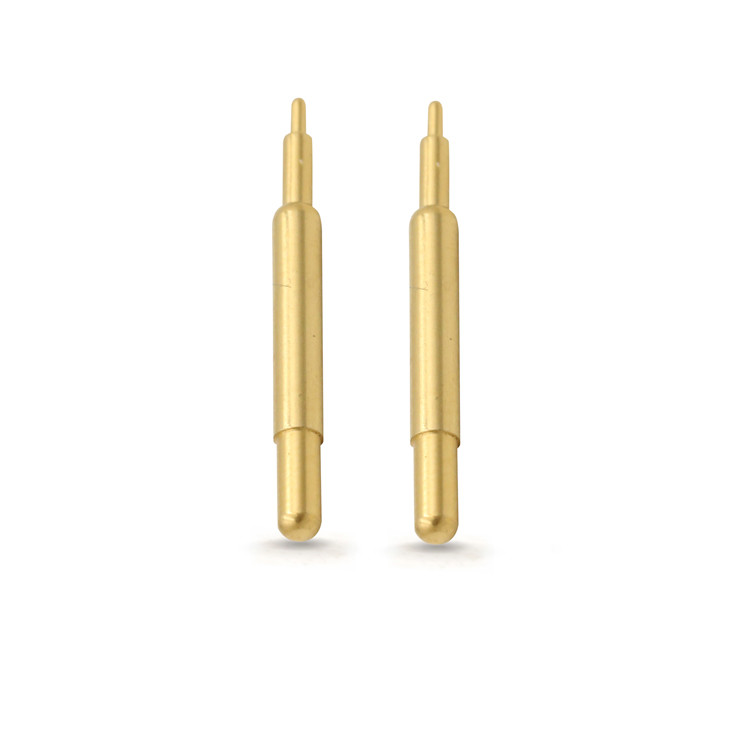

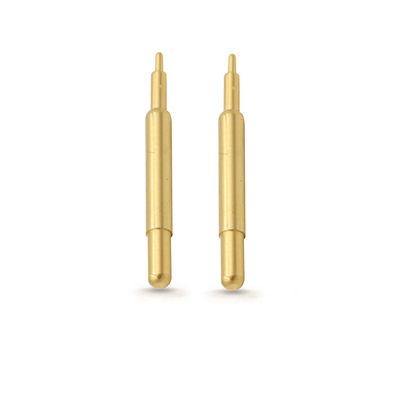

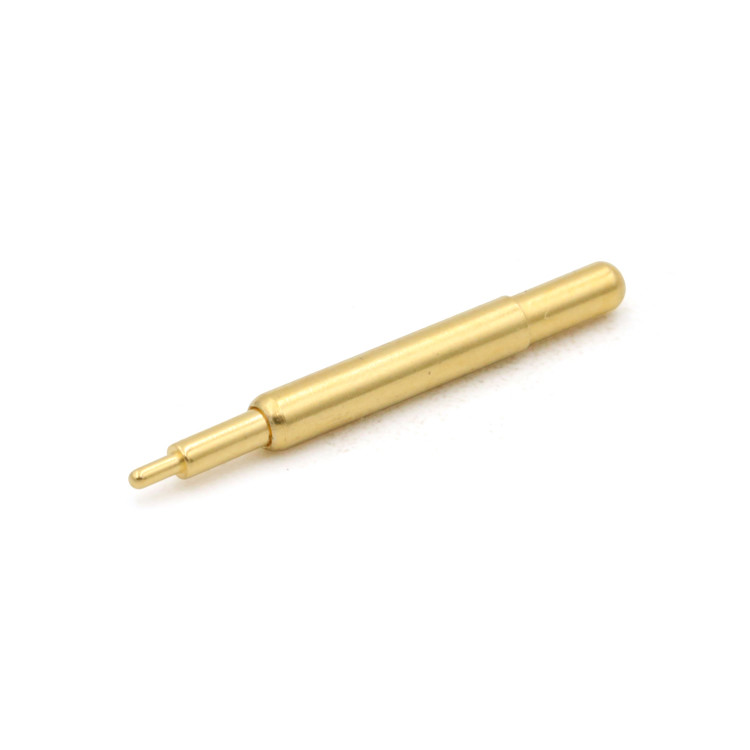

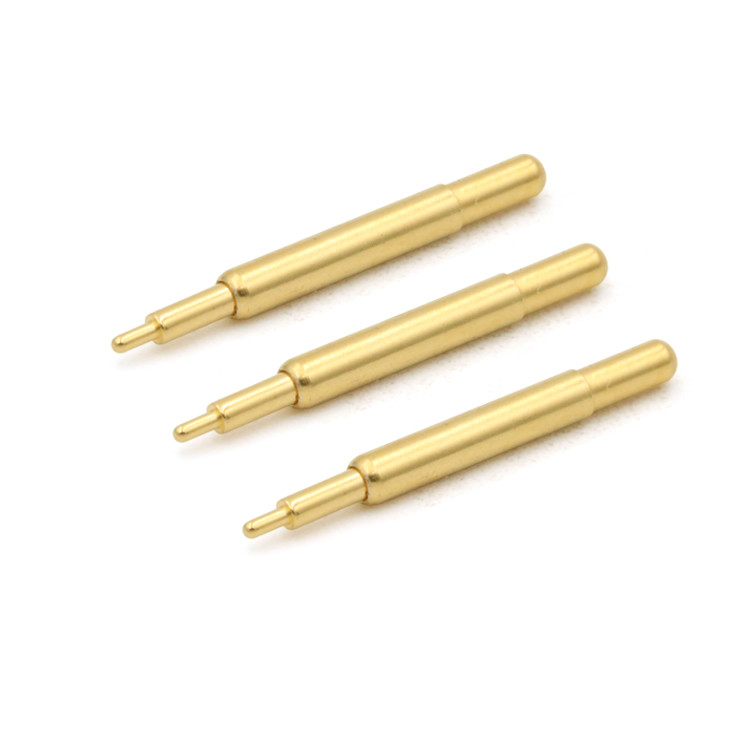

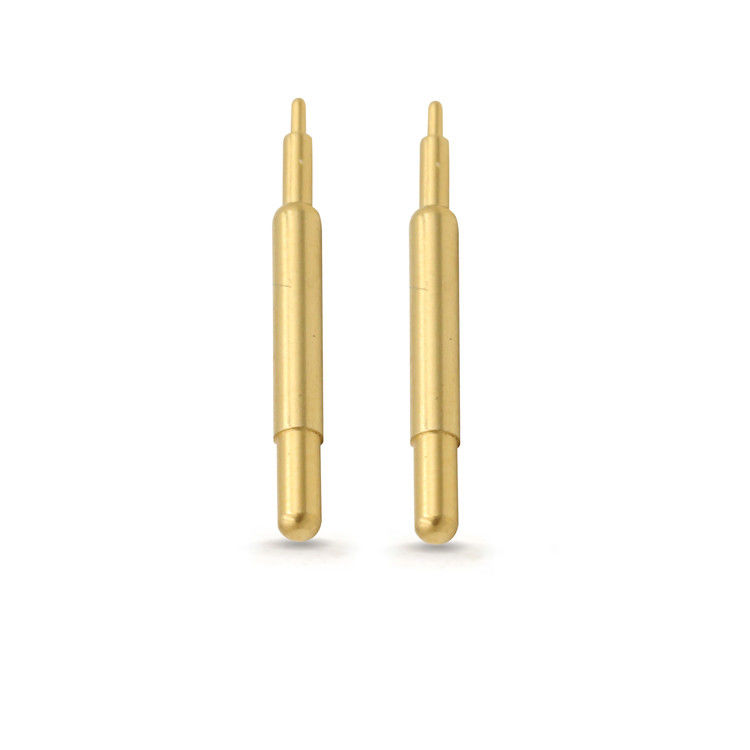

Customized double head brass pogo pin double ended spring loaded pogo pins.
A Pogo Pin is a type of electrical connector used to establish a temporary connection between two circuits. It consists of a spring-loaded plunger inside a barrel, allowing it to compress and maintain reliable contact when pressed against a conductive surface.
Advantages of double head pogo pin structure: the double-head double-movement connection provides designers with more spatial flexibility in board-to-board connections.
According to customer different requirements, we have 8 types Exterior Structure POGO PIN for customers choose, for the standard POGO PIN, UPE designed the total height of the product is 2.8mm ~ 11.0mm( the total height is not include DIP pogo pin's tail length).
The following are 8 types structures for your reference and selection:
SMT: Good stability, the bottom of the Barrel is a flat bottom design, which is easy to solder on the PCB board
DIP: There is a positioning pin at the tail of the Barrel. When welding with the PCB, no deviation will occur, good positioning effect and firm
welding.
Double Head: The design of the double head Pogo pin provides designers with more flexibility in the bi-directional board-to-board
connection ,the double head pin does not need to be welded.
Right Angle: The tail of the Pogo Pin is bent, providing designers with more choices in the use of space , the tail can also be soldered with wire.
Soler Cup: Suitable for cable product, easy to weld with wire
Screw-type: The products with special specifications can meet the different needs of customers, and can be customized according to the needs
of customers.
One-piece type: It can pass large currents, be customized according to customer requirements, and meet different customer needs.
Spherical ball type: Lateral force is available, and it can be customized according to customer requirements to meet different customer needs.
Pogo Pin application areas are:
1.Industrial equipment, three-proof machine, communication equipment, medical equipment, handheld terminal equipment;
2.Smart wearable devices, smart education, smart positioning devices, smart toy
3.Consumer electronics, tablet computers, shared charging, TWS Bluetooth headsets, electronic cigarettes
Why do customers choose UPE?
1. Pogo Pin professional customization service
Different products and solutions can be designed according to different customer needs
2. Fast sample production capability
Standard product 2-3 days sample, new custom sample 7 working days, mold opening product 12 days
3. Strict quality control system
The concept of quality first runs through the entire production and inspection process, and strictly controls each process to ensure the quality of customer satisfaction.
4. Processing with imported components
A small number of needle shafts are machined from imported precision lathes, and most of the needle shafts are made of imported cold stamping for higher stability.
5. High-precision test equipment
Provide accurate and precise testing to continuously improve product quality
6. Reasonable cost control procedures
Save costs, eliminate waste, optimize processes, and highlight cost competitiveness
7. Product environmental standards
The product meets the EU ROHS standard and meets halogen
Pogo Pin Parameter List:
|
Name
|
Double head pogo pin
|
|
Plunger
|
Brass C3604,plating 5U" Min Au over 60~100U"Ni min.
|
|
Barrel
|
Brass C3604 ,plating 5U" Min Au over 60~100U"Ni min.
|
|
Spring
|
SUS304
|
|
Mechanical life
|
30000 cycle Min..
|
|
Current
|
2A
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50m Max (PIN).
|
|
Operating Temperature
|
-40℃~+130℃within 24 hours.
|
|
Resistance to Solding hear
|
260℃±5℃ 20s±2s
|
|
Salt spray test
|
48H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
Testing equipment:
We have an independent laboratory and equipped with relevant experimental equipment, such as
Insertion force testing machine, Two-dimensional projector, Thickness meter, Automatic inspection machine, Insulation Resistance Tester
Metallographic sample polishing machine, Salt spray tester, Current temperature rise tester, Load stroke curve instrument, Automatic inspection machine, ROHS tester, Roughness tester,Elastic impedance tester, Life tester, etc.
Pakaging & shipping
