White Round Magnetic Connector 5A 12v Magnetic Connector Corrosion Resistant With LCP Housing

White LCP housing circular magnetic power connector for visible crab clamp

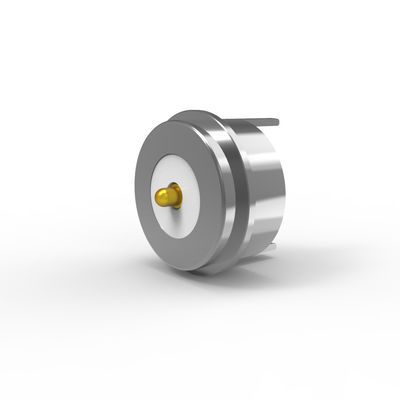

The round magnetic connector diameter is 8.0mm, and the housing is white LCP.

Materials:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;Gold (Au) over Nickel (Ni) for superior conductivity and corrosion resistance.

Barrel:Lead-free C6801 ,plating 5U" Min Au over 60~100U" Ni ;

Spring:SUS 304 plating 1U" Au;

Housing: White LCP+30%GFUL94 V-0 ;High-temperature resistant, flame-retardant.

Shell: Lead-free C6801Plating Ni

Magnet: NdFeB N52 with Nickel (Ni) Plating

Mechanical:

Spring Force: 80g ± 20g at 1.0mm working stroke.

Ensures consistent contact pressure during operation.

Full Stroke: 1.2mm (total travel distance of the plunger).

Mechanical Life: 50,000 cycles minimum (durability requirement for repeated actuations).

Electrical Specifications:
Rated Voltage: 12V DC.

Rated Current: 5.0A.

Contact Resistance: ≤50mΩ (milliohms) per pin.

Quality Assurance & Compliance Testing:

1. Electrical Reliability
100% Open/Short Circuit Tested: Every unit undergoes rigorous electrical validation to ensure flawless connectivity and safety.

2. Environmental & Safety Compliance
RoHS & REACH Certified: Free from hazardous substances (e.g., lead, cadmium), meeting EU and global environmental standards.

3. Corrosion Resistance
Salt Spray Tested (48 Hours): Validates performance in harsh, humid, or saline environments (e.g., marine, industrial use).

Why Quality Assurance & Compliance Is  Important?
✅ Zero Defects: Ensures every connector delivers consistent performance.
✅ Global Approval: Compliant with stringent international regulations.
✅ Durability Guaranteed: Corrosion-resistant for long-term reliability.

The Benefits of Plating:

Plating Quality: The thin Au over Ni ensures reliable electrical performance while minimizing cost (thicker Au would increase cost but may not be necessary for this application).

Environmental Resistance: Ni plating on the shell/magnet and LCP housing provide protection against humidity, corrosion, and high temperatures.

Durability: The 50,000-cycle life and spring force tolerance (±20g) indicate a focus on long-term reliability.

Product application description(not limited to the following):

1.Plug-in welding PCB board;

2.Forming and encapsulating after welding wires;

3.A transfer terminal of thatPCBboard can be adde;

4.Mlding injection molding of embeddable mould;

5. Wires can be bonded directly.

Round Magnetic Connector Parameter:

Round Male Magnetic  Connector Technical Drawing

Round Female Magnetic  Connector Technical Drawing

Recommended pcb layout:

Layout tolerance:±0.05mm

Advantages of Round Magnetic Connectors

1.Effortless Connection

Automatic adsorption enables quick, tool-free attachment; user-friendly operation.

2. Easy Removal

Magnetic interface allows seamless disconnection without physical strain.

3. High Durability

Supports 50,000–300,000 mating cycles for long-term reliability.

4. Robust Protection

Customizable IP68-rated waterproof and dustproof design (female end).

5. High-Current Support

Handles 3A–20A for fast charging and power-intensive applications.

6. Superior Corrosion Resistance

Withstands harsh environments (tested for 48–120 hours in salt spray).

7. Customizable Form Factor

Tailored shapes to match product aesthetics, enhancing market appeal.

8. Smart Orientation Detection

Magnet positioning + structural design ensure correct polarity and circuit protection.

9. Multifunctional Interface

Supports power, signal, video, audio, data (e.g., USB 2.0), and more.

10. Cost-Efficient Development

Short lead time and low mold costs for rapid customization.

11. High-Quality Signal Transmission

Reliable RF signal performance (e.g., compliant with USB 2.0 standards).
