High Contact Force DC Pin Connector 3A Female Male Connectors Black For Electronic Device

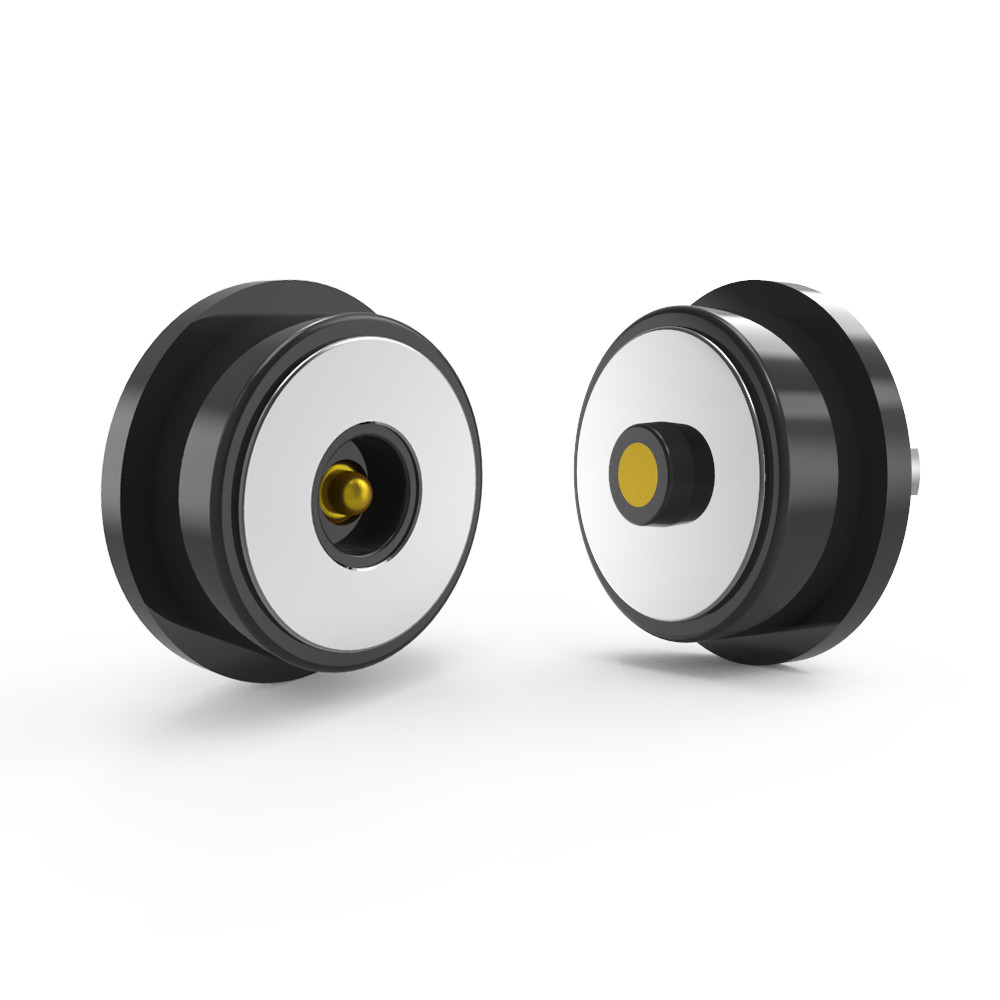

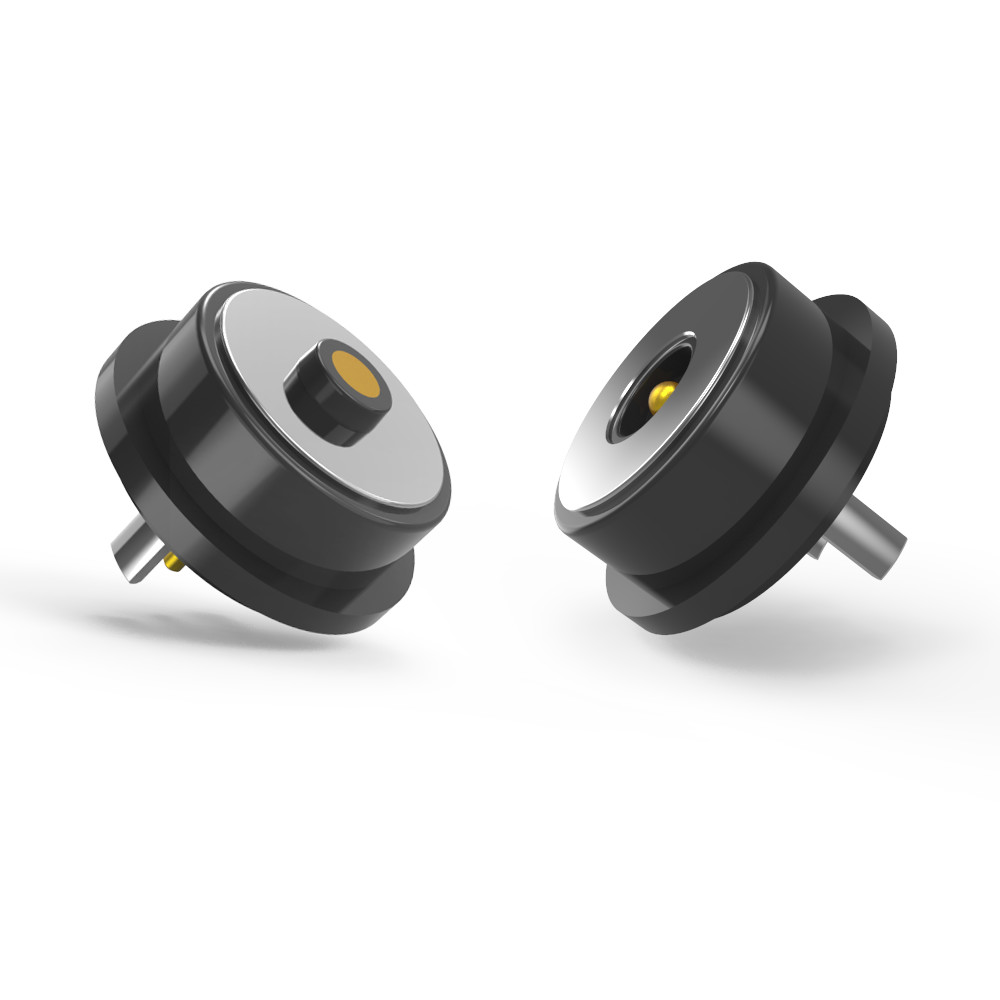

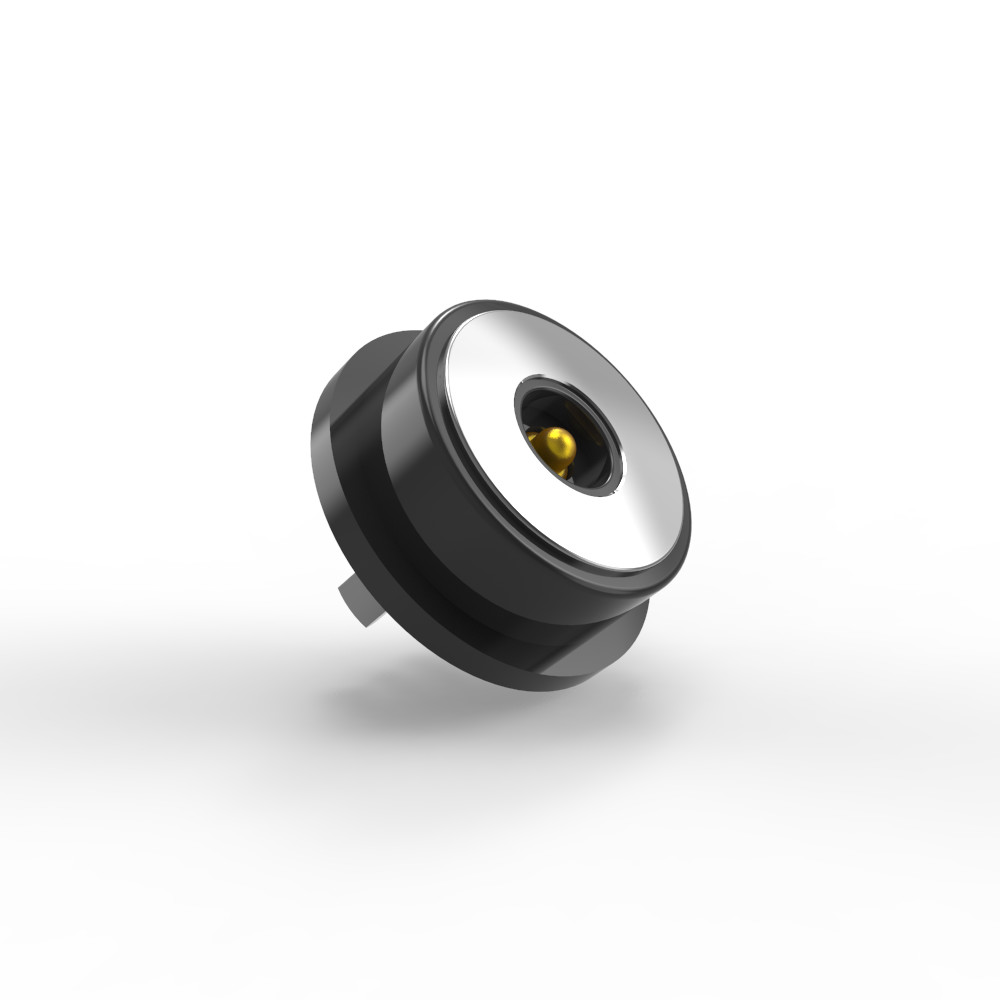

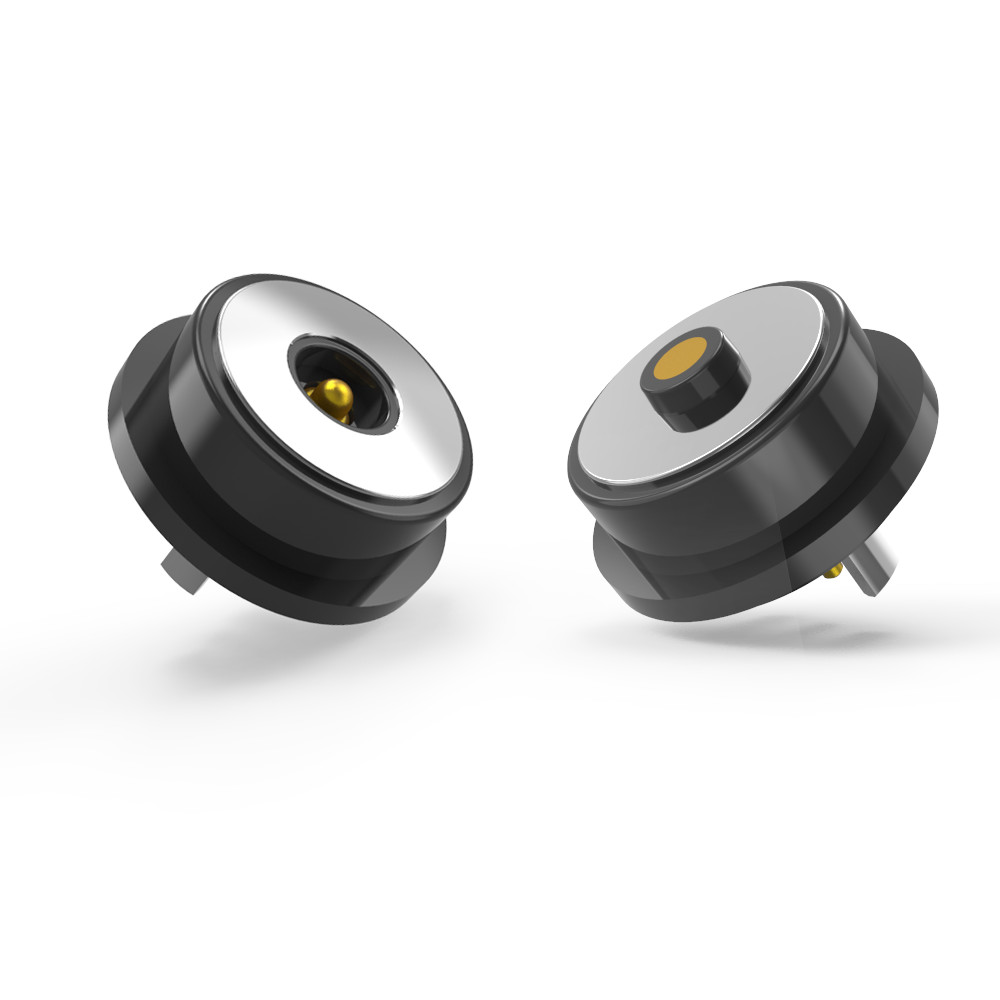

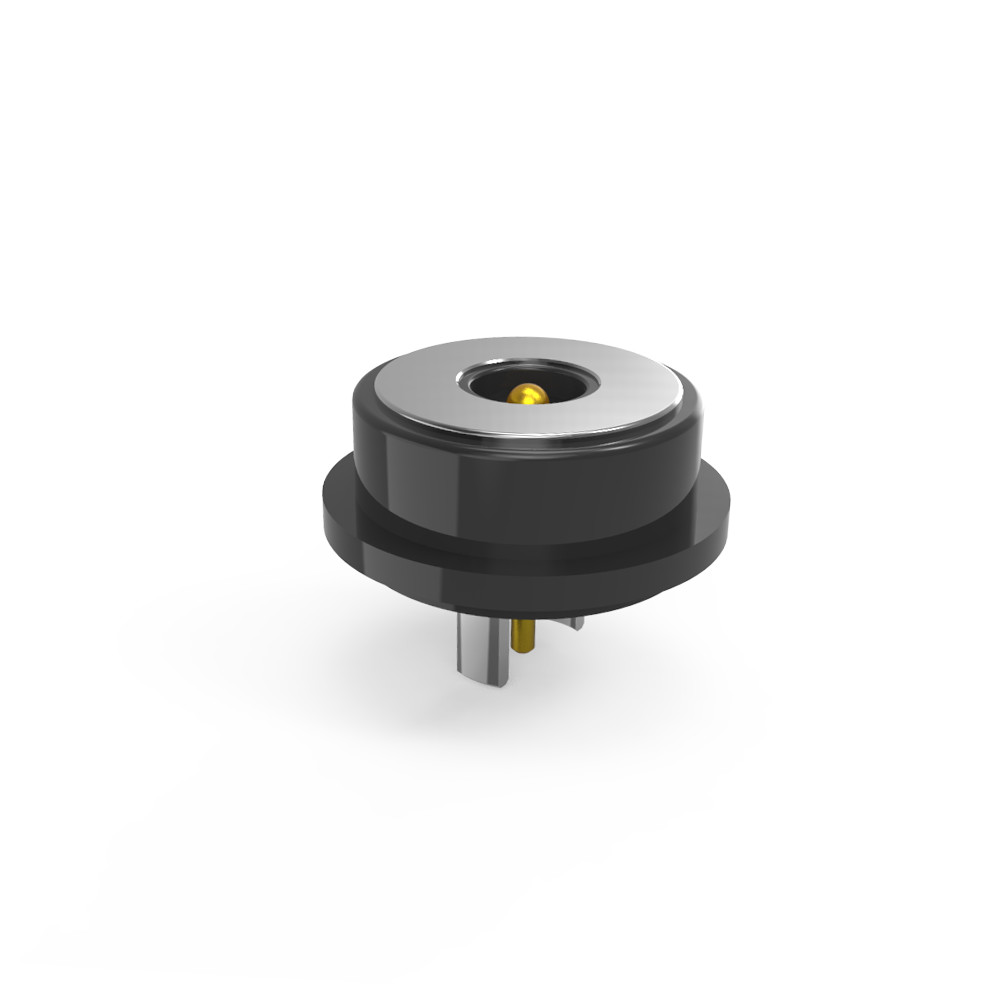

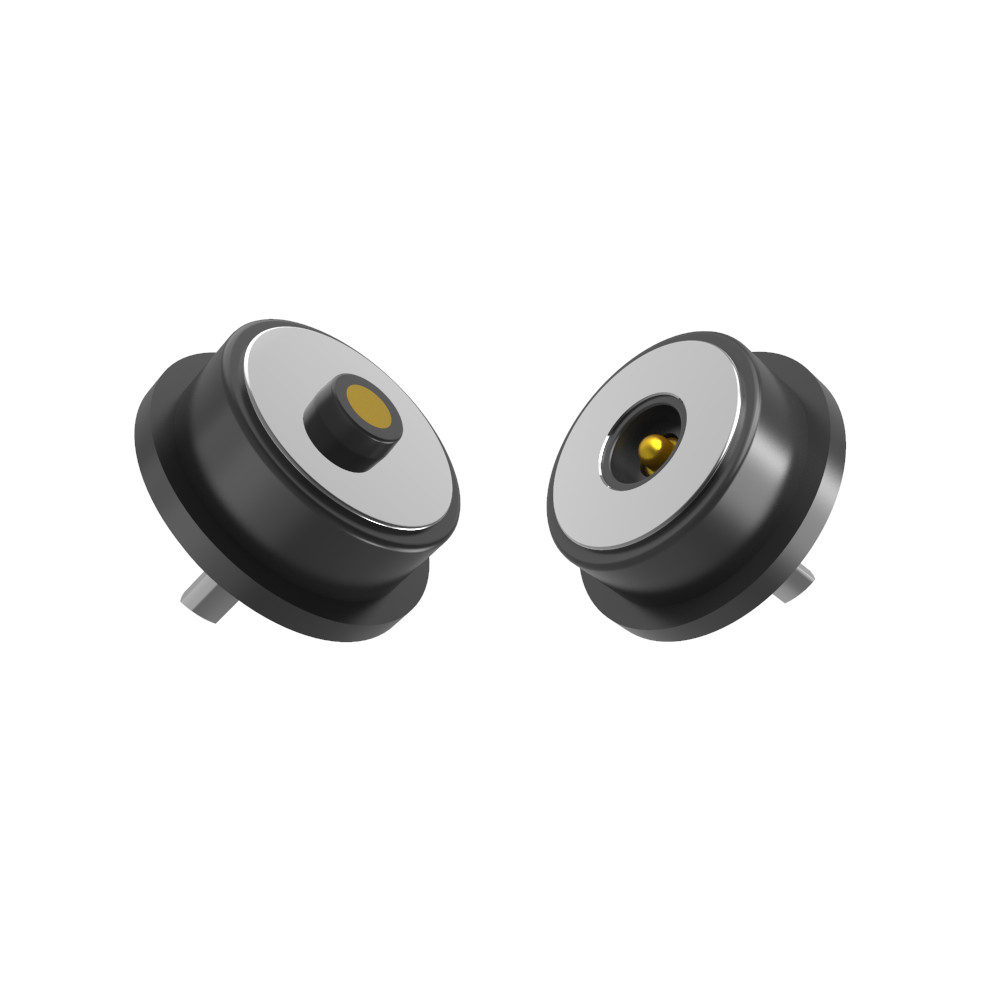

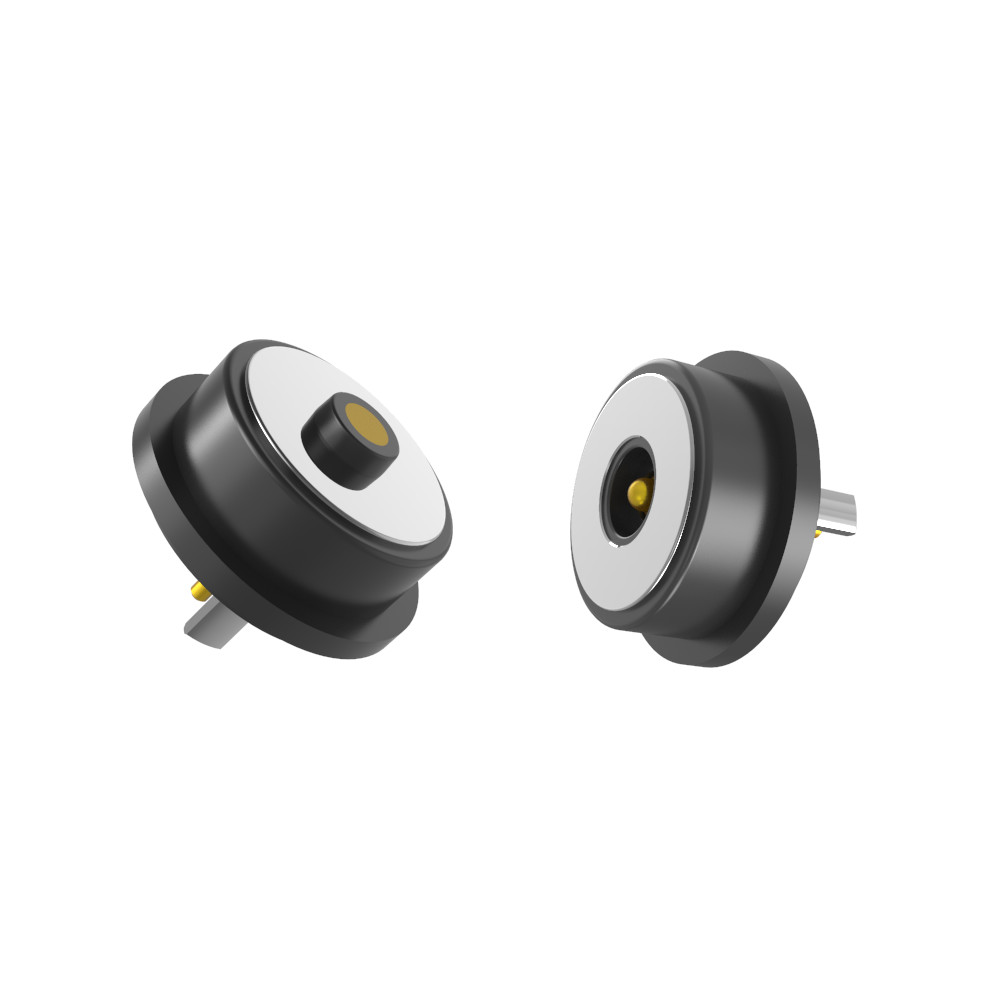

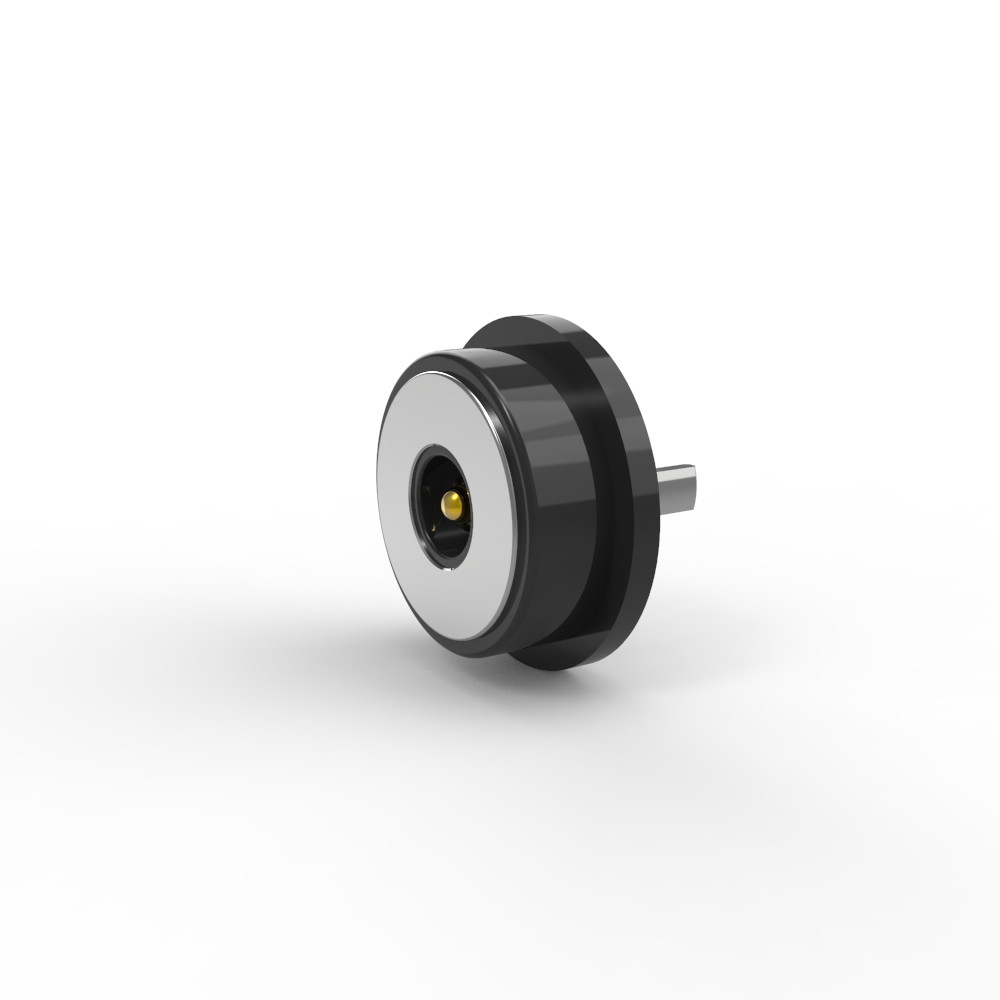

8.0mm high contact force DC male female magnetic connector for electronic device

Materials:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;

Barrel:Lead-free C6801 ,plating 5U" Min Au over 60~100U" Ni ;

Spring:SUS 304 plating 1U" Au;

Housing: Black HTN+30%GFUL94 V-0 ;

Shell: Lead-free C6801Plating Ni

Magnet: NdFeB N52 Plating Ni

Mechanical:

Spring force:60g±10g,at 0.4mm working stroke.

Full storke:0.6mm.

Mechanical life:50000 cycle Min.

Electrical Specifications:
Rated Voltage: 12V DC.

Rated Current: 3.0A.

Contact Resistance: ≤50mΩ (milliohms) per pin.

Testing:

100% open/short circuit tested.

ROHS/REACH compliant (no hazardous substances).

Salt spray test: 48 hours (corrosion resistance validation).

Product application description(not limited to the following):

1.Plug-in welding PCB board;

2.Forming and encapsulating after welding wires;

3.A transfer terminal of thatPCBboard can be adde;

4.Mlding injection molding of embeddable mould;

5. Wires can be bonded directly.

Round Magnetic Connector Parameter:

Round Male Magnetic  Connector Technical Drawing

Round Female Magnetic  Connector Technical Drawing

Recommended pcb layout:

Layout tolerance:±0.05mm

Advantages of Round Magnetic Connectors
 Durability: Reduced port wear (no physical insertion).
 Safety: Disconnects under strain, preventing damage.
 Convenience: Easy blind mating (self-aligning).
 Water/Dust Resistance: Often used in sealed designs.

Magnetic connector products application:

1. Consumer Electronics
Smartphones & Tablets: Some devices use magnetic connectors for charging/data transfer.
Laptops: Magnetic power connectors

Wearables: Smartwatches and fitness bands use them for charging.

 2. Audio Devices
 Wireless Earbuds: Charging cases often have magnetic connectors for alignment.
 Headsets: Some high-end headphones use magnetic charging ports.

3. Medical Devices
Hearing Aids: Magnetic charging for small, water-resistant designs.
Wearable Monitors: Secure connections for medical sensors.

 4. Industrial & Automotive
 Robotics: Quick-release power/data connections for modular systems.
 EV Charging: Some prototypes use magnetic connectors for effortless docking.

5. Smart Home & IoT
 Modular Lights/Fans: Easy-to-attach magnetic power links.
 Security Cameras: Simplified charging for battery-powered models.

 6. Military & Aerospace
 Ruggedized magnetic connectors for quick-disconnect in harsh environments.

Why UPE shall be your partner?

1. Fast Prototyping (3–5 Days for Samples)
●Speed-to-Market: Rapid sample turnaround accelerates product development cycles.

●Iterative Testing: Enables quick design refinements before mass production.

●Advantage: Ideal for industries like automotive, medical, or consumer electronics where time-sensitive innovation is critical.

2. Cost-Effective (Competitive MOQ Pricing)
●Low Minimum Order Quantities (MOQ): Reduces upfront costs for startups or small batches.

●Scalability: Flexible pricing ensures affordability for both prototyping and large-scale orders.

●Value Proposition: Balances high-quality output with budget-friendly solutions.

3. Quality Assurance (100% Automated Testing)
●Zero Defects: Automated inspection (e.g., optical, electrical, mechanical) ensures reliability.

●Consistency: Eliminates human error in critical testing (e.g., contact resistance, salt spray, cycle life).

●Compliance: Meets strict industry standards (ROHS, REACH, automotive-grade).

4. High-Tech Production & Precision Engineering
●Advanced Manufacturing: CNC machining, precision stamping, and micro-plating (e.g., Au/Ni for connectors).

●Material Expertise: Mastery of specialized materials (LCP, SUS 304, NdFeB magnets, lead-free brass).

●Application-Specific Solutions: Tailored for complex components

How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

*Negotiate pricing & terms (bulk discounts may apply).

*Confirm order details (connector type, quantity, customization).

*Make payment (via PayPal, bank transfer, or other secure methods).

*Shipping & Quality Check
*Track the shipment.

*Inspect the product upon arrival to ensure quality.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Shipping

Any question, please send to union@upetech.net
