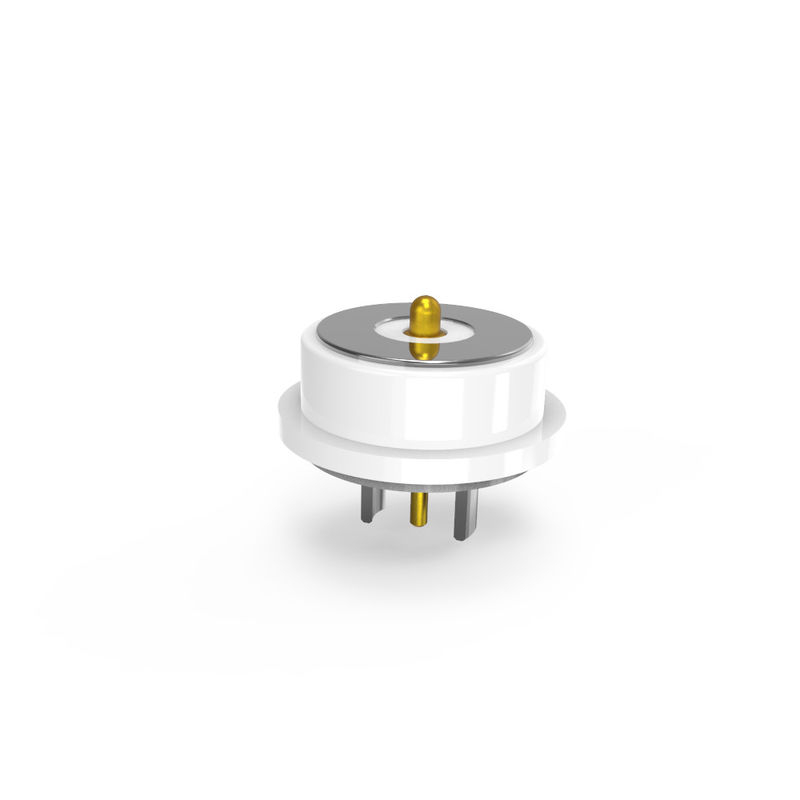

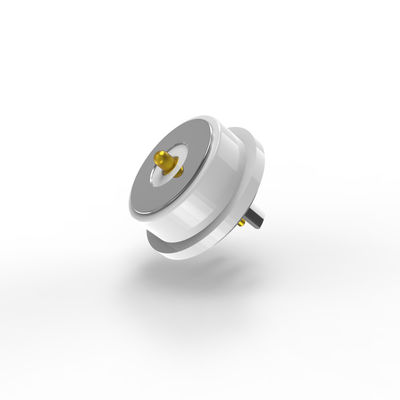

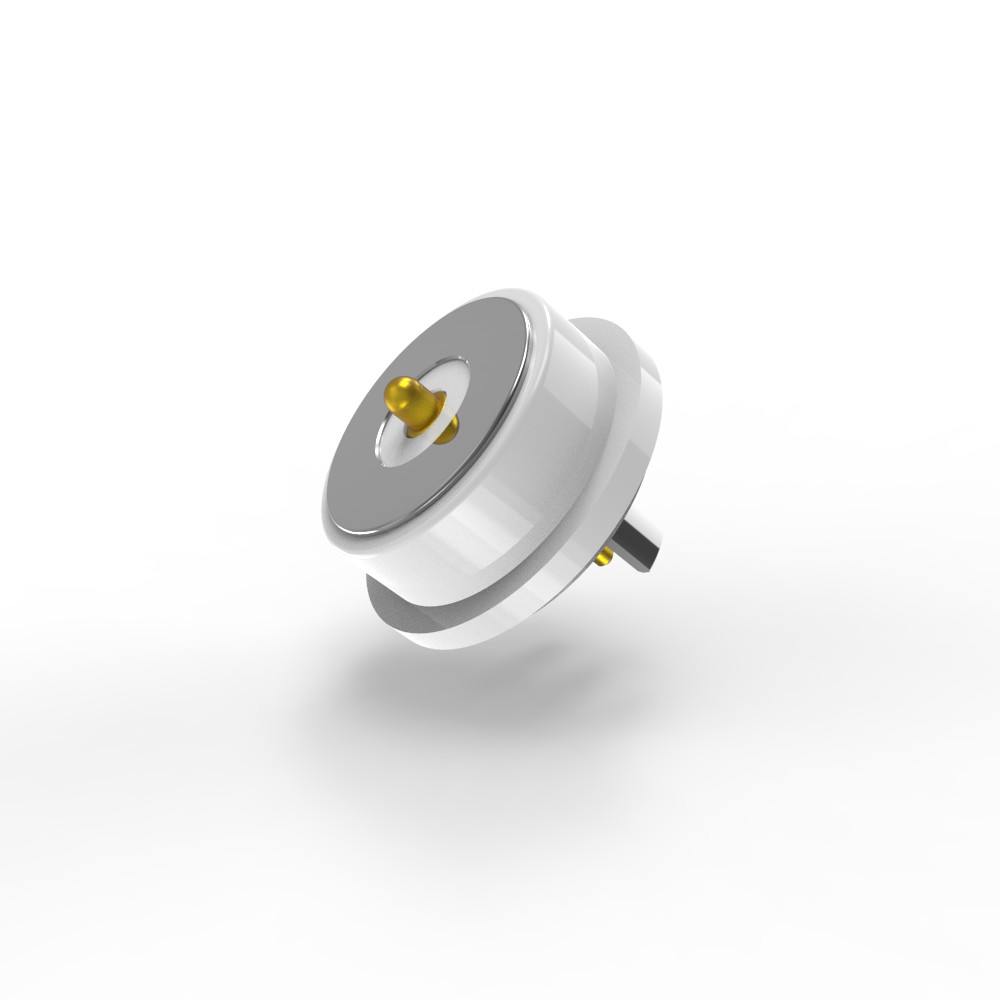

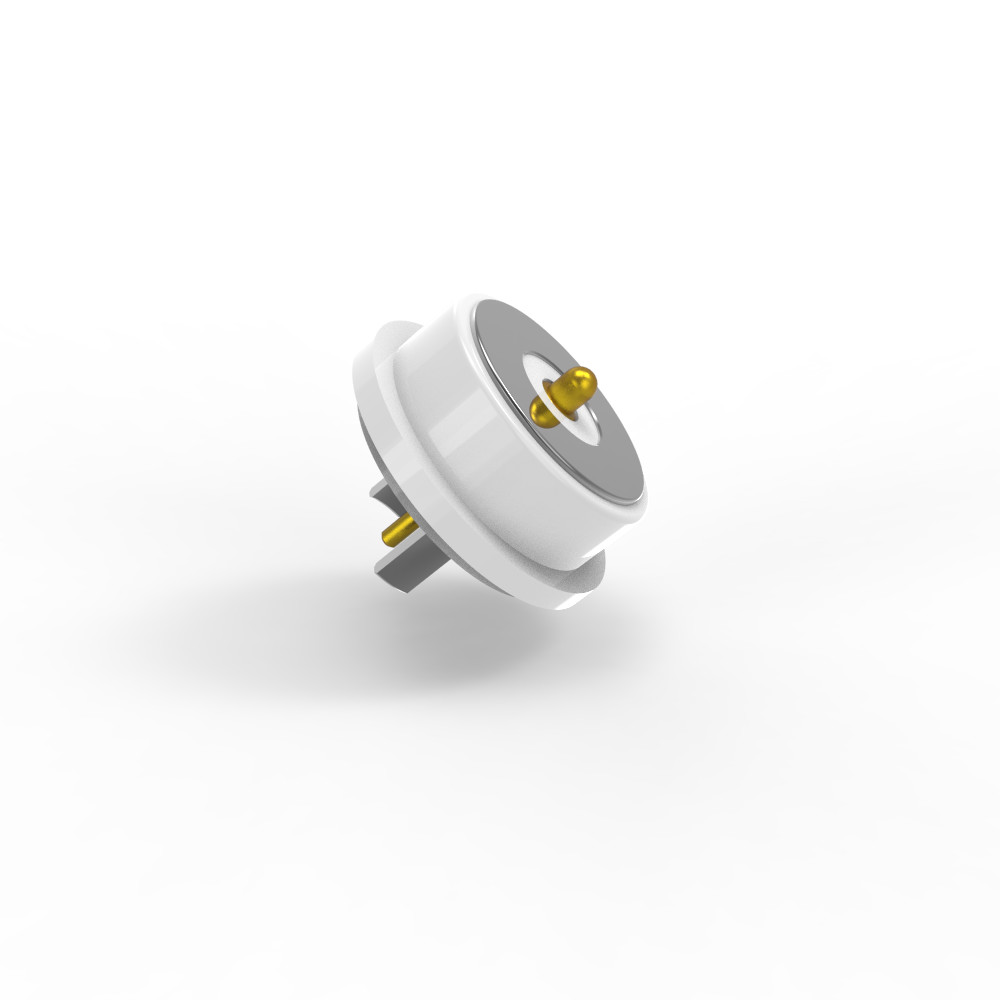

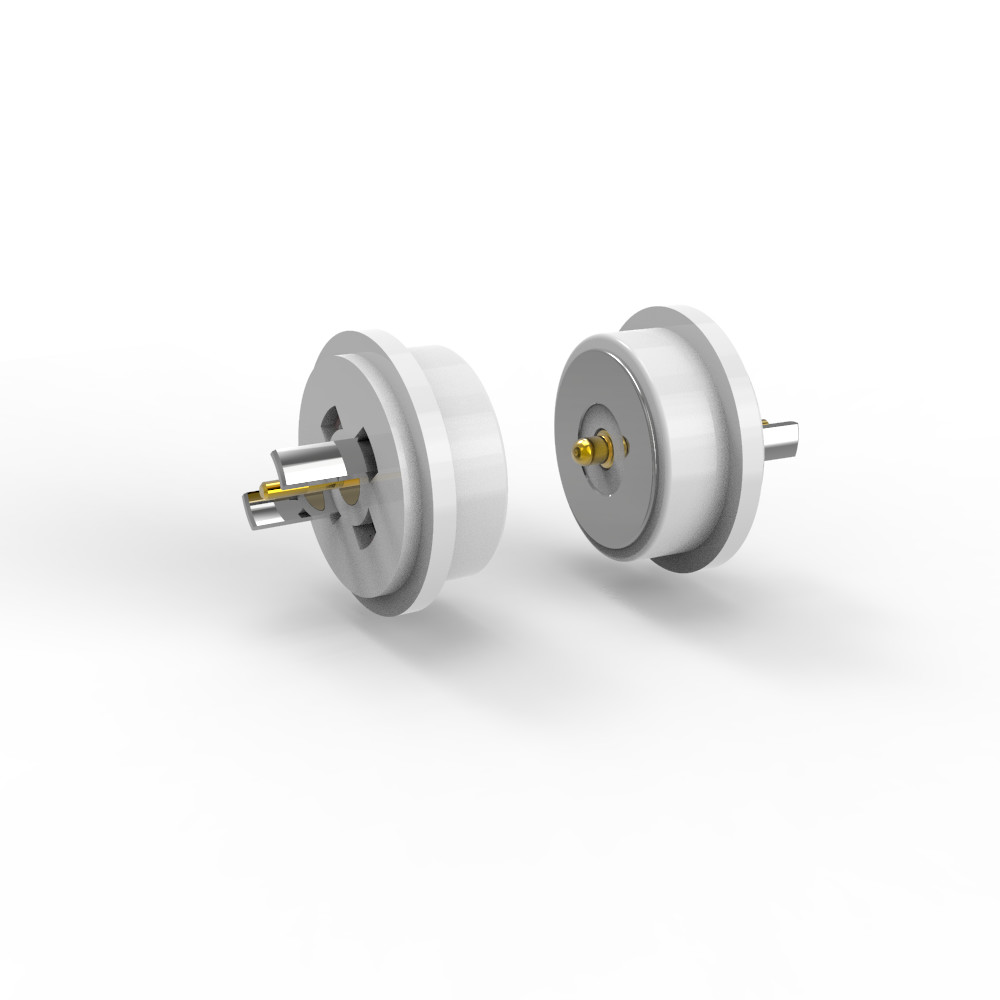

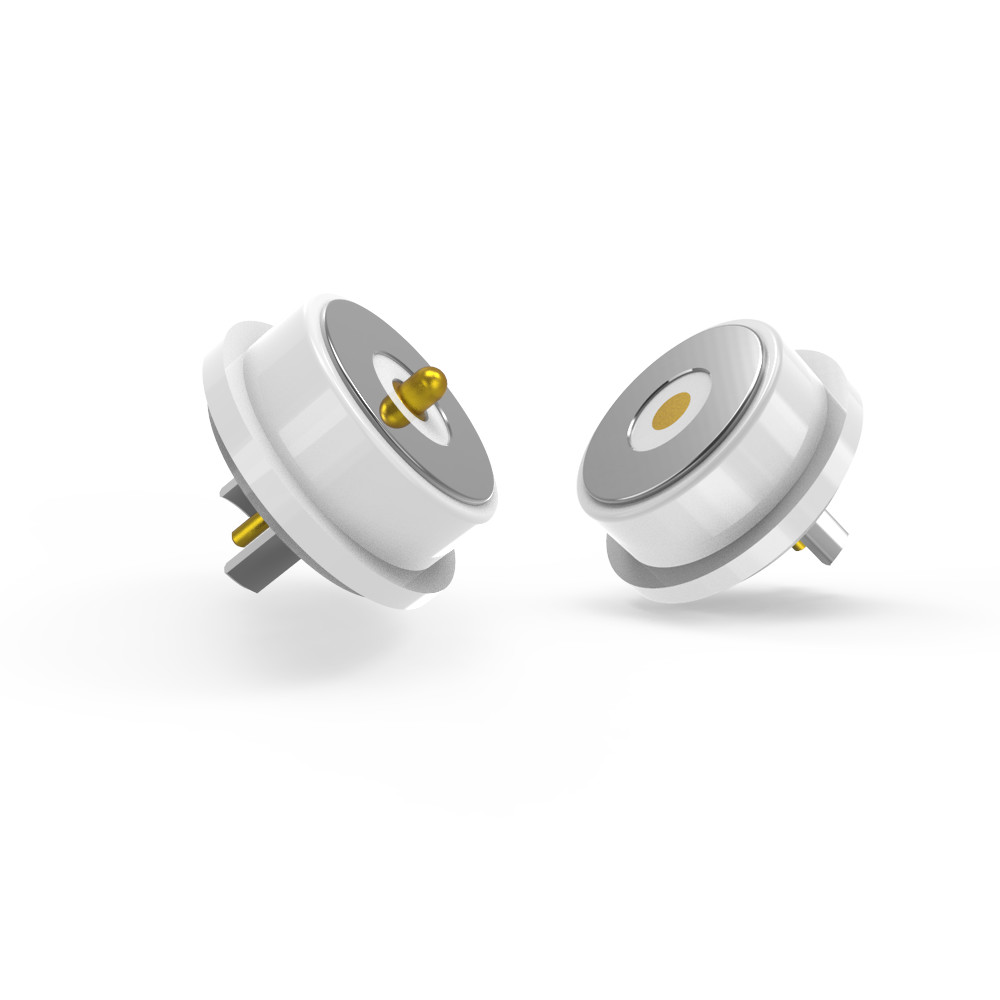

White Magnetic Pogo Pin Connectors 2 Pin Male And Female Connector 8.0mm

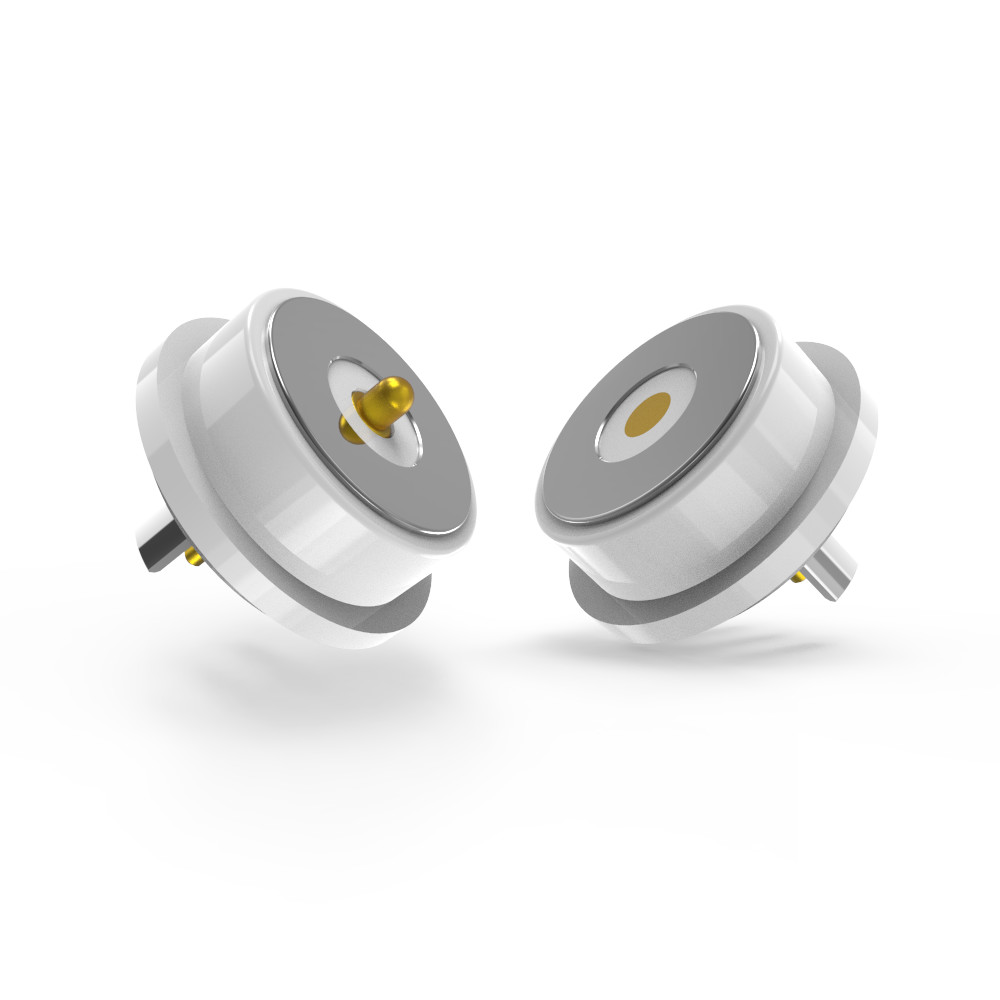

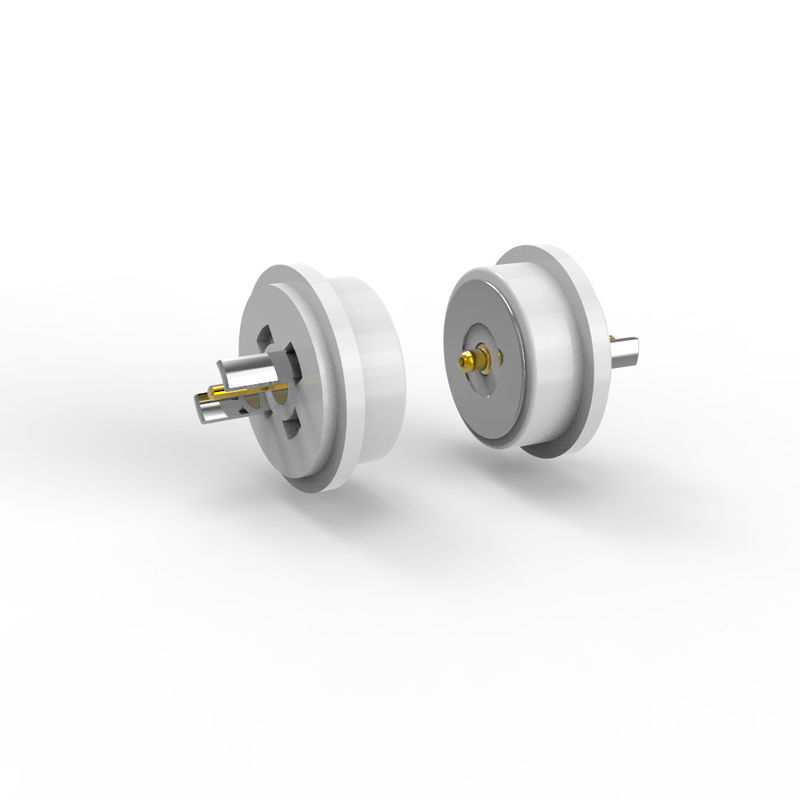

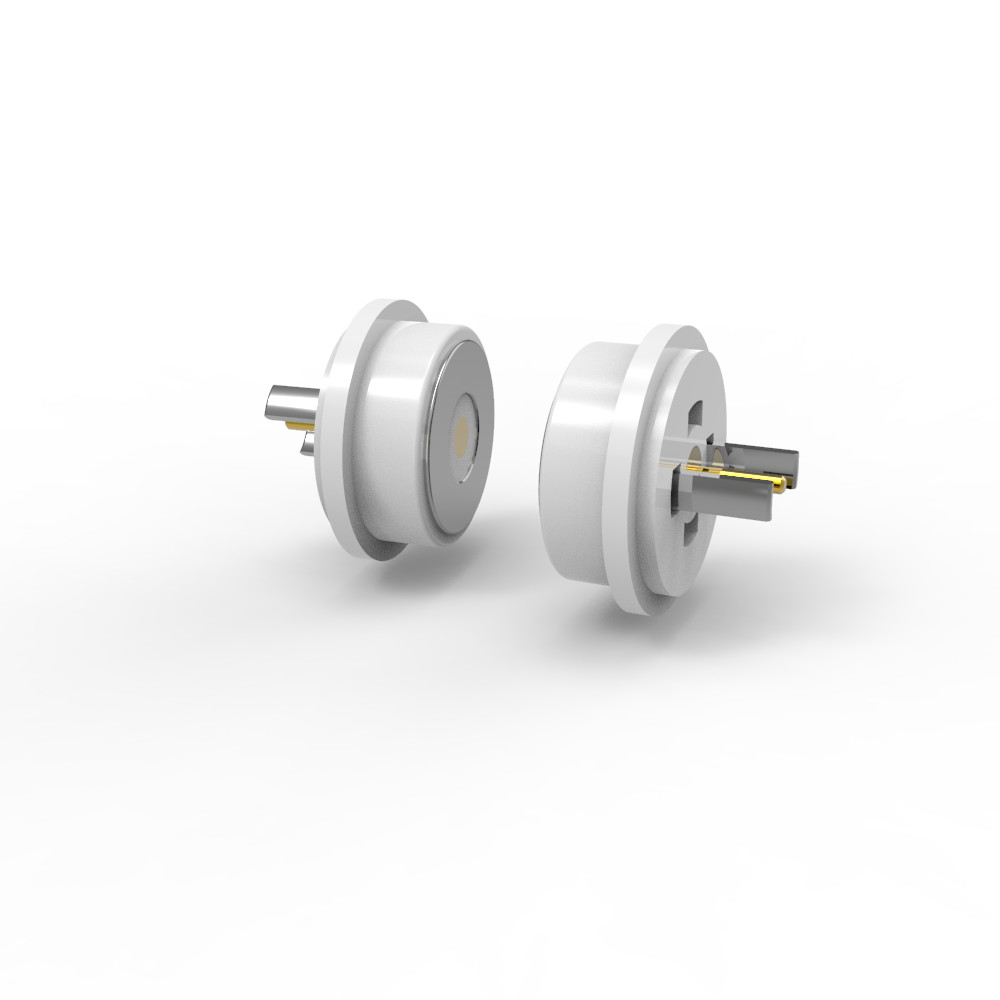

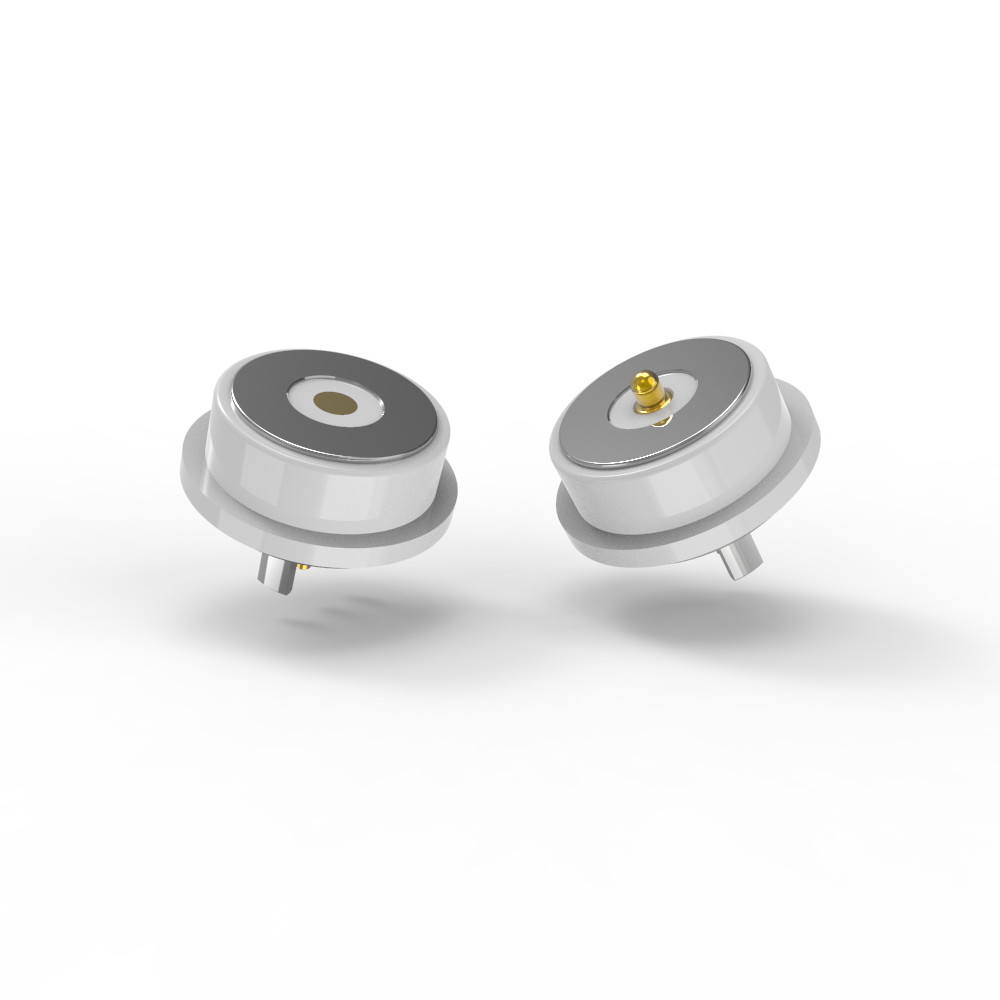

Pogo pin connector  male and female white round magnetic connector with 8.0mm

1. Material Specifications

. Plunger & Barrel:

Base Material: Lead-free brass (C6801)

Plating: Minimum 5µ" (microinches) Gold (Au) over 60–100µ" Nickel (Ni) for corrosion resistance and conductivity.

. Spring:

Material: Stainless steel SUS 304

Plating: 1µ" Gold (Au) for conductivity.

. Housing:

Material: White LCP (Liquid Crystal Polymer) with 30% glass fiber (GF), UL94 V-0 rated (flame retardant).

. Shell:

Material: Lead-free brass (C6801) with Nickel (Ni) plating.

. Magnet:

Material: Neodymium Iron Boron (NdFeB) grade N52 (high magnetic strength) with Nickel plating.

2. Mechanical Specifications

. Spring Force: 60g ±10g at 1.0mm working stroke (actuation force).

. Full Stroke: 1.2mm (total travel distance).

. Mechanical Life: Minimum 50,000 cycles (durability).

. Actuation Mechanism: Likely magnetic (via the NdFeB magnet) with a plunger-spring system.

Electrical:

Voltage:12 V.

Current:3.0A.

Contact resistance:50mΩMax (PIN).

Testing:

100% open/short circuit tested.

ROHS/REACH compliant (no hazardous substances).

Salt spray test: 48 hours (corrosion resistance validation).

Product application description(not limited to the following):

1.Plug-in welding PCB board;

2.Forming and encapsulating after welding wires;

3.A transfer terminal of thatPCBboard can be adde;

4.Mlding injection molding of embeddable mould;

5. Wires can be bonded directly.

Round Magnetic Connector Parameter:

Round Male Magnetic  Connector Technical Drawing

Round Female Magnetic  Connector Technical Drawing

Recommended pcb layout:

Layout tolerance:±0.05mm

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic connector products application:

● Wearable devices (smartwatches, AR/VR headsets)

● Medical equipment (portable diagnostics)

● Industrial IoT (modular sensors, robotics)

● Consumer electronics (magnetic charging docks) ect..

Why UPE shall be your partner?

● Fast prototyping: 3-5 days for samples

● Cost-effective: Competitive MOQ pricing

● Quality assurance: 100% automated testing

● High-tech production with precision engineering

● Systematic quality control for consistent performance

How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

*Negotiate pricing & terms (bulk discounts may apply).

*Confirm order details (connector type, quantity, customization).

*Make payment (via PayPal, bank transfer, or other secure methods).

*Shipping & Quality Check
*Track the shipment.

*Inspect the product upon arrival to ensure quality.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
