HTN Round Magnetic Connector Black Spring Loaded Electrical Connector 3A

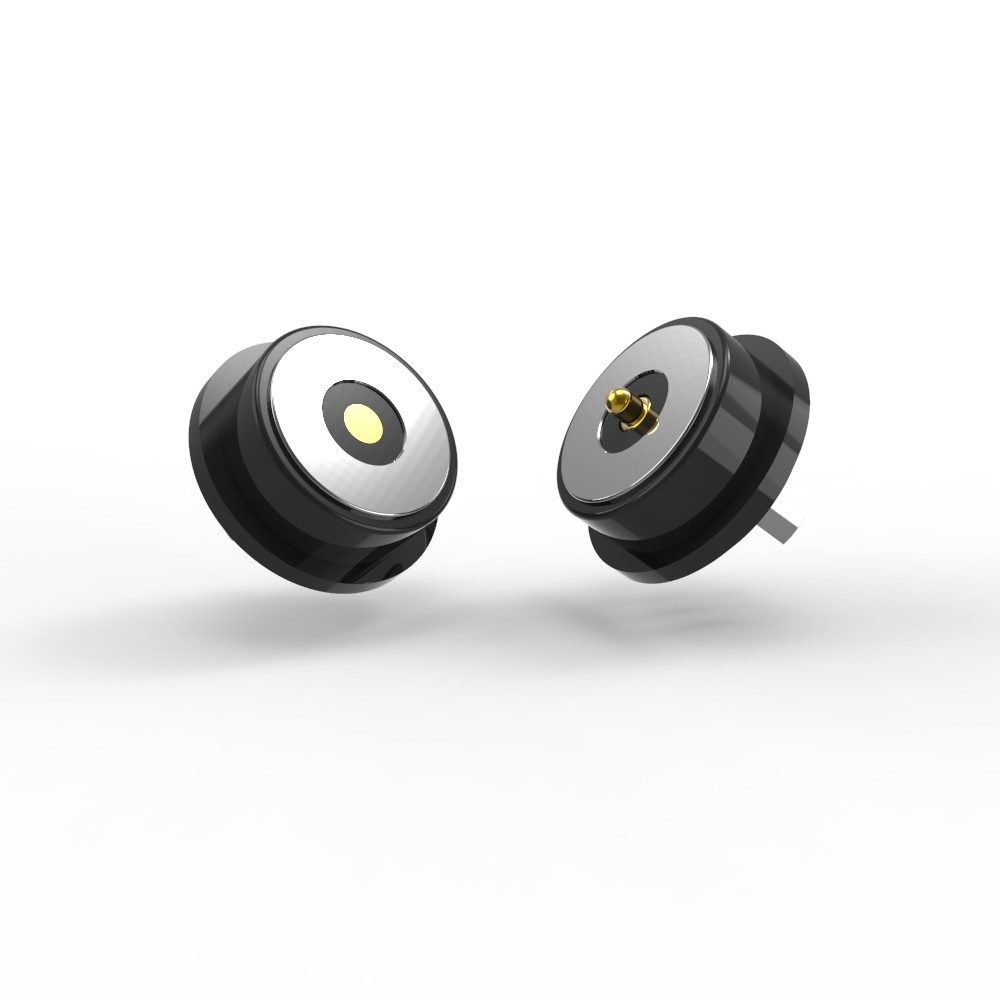

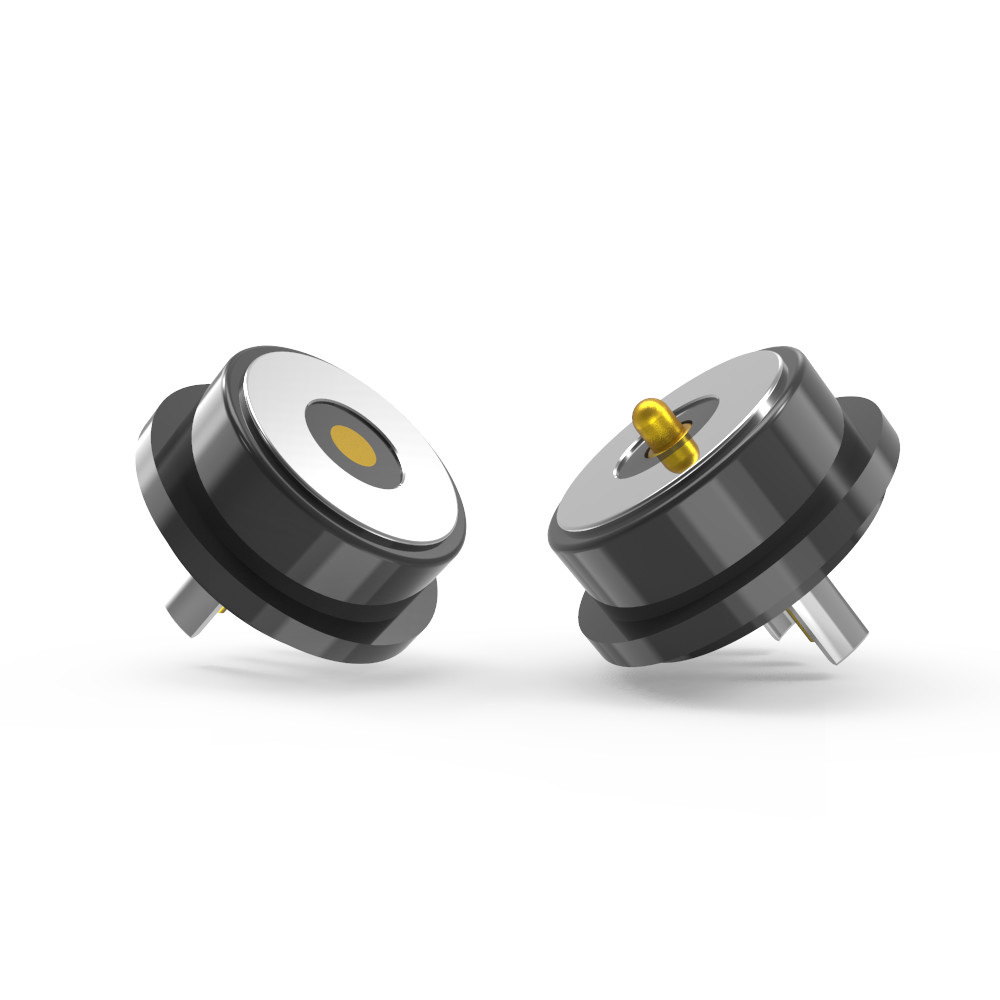

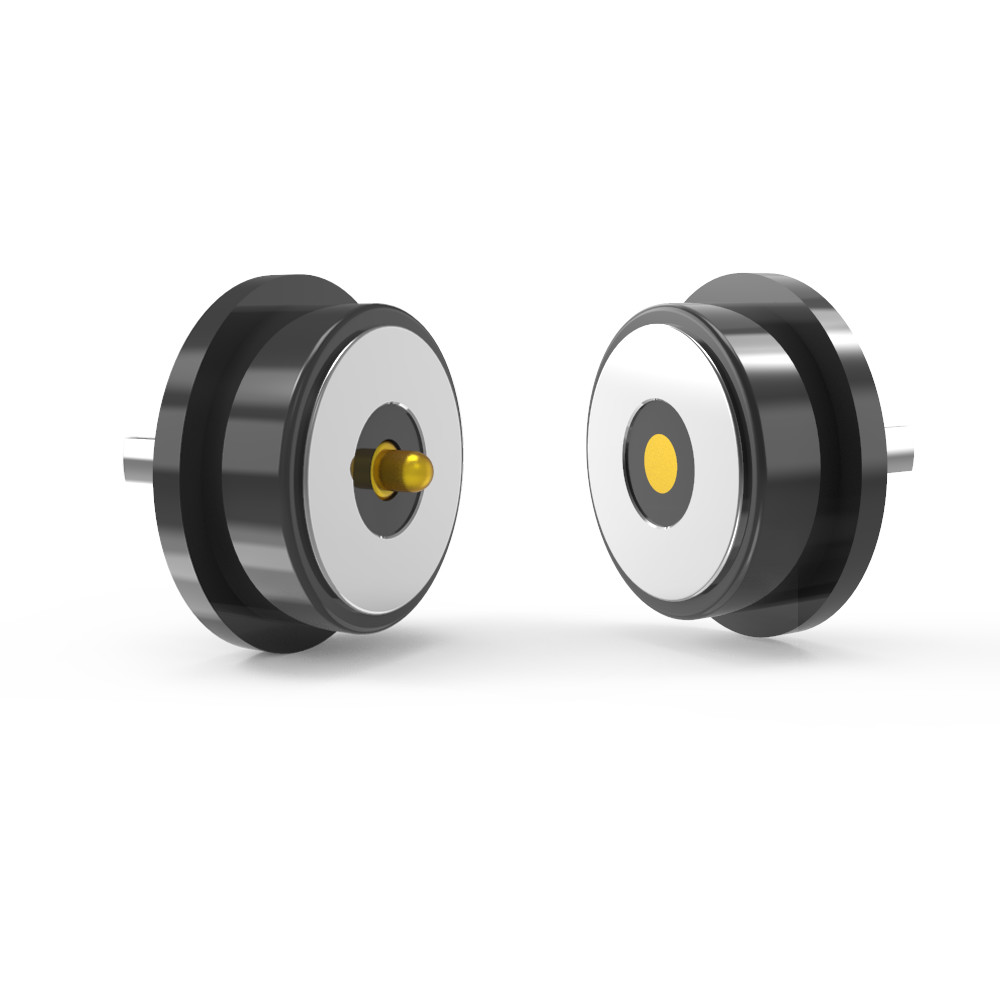

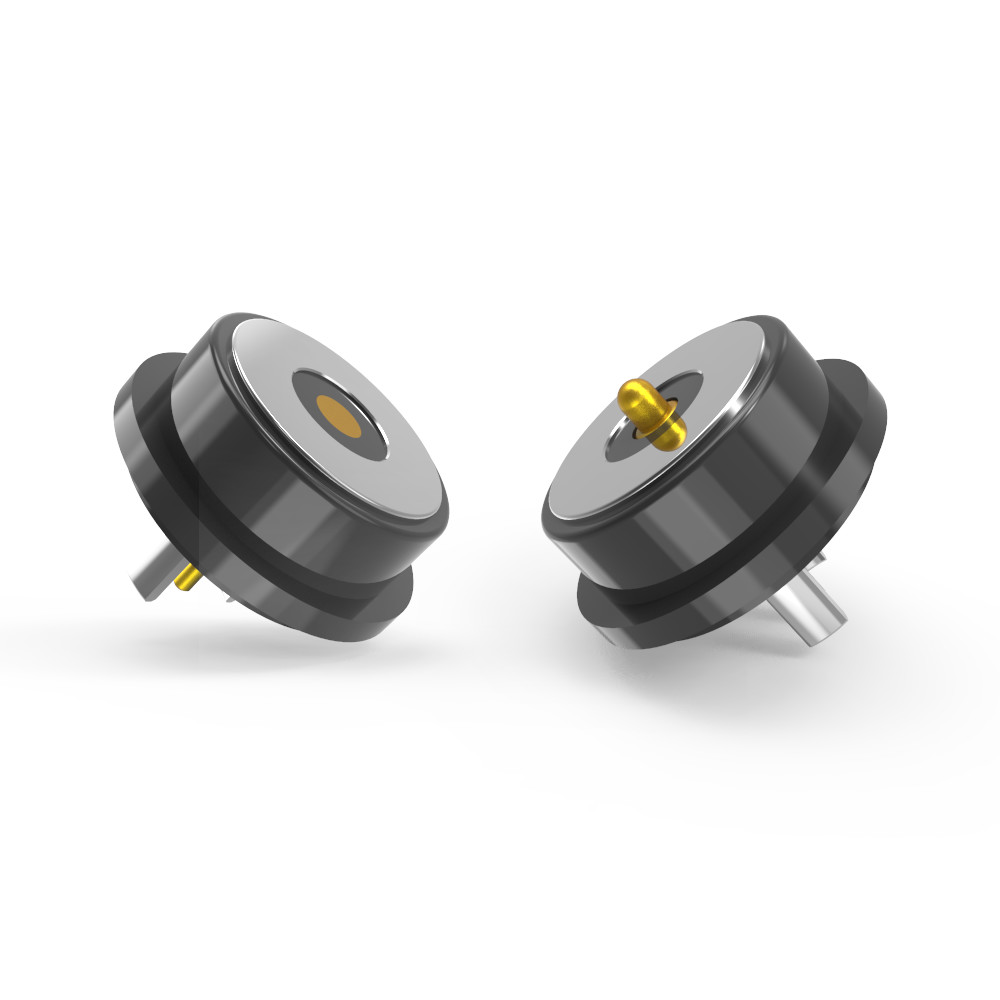

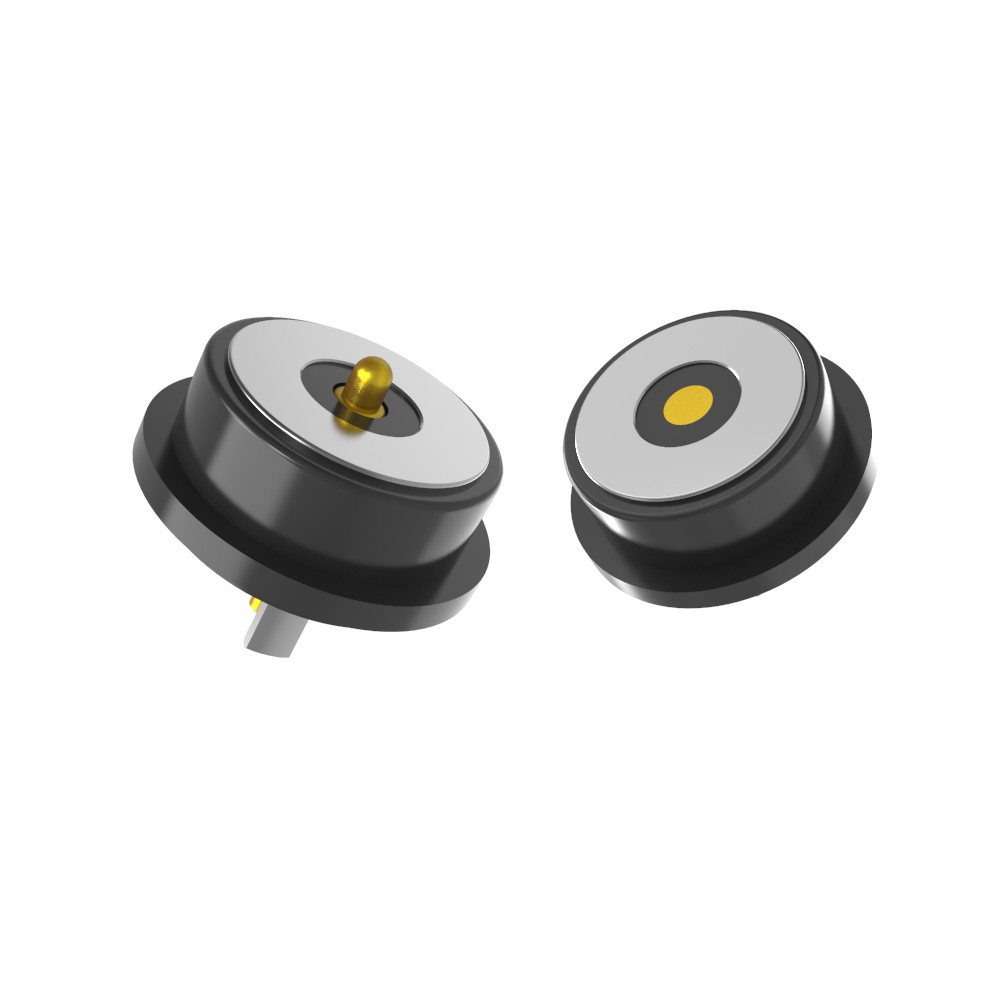

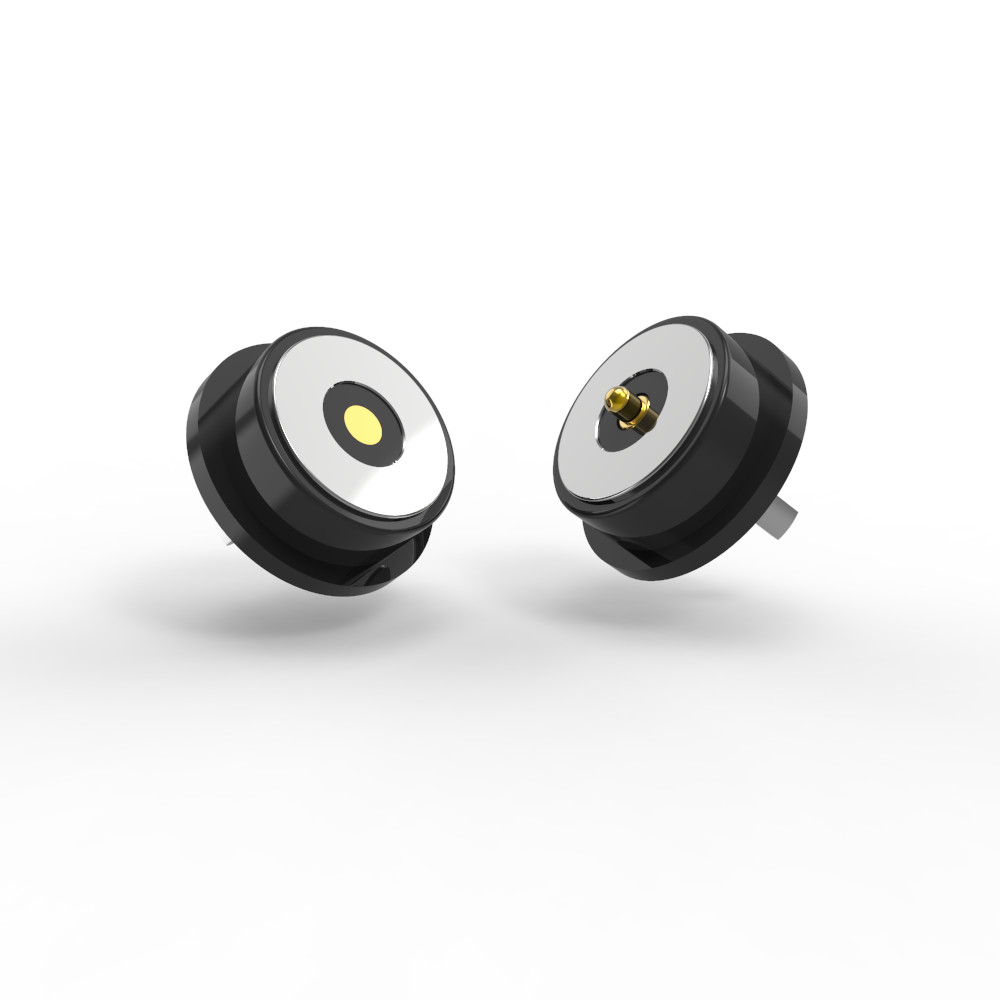

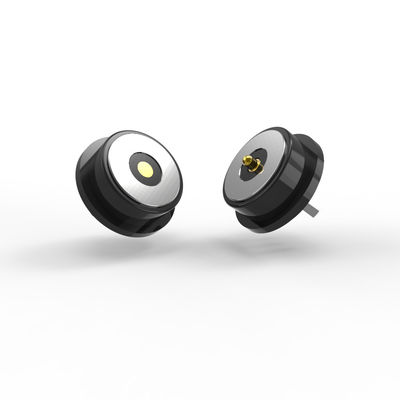

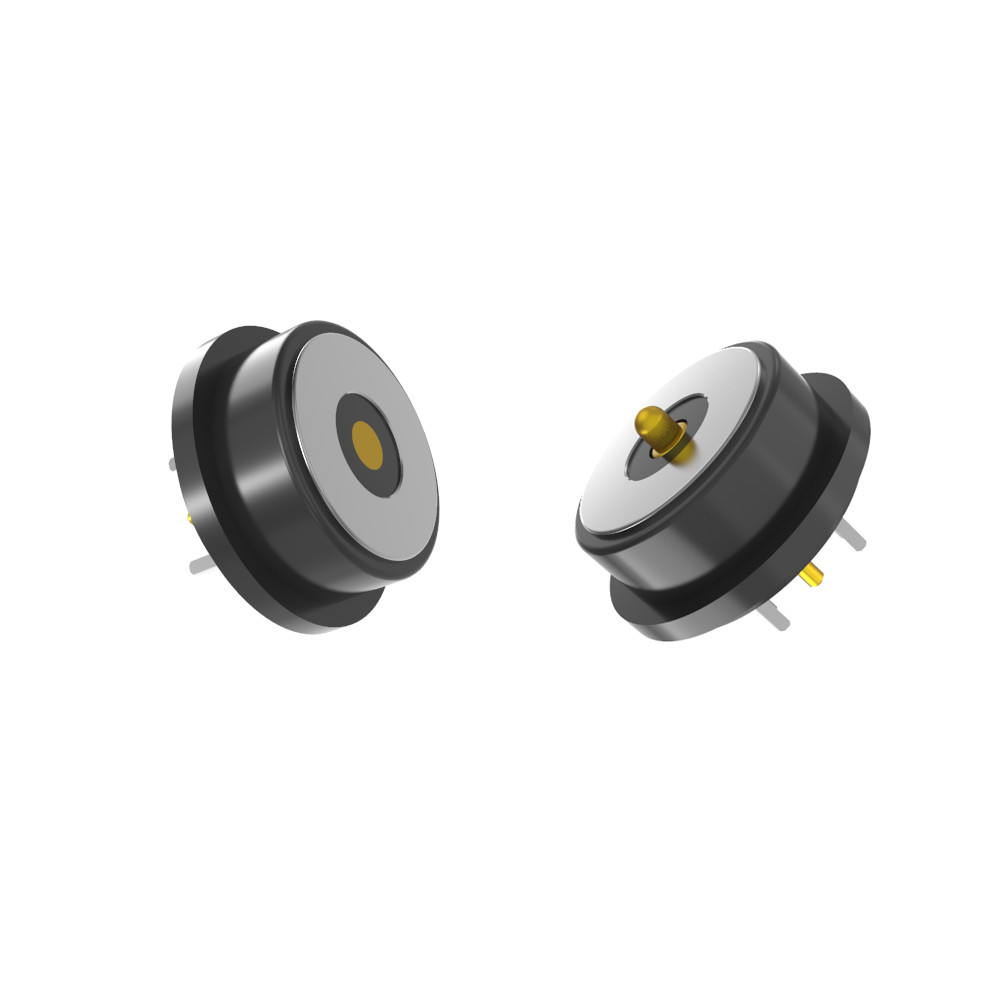

Black HTN OD8.0mm 2pin spring loaded pogo pin round magnetic connector

Materials:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;

Barrel:Lead-free C6801 ,plating 5U" Min Au over 60~100U" Ni ;

Spring:SUS 304 plating 1U" Au;

Housing: Black LCP+30%GFUL94 V-0 ;

Shell: Lead-free C6801Plating Ni

Magnet: NdFeB N52 Plating Ni

Mechanical:

Spring force:60g±10g,at 1.0mm working stroke.

Full storke:1.2mm.

Mechanical life:50000 cycle Min.

Electrical Specifications:
Rated Voltage: 12V DC.

Rated Current: 3.0A.

Contact Resistance: ≤50mΩ (milliohms) per pin.

Testing:

100% open/short circuit tested.

ROHS/REACH compliant (no hazardous substances).

Salt spray test: 48 hours (corrosion resistance validation).

Product application description(not limited to the following):

1.Plug-in welding PCB board;

2.Forming and encapsulating after welding wires;

3.A transfer terminal of thatPCBboard can be adde;

4.Mlding injection molding of embeddable mould;

5. Wires can be bonded directly.

Round Magnetic Connector Parameter:

Round Male Magnetic  Connector Technical Drawing

Round Female Magnetic  Connector Technical Drawing

Recommended pcb layout:

Layout tolerance:±0.05mm

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)

Why UPE shall be your partner?

1. Fast Prototyping (3–5 Days for Samples)
●Speed-to-Market: Rapid sample turnaround accelerates product development cycles.

●Iterative Testing: Enables quick design refinements before mass production.

●Advantage: Ideal for industries like automotive, medical, or consumer electronics where time-sensitive innovation is critical.

2. Cost-Effective (Competitive MOQ Pricing)
●Low Minimum Order Quantities (MOQ): Reduces upfront costs for startups or small batches.

●Scalability: Flexible pricing ensures affordability for both prototyping and large-scale orders.

●Value Proposition: Balances high-quality output with budget-friendly solutions.

3. Quality Assurance (100% Automated Testing)
●Zero Defects: Automated inspection (e.g., optical, electrical, mechanical) ensures reliability.

●Consistency: Eliminates human error in critical testing (e.g., contact resistance, salt spray, cycle life).

●Compliance: Meets strict industry standards (ROHS, REACH, automotive-grade).

4. High-Tech Production & Precision Engineering
●Advanced Manufacturing: CNC machining, precision stamping, and micro-plating (e.g., Au/Ni for connectors).

●Material Expertise: Mastery of specialized materials (LCP, SUS 304, NdFeB magnets, lead-free brass).

●Application-Specific Solutions: Tailored for complex components

How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

*Negotiate pricing & terms (bulk discounts may apply).

*Confirm order details (connector type, quantity, customization).

*Make payment (via PayPal, bank transfer, or other secure methods).

*Shipping & Quality Check
*Track the shipment.

*Inspect the product upon arrival to ensure quality.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
