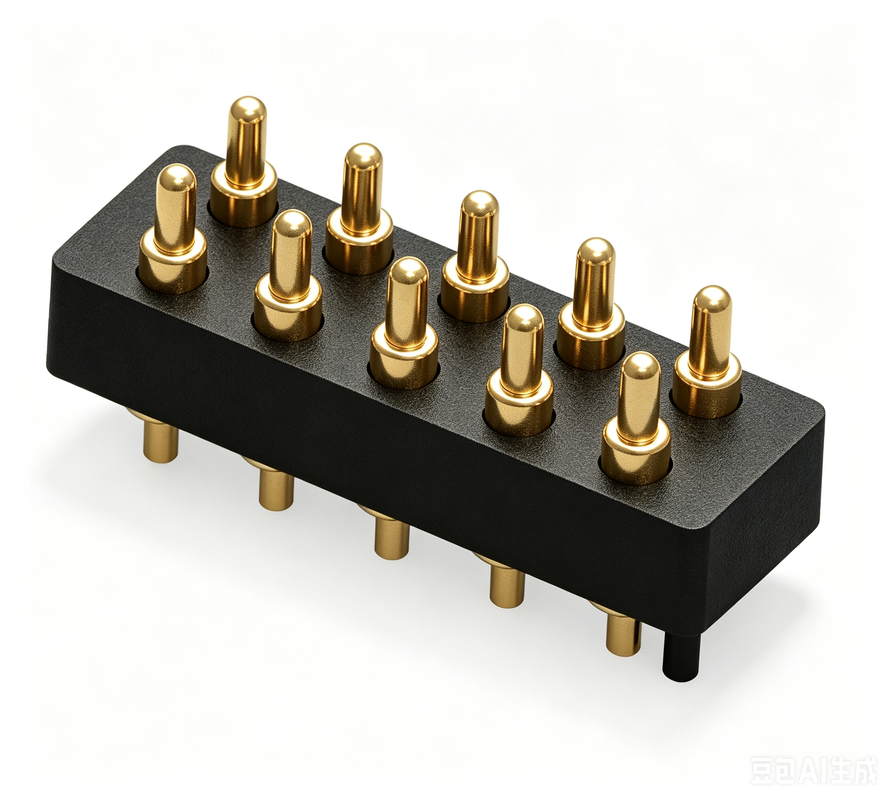

Custom Gold Plated DIP 10Pin Pogo Pin Connector For Eelectronics
  • Name

Custom Gold Plated DIP 10Pin Pogo Pin Connector For Eelectronics

Brand Name: UPE
Model Number: 10pin spring-loaded contact pogo pins
MOQ: 5000
Price: $0.8-$3
Packaging Details: 1000pcs/PE bag( according to customer requirements)
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Name:
Pogo Pin Connector
Type:
DIP
Material:
C3604, SUS304,THN
Surface Treatment:
Gold Plating
Contact Resistance:
50mΩ Max At Working Height
Salt Spray Test:
48H
Product Operating Temperature:
260℃±5℃ 20s±2s
Product Use Environment::
80℃~130℃(Lab Testing)
Supply Ability:
5KPCS/Day
Highlight:

gold plated pogo pin connector

,

10pin dip pogo connector

,

custom pogo pin for electronics

Product Description
Custom Gold Plated DIP 10Pin Pogo Pin Connector
Professional custom pogo pin connector solutions designed according to specific customer requirements. UPE pogo pins feature internal structures matched to customer specifications for optimal performance.
Pogo Pin Overview
Pogo pins are precision connectors used in mobile phones and electronic products for reliable signal transmission. Available in various configurations including flat bottom, plug plate, bending, double needle shaft, thread, welding wire, and side hole types.
Technical Specifications
ParameterSpecification
InsulatorBlack plastics (265℃) UL94 V-0
PlungerBrass 5u" Au over 60~100u" Ni
BarrelBrass 5u" Au over 60~100u" Ni
SpringSUS surface treatment
Spring force70g+/-20g at 1.0mm working stroke
Life test100,000 cycles
Rated current3A Max.
VoltageDC 12V
Contact resistance50 milliohm Max
Salt spray test48H
CertificationROHS or REACH compliant
Test100% open and short test
2.0mm Pitch Standard Pogo Pin Connector
2.0mm pitch DIP pogo pin connector Close-up view of pogo pin connector pins
UPE Pogo Pin Connector Advantages
  • Reliability: CLIP Technology ensures consistent electrical connection in vibration and shock environments
  • Compact Design: Small size ideal for modern compact electronic devices
  • Flexibility: Adapts to surface variations for stable connections
  • Ease of Use: Straightforward installation and maintenance
  • Durability: Withstands numerous connection/disconnection cycles
UPE Technical Capabilities
  • Professional customized high current pogo pins (15A-30A series) in mass production
  • 1.27mm, 2.0mm, 2.54mm pitch standard male/female connectors (2pin-40pin)
  • Available in SMT, DIP, Right Angle, and Solder Cup configurations
  • Life test up to 1,000,000 cycles
  • HF, RoHS, REACH compliance
  • 100% electrical testing with reports
  • Custom shapes, small structures, and high current options
Pogo Pin Structure Types
Pogo pin structure types and configurations
  • SMT: Flat bottom design for stable PCB soldering
  • DIP: Positioning pin prevents deviation during PCB welding
  • Double Head: Bi-directional board-to-board connection without welding
  • Right Angle: Bent tail for flexible space utilization
  • Solder Cup: Suitable for cable products and wire welding
  • Screw-type: Custom specifications for unique requirements
Why Choose UPE?
  • Professional customization service
  • Fast sample production capability
  • Strict quality control system
  • Processing with imported components
  • High-precision test equipment
  • Reasonable cost control procedures
Application Fields
Pogo pin connector application fields and industries
Ordering Process
  1. Submit drawing or sample
  2. Engineering team assessment
  3. Drawing confirmation and sample production
  4. Sample testing and approval
  5. Order placement with 50% deposit
  6. Production begins
  7. Quality check photos and balance payment
  8. Delivery via DHL, TNT, UPS, Fedex
Business Terms
  • Payment: T/T, 50% Deposit, 50% Balance
  • Payment Methods: T/T, PayPal, OCBC
  • Sample Lead Time: Inventory 2-3 days / Customized 5-7 days
  • Production Lead Time: 10-15 working days
  • Markets: America, Europe, Asia, South Africa
  • Trade Term: EXW
  • Freight: Air, Sea, Express
Contact Information
High quality with reasonable price, OEM service, any special size, color, designs accepted
Email: union@upetech.net
