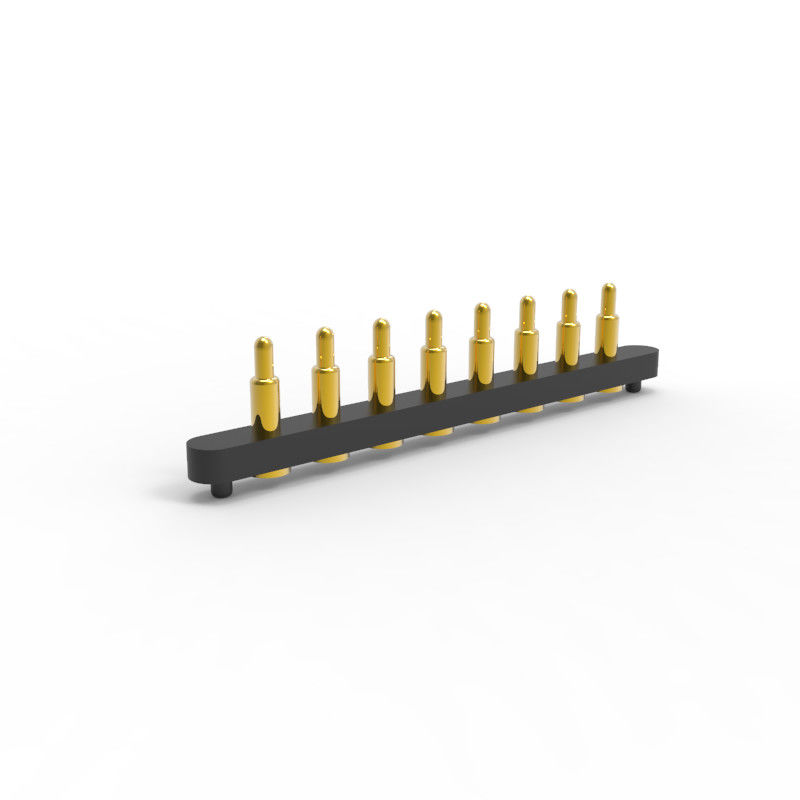

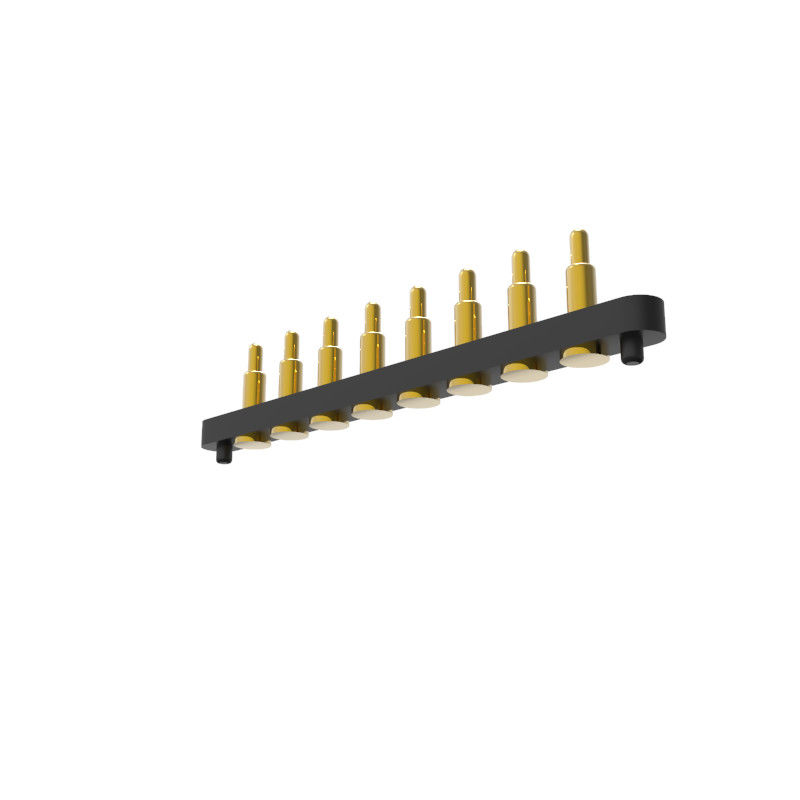

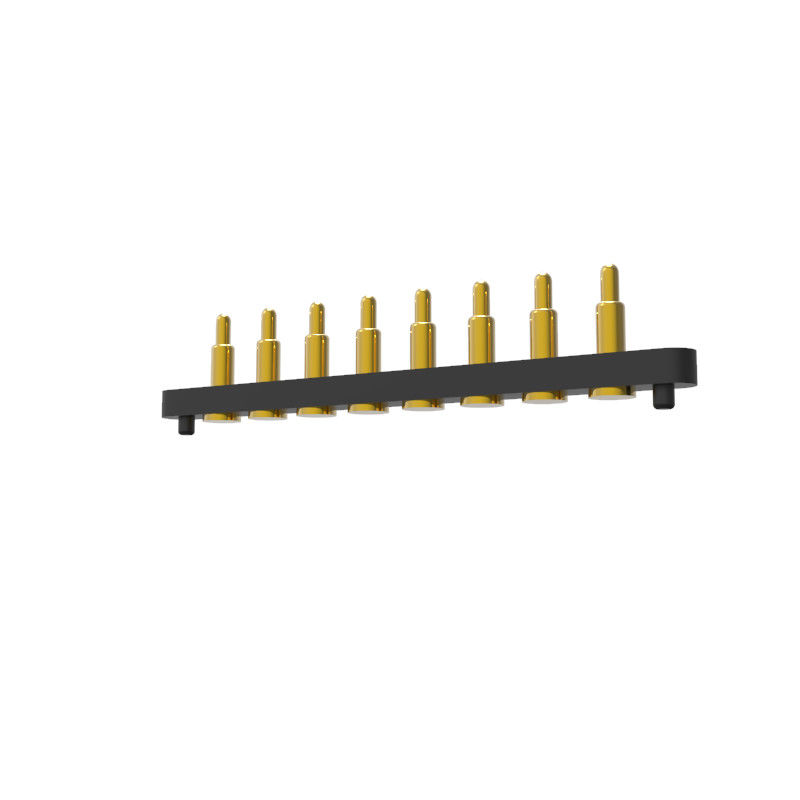

8pin SMT spring loaded pogo pin connector surface mount PCB brass gold plating.For the SMT type pogo pin , it is good stability, the bottom of the barrel is a flat bottom design, which is easy to solder on the PCB board.UPE provide professional spring loaded pogo pin connector customization service, different products and pogo pin connector solutions can be designed according to different customer needs.
Advantages of UPE Pogo Pin Connector
Pogo Pin Connector, commonly known as spring pins or pogo pins, offer several advantages:
Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.
Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.
Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.
Ease of Use: They are user-friendly, with straightforward installation and maintenance.
Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable
Our Advantage and your choice:
.UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.
.UPE developed 1.27mm,2.0mm 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.
.Pogo Pin Life test up to 1000,000 cycles.
.All products can pass HF, RoHS REACH standard.
.100% electrical test provided report before delivery the goods.
.Custom of various shapes is available, small structure and high current.
Pogo Pin type structure and description:
SMT: Good stability, the bottom of the Barrel is a flat bottom design, which is easy to solder on the PCB board.
DIP: There is a positioning pin at the tail of the Barrel. When welding with the PCB, no deviation will occur, good positioning effect and firm
welding.
Double Head: The design of the double head Pogo pin provides designers with more flexibility in the bi-directional board-to-board
connection ,the double head pin does not need to be welded.
Right Angle: The tail of the Pogo Pin is bent, providing designers with more choices in the use of space , the tail can also be soldered with wire
Solder Cup: Suitable for cable product, easy to weld with wire
Screw-type: The products with special specifications can meet the different needs of customers, and can be customized according to the needs
of customers.
Why do customers choose UPE?
1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
Spring-Loaded Connector parameter performance
|
Name of Parts
|
Parameter performance table
|
|
Barrel Materia
|
Brass
|
Beryllium copper
|
Phosphor Bronze
|
|
|
Plunger Material
|
Brass
|
Beryllium copper
|
Phosphor Bronze
|
Stainless steel
|
|
Spring options
|
Stainle
|
Music wire
|
|
|
|
Plating requirements
|
Gold-Au
|
Silver-Ag
|
Palladium-Nickel
(Pd-Ni)
|
|
|
Rated Current
|
1A, 2A, 3A ,5A,15A or 30A (different structures)
|
|
Rated Voltage
|
DC 12V 24V
|
|
Contact Resistance
|
30mΩ 50mΩ Max. (stillness)
|
|
Life test
|
50,000 cycles Min. 1000,000 cycles Max
|
|
Reflow Temp.
|
265°, 4~5sec
|
|
POGO PIN Reliability Test
|
|
Retention Force
|
At rated cycling of 500±50 per hour,50,000 cycles minimum
|
|
Humidity
|
EIA-364-31,Test method II, Condition A Subject mated connectors to relative humidity of 90% to 95%RH and a temperature of 40℃ ± 2℃ relative humidity for 96 hour.
|
|
Resistance to Solder Heat
|
EIA-364-56,Procedure 5,Level 2 265℃+10/-0℃for 30 to 35 seconds
|
|
Salt Spray
|
EIA-364-26,Test condition B Subject mated connectors to 5±1% salt-solution concentration, 35+1℃/-2℃ for 48 hours.
|
|
Spring force test
|
Normal Force Test Procedure,100g±20g at working height
|
|
Temperature Life
|
EIA-364-17,Test method A,condition 4,Test time condition A Subject mated connectors to 85℃± 2℃ for 96 hours.
|
|
Solderability
|
EIA-364-52 Dip into the 265±5℃, 60/40±5% Sn/pb solder for 4.0~5.0 second
|
|
Contact Resistance
|
EIA-364-23 Measure the contact resistance with a test current of 100 mA maximum and 20 mV voltage maximum
|
Some of customized Pogo Pin Connectors for reference:
Pogo Pin Connector Application Field:
Pakaging & shipping
