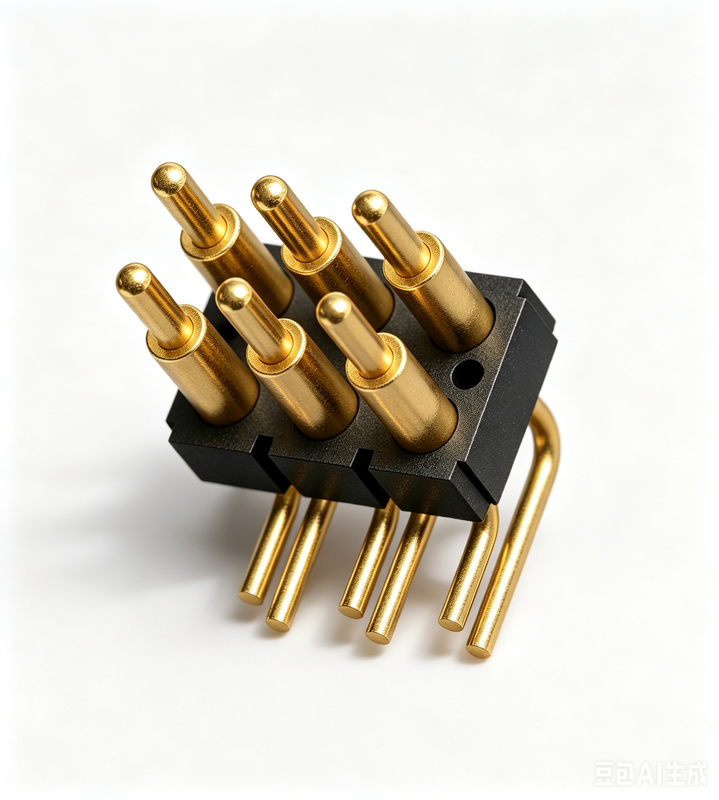

Customized double row right angle 6pin spring loaded pogo pin Connector
  • Name

Customized double row right angle 6pin spring loaded pogo pin Connector

Brand Name: UPE
Model Number: UPD02A-BXX-XXXX
MOQ: 5000
Price: $0.8-$3
Packaging Details: PE
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Document:
2.54mm pitch Standard POGO ...EC.pdf
Name:
Right Angle Pogo Pin Connector
Type:
Right Angle
Material:
C3604, SUS304,THN
Spring Force:
70g+/-20g
Current:
1A
Volatge:
DC12V
Test Life:
100,000 Cycles
Contact Resistance:
50 Milliohm Max.
Salt Spray Test:
48H
Product Operating Temperature:
260℃±5℃ 20s±2s
Supply Ability:
5KPCS/Day
Highlight:

double row pogo pin connector

,

right angle 6pin pogo connector

,

spring loaded pogo pin connector

Product Description
Customized Double Row Right Angle 6-Pin Spring Loaded Pogo Pin Connector
Union Precision Electronic Co., Ltd (UPE) specializes in high-end Pogo Pin connectors, magnetic connectors, and supporting products. As a high-tech company, we focus on continuous technological innovation and delivering superior quality products.
Pogo Pin Connector Construction
Pogo Pin Connector consists of 6 essential components:
  • Plunger
  • Barrel
  • Spring
  • Ceramic beads
  • Housing
  • Cap
Detailed diagram showing the 6 components of Pogo Pin Connector construction
Technical Specifications
Parameter Specification
Name Right Angle Pogo Pin Connector
Pin Number 6Pin
Insulator Black plastics (265℃) UL94 V-0
Plunger Brass 5u" Au over 60~100u" Ni
Barrel Brass 5u" Au over 60~100u" Ni
Spring SUS surface treatment
Spring Force 70g+/-20g at 1.0mm working stroke
Life Test 100,000 cycles
Rated Current 1A Max.
Voltage DC 12V
Contact Resistance 50 milliohm Max
Salt Spray Test 48H
Certification ROHS or REACH compliant product
Test 100% open and short test
Standard 2.54mm Pitch Pogo Pin Connectors
Available in 2pin-40pin right angle configurations for various applications.
2.54mm pitch standard 2pin-40pin right angle pogo pin connector Standard 2.54mm Pitch Pogo Pin Connector reference diagram
Application Fields
Various application fields for pogo pin connectors
Our Competitive Advantages
  • Professional customization of high-current Pogo Pins (15A-30A series) in mass production
  • Developed 2.0mm and 2.54mm pitch standard male and female 2pin-40pin connectors with SMT/DIP/Right Angle/Solder Cup options
  • Pogo Pin life test up to 1,000,000 cycles
  • All products compliant with HF, RoHS, and REACH standards
  • 100% electrical testing with provided reports before delivery
  • Custom shapes available with small structures and high current capacity
Why Choose UPE?
  1. Professional customization service
  2. Fast sample production capability
  3. Strict quality control system
  4. Processing with imported components
  5. High-precision test equipment
  6. Reasonable cost control procedures
Ordering Process
  1. You provide drawing or sample
  2. We conduct project assessment
  3. We produce and send samples
  4. You approve samples and place order with 30% deposit
  5. We begin production
  6. We provide photos for verification, you pay balance
  7. We deliver products via courier
Business Terms
Payment Term T/T, 50% Deposit, 50% Balance
Payment Method T/T, PayPal, OCBC
Sample Lead Time Inventory sample: 2-3 working days / Customized sample: 5-7 working days
Production Lead Time 10-15 working days
Markets Served America, Europe, Asia, South Africa
Trade Term EXW
Freight Options Air, Sea, Express
Services High quality with reasonable pricing, OEM service, custom sizes, colors, and designs
Shipping
Customized 6pin through hole PCB spring pogo electrical contact pins connector shipping process
For any questions, please contact us at: union@upetech.net
