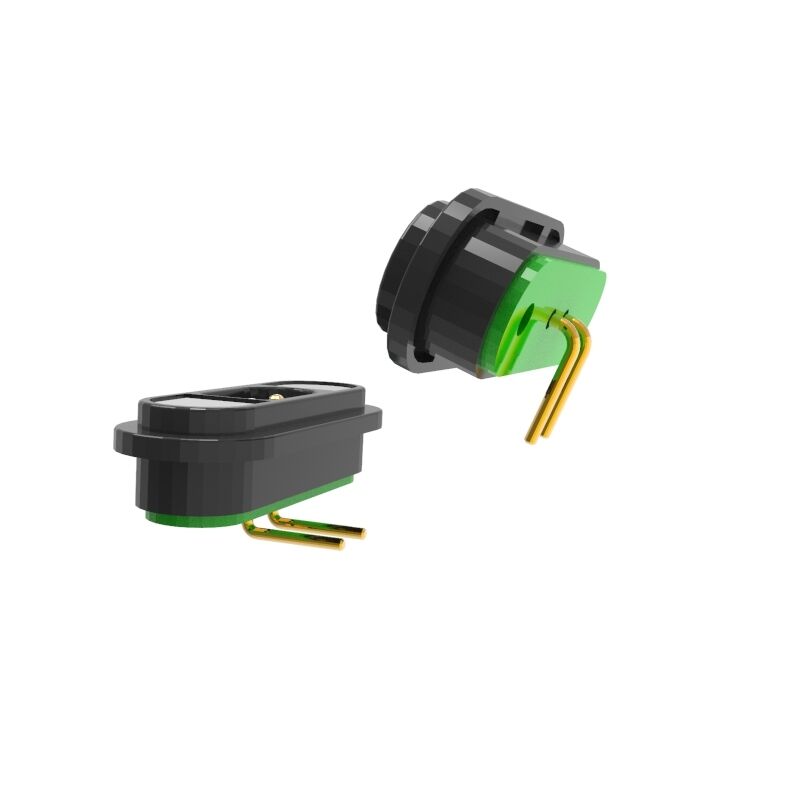

2pin male & female bending magnetic power connector 2.8mm pitch

Brand Name:	UPE
Model Number:	VIC0200A/VIC0200C
MOQ:	5000
Price:	$1-$5
Packaging Details:	PE bags
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9002

Document:

VIC0200A.pdf

Name:

Magnetic Connector

Pitch:

2.8mm

Pin Number:

2Pin

Material:

Brass,NdFeB,HTN

Spring Force:

80g±20g

Working Storke:

1.0mm

Current:

5.0A

Volatge:

12V

Operation Temperature::

-25℃ To +80℃

Contact Resistance:

50mΩ Max (PIN)

Supply Ability:

5KPCS/Day

Highlight:

2pin magnetic power connector

bending magnetic connector 2.8mm

male female magnetic power connector

Product Description

2-Pin Magnetic Power Connector - 2.8mm Pitch

Professional magnetic connector solutions featuring male and female 2-pin configurations with 2.8mm pitch for reliable power connections.

Manufacturer Profile

UPE - Professional Magnetic Connector & Cable Solutions Manufacturer with comprehensive customization capabilities and professional design services.

Materials Specification

Housing: Black HTN UL94V-0, High-Temperature Nylon, UL94V-0 Flame-Retardant
Magnet: N52 NdFeB Plating Ni Cu Ni

Mechanical Properties

Contact force: 80g±20g at 1.0mm working stroke
Service life: 50,000 cycles minimum

Electrical Specifications

Rated voltage: DC 12V
Continuous working current: 5A
Contact static impedance: 50mΩ Max (PIN)
High voltage test: AC 1000V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC

Environmental Performance

Magnetic attraction force: More than 600G between male and female docking
Environmental Test: Salt Spray 48 hours

Technical Parameters

Parameter	Specification
Type	Male/Female
Pin	2-pin
Pitch	2.8mm
Color	Black
Housing	Black HTN UL94V-0
Magnet	N52 NdFeB Plating Ni Cu Ni
Spring force	80g±20g at 1.0mm working stroke
Mechanical life	50,000 cycles minimum
Current	5.0A maximum
Voltage	DC 12V
Contact resistance	50mΩ maximum (PIN)
Operation Temperature	25℃ to +80℃
Salt spray test	48 hours
Certification	ROHS or REACH compliant
Test	100% open and short test

Technical Drawings

2-Pin Male Magnetic Connector

2-Pin Female Magnetic Connector

Magnetic Connector Advantages

Automatic adsorption connection for easy operation
Magnetic interface for effortless device removal
High life cycle: 50,000-300,000 reattachment cycles
Customizable waterproof design with IP68 rating capability
High current support: 3A-20A for faster charging
Excellent corrosion resistance: 48H-120H salt spray testing
Custom shape design for product matching and enhanced aesthetics
Magnetic positioning with dual circuit protection
Excellent scalability for power, signal, video, audio interfaces
Short development time with low-cost customization molds
Reliable high RF signal transmission with USB 2.0 compatibility

Application Areas

Wearable Devices & Portable Electronics

Smartwatches, fitness trackers, smart wristbands, wearable phones, Bluetooth headsets, VR/AR headsets, smart glasses. Benefits include waterproofing (IP67/IP68), sweat resistance, and prevention of cable damage.

Medical Equipment

Portable monitors, wearable sensors, diagnostic equipment, bedside devices, handheld scanners, rechargeable surgical tools. Ensures quick disinfection and prevents accidental disconnection.

Industrial, Automation & Test Equipment

Handheld scanners, portable test meters, sensors, robotics, control panels, rugged tablets. Provides excellent vibration/shock resistance and sealed connectors for harsh environments.

Telecom, Data Communications & Audio-Visual

Routers, modems, conference phones, portable speakers, microphones, professional audio interfaces. Offers secure data/power connections resistant to accidental pulls.

Aviation, Aerospace & Military Communication

Avionics test equipment, portable communication radios, rugged tablets, docking stations. Critical for ruggedness, reliability, and secure connections in mission-critical scenarios.

Automotive & Transportation

In-car charging ports, diagnostic OBD-II dongles, car navigation systems, fleet tracking devices. Withstands vehicle vibration and provides easy blind connections.

Consumer Electronics

Smartphones, tablets, laptops, Bluetooth earbuds, digital cameras, drones, power banks. Offers ultimate user convenience and prevents port damage.

Why Choose UPE as Your Partner?

Professional customization service
Fast sample production capability
Strict quality control system
Processing with imported components
High-precision test equipment
Reasonable cost control procedures
Product environmental standards compliance

Ordering Process

1. Submit Your Requirements

Provide details including connector type, voltage & current ratings, cable specifications, magnetic polarity, quantity, and special requirements.

Option 1: Fill out RFQ Form on our website
Option 2: Email specifications to sunion@upetech.net

2. Receive Custom Quote

Our engineering team reviews requirements and provides competitive pricing, lead time, and prototyping options.

3. Approve & Confirm Order

Finalize design and production schedule. 3D models or samples available for new designs.

4. Production & Quality Assurance

Manufacturing with strict quality control and available test reports.

5. Fast Delivery & Support

Shipping via preferred logistics method with ongoing technical support.

Payment Terms

50% Deposit: Paid upfront to cover production costs
50% Balance: Paid before shipment for quality assurance

Payment Methods

T/T (Bank Transfer)
PayPal
OCBC Bank

Recommendation: Use PayPal for samples (safer) and T/T for bulk orders (lower fees).

Additional Information

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
Production Lead Time: 10-15 working days
Markets: America, Europe, Asia, South Africa
Trade Term: EXW
Freight Options: Air, Sea, Express
Services: High quality with reasonable pricing, OEM service, custom sizes, colors, and designs
