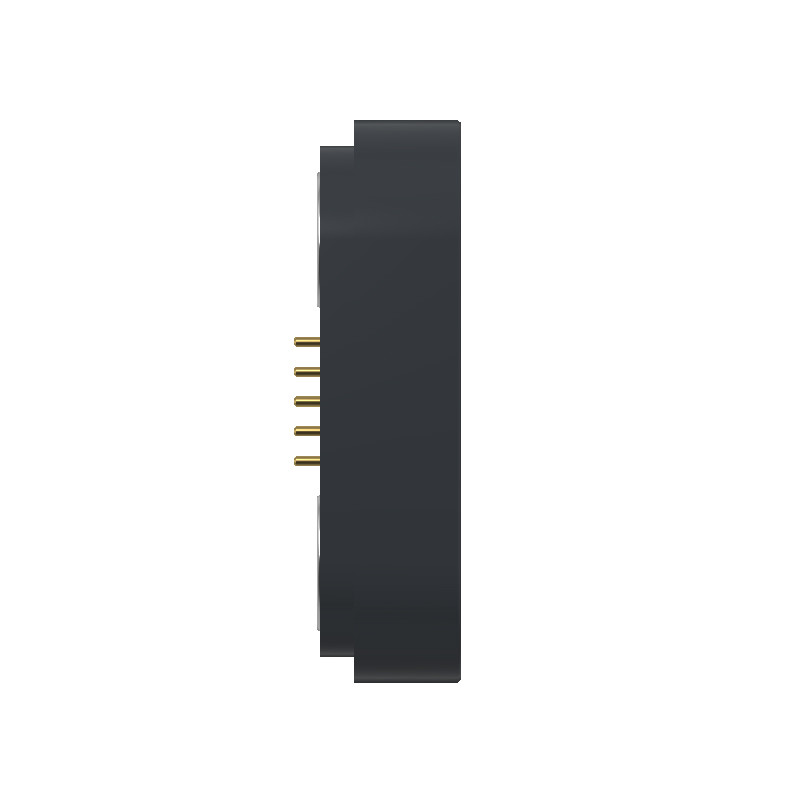

Magnetic 5A 12V charging magnet connector spring 5Pin charge power magnetic connector.
Union Precision Electronic LIMITED(UPE) is professional custom manufacturer in manufacturing connector components including POGO PIN, POGO PIN connector, Magnetic Connector, Magnetic Cable Connector,spring antenna thimble, spring thimble and various probes. It is one of the most competitive company in the field of spring loaded connector in China. Products are widely used in all kinds of communications, medical equipment, automotive electronics, wireless equipment, smart wear, industrial testing equipment (such as mobile phones, televisions, tablets, game consoles and learning machines) and computer peripheral products. Our products are mainly exported to Europe, the United States, Canada, Asian developed countries and regions.
Our company’s investment in advanced equipment has never been interrupted, in order to better meet the needs of market competition, and constantly improve the quality of products.
Mechanical:
Pin1/3:
-Contact force:80g±20g at 1. 1mm working storke
-Life test: 10,000 cycles
Pin2/4/5:
-Contact force:80g±20g at 0.8mm working storke
-Life test:10,000 cycles
Electrical:
-Rated voltage:DC 12V ; Rated voltage: 5A Max.
-Contact resistance of spring pin:50 milliohm Max.
Environmental performance:
-Operation Temperature:-25℃to +80℃
-Salt Spray:24H
Materials:
Pogo Pin: Brass C6801,Plating: Gold (Au) 0.125µm
Female Pin: Brass Plating Au 0.125um
Housing: Black HTN (High-Temperature Nylon) + 30% filler
Magnet:N52 NdFeB Plating Ni Cu Ni
RoHS & REACH Compliance:
RoHS (Restriction of Hazardous Substances): Ensures the materials are free from restricted substances like lead, cadmium, mercury, etc.
REACH (Registration, Evaluation, Authorization of Chemicals): Confirms all chemical substances are registered and safe for use in the EU.
Implementation: All materials (brass, gold plating, HTN housing, PVC, magnets) and their coatings must be verified for compliance through material declarations or lab testing.
100% Short & Open Circuit Testing:
Production Requirement: Every unit undergoes electrical verification:
Short Circuit Test: Confirms no unintended connections between pins
Open Circuit Test: Verifies continuity in all intended signal/power paths
Test Method: Typically performed with automated test equipment during final assembly
Quality Assurance: Eliminates risk of miswired or defective units reaching customers

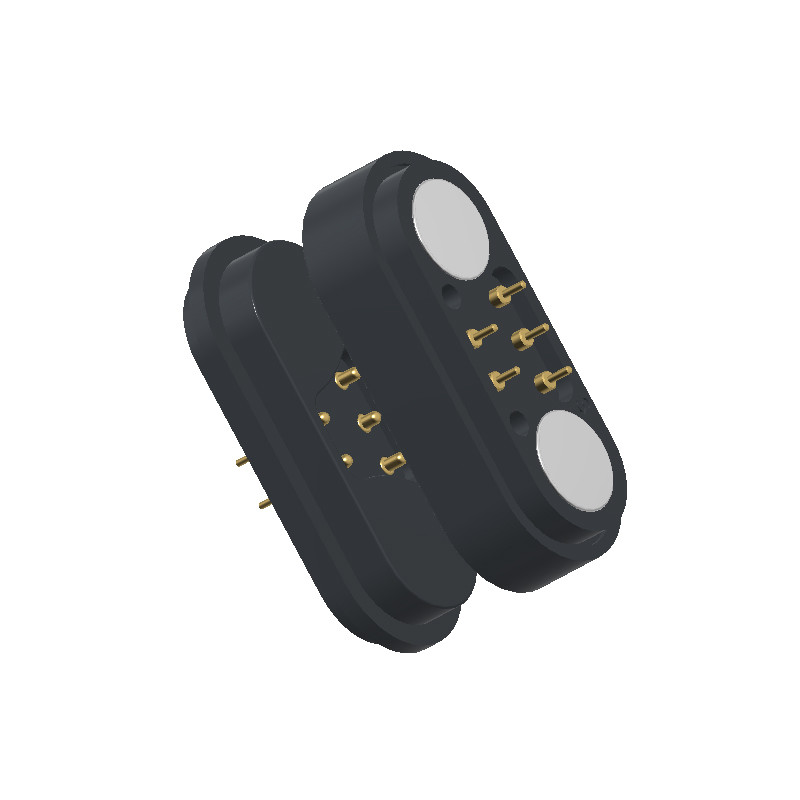

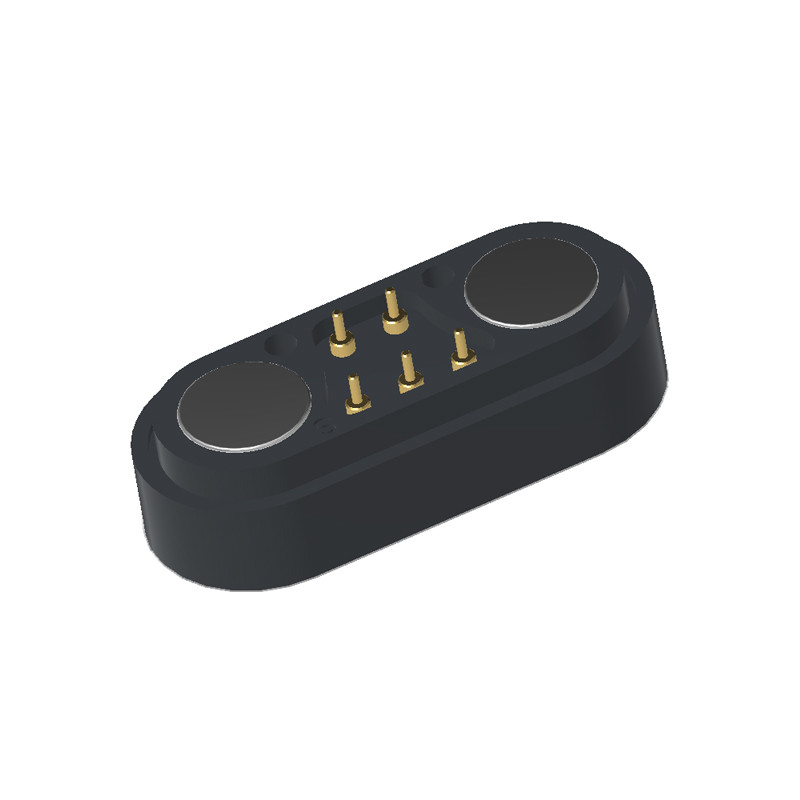

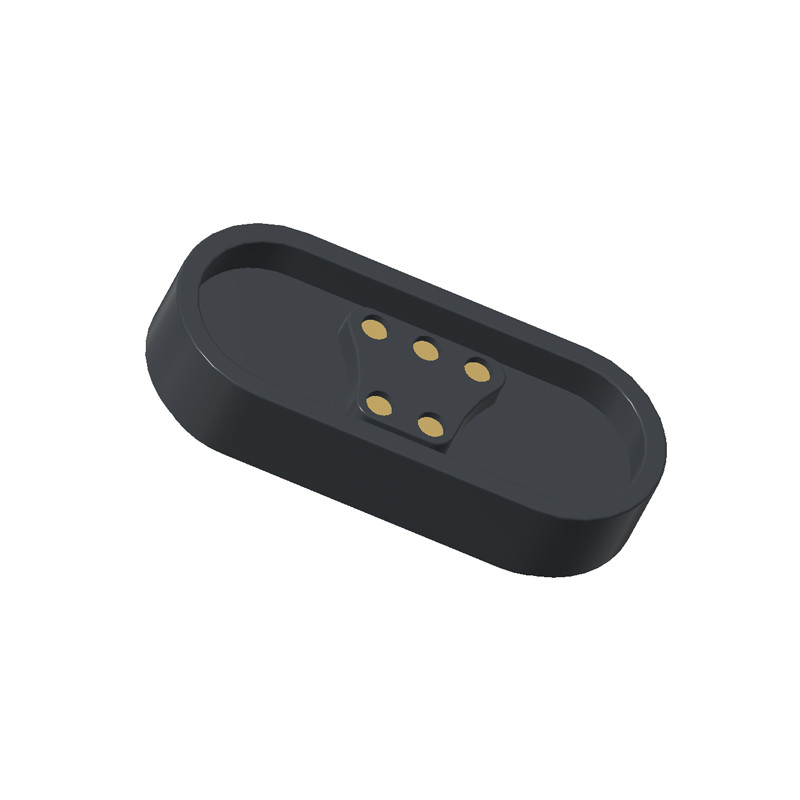

5Pin Male and Female Magnetic Cable Connectors Parameter:
|
Name
|
5Pin Magnetic Connector
|
|
Type
|
Male and female
|
|
Pin
|
5pin
|
|
Color
|
Black
|
|
Pogo pin/Turning parts
|
Brass
|
|
Magnet
|
NdFeB N52 Plating Ni
|
|
Spring force
|
80g±20g,at 0.8mm working storke.
|
|
Mechanical life
|
10000 cycle Min..
|
|
Current
|
5.0AMax
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
Operation Temperature
|
-25℃to +80℃
|
|
Salt spray test
|
24H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
5Pin Male Magnetic Connector Technical Drawing
5Pin Female Magnetic Connector Technical Drawing
Decompose the view of male magnetic connector:
Decompose the view of female magnetic connector:
Advantages of Magnetic Connector:
●Humanize design of automatic adsorption connection experience;
●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;
●Life time: up to 100,000-200,000cycle;
●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);
●Fast charging time: 5A-10A magnet connector design withstands large current transmission;
●The appearance of the magnetic connector can be matched according to the design of the customer's application device;
●Product anti-short circuit structure design and foolproof;
●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission
Magnetic connector products application:
1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection
2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment
3.Aviation ,aerospace electronic,military communication
4.Automotive,car navigation,test and measurement equipment
5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)
Why UPE shall be your partner?
●Professional customization service
●Fast sample production capability
●Strict quality control system
●Processing with imported components
●High-precision test equipment
●Reasonable cost control procedures
How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)
*Negotiate pricing & terms (bulk discounts may apply).
*Confirm order details (connector type, quantity, customization).
*Make payment (via PayPal, bank transfer, or other secure methods).
*Shipping & Quality Check
*Track the shipment.
*Inspect the product upon arrival to ensure quality.
Payment Term: T/T,50% Deposit,50% Balance
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
