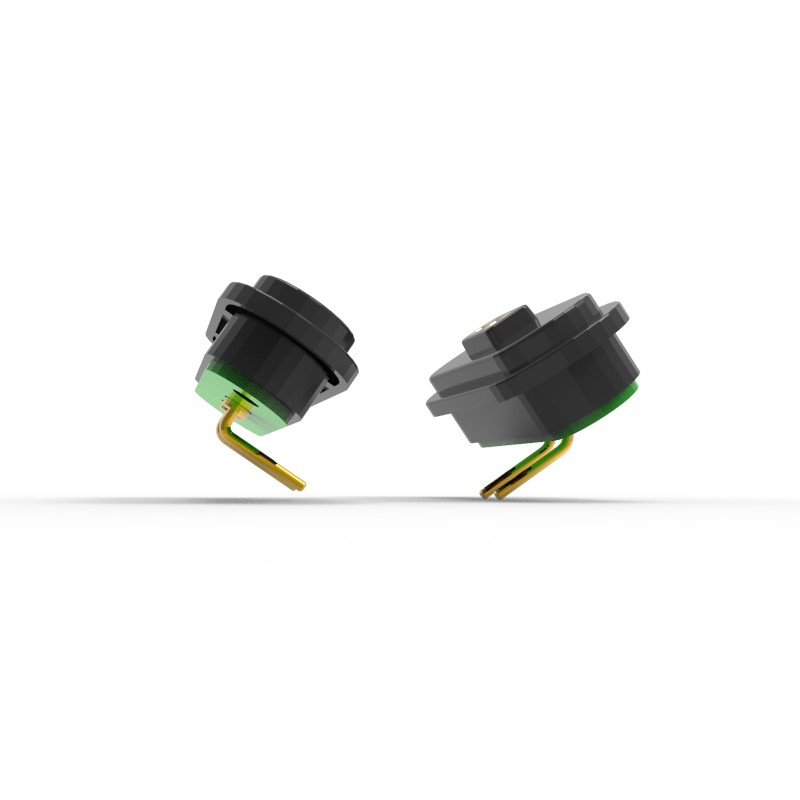

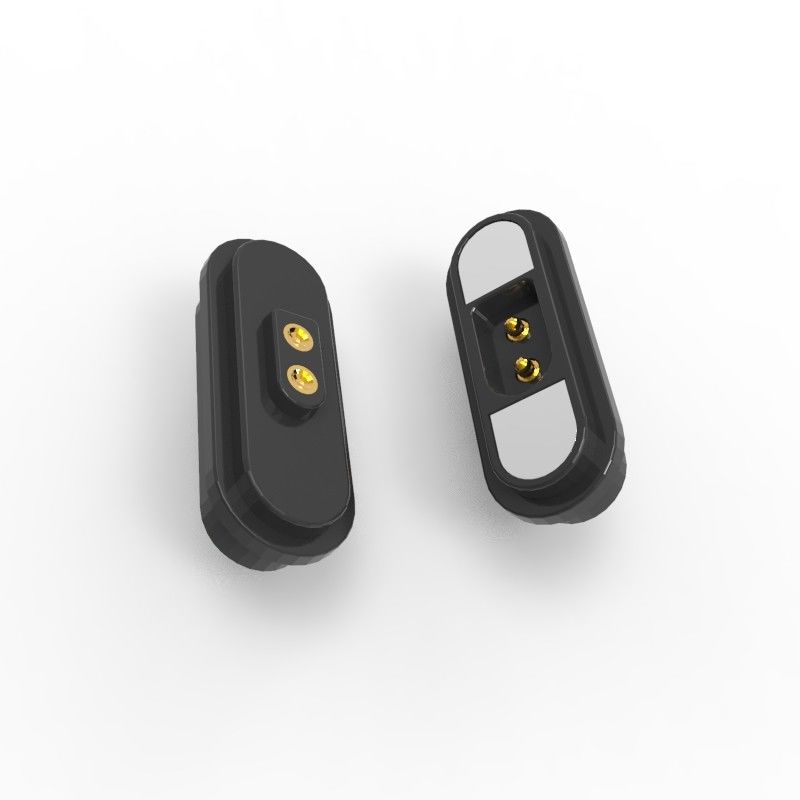

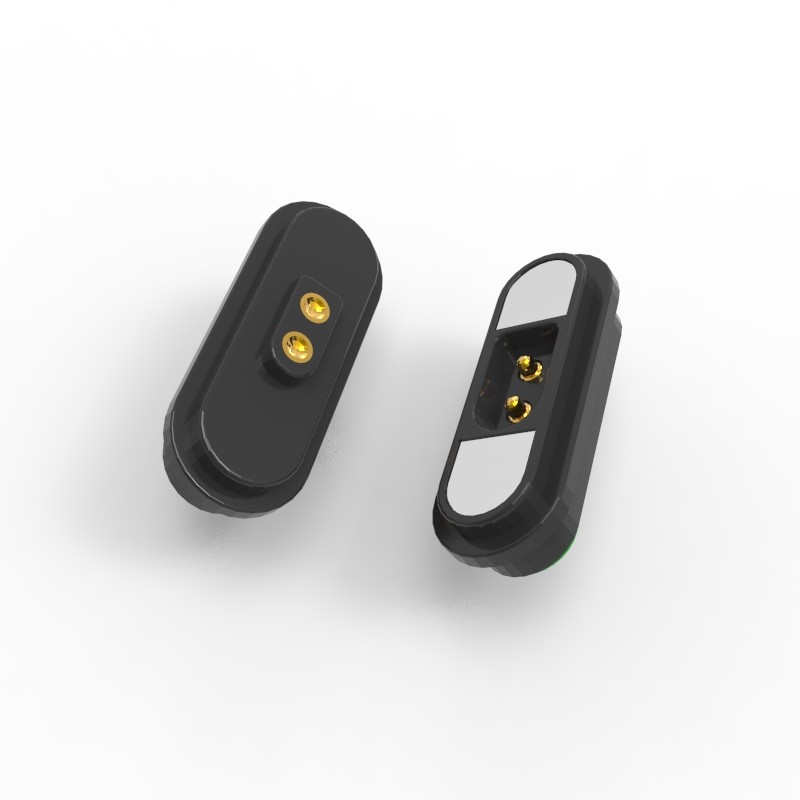

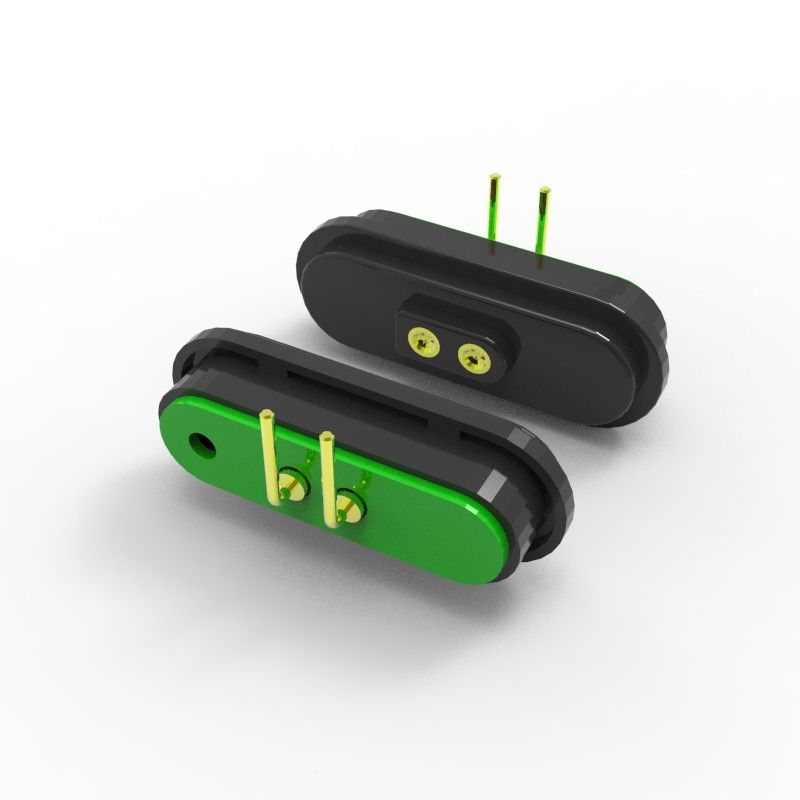

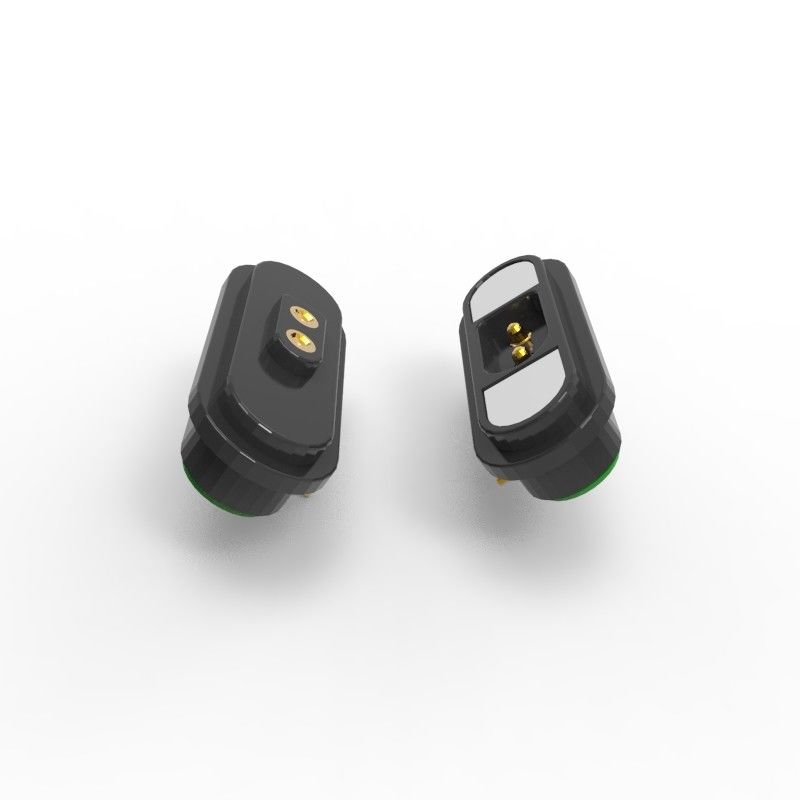

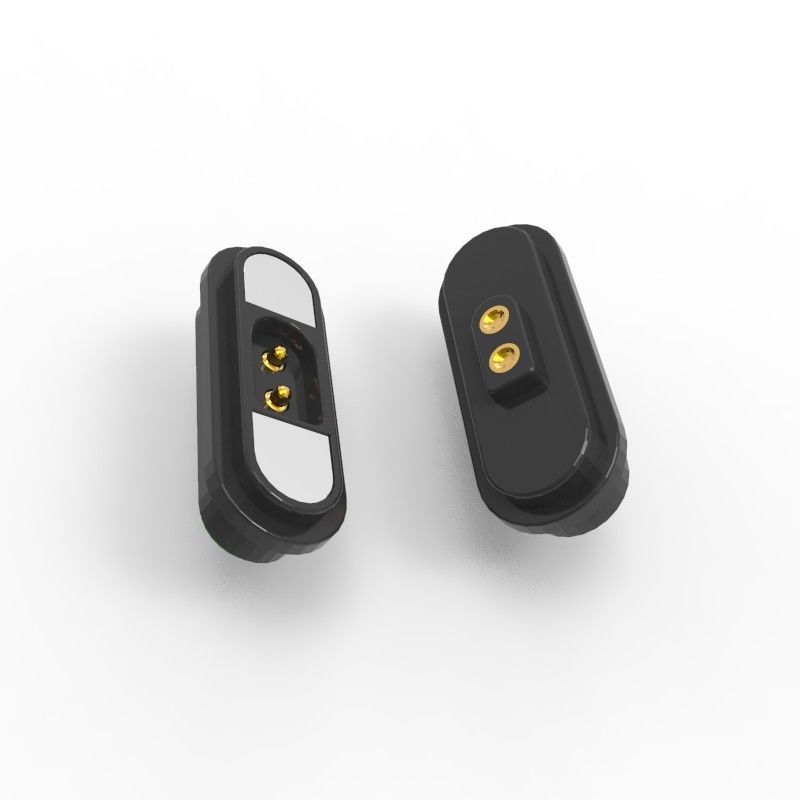

5A Magnetic 2 Pin Connector 2.8mm Pitch PCB Magnetic Connector 600G

Brand Name:	UPE
Model Number:	VIC0200A / VIC0200B
MOQ:	5000
Price:	$1-$5
Packaging Details:	PE
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9002

Document:

VIC0200A.pdf

Name:

Magnetic 2 Pin Connector

Material:

THN, SUS304, NdFeB N52

Spring Force:

80g±20g,at 1.0mm Working Stroke

Magnetic Force:

600g

Volatge:

12V

Current:

Mechanical Life:

50000 Cycle Min.

Contact Resistance:

50mΩ Max (PIN)

Salt Spray Test:

48H

Supply Ability:

5KPCS/Day

Highlight:

5A Magnetic 2 Pin Connector

Magnetic 2 Pin Connector 2.8mm Pitch

PCB Magnetic Connector 600G

Product Description

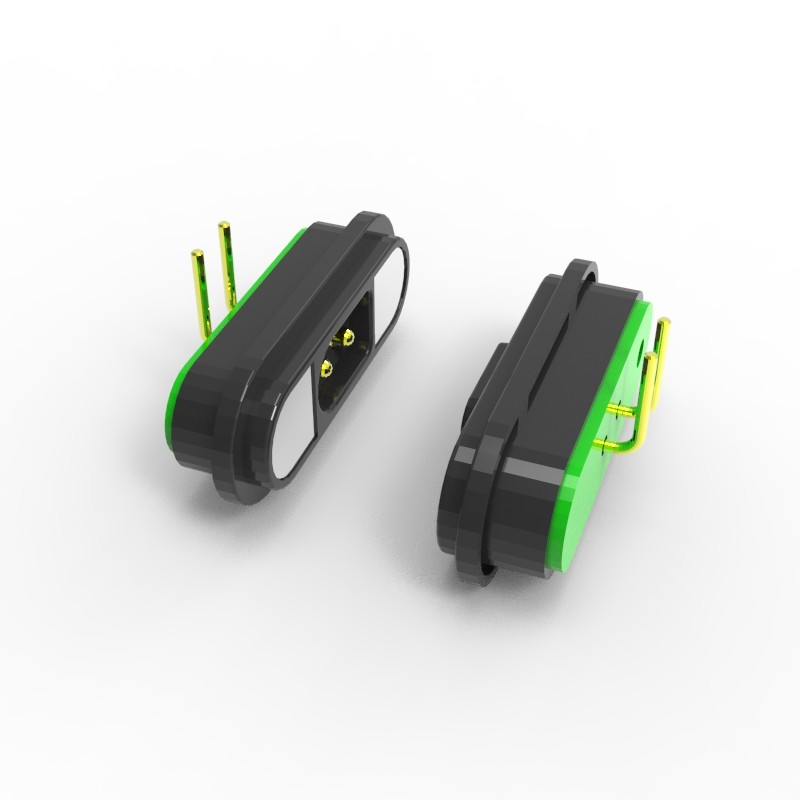

2.8mm Pitch PCB Right Angle 2pin Male & Female Magnetic Connector

DC 5A 12V charging magnet connector spring 2Pin charge power pogo pin use for LED, the magnetic connector is product anti-short-circuit structure design, high voltage AC1000V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC magnetic pogo pin connector, the manetic connector pin feet are fixed on the PCB board, and the pin spacing size is stable.
2pin male and female magnetic connector application explaination (not limited to the following):
1. The PCB board can be soldered with a plug-in;
2. Mold molding and injection molding;

2pin right angle male magnetic connector spec:

5A Magnetic 2 Pin Connector 2.8mm Pitch PCB Magnetic Connector 600G 0

2pin right angle female magnetic connector spec:

5A Magnetic 2 Pin Connector 2.8mm Pitch PCB Magnetic Connector 600G 1

Magnetic connector parameter list:

Housing	Black HTN+30%GF UL94 V-0
Spring force	80g±20g,at 1.0mm working storke.
Mechanical life	50000 cycle Min..
Current	5A
Voltage	DC 12V
Contact resistance	50m Max (PIN).
Salt spray test	48H
Certification	ROHS or REACH compliant product
Test	100% open and short test

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic connector application:

5A Magnetic 2 Pin Connector 2.8mm Pitch PCB Magnetic Connector 600G 2

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

7. Product environmental standards
