Round magnetic charger USB magnetic cable connectorfor 400g magnetic force

Brand Name:	UPE
Model Number:	RC-1087-A01-11
MOQ:	5000
Price:	$1-$5
Packaging Details:	PE
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9002

Document:

Name:

Round Magnetic Charger

Material:

NdFeB N52, PVC, PE

Spring Force:

80g±20g,at 1.1mm Working Stroke

Mechanical Life:

10000 Cycle Min.

Volatge:

Current:

Magnetic Force:

400g±20%

Color:

Black

Cable Length:

800mm

Contact Resistance:

50mΩ Max (PIN)

Salt Spray Test:

Supply Ability:

5KPCS/Day

Highlight:

round magnetic USB charger connector

400g magnetic force cable

magnetic USB cable connector

Product Description

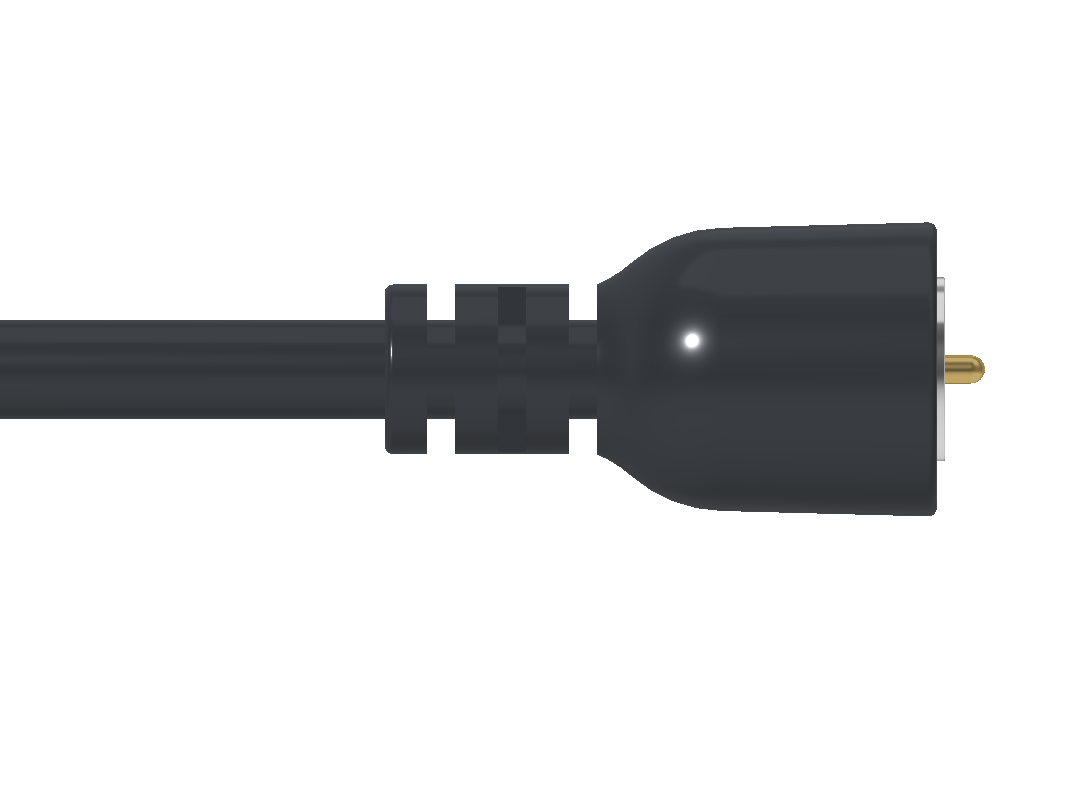

Round Magnetic Charger USB Cable Connector with 400g Magnetic Force

This round magnetic charger USB cable connector offers a convenient, auto-attach charging solution for various electronic devices. Featuring pogo pins for 3A fast current delivery and 400g±20% magnetic docking adsorption force, this connector provides reliable performance for magnetic charging applications.

Technical Specifications

Parameter	Specification
Cable	OD3.5 2C 22AWG Black PVC
Overmolding	PVC Black
Internal Molding	PE Transparent
Spring Force	80g±20g at 1.1mm working stroke
Mechanical Life	10,000 cycles minimum
Current	3A
Voltage	DC 12V
Magnetic Force	400g±20%
Contact Resistance	50mΩ max (PIN)
Salt Spray Test	48H
Certification	ROHS or REACH compliant
Test	100% open and short test

Key Advantages

Automatic adsorption connection for easy operation
Magnetic interface for effortless device removal
High life cycle supporting 50,000-300,000 reattachment cycles
Customizable waterproof design with IP68 rating capability
High current support (3A-20A) for faster recharging
Excellent corrosion resistance (48H-120H) for harsh environments
Custom shapes to match product design and enhance selling points
Magnet positioning with dual circuit protection for user-friendly orientation
Excellent scalability supporting power, signal, video, audio, and jack interfaces
Short development time with low-cost customization molds
Reliable high RF signal transmission with USB 2.0 compatibility

Applications

Why Choose UPE?

Professional customization service
Fast sample production capability
Strict quality control system
Processing with imported components
High-precision test equipment
Reasonable cost control procedures
Product environmental standards compliance

For any questions, please contact us at: union@upetech.net
