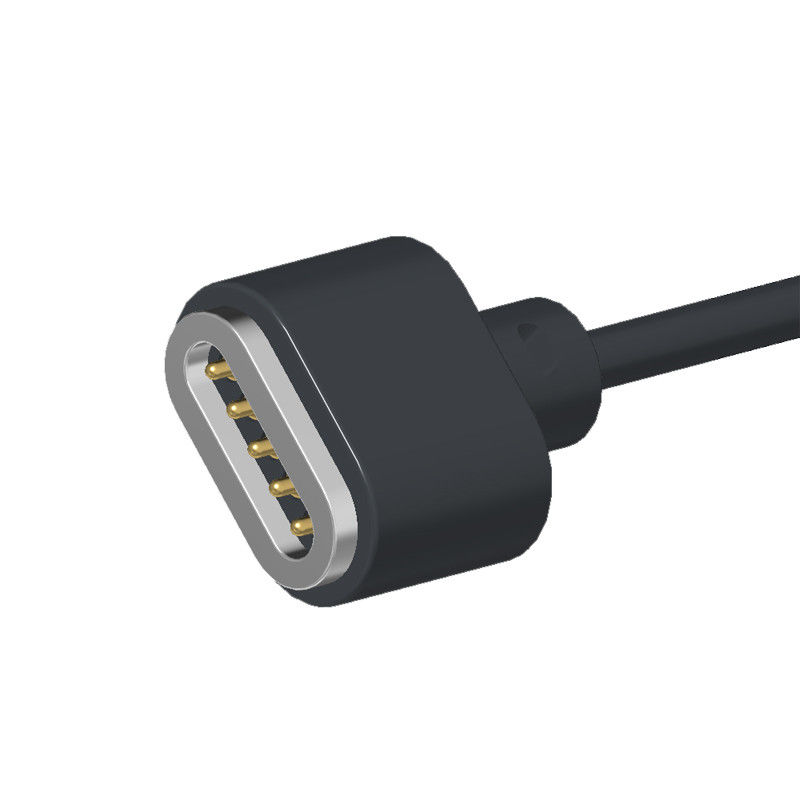

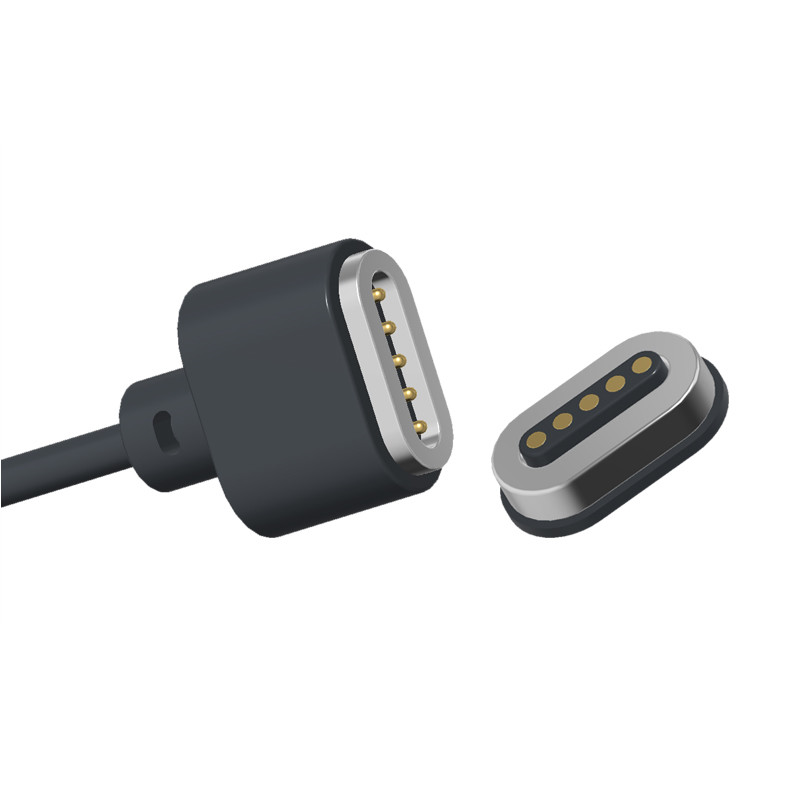

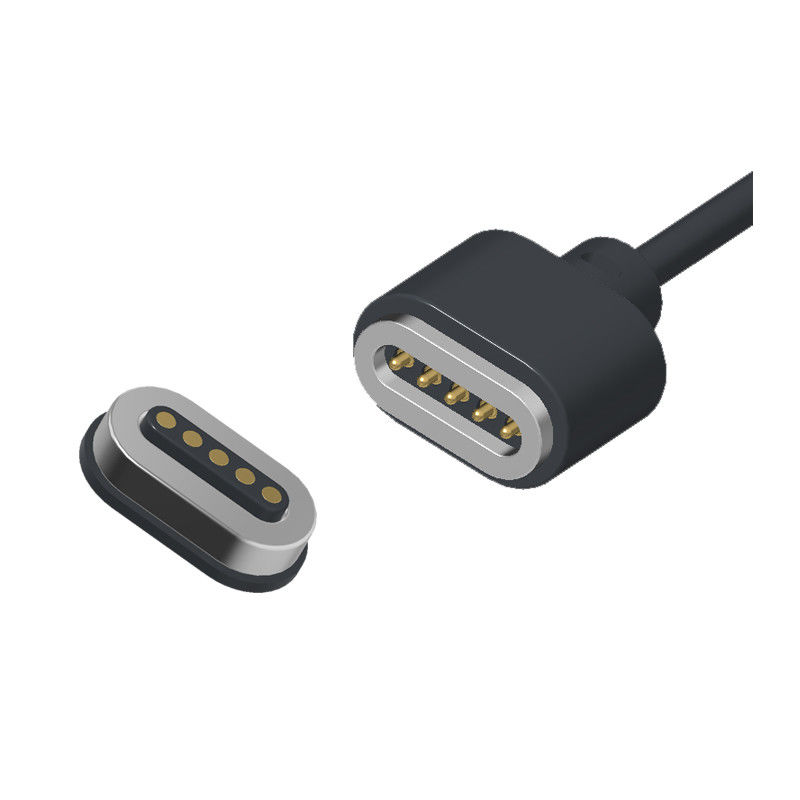

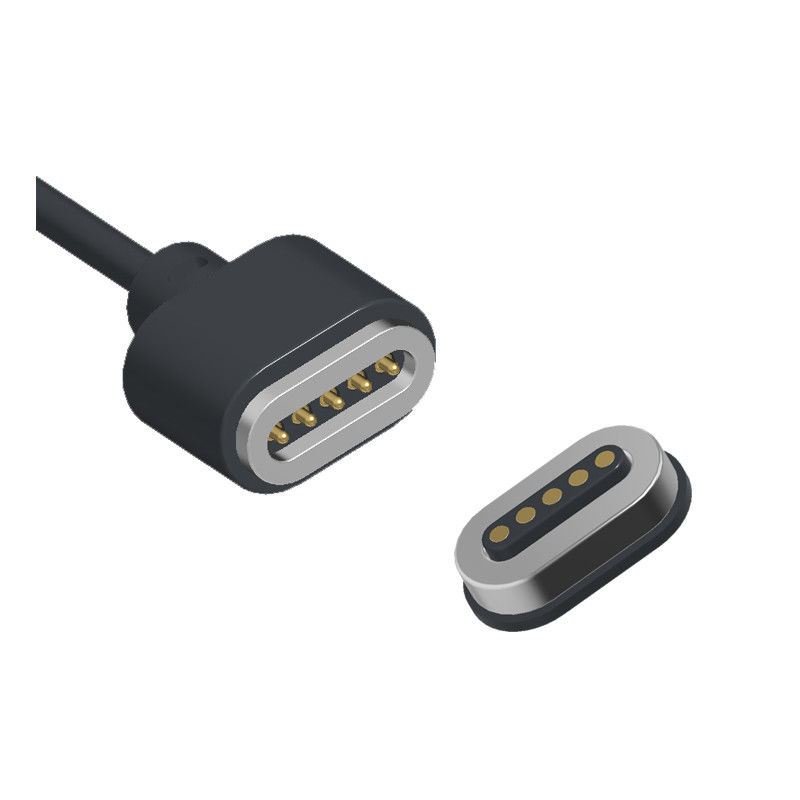

1A 5 Pin Magnetic Charger N52 NdFeB Magnetic Charging Cable Black With Data Sync

1A 5pogo pins N52 NdFeB magnetic charging cable male connector with data sync.Magnetic connector cable 5 ontacts pogo pin male female connector,UPE is a professional manufacturer of magnetic connector and magnetic cable connector.
Magnetic cable connector material and coating conform to ROHS and REACH standards, operation Temperature:-25℃to +80℃.

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience, easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

7. Product environmental standards

Magnetic connector parameter list:

5pin male magnetic cable connector spec:

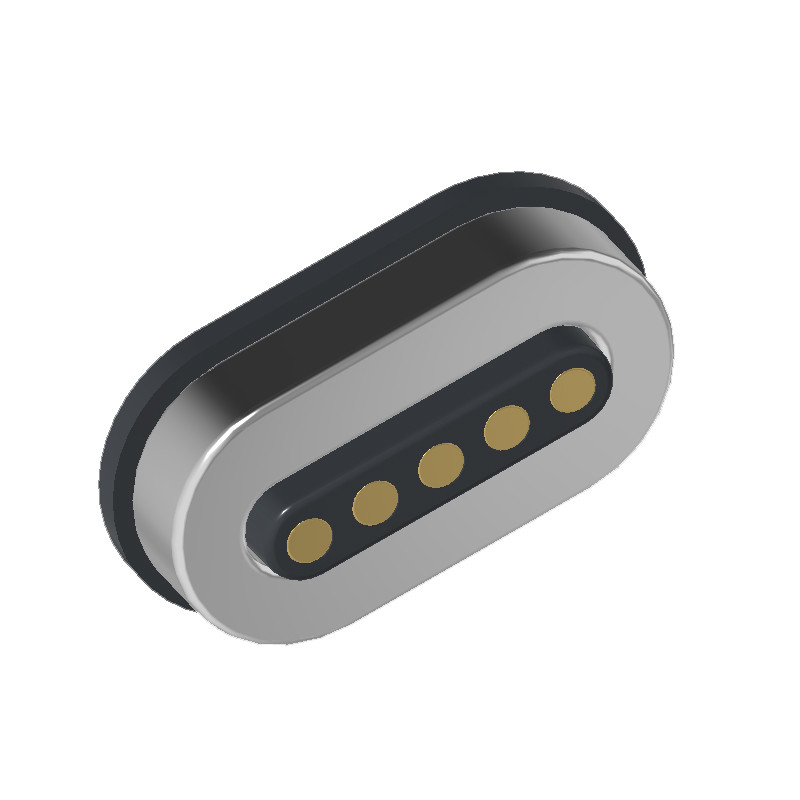

5pin female magnetic connector spec:

Recommended pcb layout:

Layout tolerance:±0.05mm

Magnetic cable connector application:

Packaging view:

Delivery:
