5pin right angle male female pogo pin magnetic connector PA9T housing

Brand Name:	UPE
Model Number:	5P-2.54PH-4.0H
MOQ:	5000
Price:	$1-$5
Packaging Details:	PE bags
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9002

Name:

Magnetic Connectors

Material:

PA9T, Brass C3604, SUS304, NdFeB N52

Volatge:

12V

Current:

Mechanical Life:

10000 Cycle Min.

Force:

35±10gf At Working Height

Contact Resistance:

50mΩ Max (PIN)

Salt Spray Test:

48H

Withstanding Higt Tenperature:

260°C

Operational Temperature:

-40~85°C

Color:

Black, Yellow

Supply Ability:

5KPCS/Day

Highlight:

5pin right angle pogo pin connector

magnetic connector PA9T housing

male female pogo pin connector

Product Description

5-Pin Right Angle Magnetic Pogo Pin Connector

Professional-grade 5-pin right angle male and female pogo pin magnetic connector with PA9T housing. UPE specializes in magnetic connector manufacturing and provides comprehensive customization services to meet specific requirements.

Company Overview

As a leading connector manufacturer in China, UPE delivers competitive solutions including pogo pin connectors, magnetic connectors, and industrial waterproof connectors. Our facility is ISO9001 and ISO14001 certified, with all products complying with EU RoHS environmental standards. We source key raw materials from Taiwan and Japan to ensure superior quality.

Technical Specifications

Pin Count	5-pin or customized
Pitch	2.54mm
Type	Right angle
Pogo Pin Material	Brass
Housing Material	PA9T
Magnet Material	Neodymium iron boron
Mechanical Life	10,000 cycles minimum
Current Rating	2.0A
Voltage Rating	DC 12V
Contact Resistance	50mΩ maximum
Operational Temperature	-40°C to +85°C
Certification	ROHS or REACH compliant

Material Composition

Plunger (Contact Pin): Brass C3604
Barrel: Brass C3604
Spring: Stainless Steel (SUS304)
Housing: High-Tech Plastic (PA9T)

Plating Specifications

Plunger Plating: 1-3 micro-inches Gold over 50 micro-inches Nickel
Barrel Plating: 1-3 micro-inches Gold over 50 micro-inches Nickel
Gold flash ensures low contact resistance with nickel under-plating for durability

Product Images

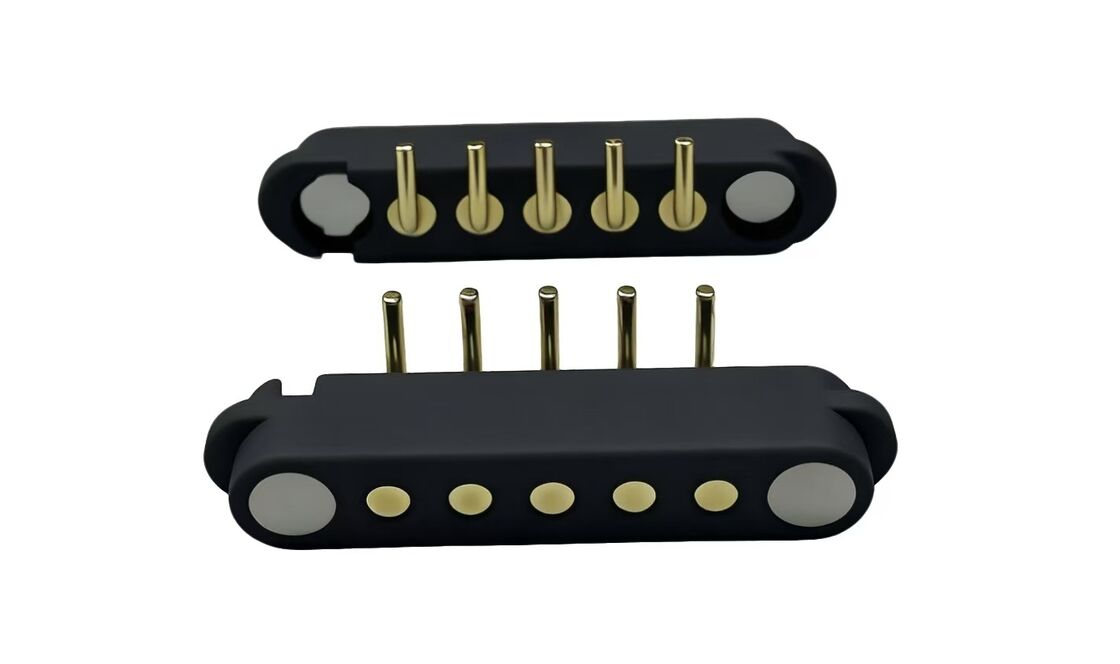

5-Pin Male Magnetic Connector

5-Pin Female Magnetic Connector

Product Advantages

Automatic adsorption connection for user-friendly operation
Anti-fall protection prevents device damage during disconnection
Extended lifespan: 100,000-200,000 cycles
Waterproof design: Female end provides IPX8 dustproof and waterproof protection
Fast charging capability: 5A-10A design for large current transmission
Customizable appearance to match customer application device design
Anti-short circuit structure with foolproof protection
High-frequency signal transmission for USB 2.0 and HDMI 1.3 replacement

Why Choose UPE

Professional customization service
Fast sample production capability
Strict quality control system
Processing with imported components
High-precision test equipment
Reasonable cost control procedures
Product environmental standards compliance

Application Examples

Design Services

Ordering & Shipping Information

Payment Methods: T/T, PayPal, OCBC

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days

Production Lead Time: 10-15 working days

Markets Served: America, Europe, Asia, South Africa

Trade Term: EXW

Services: High quality with competitive pricing, OEM service, custom sizes, colors, and designs available

Packaging & Shipping

For any questions, please contact us at: union@upetech.net
