5 Position Magnet Spring-Loaded Pogo pin connector 2A magnetic connnector

Brand Name:	UPE
Model Number:	5P-2.54PH-4.0H
MOQ:	5000
Price:	$1-$5
Packaging Details:	PE bags
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9002

Name:

Magnetic Connectors

Material:

PA9T, Brass C3604, SUS304, NdFeB N52

Volatge:

12V

Current:

Mechanical Life:

10000 Cycle Min.

Force:

35±10gf At Working Height

Contact Resistance:

50mΩ Max (PIN)

Salt Spray Test:

48H

Withstanding Higt Tenperature:

260°C

Operational Temperature:

-40~85°C

Color:

Black, Yellow

Supply Ability:

5KPCS/Day

Highlight:

5 position magnetic pogo pin connector

spring-loaded magnetic connector 2A

magnetic pogo pin 2A connector

Product Description

5 Position Magnet Spring-Loaded Pogo Pin Connector 2A Magnetic Connector

5 Position Magnet Spring-Loaded Pogo Pin Connector 2A magnetic connector with PA9T housing. Union Precision Electronics Co., Ltd. is a professional manufacturer specializing in the R&D and production of connector components.

As a leading company in China's connector industry, we focus on delivering competitive solutions, including pogo pin connectors, magnetic connectors and industrial waterproof connectors.

Applications

Telecommunications
Medical Devices
Aerospace & Aviation
Automotive
Wireless Equipment
Wearable Technology
Industrial Testing Equipment
Computer Peripherals

Materials & Construction

Plunger: Brass C3604
Barrel: Brass C3604
Spring: Stainless Steel SUS304
Housing/Insulation: Engineering Plastic (PA46 or PA9T - Heat-resistant nylon)
Magnet: Sintered Neodymium Iron Boron (NdFeB)
Grade: N52
Polarity: S (South Pole) - N (North Pole) orientation specified
Corrosion Protection: Salt spray test for 24 hours

Plating & Surface Finish

Plunger & Barrel:
Base Layer: Nickel (Ni), thickness ≥ 50 microinches (≈1.27 µm)
Top Layer: Gold (Au), thickness 1-3 microinches (≈0.025 - 0.076 µm)
Purpose: Provides excellent electrical conductivity, low contact resistance, and corrosion protection
Film Thickness Test Note: Measurement is taken 1.0mm away from the riveting point

Technical Specifications

Pin Count	5-pin or customized
Pitch	2.54mm
Type	DIP
Pogo Pin Material	Brass
Housing Material	PA9T
Magnet Material	Neodymium iron boron
Magnet Grade	N52 (As requirement)
Mechanical Life	10000 cycle Min.
Current	2.0A
Voltage	DC 12V
Contact Resistance	50mΩ Max (PIN)
Salt Spray Test	48H
Withstanding High Temperature	260°C
Operational Temperature	-40°C to +85°C
Certification	ROHS or REACH compliant product
Testing	100% open and short test

Product Images

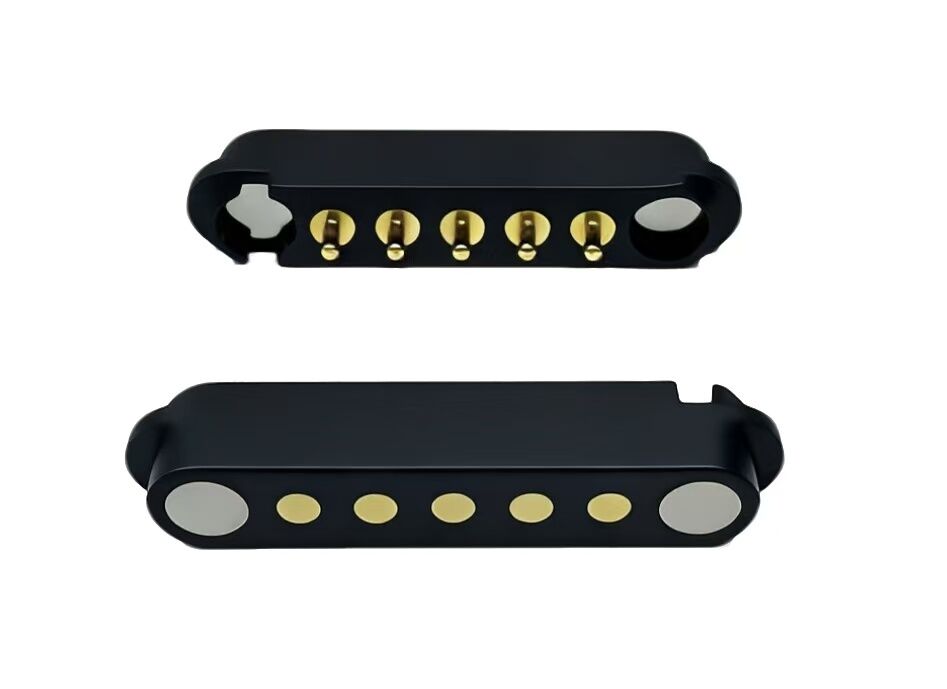

5-Pin Male Magnetic Connector:

5-Pin Female Magnetic Connector:

Product Advantages

Humanized design with automatic adsorption connection experience
Anti-fall protection: Easy to remove from charging interface without device damage
Extended lifespan: Up to 100,000-200,000 cycles
Waterproof design: Female end provides dustproof and waterproof protection (IPX8)
Fast charging capability: 5A-10A design for large current transmission
Customizable appearance to match customer application device design
Anti-short circuit structure design with foolproof protection
High-frequency signal transmission: Can replace traditional USB 2.0, HDMI 1.3 functions

Application

Ordering & Shipping Information

Payment Methods: T/T, PayPal, OCBC

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days

Production Lead Time: 10-15 working days

Markets Served: America, Europe, Asia, South Africa

Trade Term: EXW

Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Packaging & Shipping:

Any questions, please send to union@upetech.net
