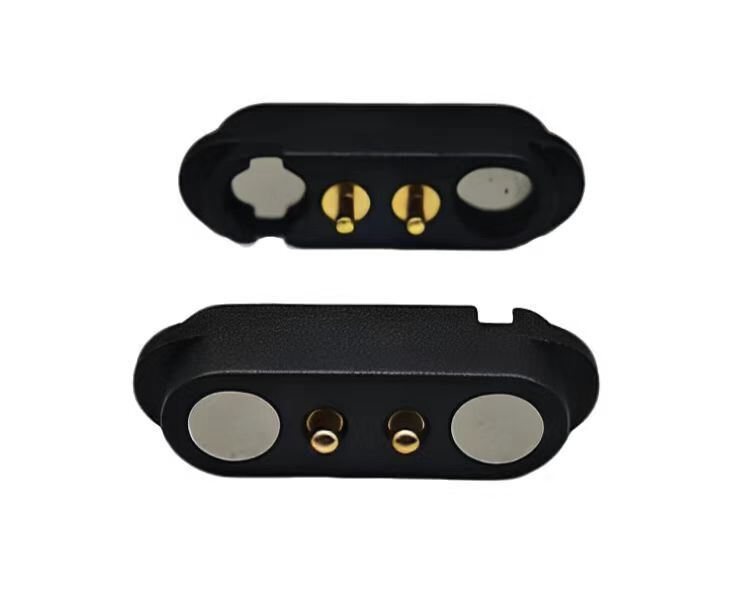

PA9T housing 2pin male and female pogo pin connector magnetic connector

Brand Name:	UPE
Model Number:	2P-2.5PH-4.0H
MOQ:	5000
Price:	$1-$5
Packaging Details:	PE bags
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9002

Name:

Magnetic Connectors

Material:

PA9T, Brass C3604, SUS304, NdFeB N52

Working Height:

35±10gf

Volatge:

12V

Current:

2.0A

Durability:

10000 Cycles(min)

Operational Temperature:

-40~85°C

Contact Resistance:

50mΩ Max (PIN)

Salt Spray Test:

24H

Withstanding Higt Tenperature::

260°C

Plating:

1-3u"Au Over 50u"Ni

Supply Ability:

5KPCS/Day

Highlight:

PA9T magnetic pogo pin connector

2pin male female magnetic connector

magnetic pogo pin housing connector

Product Description

PA9T Housing 2-Pin Male and Female Pogo Pin Magnetic Connector

The 2-pin magnetic connectors feature 2 pogo pins with high-temperature nylon housing and NdFeB magnets for secure attachment.

Specifications

Materials & Plating

Material: Plunger: Brass C3604 | Barrel: Brass C3604 | Spring: SUS304 | Housing: PA9T
Plating: Plunger: 1-3μ"Au over 50μ"Ni | Barrel: 1-3μ"Au over 50μ"Ni

Electrical Properties

Rated Current & Voltage: DC 12V; 2A
Contact Resistance: 50 mΩ Max. at working height

Temperature Ratings

Withstanding High Temperature: 260°C
Operational Temperature: -40~85°C

Mechanical Properties

Force: 35±10gf at working height
Durability: 10,000 cycles (min)

Testing & Compliance

24 hours delay test
Products that comply with the RoHS standard

Parameter	Specification
Pin Count	2-pin or customized
Pitch	2.50mm
Type	DIP
Pogo Pin Material	Brass
Housing	PA9T
Magnet	Neodymium iron boron
Magnet Grade	N52 (As requirement)
Force	35±10gf
Withstanding High Temperature	260°C
Mechanical Life	10,000 cycles Min.
Current	2.0A
Voltage	DC 12V
Contact Resistance	50mΩ Max (PIN)
Operational Temperature	-40~85°C
Salt Spray Test	24H
Certification	ROHS or REACH compliant product
Test	100% open and short test

Product Images

2-pin Male Magnetic Connectors

2-pin Female Magnetic Connectors

Recommended PCB Layout

Layout tolerance: ±0.05mm

Applications

Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones, Bluetooth headsets
Medical equipment, wireless equipment, data communications equipment, telecommunication equipment
Automation and industrial equipment, audio-visual equipment
Aviation, aerospace electronics, military communication
Automotive, car navigation, test and measurement equipment
Consumer Electronics (mobile phones, tablet computers, Bluetooth headsets, cameras, watches, and other portable electronic products)

Why Choose UPE?

Tailored Solutions for Every Need

Expert customization for medical, automotive, or consumer electronics applications with end-to-end collaboration from concept to production.

Rapid Prototyping - Faster Time-to-Market

Standard samples: 2-3 days | Custom designs: 7 working days | Mold-dependent projects: 12 days

Uncompromising Quality Assurance

Process-oriented control with rigorous testing ensures 100% performance and durability compliance.

Premium Materials & Precision Manufacturing

Swiss-machined lathes for micron-level accuracy and cold-stamped imported materials for superior conductivity.

Certified Testing & Reliability

High-precision lab equipment validates electrical, mechanical, and environmental performance.

Cost-Efficiency Without Compromise

Optimized workflows reduce waste and lower costs with transparent pricing for bulk orders.

Eco-Conscious Compliance

ROHS, halogen-free, and REACH compliant for sensitive industries including medical and childcare.

Ordering Information

Payment Method: T/T, PayPal, OCBC
Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
Production Lead Time: 10-15 working days
Markets: America, Europe, Asia, South Africa
Trade Term: EXW
Service: High quality with reasonable price, OEM service, custom sizes, colors, and designs available
