3A Male And Female 9Pin Magnetic Pogo Pin Connectors

Brand Name:	UPE
Model Number:	VIC1550A/ VIC1550B
MOQ:	5000
Price:	$1-$5
Packaging Details:	PE bags
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9002

Document:

VIC1550A.pdf

Name:

Magnetic Connectors

Material:

THN, Brass C3604, SUS304, NdFeB N52

Spring Force:

80g±20g

Working Storke:

1.0mm

Volatge:

12V

Current:

3.0A

Magnetic Force:

450g

Mechanical Life:

5000 Cycle Min.

Contact Resistance:

50mΩ Max (PIN)

Salt Spray Test:

48H

Color:

Black, Yellow

Supply Ability:

5KPCS/Day

Highlight:

3A magnetic pogo pin connectors

9Pin magnetic connectors with warranty

Male female pogo pin connectors

Product Description

3A Male And Female 9Pin Magnetic Pogo Pin Connectors

The 9-pin magnetic connectors feature 9 pogo pins with high-temperature nylon housing and NdFeB magnets for secure attachment.

Materials & Plating

Pogo Pins

Material: Brass (plunger & barrel)
Plating: Gold (Au) over Nickel (Ni) - Ensures low contact resistance, corrosion resistance, and durability

Housing

Material: HTN (High-Temperature Nylon) + 30% Glass Fiber (GF) - High mechanical strength, heat resistance
Color: Black
Flammability Rating: UL94 V-0 - Self-extinguishing, suitable for high-safety applications

Magnet

Type: NdFeB (Neodymium Iron Boron), Grade N52 - Strong magnetic force (highest grade for commercial use)
Plating: Nickel (Ni) - Prevents corrosion of the magnet

Electrical Specifications

Operating Voltage: 12V DC
Operating Current: 5.0A - Suitable for moderate-power applications
Contact Resistance (PIN): ≤50mΩ (Max) - Ensures efficient power transfer with minimal loss
High Voltage Test: AC/DC 1000V, 0.5mA, 3 seconds - Validates insulation and dielectric strength

Key Features

Compliance: ROHS REACH - Free of hazardous substances
Magnetic Force: ≥450g - Strong hold for secure connections
Safety Design: Anti-short circuit protection - Prevents damage from accidental contact

Technical Specifications

Parameter	Specification
Pin Count	9-pin or customized
Pitch	2.20mm
Type	Right angle
Pogo Pin Material	Brass
Housing	Black HTN+30%GF UL94 V-0
Magnet	Neodymium iron boron
Magnet Grade	N52 (As requirement)
Magnetic Force	450G
Spring Force	80g±20g, at 1.0mm working stroke
Mechanical Life	5000 cycles Min.
Current	3.0A
Voltage	DC 12V
Contact Resistance	50mΩ Max (PIN)
High Voltage Test	AC1000 V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC
Salt Spray Test	48H
Certification	ROHS or REACH compliant product
Test	100% open and short test

Product Images

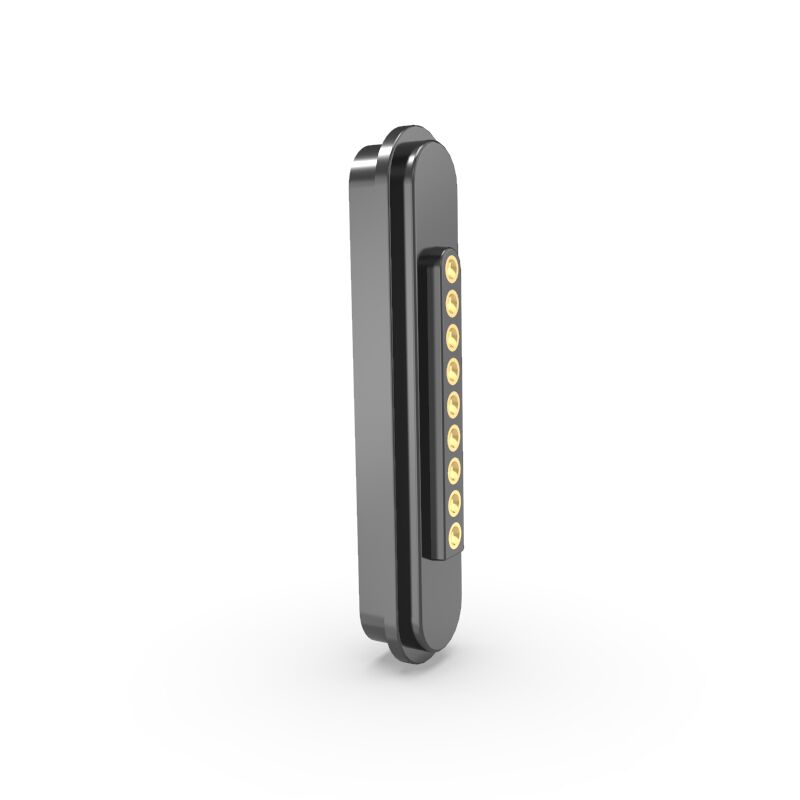

9-pin Male Magnetic Connectors:

9-pin Female Magnetic Connectors:

Recommended PCB Layout:

Layout tolerance: ±0.05mm

Applications

Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones, Bluetooth headsets
Medical equipment, wireless equipment, data communications equipment, telecommunication equipment
Automation and industrial equipment, audio-visual equipment
Aviation, aerospace electronics, military communication
Automotive, car navigation, test and measurement equipment
Consumer Electronics (mobile phones, tablet computers, Bluetooth headsets, cameras, watches, and other portable electronic products)
