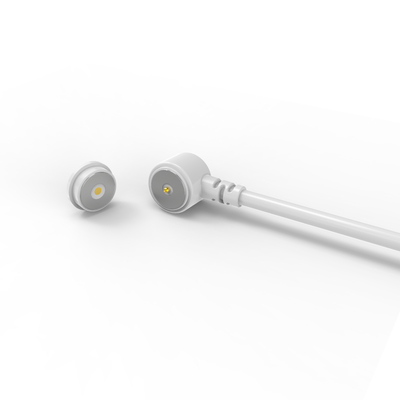

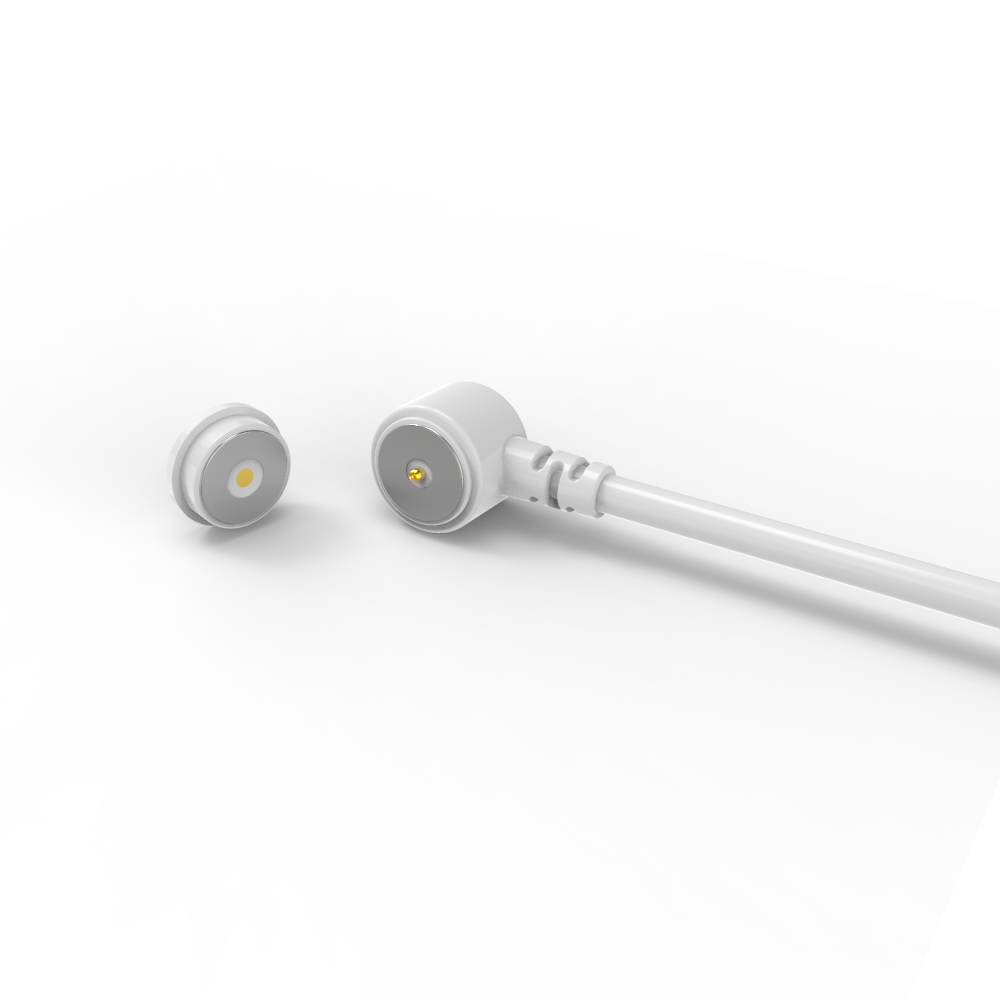

Round male and female magnetic pogo pin charger cable connector

 Round male and female magnetic pogo pin charger cable connector, magnetic cable connector have the advantage of automatic adsorption, easy to operation. The pogo pin have a good electric conductivity, not easily corroded in a severe environment.

Union Precision Electronics Co., Ltd. is a professional manufacturer specializing in the R&D and production of connector components.

As a leading company in China's connector industry, we focus on delivering competitive solutions, including pogo pin connectors,

magnetic connectors and industrial waterproof connectors.

Our products are widely used in various industries, such as:

Telecommunications,Medical Devices,Aerospace&Aviation,Automotive,Wireless Equipment,

Wearable Technology,Industrial Testing Equipment (e.g., smartphones, TVs, tablets, gaming consoles, learning devices, etc.)

Computer Peripherals With a strong global presence, our products are primarily exported to Europe,

the United States, Canada, and developed regions across Asia.

UPE is equipped with advanced technology and modern production techniques. We are ISO9001 and ISO14001 certified,ensuring that all our products comply with the EU RoHS environmental standards.

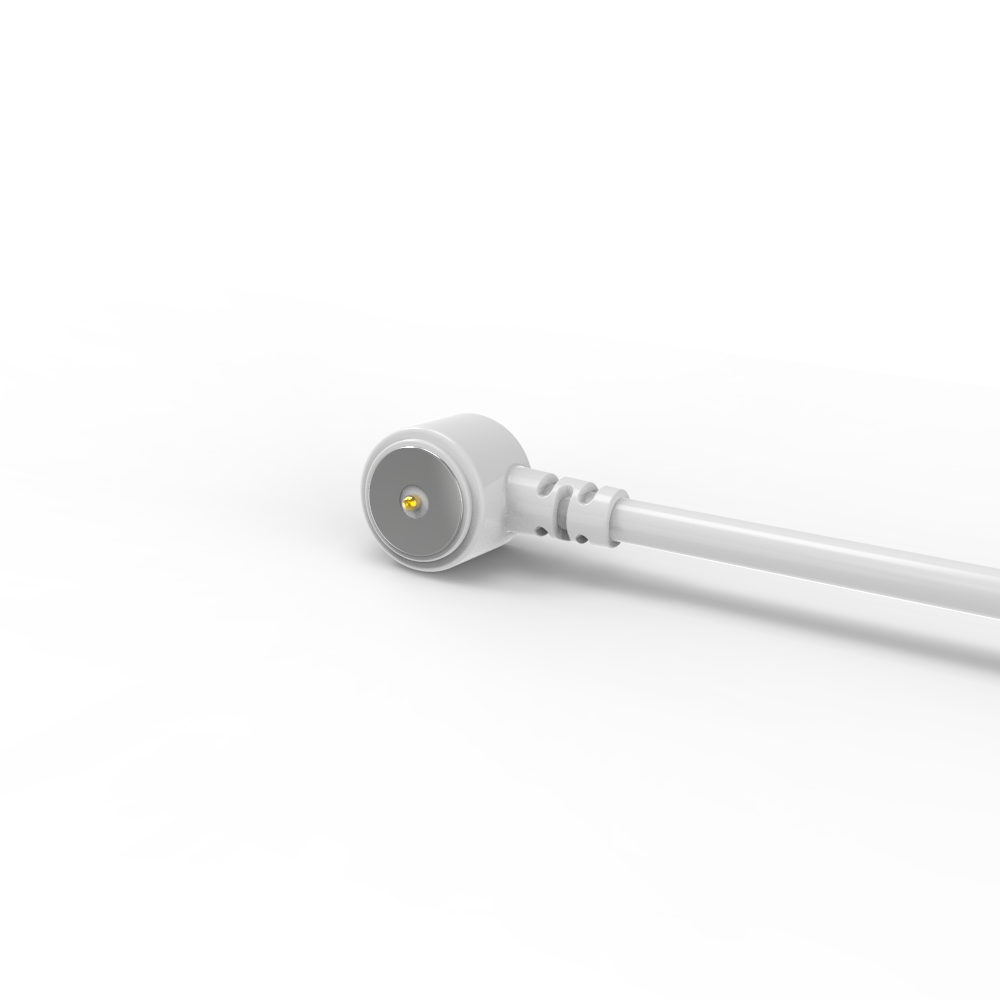

Male magnetic cable connector:

...Materials:
Pogo Pin: Brass(Plunger&Barrel plating 5U" Min Au over 60~100U"Ni);
Housing: White LCP+30%GF/LCP UL94 V-0;
Magnet:NdFeB N52 Plating Ni;
Cable: White OD 3.5*2C(TC65*0.08),
Wire Jacket: White TPE 80A .
Connector Jacket: White TPE 80A..
...Mechanical:
Spring force: 70g±20g,at 1.0mm working storke.
Full storke:1.2mm.
Mechanical life:10000cycle Min..
...Electrical:
Voltage:12 V.
Current: 3A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test: 48 H.

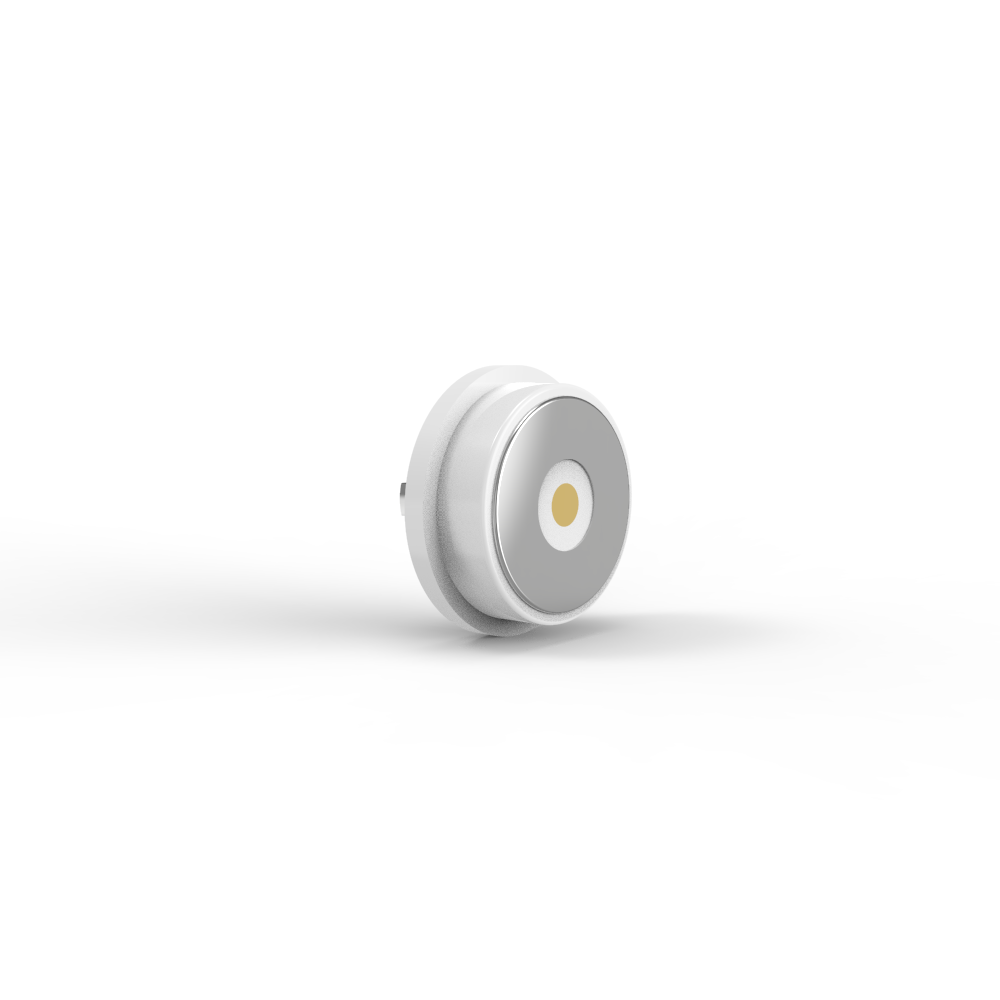

Female magnetic connector:

..Materials :
PINr:Lead-free C6801,plating 5U" Min Au over 60~100U"Ni;
Housing: White LCP+30%GF UL94 V-0 ;
Shell: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
....Electrical:
Voltage:12.0 V.
Current: 3.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACHcompliant product.
...Salt spray test:48H.
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

 Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature,broken,same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection

How Magnetic Connectors Work?

.Both sides magnetically connect when placed in proximity to each other
.Light at the back of plug indicates power is flowing
.When the sides are pulled apart, power flow stops immediately
.They avoid short circuits as the connectors repel each other, and if they attract it is on the insulated parts (as both connectors free the same magnetic pole)

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin  Male Magnetic Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

.Humanized design automatic adsorption connected experience; Easy operation
.Uses a magnetic interface to remove the device easier
.Operate in a long life cycle. It supports 100,000-200,000 reattachment life times
.Support a high current (5A-10A), faster recharge, with less operating time
.Excellent corrosion rating (48H-120H) meet the harsh environments
.Excellent scalability interface,Can be achieved

Product application areas are:

.Wearable devices (smart watches, pet locator, smart bracelet) charge/cable
.Laptop, tablet PC, PDA, handheld data terminal;
.Medical equipment, wireless devices, data communications equipment, telecommunications equipment, automation and industrial equipment;
.Aviation, aerospace, military communications and military electronics
.Automobile, automobile navigation, tester and measurement equipment
