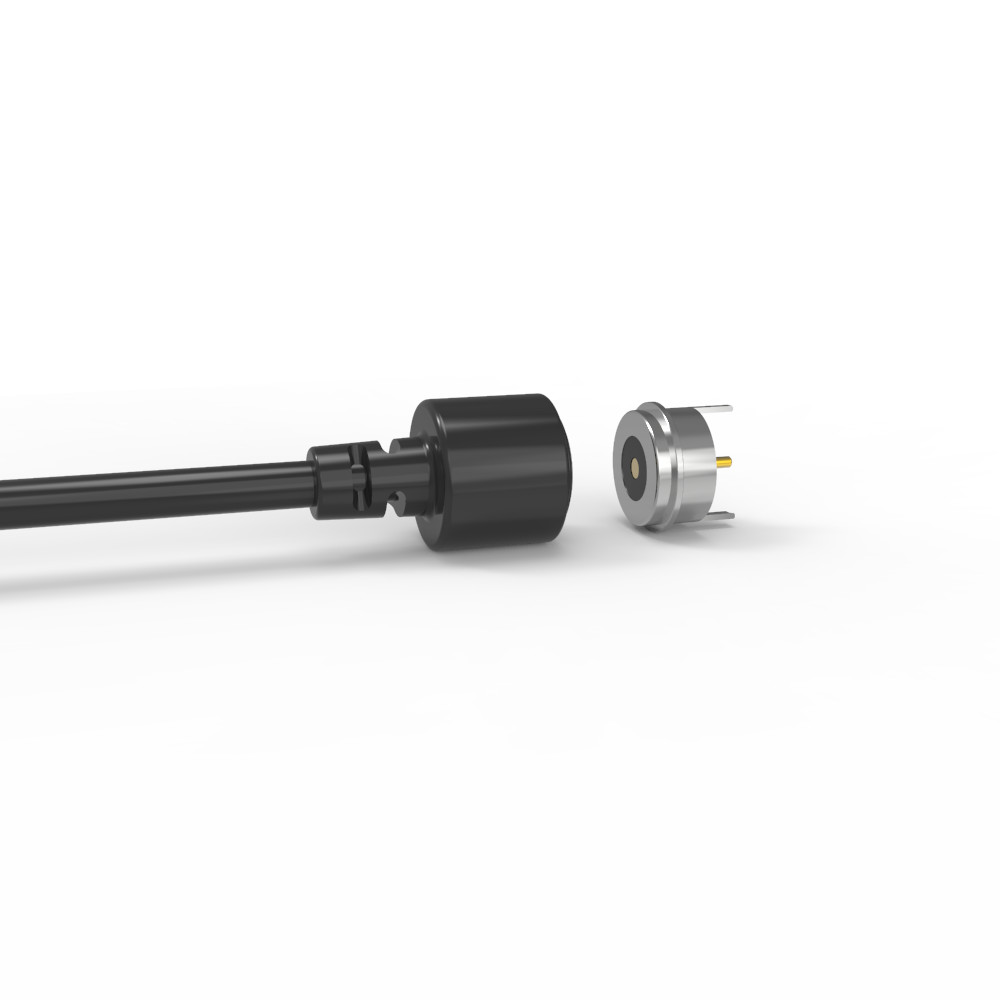

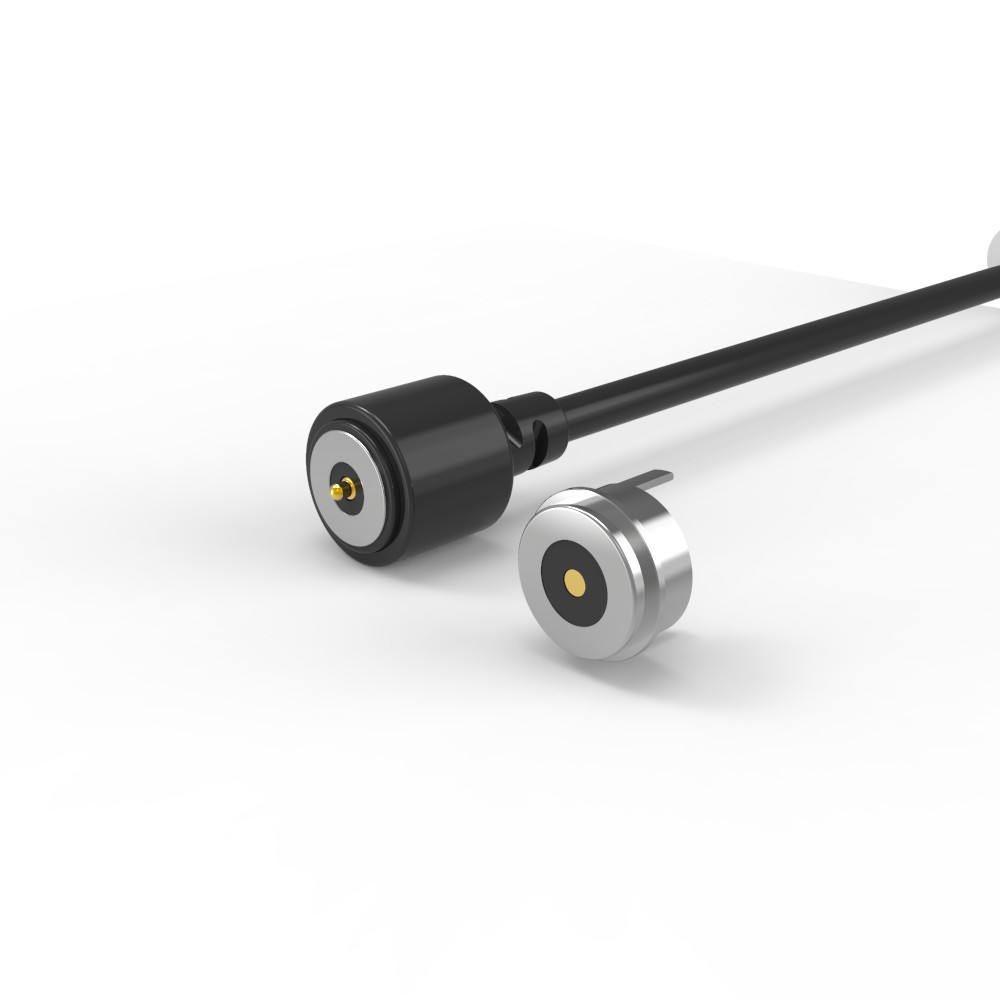

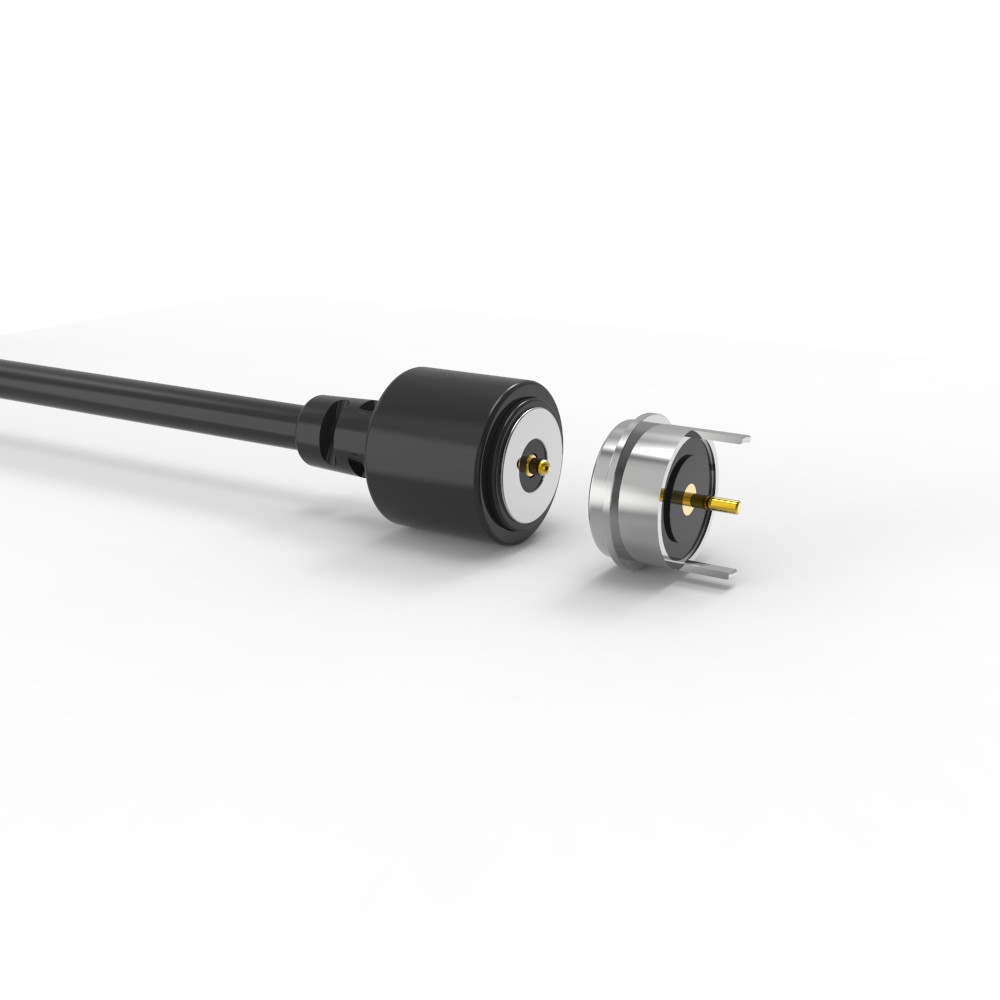

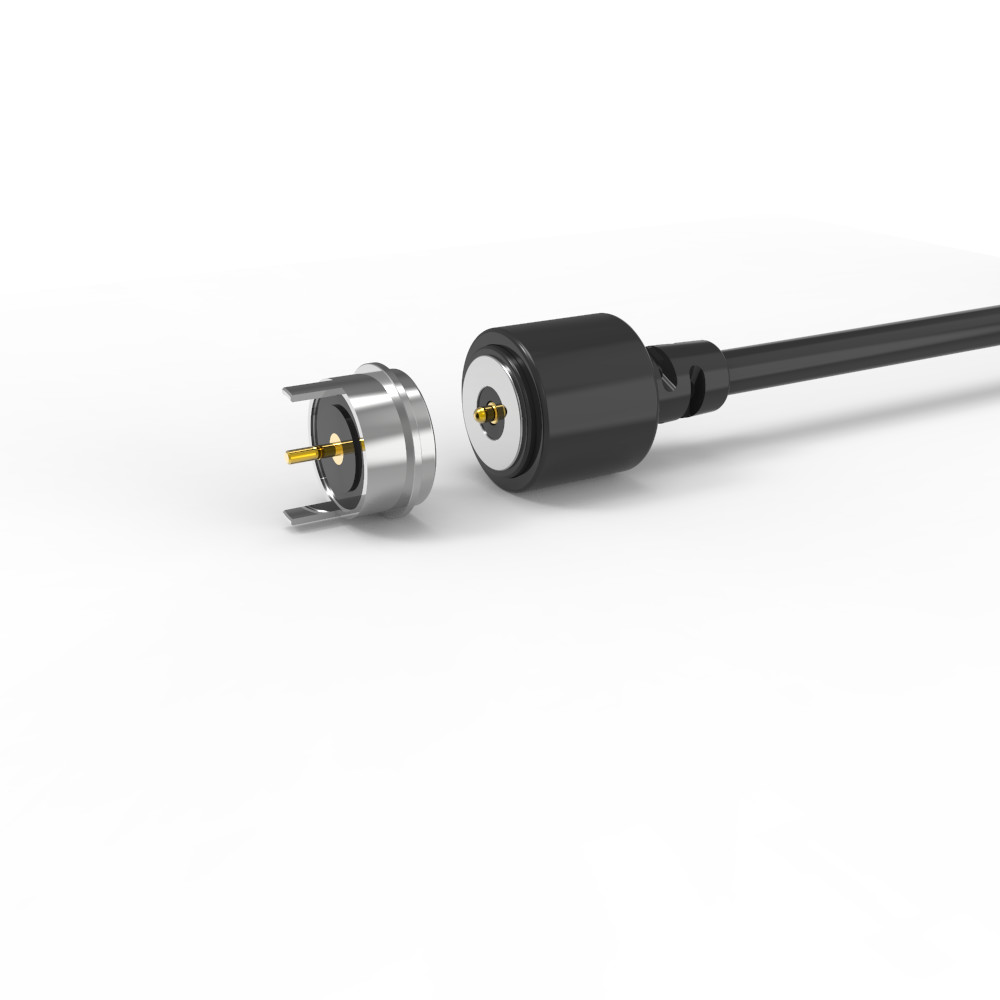

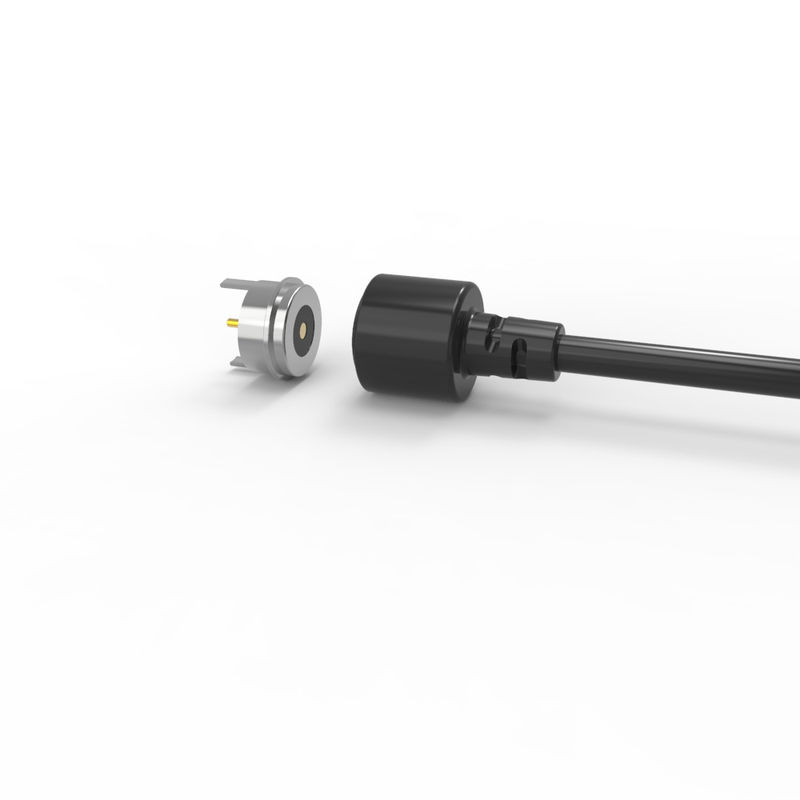

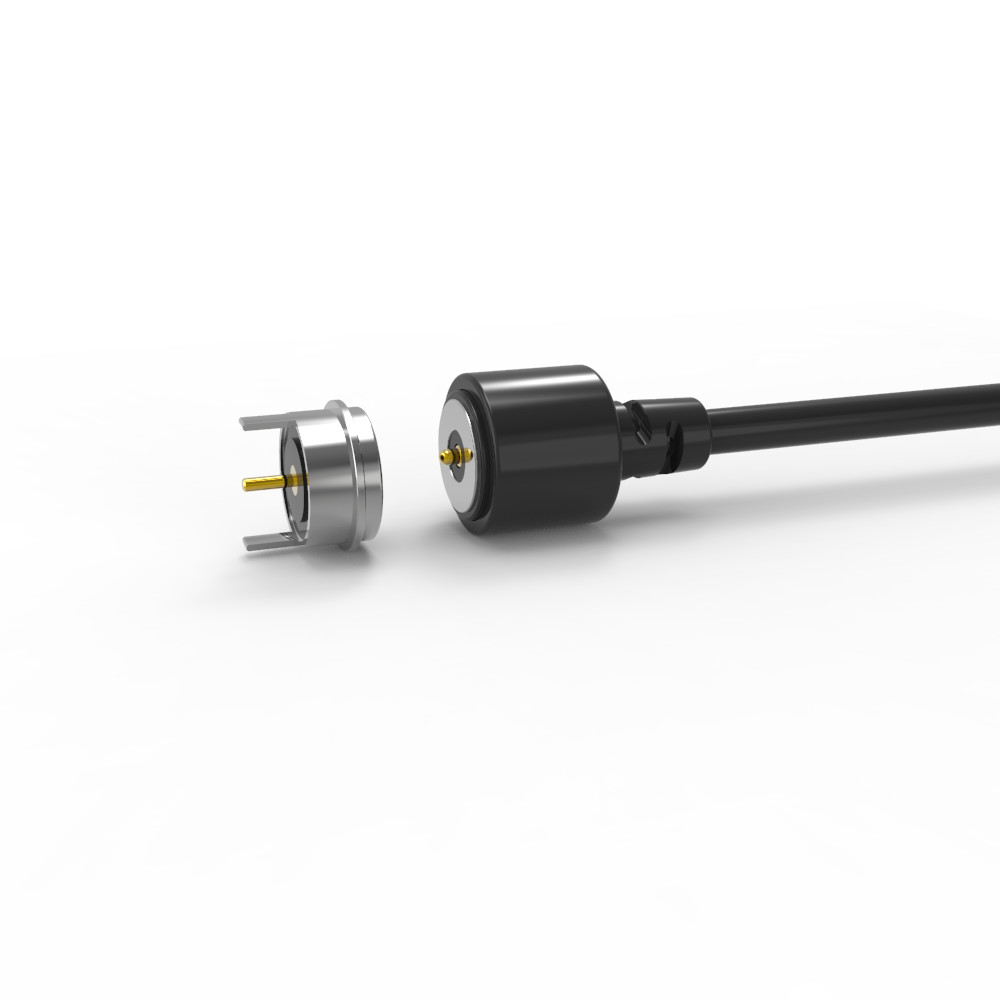

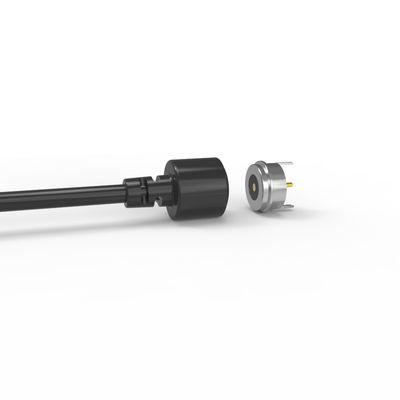

T-shape magnetic cable connector black 90A connector jacket round magnetic connector

T-shape magnetic cable connector black 90A connector jacket round magnetic connector.

UPE is professional magnetic connector & magnetic cable connector manufacturer.

We have our own professional designers to meet any of your requirements and provide magnetic connector customization service. Different magnetic pogo pin connector products and solutions can be designed according to different customer needs.

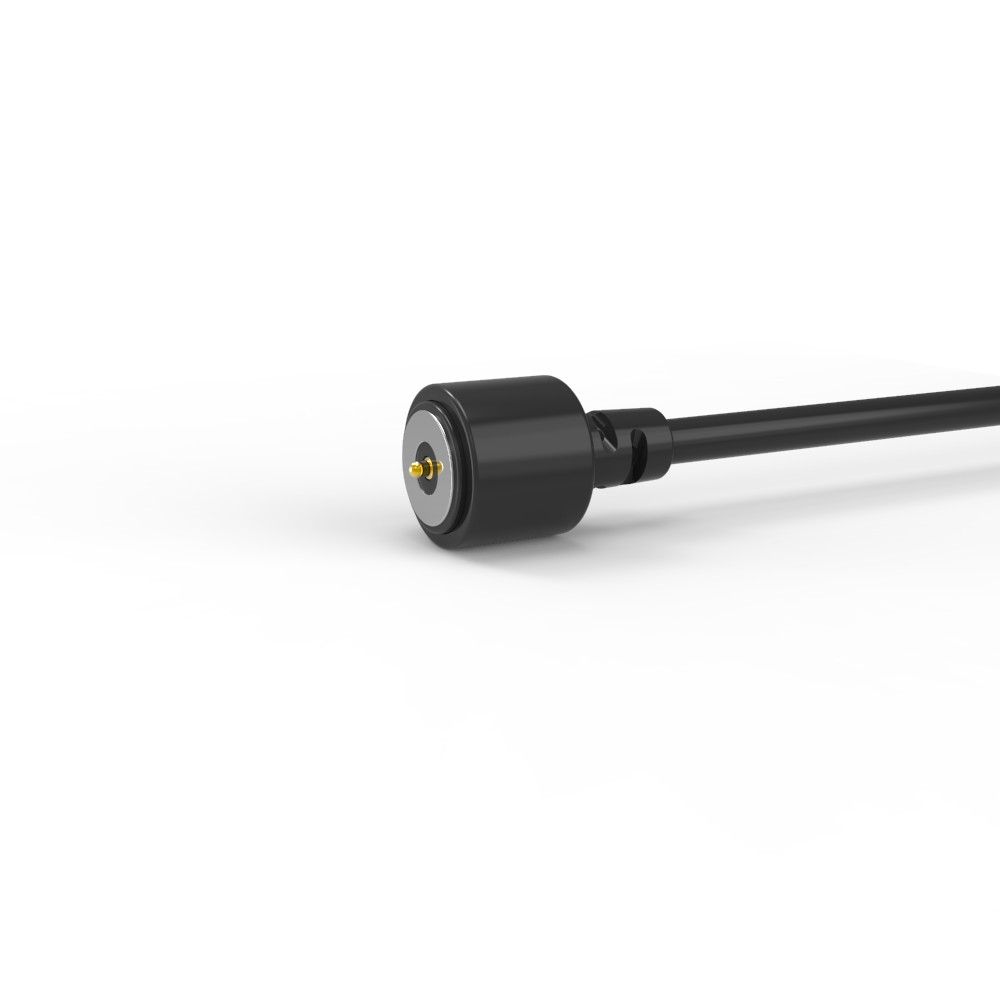

Male magnetic cable connector:

Key Components & Materials:

1.Pogo Pins (Electrical Contacts):

.Base Material: Brass.

.Plating: Plunger (moving tip) and Barrel (housing) plated with minimum 5 micro-inches (µ") of Gold (Au) over 60-100 micro-inches (µ") of Nickel (Ni). This provides excellent corrosion resistance, conductivity, and durability.

2.Housing (Main Plastic Body):

.Material: Black HTN (High-Temperature Nylon) reinforced with 30% Glass Fiber (GF).

.Flammability Rating: UL94 V-0 (Excellent flame retardancy, self-extinguishing).

3.Magnet:

.Type: Neodymium Iron Boron (NdFeB), grade N52 (the strongest commonly available grade).

.Plating: Nickel (Ni) - Provides corrosion protection for the magnet.

4.Cable:

.Type: 2-Conductor (2C).

.Outer Diameter (OD): 3.0mm.

.Conductor: Likely 43 AWG (TC43) strands, 0.08mm diameter each (provides flexibility).

5.Wire Jacket & Connector Jacket:

.Material: Black TPE (Thermoplastic Elastomer).

.Hardness: 90A Shore (A good balance of flexibility, durability, and grip).

Mechanical Specifications:

1.Spring Force: 60 grams ±10g (i.e., 50g to 70g) measured when the pogo pin is compressed to its working stroke of 1.0mm. This is a moderate, reliable force for electrical contact.

2.ull Stroke: 1.20mm (The maximum distance the pogo pin plunger can be compressed into the barrel).

3.Mechanical Life: Minimum 10,000 mating cycles (connects/disconnects). Indicates a robust design suitable for frequent use.

Electrical Specifications:

1.Operating Voltage: 12V DC.

2.Operating Current: 2A (per pin/pair).

3.Contact Resistance: Maximum 50 milliohms (mΩ) per pogo pin pair under specified conditions.

4.Testing: 100% of units undergo Open Circuit and Short Circuit testing to ensure basic electrical functionality and safety.

Compliance & Reliability:

1.Environmental Compliance: Explicitly stated to be RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) compliant. Essential for most global markets.

2.Corrosion Resistance (Salt Spray Test): 48 hours exposure per a standard test method (e.g., ASTM B117). This is a significant test duration, indicating good corrosion resistance for the plating/materials, suitable for demanding environments.

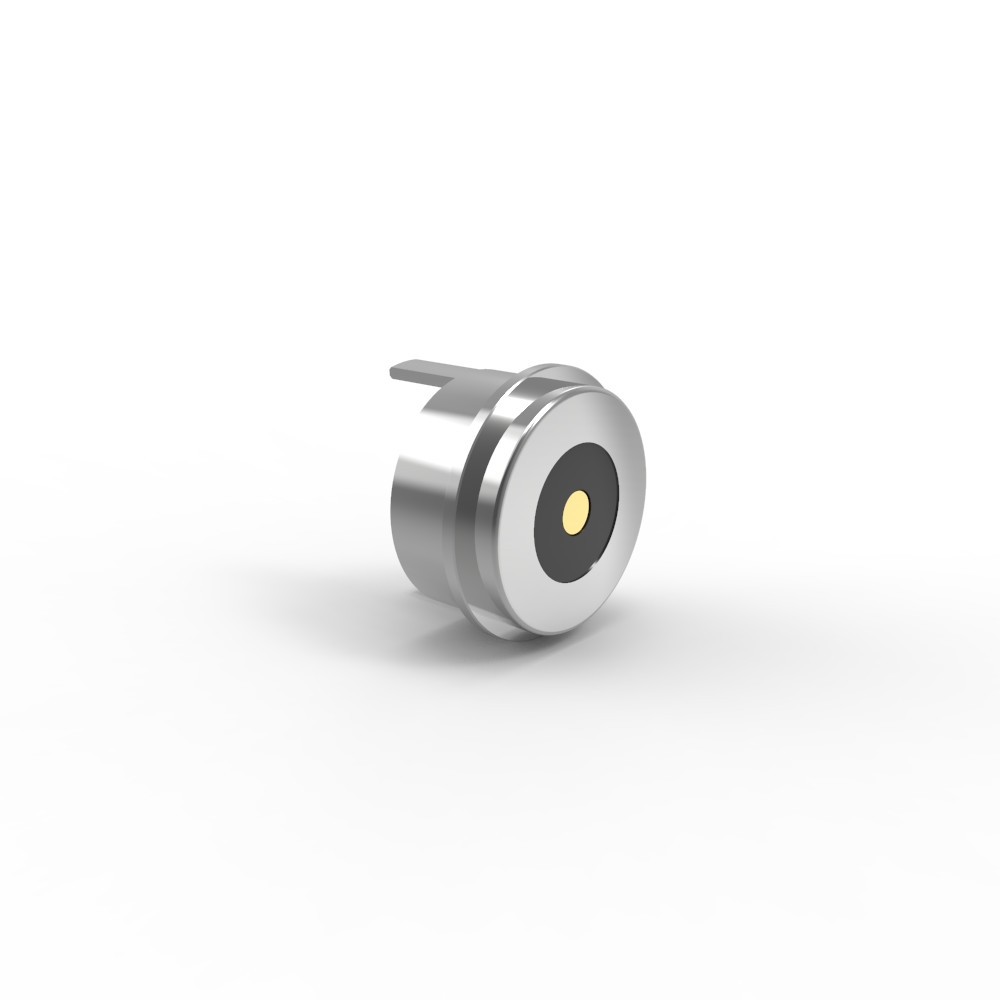

Female magnetic connector:

..Materials:
PIN:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni ;
Housing: Black HTN+30%GF UL94 V-0 ;
Shel1: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Electrical:
Voltage:12 V.
Current:5.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
ROHS or REACHcompliant product.
Salt spray test:48 H.

Product application description (not limited to the following):
1.Plug-in welding PCB board;
2. Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin  Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

● Humanize design of automatic adsorption connection experience;

● Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

● Life time: up to 100,000-200,000cycle;

● Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

● Fast charging time: 5A-10A magnet connector design withstands large current transmission;

● The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

● Product anti-short circuit structure design and foolproof;

● Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Products application:

1)PCB board;
2)Digital camera/Medical products/ Printer cartridges;
3)Golf handle/ Electric vehicles/ Telephony applications;
4)Cardiac defibrillator/Car charging /Air purifier;
5)LED flat luminaries/LED flash light/Tablet/Laptop/PC ;
6)Power bank/ Digital product/ Small household electrical application;
7)Charging products/Signal transmission products etc
