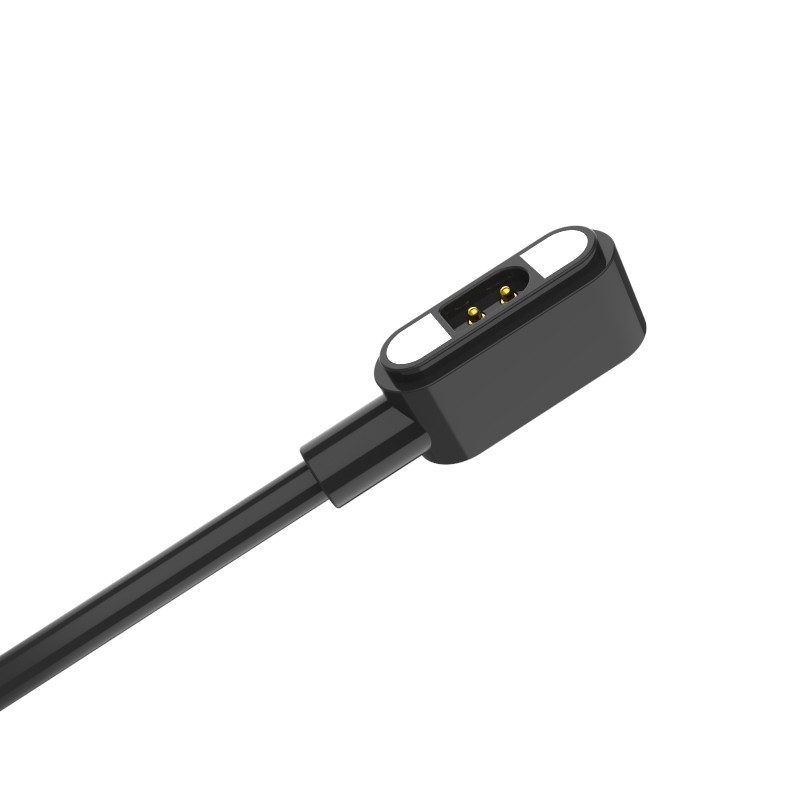

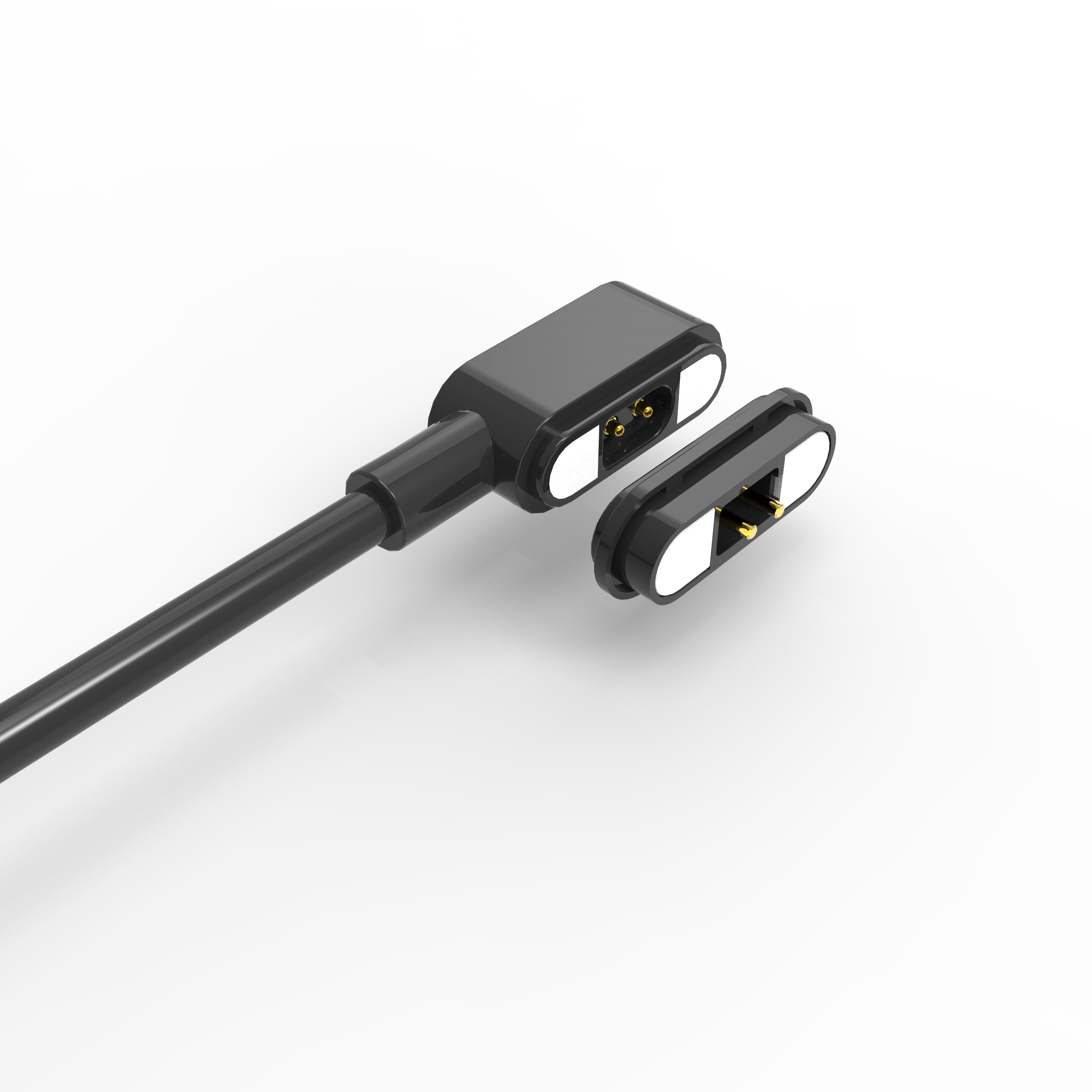

2Pin Magnetic Charging Cable Male Female Pogo Pin Connector for Lightning.
The 2pin magnetic cable connector adhesive force of the magnetic male and female docking is more than 550G,magnetic connector magnet adopts high-performance permanent magnet neodymium iron boron,the magnetic cable usb connector adopts environmentalprotection materials,ROHS, REACH;
This magnetic cable connector product is anti-short-circuit structure design,polarity and electrical direction are clearly identified.
The female magnetic connector pin feet are fixed on the PCB board, and the pin spacing size is stable.
Black TPE 80A outer mold of the joint;
Wire OD3.5mm 2C (red and black: 65*0.08)
Covered with black TPE
USB: stainless steel shell USB2.0.
We also have standard 2 pin, 3pin , 4pin ,5pin,6pin, 7pin, 8pin, 9pin magnetic pogo pin connectors solutions customers to choose and can be OEM/ODM for our customers from all over all the world.
2Pin Magnetic Cable Connectors Parameter:
|
Name
|
Magnetic Cable connector
|
|
Type
|
DIP
|
|
Pin
|
2pin or customized
|
|
Pitch
|
2.80mm
|
|
Pogo pin
|
Brass
|
|
Housing
|
Black HTN+30%GF UL94 V-0
|
|
Magnet
|
NdFeB N52 Plating Ni
|
|
Magetic force
|
550G
|
|
Spring force
|
80g±20g,at 1.0mm working storke.
|
|
Mechanical life
|
50000 cycle Min..
|
|
Continuous working current
|
3.0A
|
|
Maximum momentary current
|
4.0A maximum
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
High voltage test
|
AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.
|
|
Salt spray test
|
48H
|
|
Layout tolerance
|
±0.05mm
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|

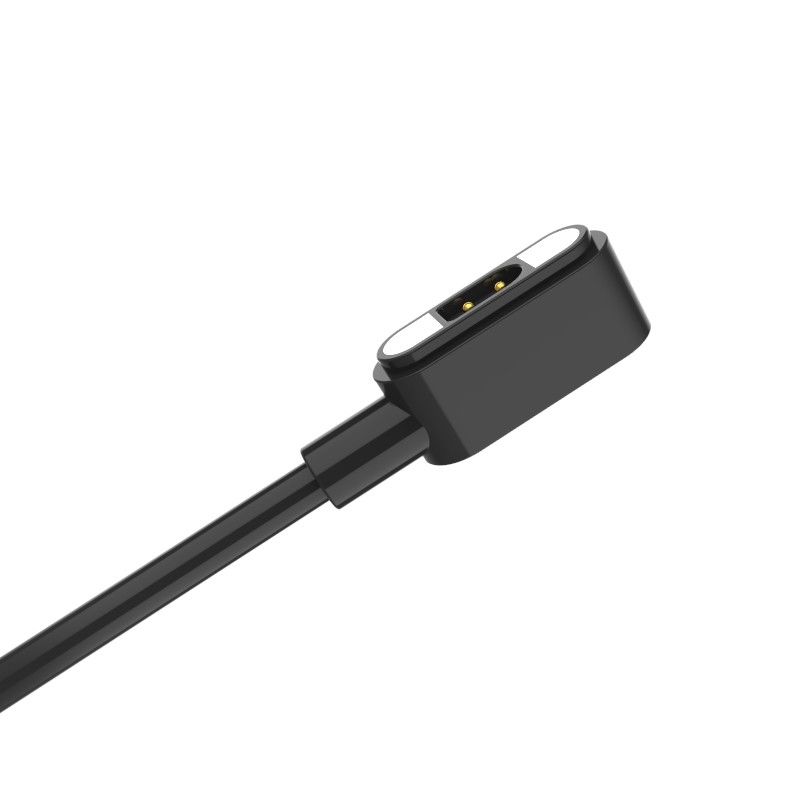

2Pin Male Magnetic Cable Connector Drawing Size:

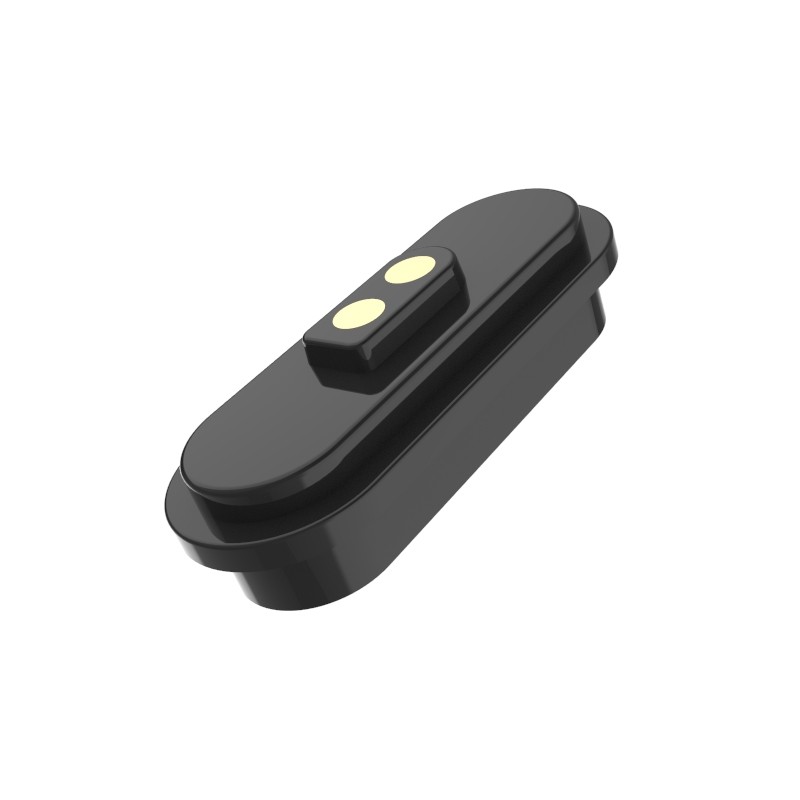

2Pin Female Magnetic Connector Drawing Size:
Advantages of Magnetic Connector:
1)Automatic adsorption connected experience; Easy operation;
2)Uses a magnetic interface to remove the device easier.
3)High life cycle. It supports 50,000-300,000 reattachment life times;
4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);
5)Support a high current (3A-20A), faster recharge;
6)Excellent corrosion rating (48H-120H) meet the harsh environments；
8)Shape customized to meet with product shape matching, improve product selling point;
9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish
the direction( It is user-oriented and user-friendly)
10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);
11)Development time is short, low-cost mold for customization;
12)Provide a reliable high RF signal transmission. Our connector is USB 2.0
Why do customers choose UPE?
1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
7. Product environmental standards
Magnetic Cable Connectors Application:
How to place the order
* You send us drawing or sample
* Our professional engineering team conducts the assessment
* You confrim the drawing and we make the sample to send you
* You test the sample and approved,then place an order and pay 50% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to you with DHL, TNT,UPS,Fedex
Payment Term: T/T,50% Deposit,50% Balance
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
