Dia.8.0MM 2Pin Male And Female Pogo Pin Magnetic with 2A 12V Cable Connector

Dia.8.0MM 2Pin Male And Female  Pogo Pin Magnetic with 2A 12V Cable Connector.

UPE's Magnetic Connector Capabilities
Core Expertise:

Custom magnetic connector design (pogo pin, cable assemblies, PCB-mounted)

End-to-end solutions from concept to mass production

Specialization in high-reliability applications (industrial, medical, automotive, consumer electronics)

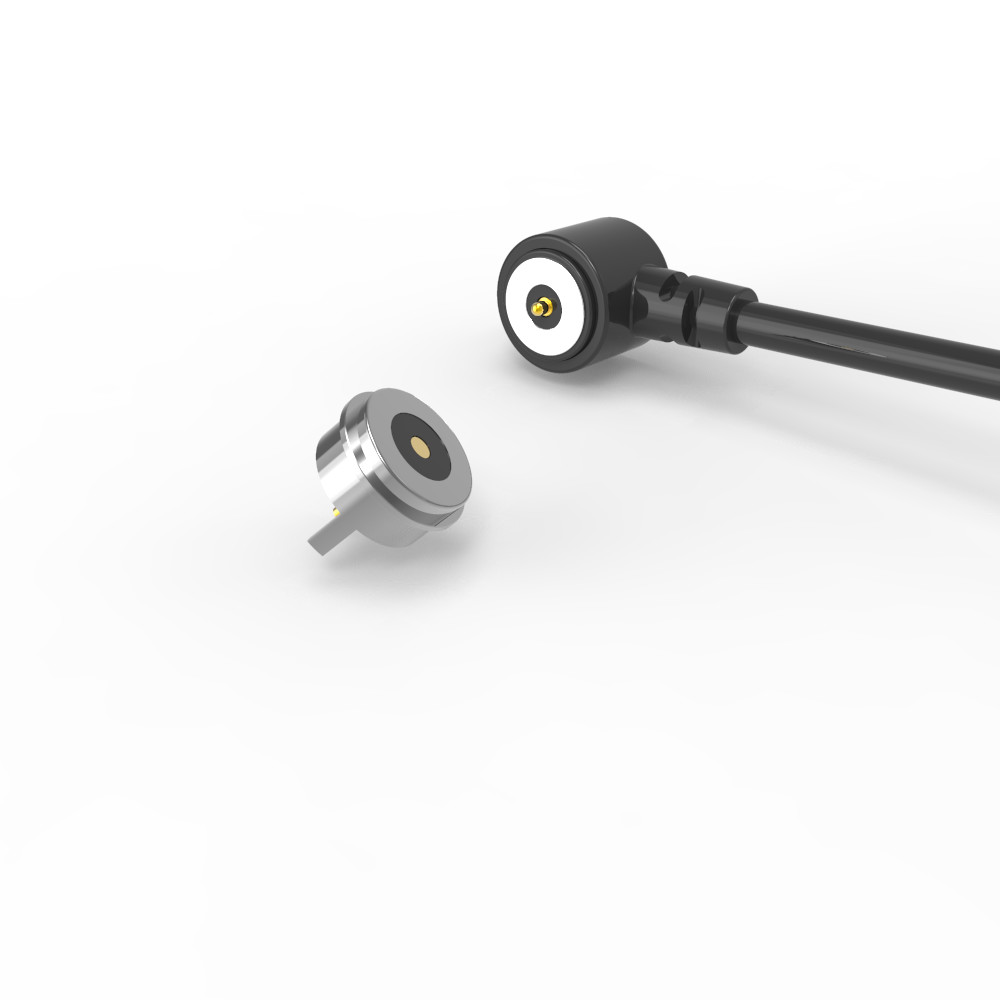

Male magnetic cable connector:

Key Components & Materials:

1.Pogo Pins (Electrical Contacts):

.Base Material: Brass.

.Plating: Plunger (moving tip) and Barrel (housing) plated with minimum 5 micro-inches (µ") of Gold (Au) over 60-100 micro-inches (µ") of Nickel (Ni). This provides excellent corrosion resistance, conductivity, and durability.

2.Housing (Main Plastic Body):

.Material: Black HTN (High-Temperature Nylon) reinforced with 30% Glass Fiber (GF).

.Flammability Rating: UL94 V-0 (Excellent flame retardancy, self-extinguishing).

3.Magnet:

.Type: Neodymium Iron Boron (NdFeB), grade N52 (the strongest commonly available grade).

.Plating: Nickel (Ni) - Provides corrosion protection for the magnet.

4.Cable:

.Type: 2-Conductor (2C).

.Outer Diameter (OD): 3.0mm.

.Conductor: Likely 43 AWG (TC43) strands, 0.08mm diameter each (provides flexibility).

5.Wire Jacket & Connector Jacket:

.Material: Black TPE (Thermoplastic Elastomer).

.Hardness: 90A Shore (A good balance of flexibility, durability, and grip).

Mechanical Specifications:

1.Spring Force: 60 grams ±10g (i.e., 50g to 70g) measured when the pogo pin is compressed to its working stroke of 1.0mm. This is a moderate, reliable force for electrical contact.

2.ull Stroke: 1.20mm (The maximum distance the pogo pin plunger can be compressed into the barrel).

3.Mechanical Life: Minimum 10,000 mating cycles (connects/disconnects). Indicates a robust design suitable for frequent use.

Electrical Specifications:

1.Operating Voltage: 12V DC.

2.Operating Current: 2A (per pin/pair).

3.Contact Resistance: Maximum 50 milliohms (mΩ) per pogo pin pair under specified conditions.

4.Testing: 100% of units undergo Open Circuit and Short Circuit testing to ensure basic electrical functionality and safety.

Compliance & Reliability:

1.Environmental Compliance: Explicitly stated to be RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) compliant. Essential for most global markets.

2.Corrosion Resistance (Salt Spray Test): 48 hours exposure per a standard test method (e.g., ASTM B117). This is a significant test duration, indicating good corrosion resistance for the plating/materials, suitable for demanding environments.

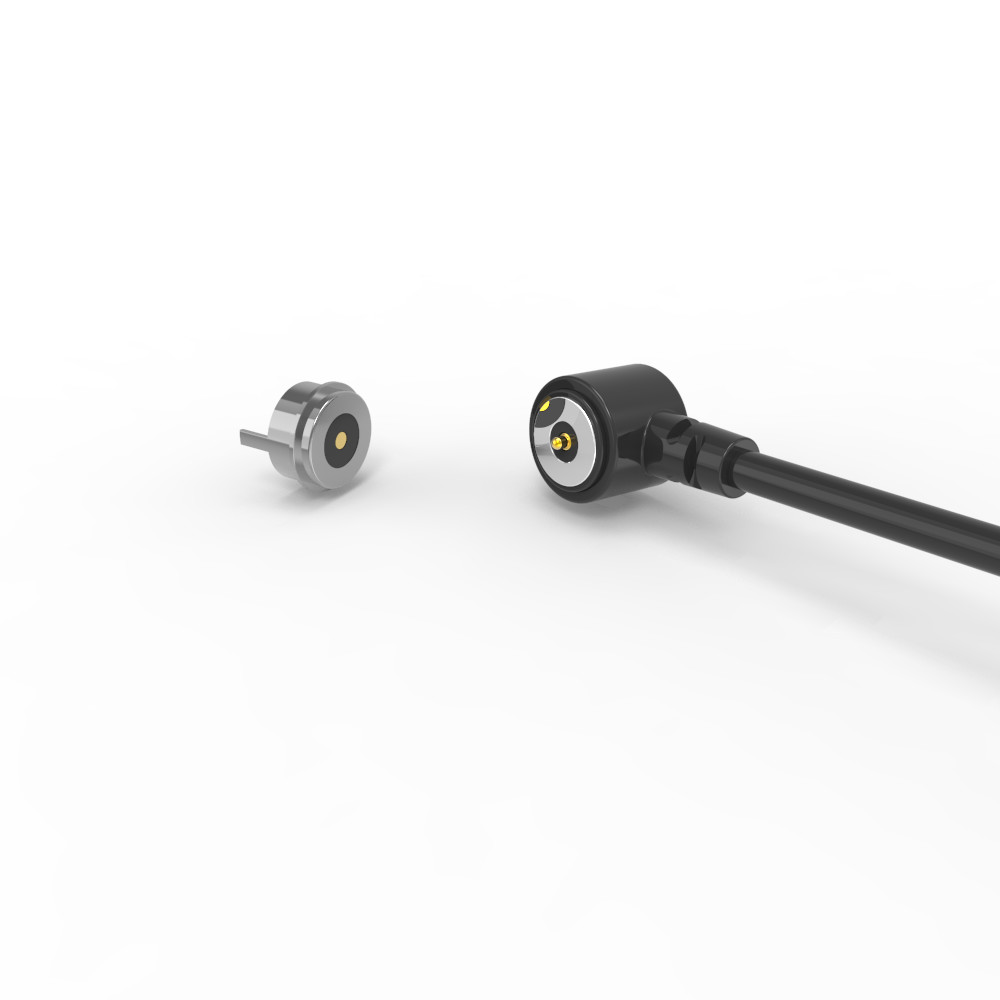

Female magnetic connector:

..Materials:
PIN:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni ;
Housing: Black HTN+30%GF UL94 V-0 ;
Shel1: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Electrical:
Voltage:12 V.
Current:5.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
ROHS or REACHcompliant product.
Salt spray test:48 H.

Product application description (not limited to the following):
1.Plug-in welding PCB board;
2. Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

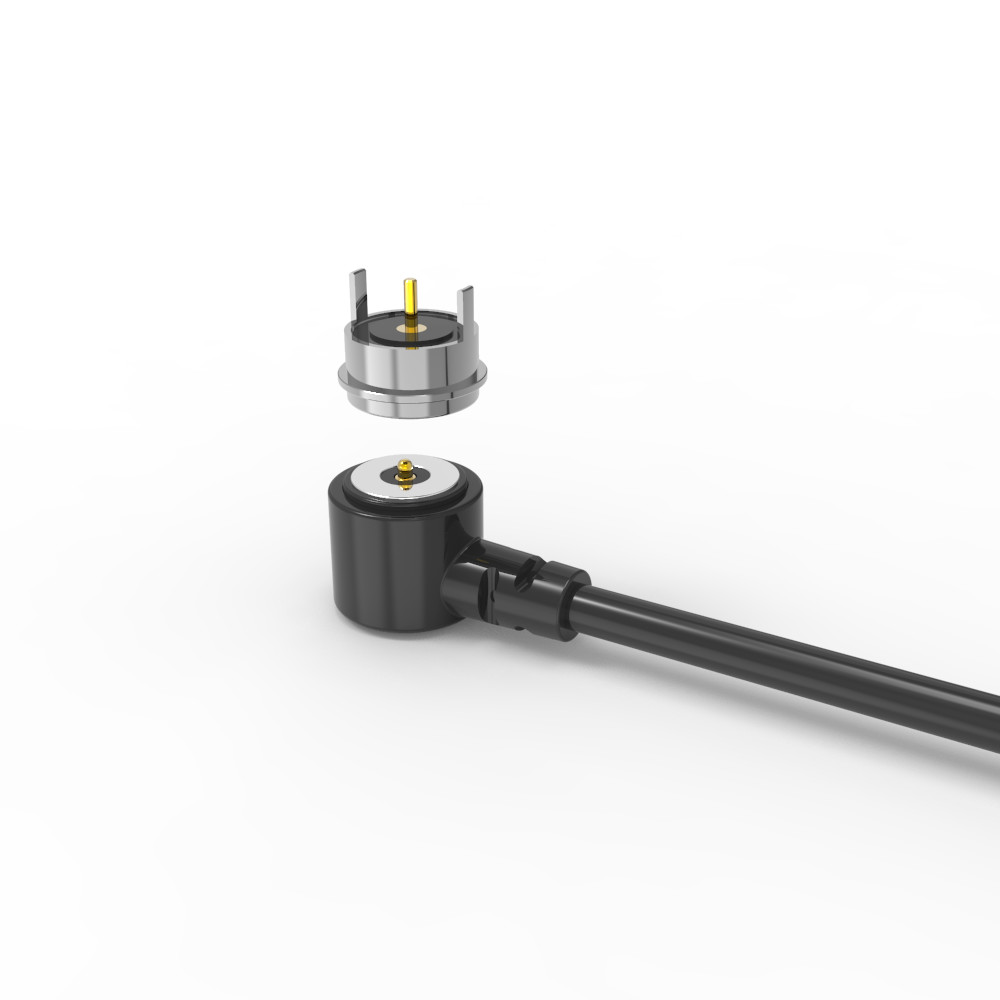

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin  Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

1.Effortless User Experience

.Automatic Adsorption: Connects easily with a simple "snap" action – no precise alignment needed.

.Anti-Fall Safety: Detaches cleanly under tension (e.g., tripping on the cable), protecting devices from damage.

2.Exceptional Durability

.High Cycle Life: Rated for 100,000–200,000 connect/disconnect cycles – far exceeding standard connectors.

.Robust Design: Reinforced structure resists physical stress and frequent use.

3.Environmental Resilience

.IPX8 Waterproofing: Device-side (female) port withstands submersion (ideal for wearables, medical gear, outdoor devices).

.Dust Resistance: Sealed design prevents particle ingress.

4.High-Performance Power Delivery

.Fast Charging Support: Handles 5A–10A currents, enabling rapid charging for power-hungry devices.

.Low Resistance: Optimized for efficient high-current transmission with minimal energy loss.

5.Design Flexibility

.Customizable Aesthetics: Shape, color, and branding tailored to match host devices (e.g., wearables, IoT gadgets).

.Form Factor Adaptability: Can be designed for ultra-slim profiles or specialized enclosures.

6.Enhanced Safety

.Anti-Short Circuit: Built-in protection against accidental shorts during connection/misalignment.

.Foolproof Polarity: Physical design prevents incorrect insertion (reverse polarity protection).

7.Advanced Signal Capability

.High-Speed Data: Supports USB 2.0, HDMI 1.3, audio/video signals – replacing traditional ports without compromising function.

.Signal Integrity: Maintains stable transmission for video/audio even with frequent disconnects.
