8.0mm magnetic connector white color cable magnetic cable USB connector 2A

8.0mm magnetic connector white color cable magnetic cable USB connector 2A.

UPE is professional magnetic connector & magnetic cable connector manufacturer.

We have our own professional designers to meet any of your requirements and provide magnetic connector customization service. Different magnetic pogo pin connector products and solutions can be designed according to different customer needs.

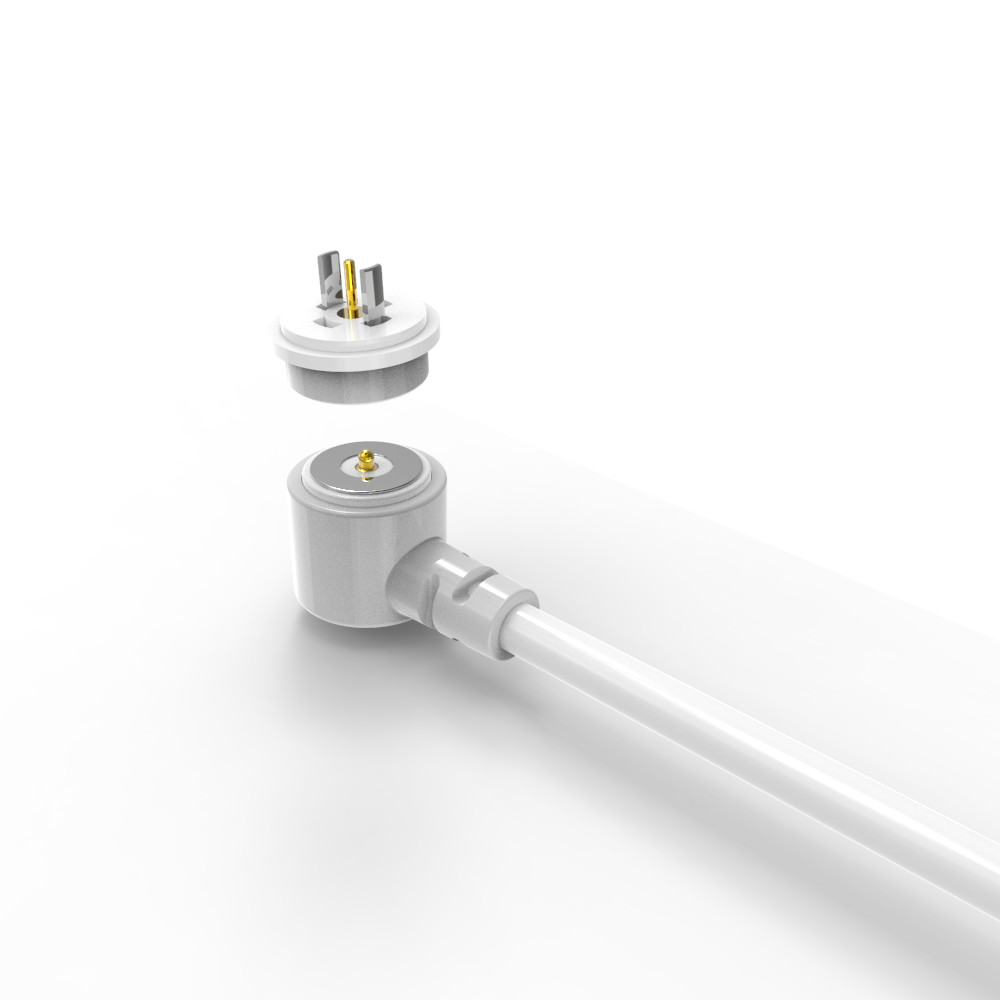

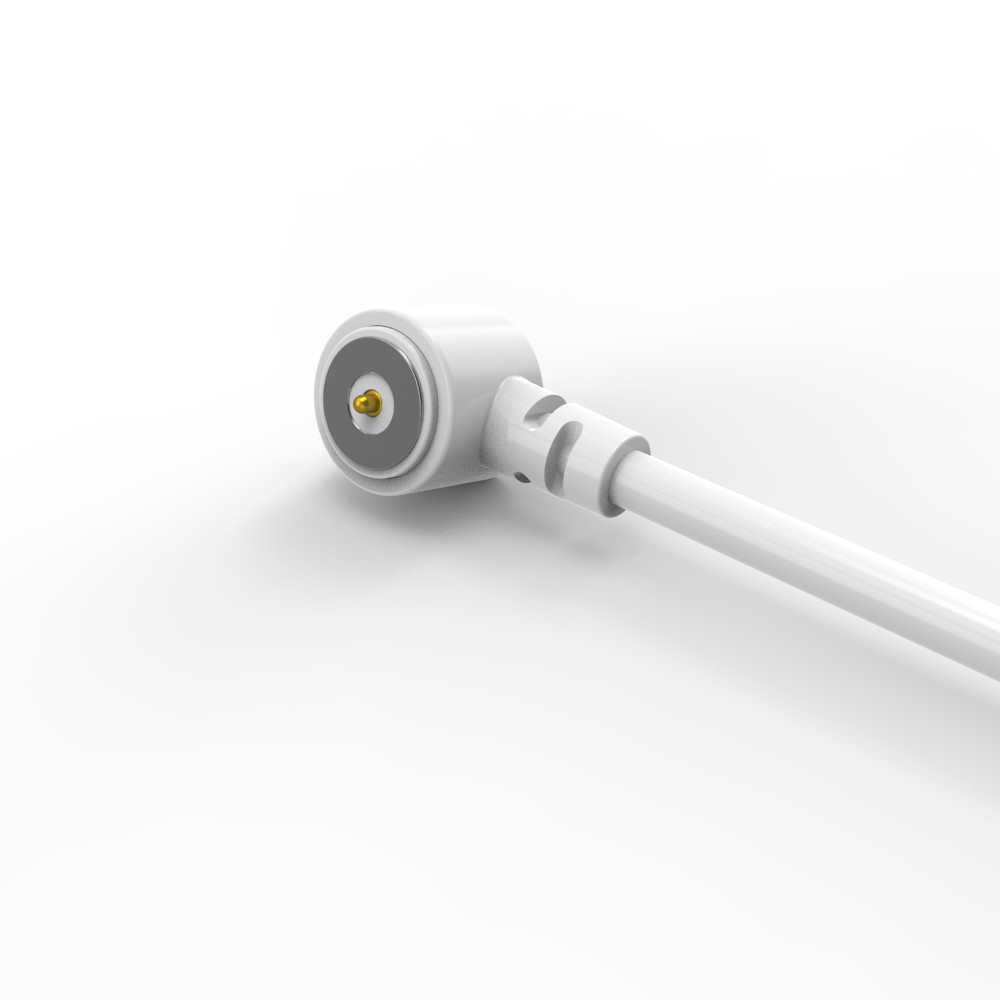

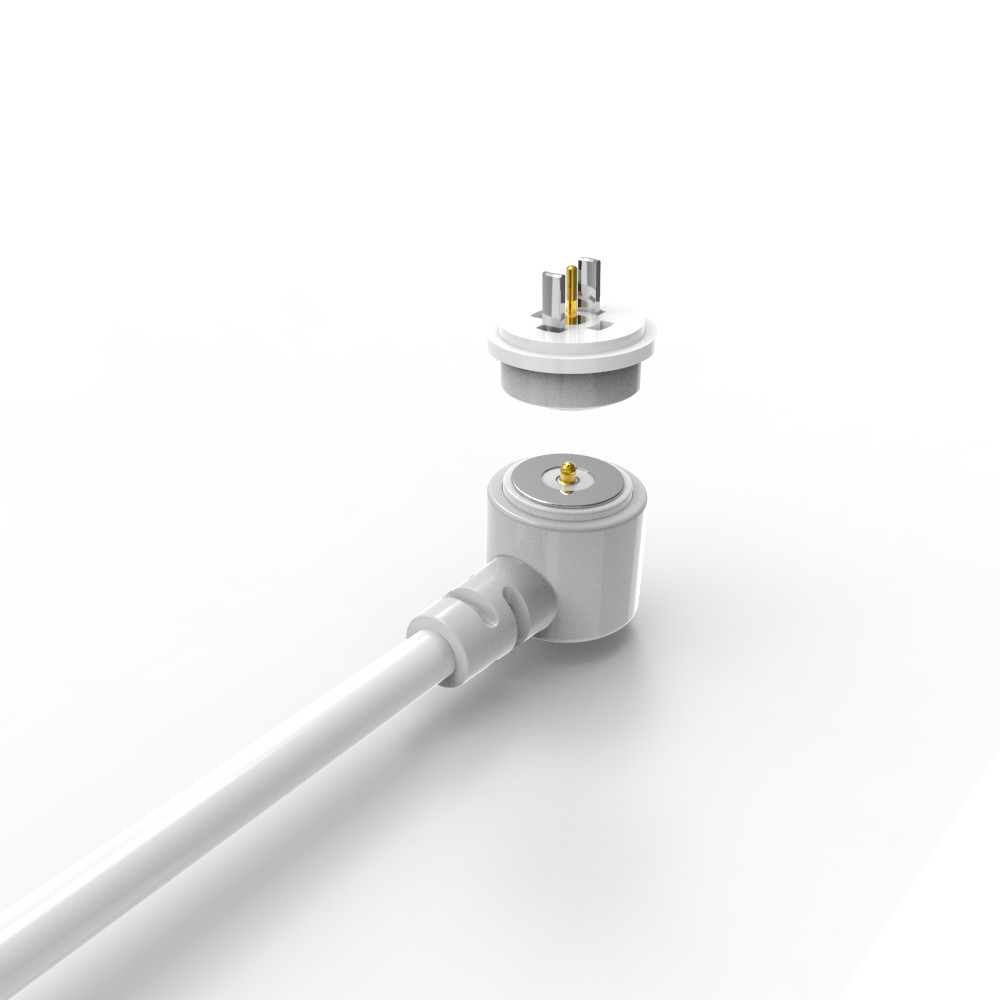

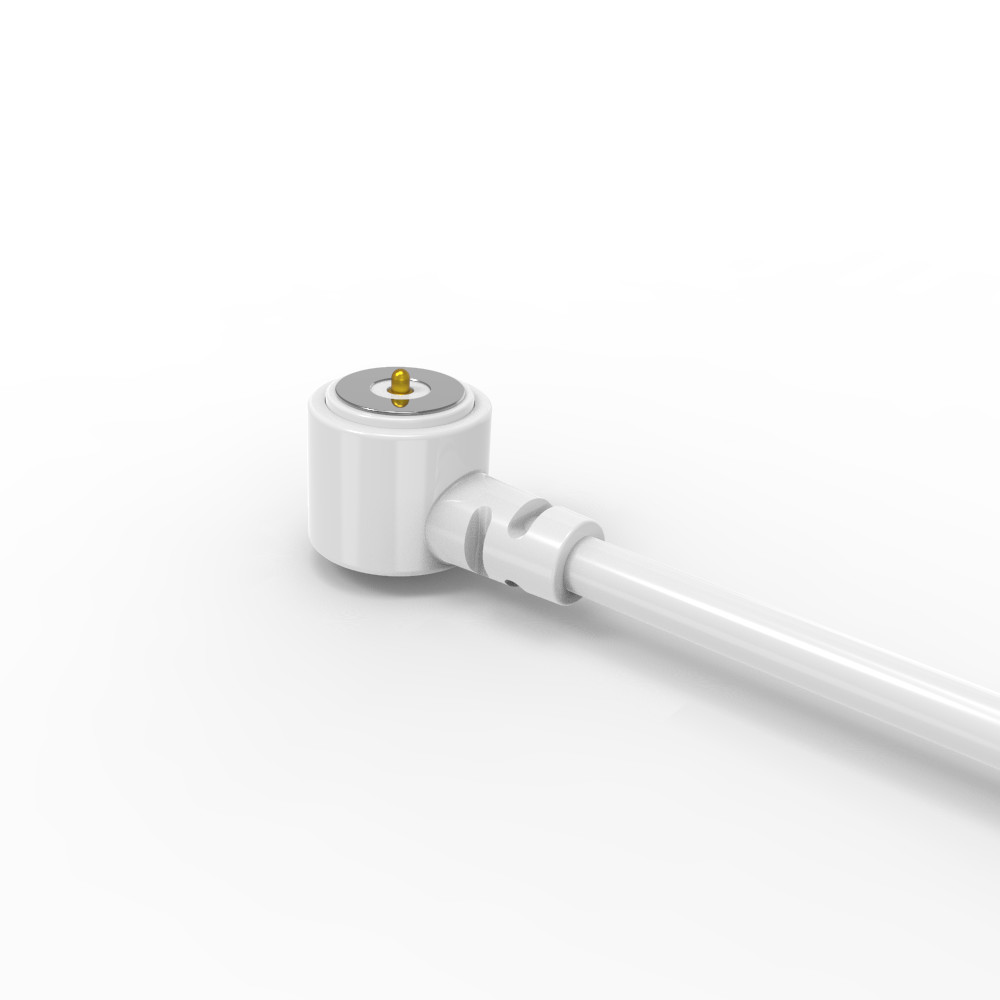

Male magnetic cable connector:

1. Materials & Construction (Premium & Durable):

Pogo Pins: Brass core with high-end plating (60~100µ" Ni under 5µ" Au) ensuring superior corrosion resistance, low contact resistance, and long-term reliability.

Housing: HTN+30% Glass Fiber (UL94 V-0) – Excellent mechanical strength, heat resistance, and flame retardancy.

Magnet: NdFeB N52 (Ni-plated) – Industry-leading magnetic strength (N52 grade) for secure mating with corrosion protection.

Cable & Jackets:

Cable: OD 3.0mm, 2-core (43x0.08mm tinned copper strands).

Connector & Wire Jackets: White TPE 90A – Flexible, abrasion-resistant, and aesthetically consistent.

2. Mechanical Performance (Precision-Engineered):

Spring Force: 60g ±10g @ 1.0mm working stroke – Optimized for stable contact pressure and easy mating.

Stroke: Full travel 1.2mm (working stroke 1.0mm).

Lifespan: 10,000+ cycles – Robust design for high-freque

3. Electrical Reliability (Tested & Certified):

Rating: 12V / 2A – Suitable for low-power data/power transmission (e.g., wearables, IoT devices).

Contact Resistance: ≤50mΩ per pin (ensuring minimal voltage drop).

Testing: 100% open/short circuit tested + 48H salt spray (validating corrosion resistance).

Compliance: ROHS/REACH – Environmentally safe for global markets.

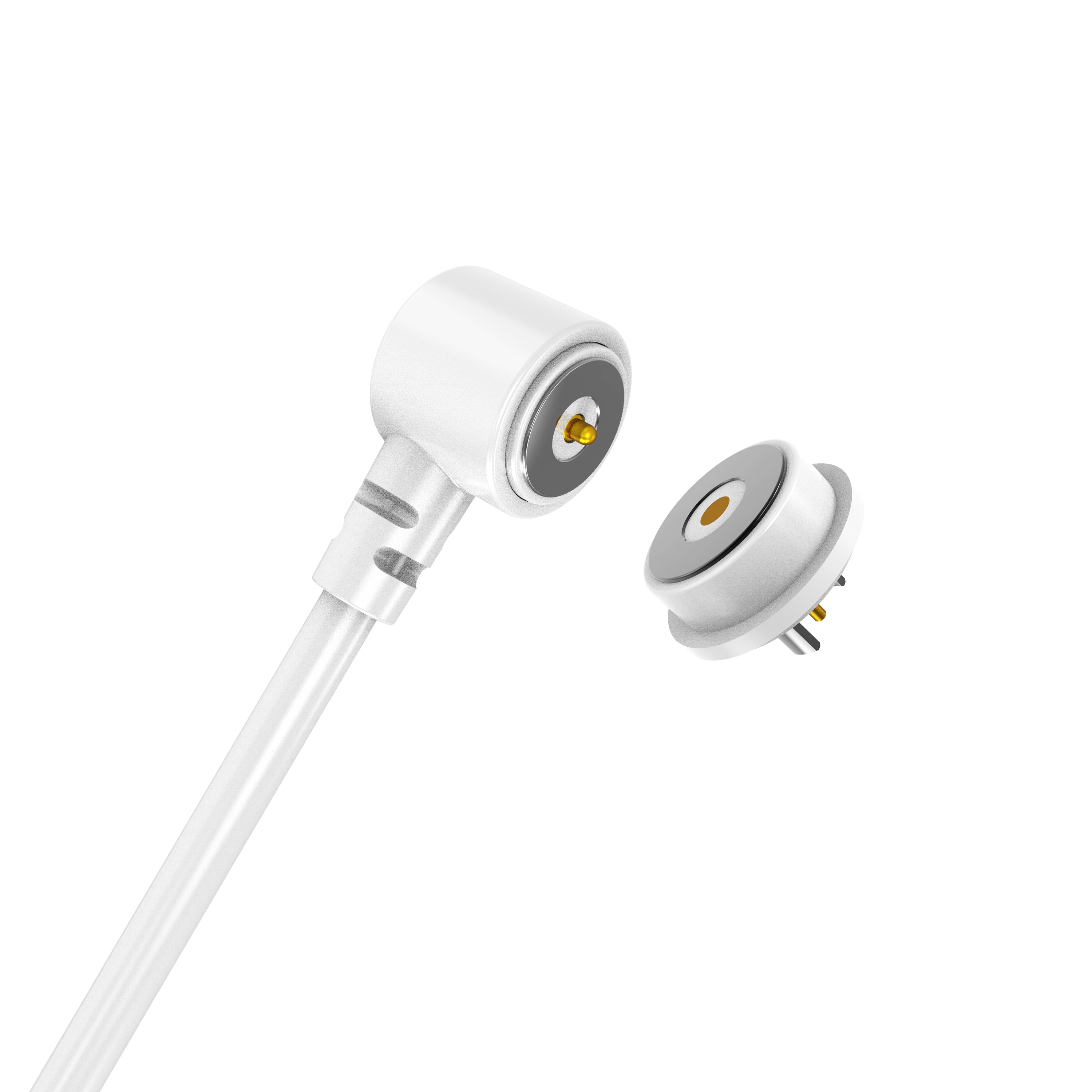

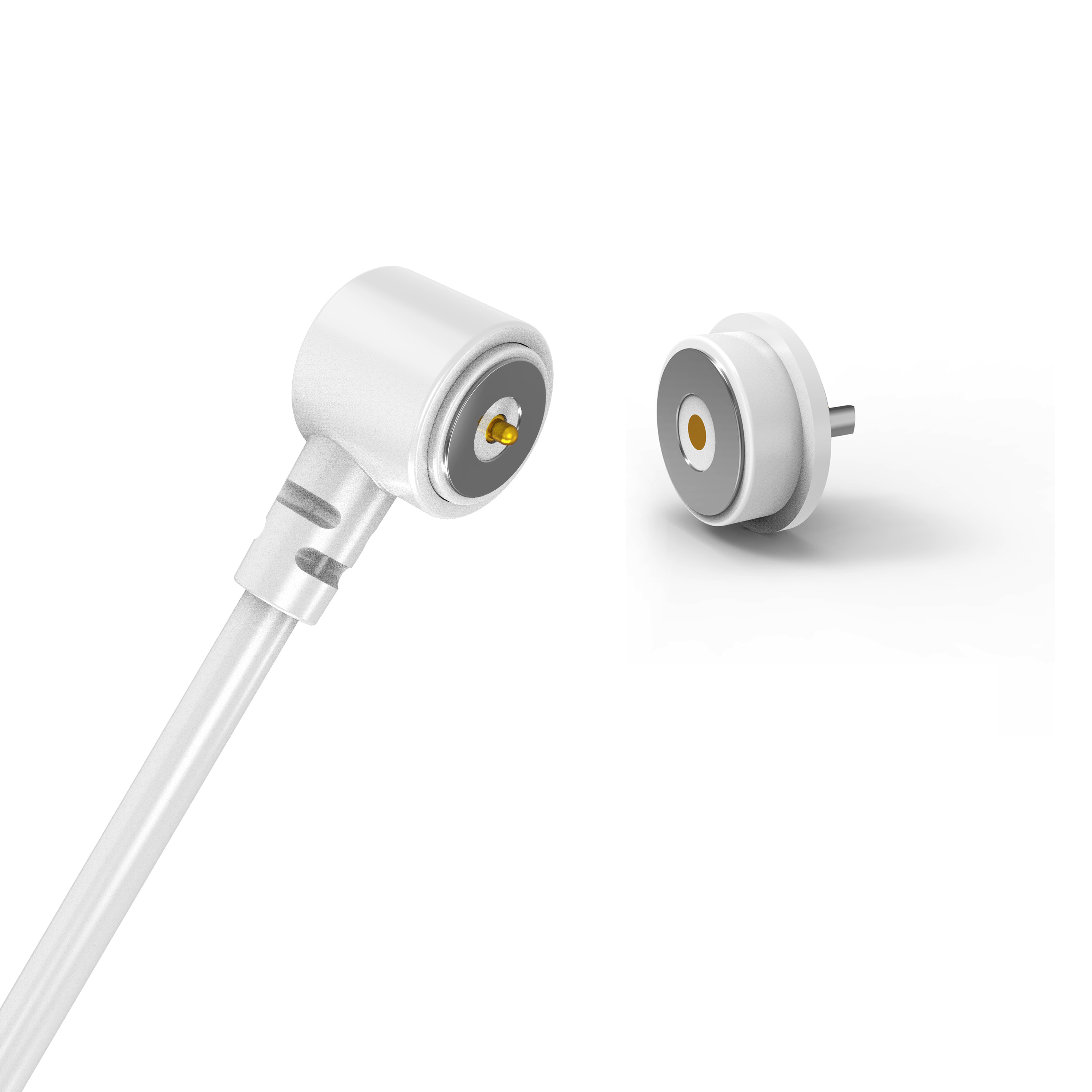

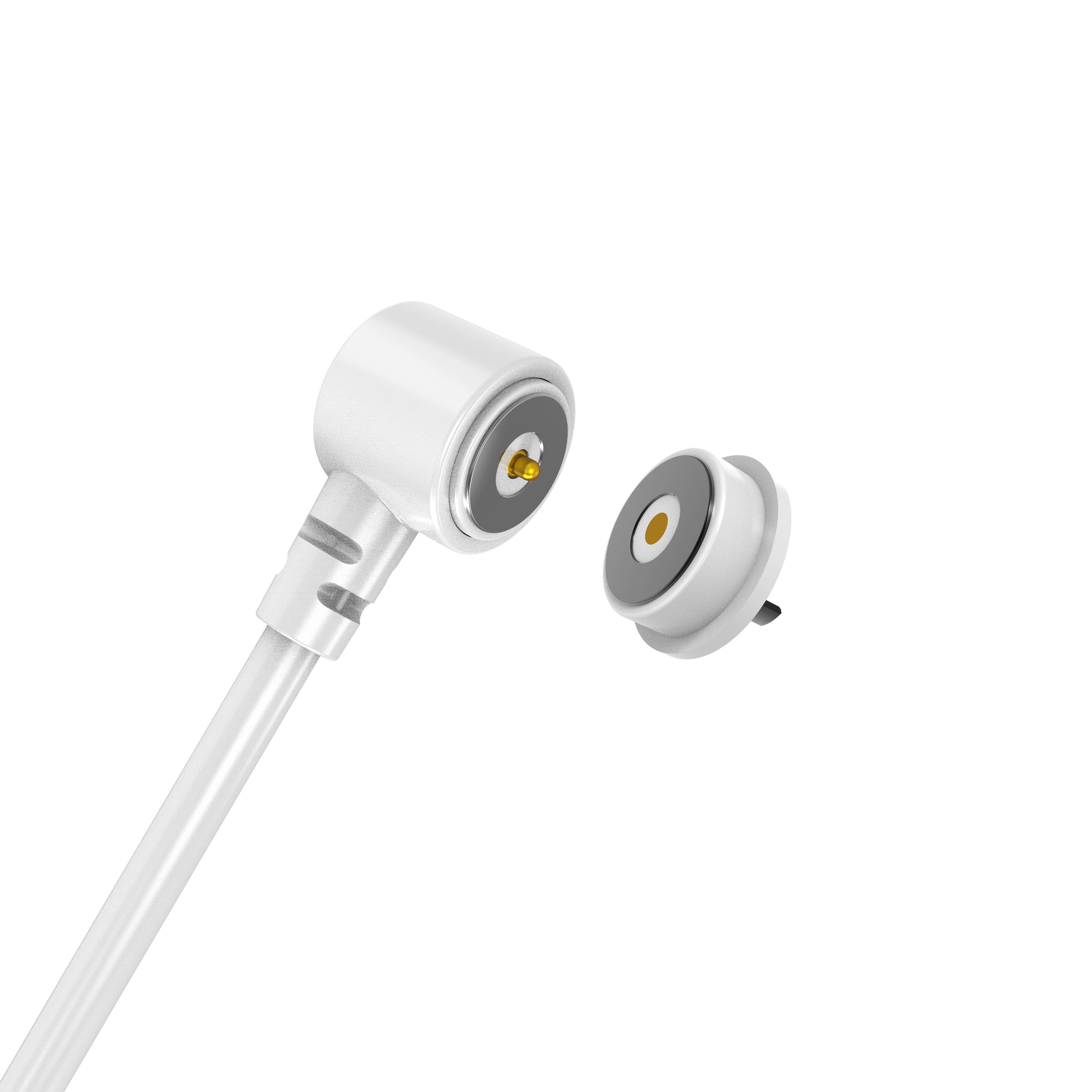

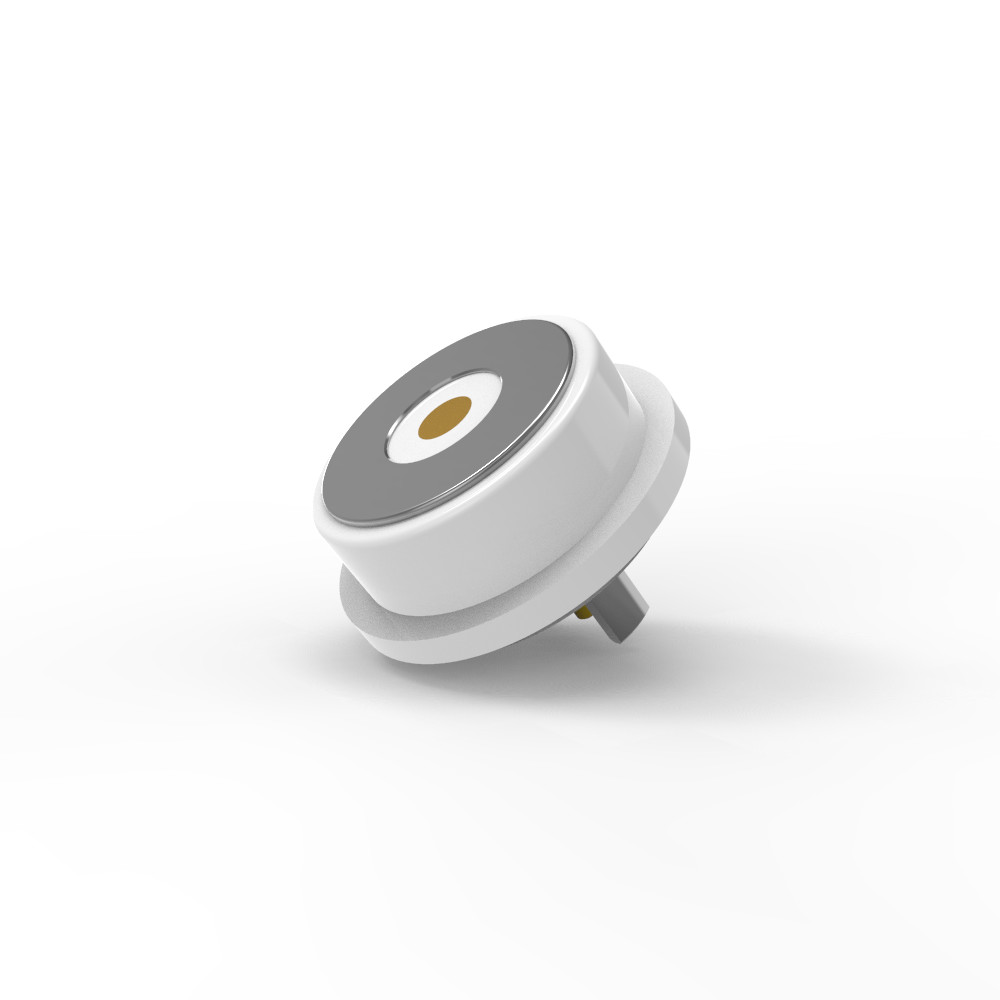

Female magnetic connector:

..Materials:
PIN:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni ;
Housing: Black HTN+30%GF UL94 V-0 ;
Shel1: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Electrical:
Voltage:12 V.
Current:3.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
ROHS or REACHcompliant product.
Salt spray test:48 H.

Product application description (not limited to the following):
1.Plug-in welding PCB board;
2. Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin  Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission
