80g spring force 3pin male and female magnetic charging connector with 2.8mm pitch.
UPE – Professional Magnetic Connector & Cable Manufacturer | Custom Solutions
UPE is a trusted leader in designing and manufacturing high-performance magnetic connectors and magnetic cable connectors, delivering innovative, reliable, and customizable connectivity solutions for a wide range of industries.
To ensure contact mechanical life,NEVER compress pogo-pin OVER defined working stroke indrawing,which may damage the inside spring.
Materials:
-Housing: Black HTN UL94V-0
-Pogo Pin: Brass C6801 Plating Au 0.125um
-Female pin: Brass C6801 Plating Au 0.125um
-Magnet: N52 NdFeB Plating Ni Cu Ni
Mechanical:
-Contact force:80g±20g at 1.1mm working storke
-Male and female adsorption Life test: 10,000cycle
Electrical:
-Rated voltage:DC12V; Rated voltage: 3AMax.
-Contact resistance of spring pin: 50 milliohm Max.
Environmental performance:
-Operation Temperature: -25℃ to +80℃
-Environmental Test: Salt Spray 24 hours

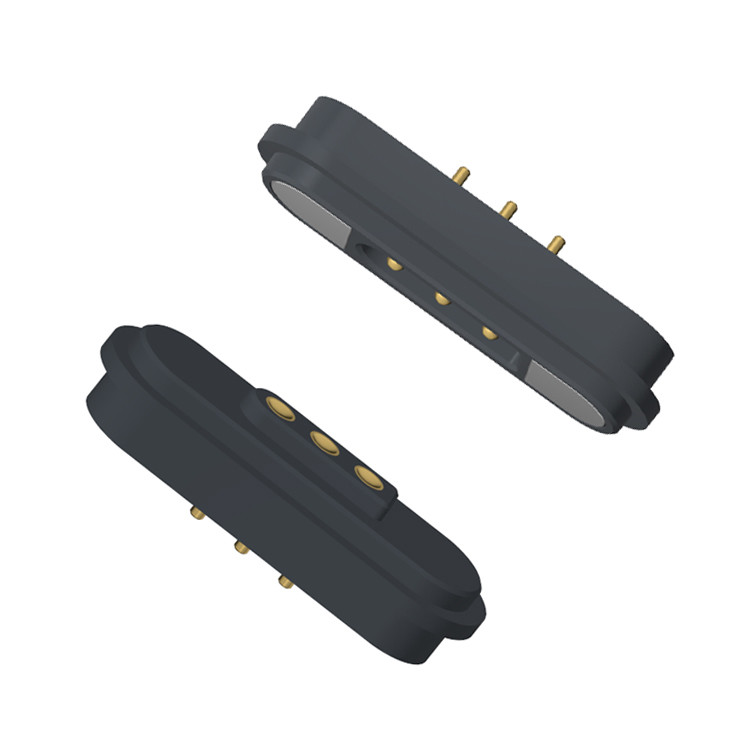

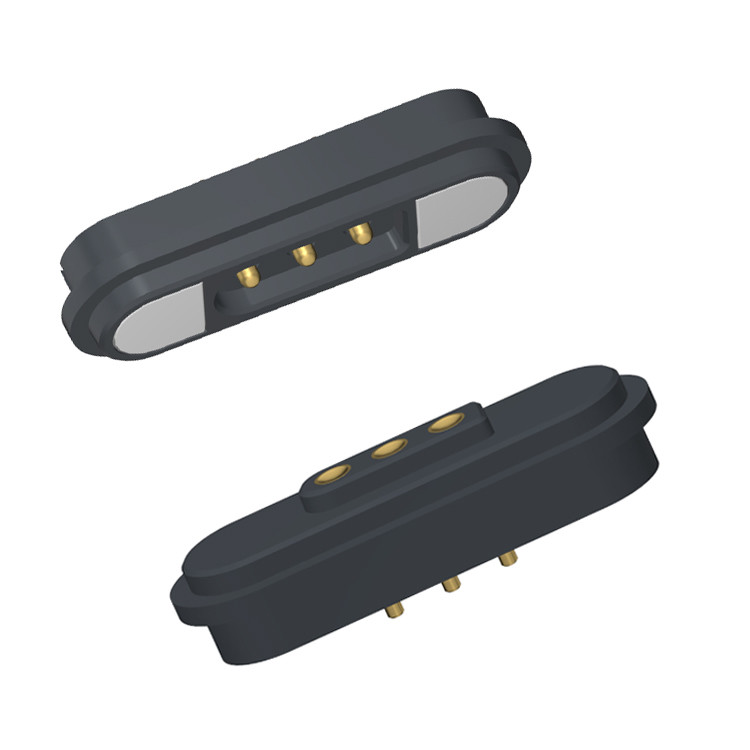

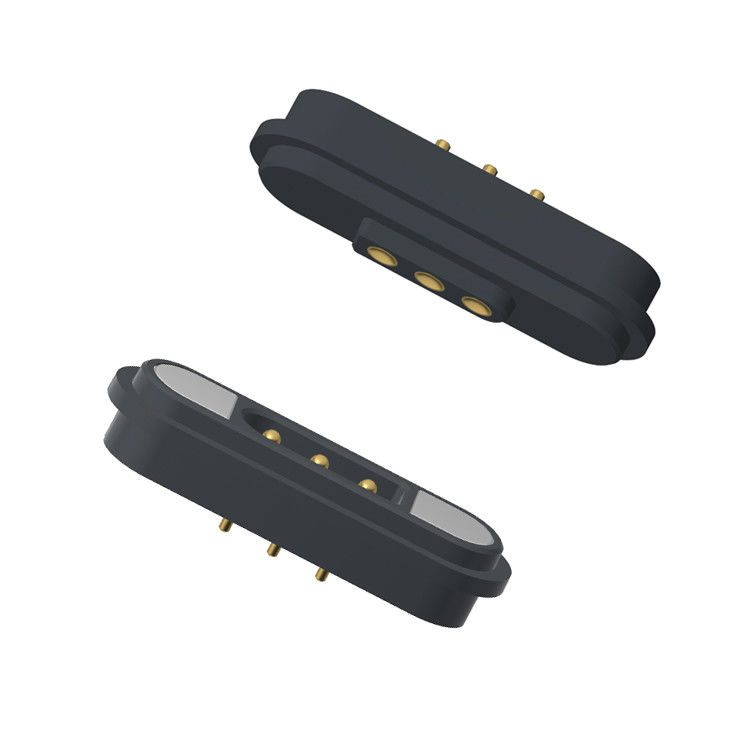

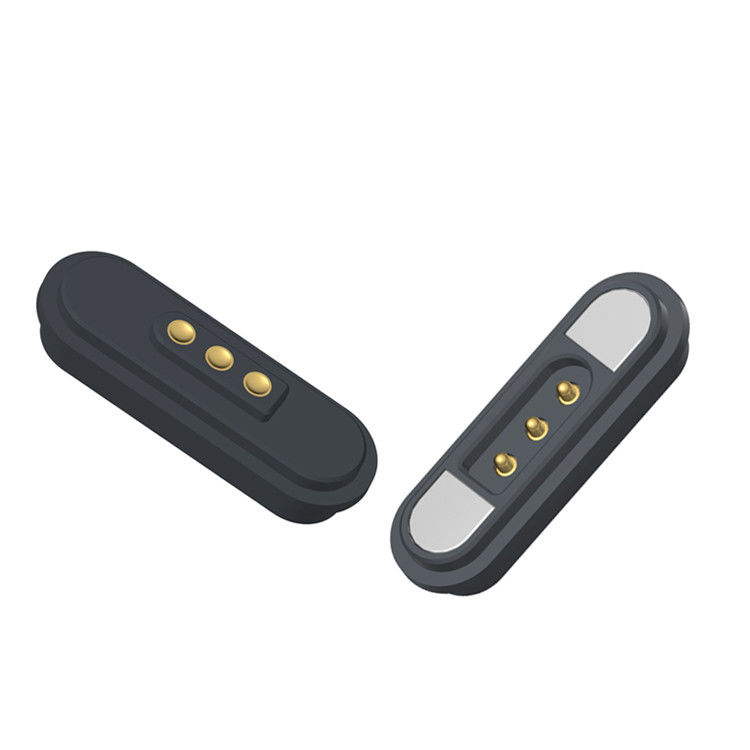

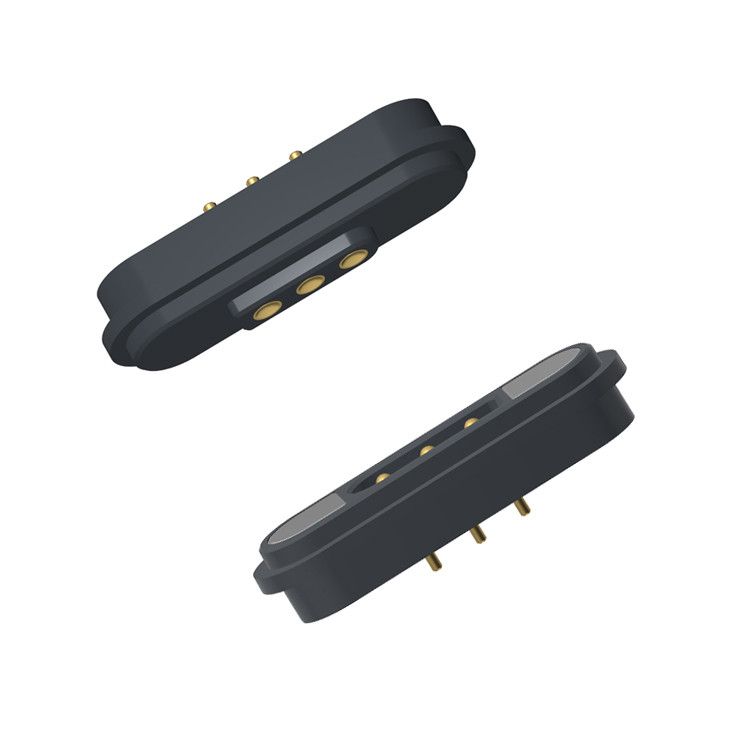

3Pin Male Magnetic Connectors & Female Magnetic Connector Parameter:
|
Name
|
Magnetic Connector
|
|
Type
|
Male/Female
|
|
Pin
|
3pin
|
|
Pitch
|
2.8mm
|
|
Color
|
Black
|
|
Pogo pin
|
Brass C6801 Plating Au 0.125um
|
|
Female pin
|
Brass C6801 Plating Au 0.125um
|
|
Housing
|
Black HTN UL94V-0
|
| Magnet |
N52 NdFeB Plating Ni Cu Ni
|
|
Spring force
|
80g±20g,at 1.0mm working storke.
|
|
Mechanical life
|
10000 cycle Min..
|
|
Current
|
3.0AMax
|
|
Voltage
|
DC12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
Operation Temperature
|
25℃to +80℃
|
|
Salt spray test
|
24H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
3Pin Male Magnetic Connector Technical Drawing
3Pin Female Magnetic Connector Technical Drawing
Advantages of Magnetic Connector:
1. Effortless Connectivity
✔ Automatic Adsorption – Smart, user-friendly design enables instant and secure connections with magnetic alignment.
✔ Anti-Fall Protection – Easily detaches from the charging interface while keeping devices stable, reducing accidental drops.
2. Unmatched Durability
✔ Extended Lifespan – Rated for 100,000–200,000 cycles, ensuring long-term reliability.
✔ IPX8 Waterproof & Dustproof – Female end designed for harsh environments (submersion up to 1M for 30 mins).
3. High-Performance Charging & Data Transfer
✔ Fast Charging (5A–10A) – Supports high-current transmission for rapid power delivery.
✔ High-Speed Signal Transmission – Replaces traditional USB 2.0/HDMI 1.3, enabling Video/Audio signal transmission with stable high-frequency performance.
4. Customizable & Safe Design
✔ Aesthetic Flexibility – Tailored appearance to match your device’s design language.
✔ Anti-Short Circuit & Foolproof – Built-in protection against misuse and electrical faults.
Magnetic connector products application:
Why UPE shall be your partner?
✔ Premium Quality – Durable, high-efficiency magnetic connectors for secure connections.
✔ Custom Solutions – Tailored designs to meet specific application requirements.
✔ Innovative Technology – Advanced magnetic coupling for easy, safe, and quick connections.
✔ Wide Applications – Ideal for consumer electronics, medical devices, industrial equipment, and more.
✔ Reliable Performance – Engineered for longevity and consistent connectivity.
How to Place Your Magnetic Cable Connector Order with UPE
1. Submit Your Requirements
Contact our sales team via:
Email: [union@upetech.net]
Phone: [+86 13434524996]
Online Form: [www.pogopinsconnector.com]
Provide details:
✔ Application (e.g., medical, automotive, consumer electronics)
✔ Connector type (e.g., magnetic pogo pin, charging cable)
✔ Specifications (voltage, current, size, waterproof rating, etc.)
✔ Quantity & lead time
2. Get a Custom Solution (If Needed)
Our engineers will review your needs and propose a custom design (if required).
We’ll share 3D models, samples, or technical drawings for approval.
Payment Term:
50% Deposit (Paid upfront): Covers production costs (materials, labor).
50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.
Payment method:
T/T (Bank Transfer),PayPal ,OCBC Bank
Recommendation:
Use PayPal for samples (safer).
Use T/T for bulk orders (lower fees).
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
