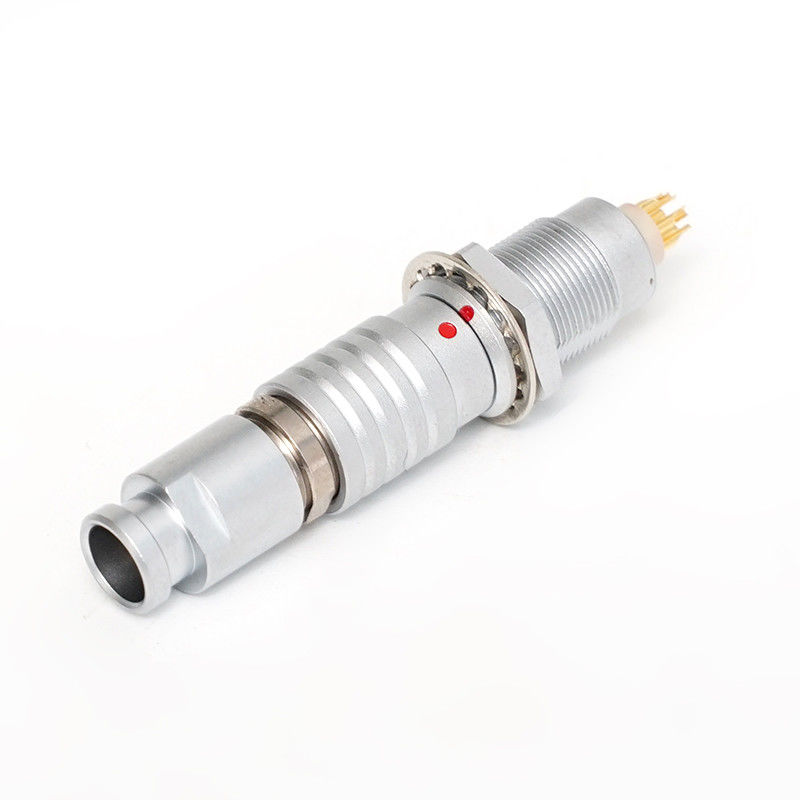

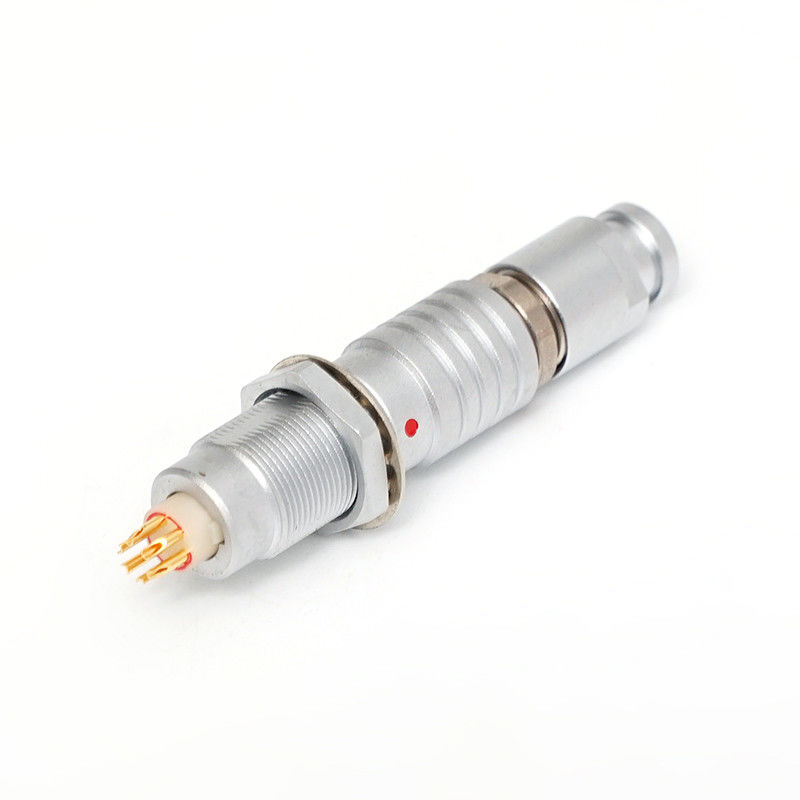

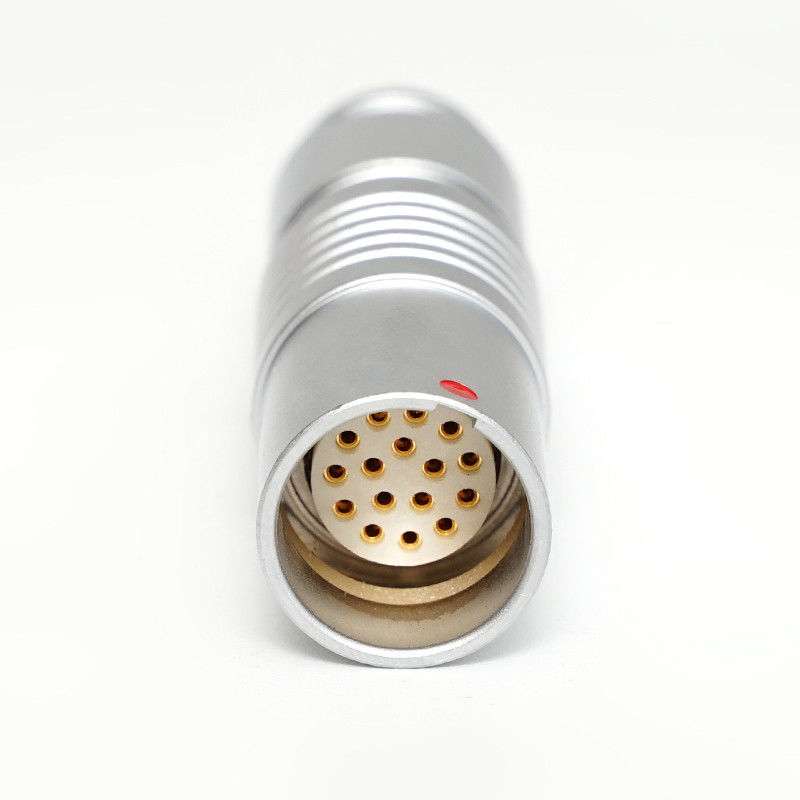

Compatible Male Female Medical LM Push Pull Metal Connectors And Circular Cables

Basic Information

Place of Origin:	China
Brand Name:	UPE
Certification:	CE, RoHS, REACH
Model Number:	Self-locking connectors

Minimum Order Quantity:	1000
Price:	$2-$4
Packaging Details:	Standard PE Bag
Delivery Time:	5-8 working days
Payment Terms:	T/T
Supply Ability:	10KPCS/Month

Get Best Price Contact Now

Detail Information

Name:	Self-locking Connectors	Material:	PPS,Chrome Plated Brass
Pin:	2-32 Contacts	Operation Temperature:	-55~200°C
Salt Spray Corrosion Test:	96 Hr	Operation Voltage:	110v-550v
Insulation Material:	PPS	Out Shell Material:	Chrome Plated Brass
Contact Type:	Solder Male	Endurance:	5000 Cycles

Product Description

Compatible Male Female Medical LM Push Pull Metal Connectors And Circular Cables.

UPE company is a modern enterprise dedicated to the research and development, production and sales of industrial connectors for ten years. Since its establishment, it has continuously adopted sincere suggestions from customers in various industries and has continuously absorbed international advanced technology and design. Philosophy, through the hard work of our R&D team, customer-oriented, provide personalized solutions, continuous product innovation, and obtain a number of patents and certifications. The company adheres to the business philosophy of "innovation and pursuit, truth-seeking and benevolence". Now it has established good and stable partnerships with many well-known brand companies at home and abroad, gradually forming advantages in technology and brand, and always providing customers with high-quality products and excellent products. Service, and constantly strengthen and improve the overall quality of the company, seek development in the competition, seek opportunities in the challenge, UPE is willing to sincerely work with you to advance together to create brilliant.

Application:Industrial Automation,Camera,Industrial Machinery,Navigation,Communication,Medical,Mapping,Aerospace,Security,Electronic Equipment,Automotive

Compatible Male Female Medical LM Push Pull Metal Connectors And Circular Cables 0

	model	Needle configuration	Shell material	insulator Material	needle core	wire clamp	variable parameter
B series	12	45	50	50	50	52	54
K series	34	45	50	50	50	53	54
S series	58	91	99	99	99	102	107
E series	76	91	99	99	99	105	107
L series	86	92	99	99	99	106	107
G series	111	112	112	110	113	112	113
C series	117	120	120	116	120	121	121
1D series	125	127	127	124	127	127	128

Basic Product Information

Gender	Male/Female
Coding	G KEY
Locking Type	Quick lock,Self Locking,Quick Release
Mounting Type	Cables Assembly,Panel mounted
Part No.	Self locking connector

General Infomation

Ambient Temperature	-55℃~200℃	Mating Endurance	>5000 cycles
Insulator	PEEK	Connector Contacts	Brass with Gold Plated
Coupling Nut/Screw	Brass with Nickel Plated	Housing	Brass with Cr Plated
Seal/o-ring	/////	Insulation resistance	≥100MΩ
IP Rating	IP50-IP68 in locked condition	Shielding efficiency	at 10MHz>95dB / at 1GHz>80dB
Salt spray Corrosiom test	>144h	Certificate	UL/CE/ROHS/REACH/IP50

Characteristics	Parameter
Locking Type	Push pull self-latching type
Operation Temperature	-55~200°C
Max Humidity	up to 95% @ 60°C / 140°F
Shielding Efficiency	75dB (10MHz) 40dB (1GHz)
Resistance To Vibration	15g (10Hz~2000Hz)
Salt Spray Corrosion Test	96 Hr
Shock Resistance	100g,6ms
Endurance	5000 cycles
Protection Index(mated)	IP50-IP68
Pin Qty	2-32 contacts
Operation Voltage	110v-550v
Compatibility	Option
Suitable Cable OD	3.0~5.0 mm
Insulation Material	PPS
Out Shell Material	Chrome Plated Brass
Contact Type	Solder Male

Compatible Male Female Medical LM Push Pull Metal Connectors And Circular Cables 2

Production flow:

Compatible Male Female Medical LM Push Pull Metal Connectors And Circular Cables 11

Packaging:

Compatible Male Female Medical LM Push Pull Metal Connectors And Circular Cables 13
