Brass Chrome Plated 90 Degree Connectors Needle Core Push Pull Connector For Printed Circuit Board

Basic Information

Place of Origin:	China
Brand Name:	UPE
Certification:	CE, RoHS, REACH
Model Number:	LHG-0B push pull connector

Minimum Order Quantity:	1000
Price:	$2-$4
Packaging Details:	standard PE bag
Delivery Time:	5-8 working days
Payment Terms:	T/T
Supply Ability:	10KPCS/Month

Get Best Price Contact Now

Detail Information

Name:	90 Degree Connectors	Material:	Brass Chrome Plated
Pin:	2pin,3pin,4pin,5pin,6pin,7pin,8pin	Type:	TNC
Temperature Range:	-25°C~+80°C	Coupling:	Threaded Coupling
Termination:	Solder	Application:	Power
Usage:	Widely Used	Function:	Airtight
Plating:	Golden Palting
Highlight:	Brass Chrome Plated 90 Degree Connectors , Needle Core Push Pull Connector , Brass Chrome Plated Push Pull Connector

Product Description

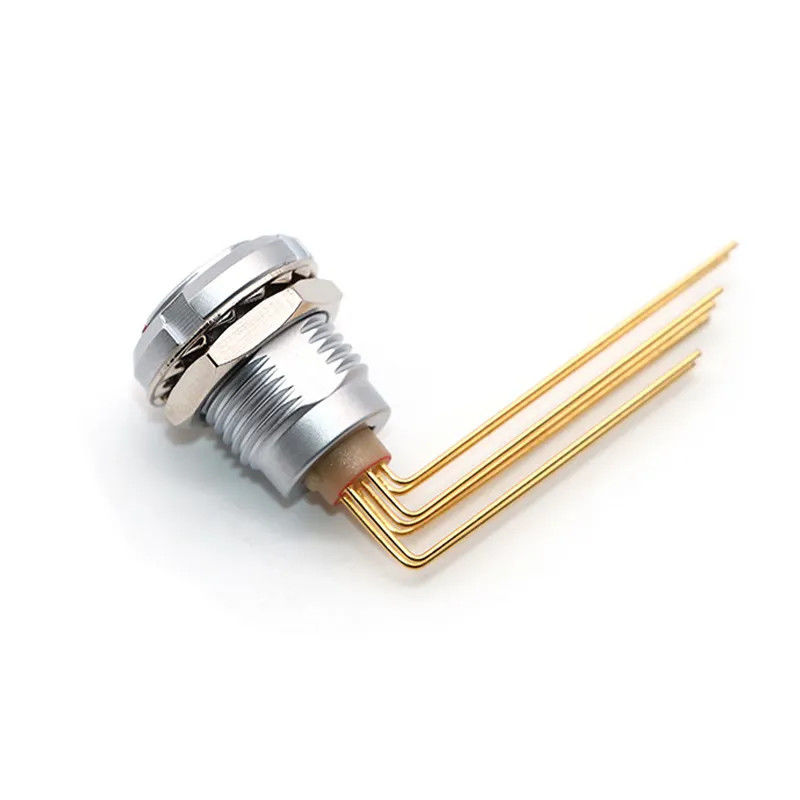

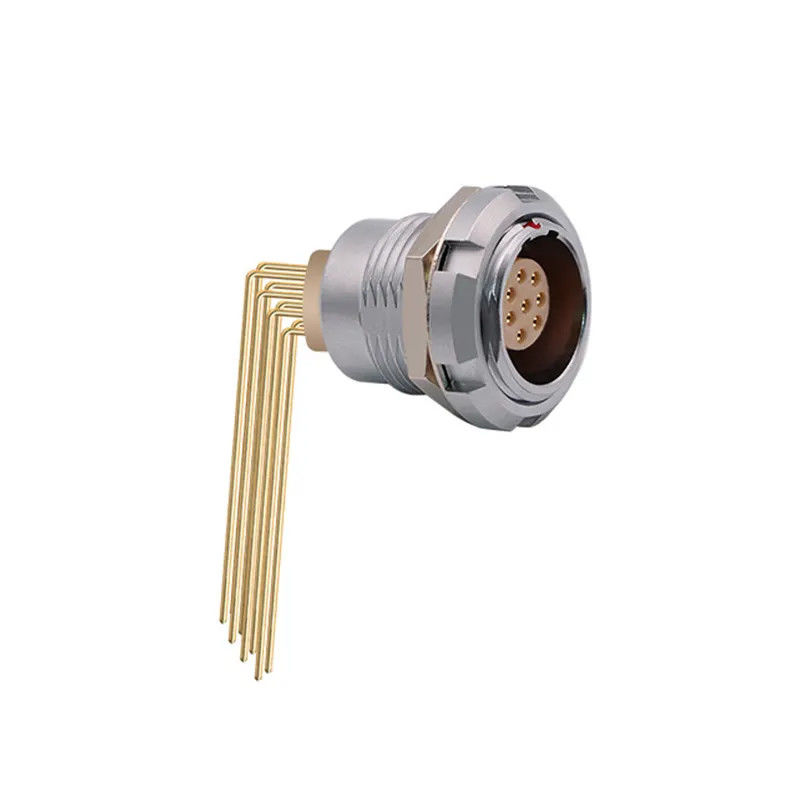

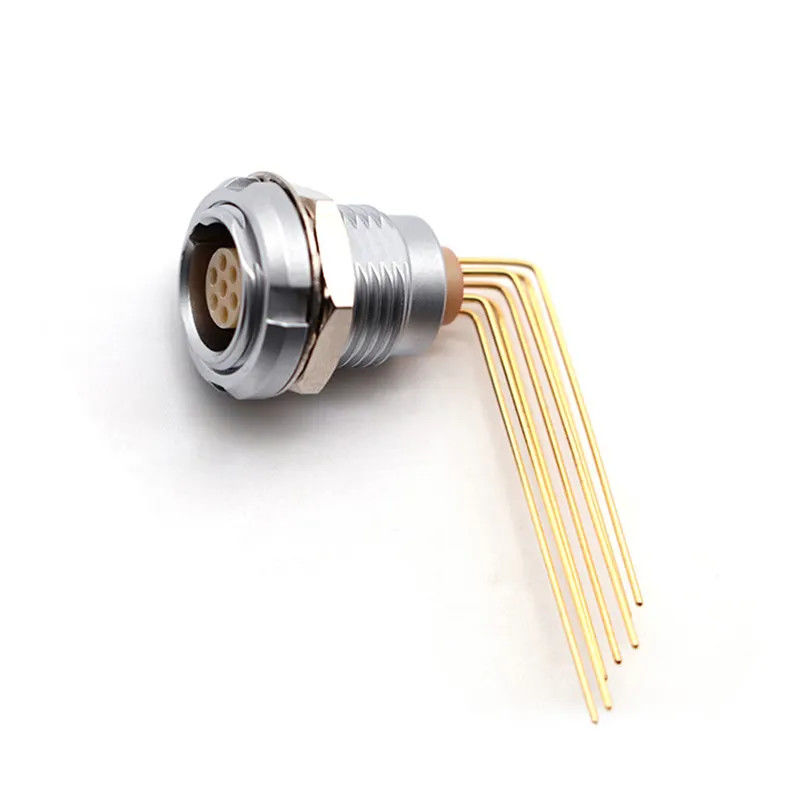

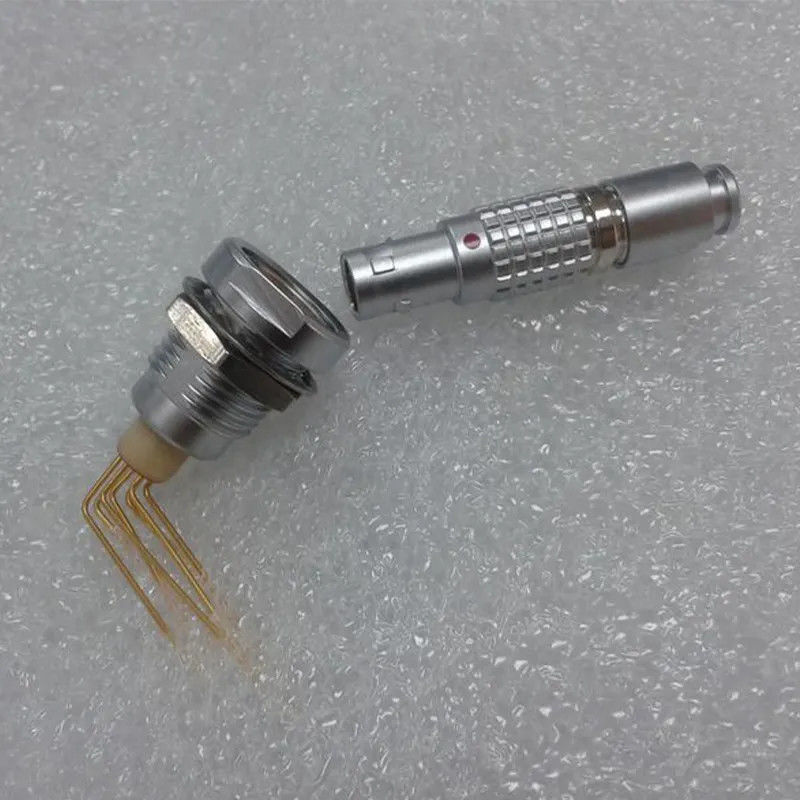

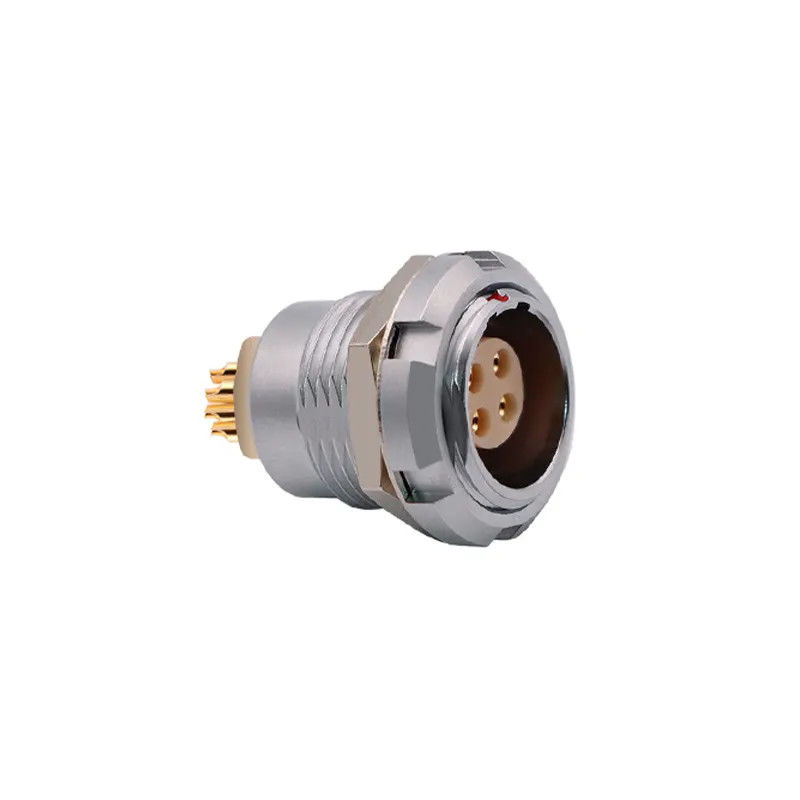

90° Needle Core Push Pull Connector Of Printed Circuit Connectors Board.

Our main markets are the Middle East,South America,North America,Asia Europe. One to one service,we track the whole process from order to receivingand then to sales,after sales worry free. No tools required for installation and removal, even for non-technical Can be easily installed and replaced.

Vacuum-sealed socket:The tail needs to be sealed with epoxy resin. It is different from the tail structure and length dimension of ordinary conventional sockets.

(The front end of the socket is thicker than the normal type.)

Multi-key positioning pin:The multi-an-gle positioning pin keying tool installs multiple sockets with the same specification and different number of cores on the same equipment panel, so as to avoid damage to the needle core due to wrong insertion. (default order)

Key attributes:

Industry-specific attributes

Type	TNC
Application	Power
Gender	Other

Other attributes

Place of Origin	Dongguan, China
Brand Name	UPE
Product name	LHG-0B push pull connector
Pin	2pin,3pin,4pin,5pin,6pin,7pin,8pin
Coupling	Threaded coupling
Termination	Solder
Temperature range	-20℃~85℃
Usage	Widely Used
Shell material	Brass Chrome Plated
Function	Airtight
Plating	Golden Palting

Products Description

Technical characteristics
CHARACTERISTIC	PARAMETER	STANDARD
Insertion	>5000 times	IEC60512-5 test 9a
Humidity	Up to 95% at 60°℃
Temperature range	-60°C, +220°℃
Anti-vibration performance	10-2000Hz, 15g	IEC60512-4 test 6d
Impact resistance	100g, 6ms	IEC60512-4 test 6c
Salt spray corrosion test	>144 hours	IEC60512-6 test11f
Degree of protection (when mated)	IP50	IEC60529
Environmental experiment	55/175/21	IEC60068-1

Electrical properties
CHARACTERISTIC		PARAMETER	STANDARD
Shielding effect	At 10MHz	>75 dB	IEC60169-1-3
Shielding effect	At 1GHz	>40 dB	IEC60169-1-3

Our Certificates

Brass Chrome Plated 90 Degree Connectors Needle Core Push Pull Connector For Printed Circuit Board 0

Lead time

Quantity (pieces)	1 - 100	101 - 1000	1001 - 5000	> 5000
Lead time (days)	7	15	25	To be negotiated

Customization options:

Customized logo (Min. order: 1,000 pieces)
Customized packaging (Min. order: 1,000 pieces)
Graphic customization (Min. order: 1,000 pieces)

Packaging:
Cartons
Size : 46cm30cm25cm
30cm30cm13.5cm
26cm21cm10cm
PS :Label can be customized based on customers' requests
