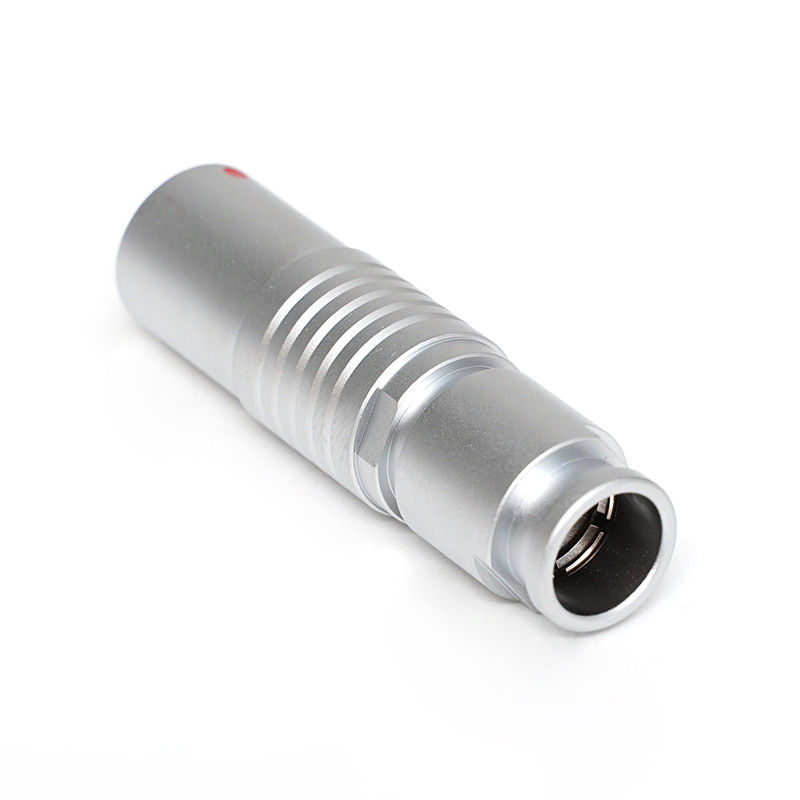

Electric quick medical metal male female 1B series push pull connector free socket connector

model

Needle configuration

Shell material

insulator Material

needle core

wire clamp

variable parameter

B series

12

45

50

50

50

52

54

K series

34

45

50

50

50

53

54

S series

58

91

99

99

99

102

107

E series

76

91

99

99

99

105

107

L series

86

92

99

99

99

106

107

G series

111

112

112

110

113

112

113

C series

117

120

120

116

120

121

121

1D  series

125

127

127

124

127

127

128

Gender

Male/Female

Coding

G KEY

Locking Type

Quick lock,Self Locking,Quick Release

Mounting Type

Cables Assembly,Panel mounted

Part No.

Self locking connector

Ambient Temperature

-55℃~200℃

Mating Endurance

>5000 cycles

Insulator

PEEK

Connector Contacts

Brass with Gold Plated

Coupling Nut/Screw

Brass with Nickel Plated

Housing

Brass with Cr Plated

Seal/o-ring

/////

Insulation resistance

≥100MΩ

IP Rating

IP50-IP68 in locked condition

Shielding efficiency

at 10MHz>95dB / at 1GHz>80dB

Salt spray

Corrosiom test

>144h

Certificate

UL/CE/ROHS/REACH/IP50

Characteristics

Parameter

Locking Type

Push pull self-latching type

Operation Temperature

-55~200°C

Max Humidity

up to 95% @ 60°C / 140°F

Shielding Efficiency

75dB (10MHz) 40dB (1GHz)

Resistance To Vibration

15g (10Hz~2000Hz)

Salt Spray Corrosion Test

96 Hr

Shock Resistance

100g,6ms

Endurance

5000 cycles

Protection Index(mated)

IP50-IP68

Pin Qty

2-32 contacts

Operation Voltage

110v-550v

Compatibility

Option

Suitable Cable OD

3.0~5.0 mm

Insulation Material

PPS

Out Shell Material

Chrome Plated Brass

Contact Type

Solder Male
