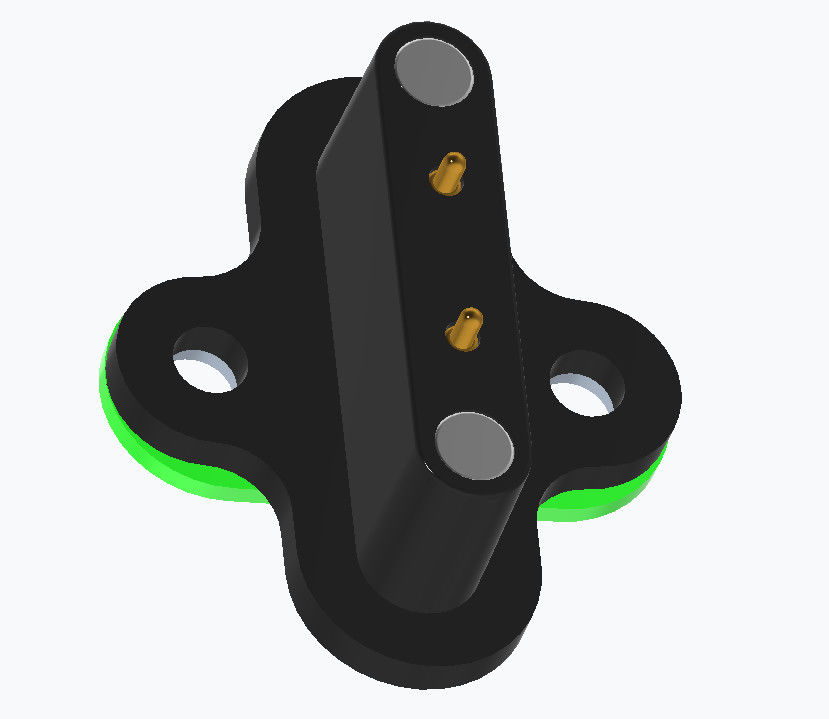

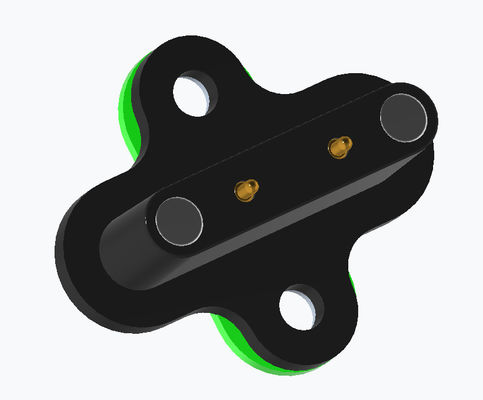

2pin male brass C6801 pogo pin magnetic connectors with N52 magnet

2pin male brass C6801 pogo pin magnetic connectors with N52 magnet.

UPE – Professional Magnetic Connector & Cable Manufacturer

UPE is a leading manufacturer of high-quality magnetic connectors and magnetic cable connectors, specializing in innovative, reliable solutions for diverse industries. With our team of expert designers, we provide customized magnetic connector solutions tailored to your unique requirements.

Materials:

Pogo Pin: Brass C6801 Plating Au 0.075um

Housing: Black HTN+30%GF UL94 V-0;

Magnet: N52 NdFeB Plating Ni Cu Ni

PCB:Polyester resin glass fiber

Mechanical:

Spring force: 70g±20g,at 1.8mm working storke.

Mechanical life: 10000 cycle Min..

Electrical:

Voltage:12 V.

Current:3.0 A.

Contact resistance:50mΩ Max (PIN) .

Environmental performance:

Operation Temperature: -25℃to +80℃

Salt Spray: 24H

High voltage test: AC1000v 0.5mA 3SEC,DC1000v 0.5mA 3SEC

Magnetic Connector Parameter:

2Pin Male Magnetic Connector Technical Drawing

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products application:

Why Choose UPE?
✔ Custom Design Service – Our engineers work closely with clients to develop bespoke magnetic pogo pin connectors for any application.
✔ Wide Product Range – From standard to specialized designs, we offer versatile magnetic connector solutions.
✔ Quality & Precision – Professional manufacturing ensures durability, superior conductivity, and seamless connectivity.

Whether you need waterproof, high-current, or compact magnetic connectors, UPE delivers cutting-edge solutions to power your devices efficiently.

How to Place Your Magnetic Connector Order with UPE

1. Submit Your Requirements

Contact our sales team via:

Email: [union@upetech.net]

Phone: [+86 13434524996]

Online Form: [www.pogopinsconnector.com]

Provide details:

✔ Application (e.g., medical, automotive, consumer electronics)

✔ Connector type (e.g., magnetic pogo pin, charging cable)

✔ Specifications (voltage, current, size, waterproof rating, etc.)

✔ Quantity & lead time

2. Get a Custom Solution (If Needed)

Our engineers will review your needs and propose a custom design (if required).

We’ll share 3D models, samples, or technical drawings for approval.
