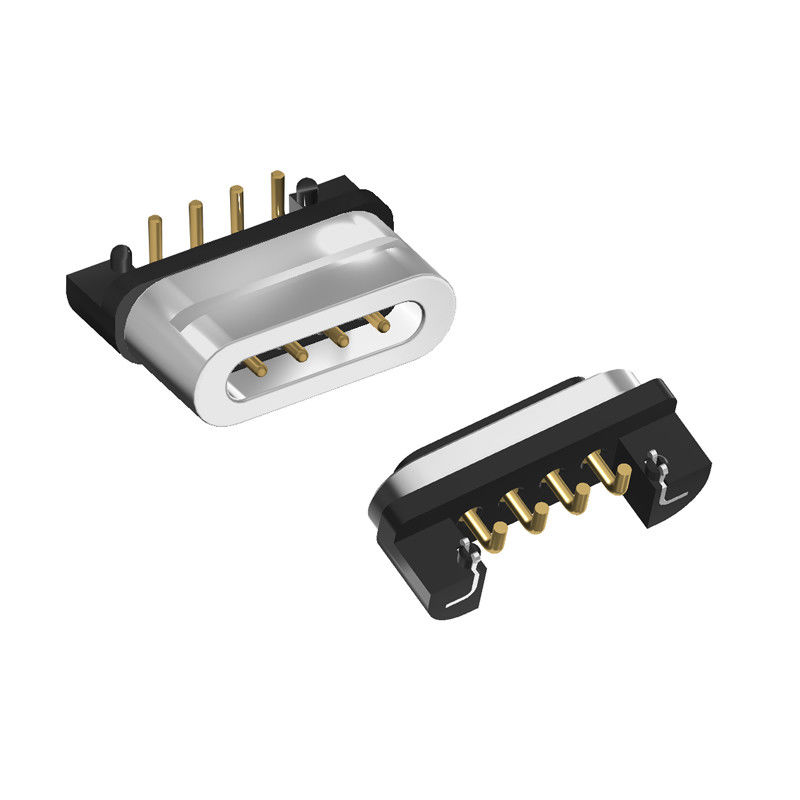

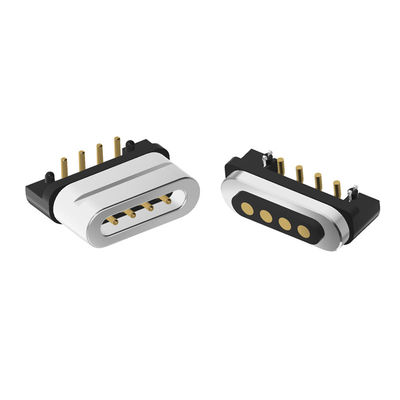

2.2mm Pitch Magnetic Connectors 3A Right Angle Pin Connector 4 Pin

2.2mm pitch male female 4pin right angle 3A pogo pin magnetic connector customized.

Union Precision Electronic LIMITED(UPE) is professional pogo pin connector and
magnetic connector custom manufacturer, It is one of the most competitive company
in the field of spring loaded connector in China. Products are widely used in all kinds
of communications, medical equipment, automotive electronics, wireless equipment, smart wear, industrial equipment and Consumer electronics..

UPE provide professional magnetic connector and magnetic cable connector customization service.

Materials & Construction:

Pogo pin: Brass C6801 Plating Au 0.125um

Housing: Black HTN+30%UL94 V-0 black, which can withstand high temperatures

Magnet: N52 NdFeB Plating Ni Cu Ni

Mechanical:

Spring force: 80g±20g,at 0.8mm working storke.

Mechanical life:10000 cycle Min..

Electrical:

Voltage:5 V.

Current: 3.0 A.

Contact resistance:50mΩ Max (PIN) .

Product Description:

ROHS or REACH compliant product.

Sale spray test: 48H

Male Magnetic Connector Size:

Female Magnetic Connector Size:

Magnetic Connector Parameter:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Why do customers choose us?

1.Customization & Flexibility

2.Fast Samples = Faster Time-to-Market

3.Every connector undergoes rigorous quality checks

4.Incoming Material Inspection

5.In-Process Quality Checks

6.100% Final Testing

7.Traceability & Compliance

8.Customer-Focused QC Flexibility

Potential Applications:
✔Consumer Electronics (smartphones, wearables, wireless charging)

✔Medical Devices (waterproof medical sensors, portable equipment)

✔Automotive & Marine (charging ports, LED lighting, underwater connectors)

✔Industrial & Robotics (waterproof machinery, drones, automation systems)

How to place the magnetic  connector order

* You send us drawing or sample

* We carry through project assessment

* We make the sample and send it to you

* You think the sample is good then place an order and pay us 30% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to courier company

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
