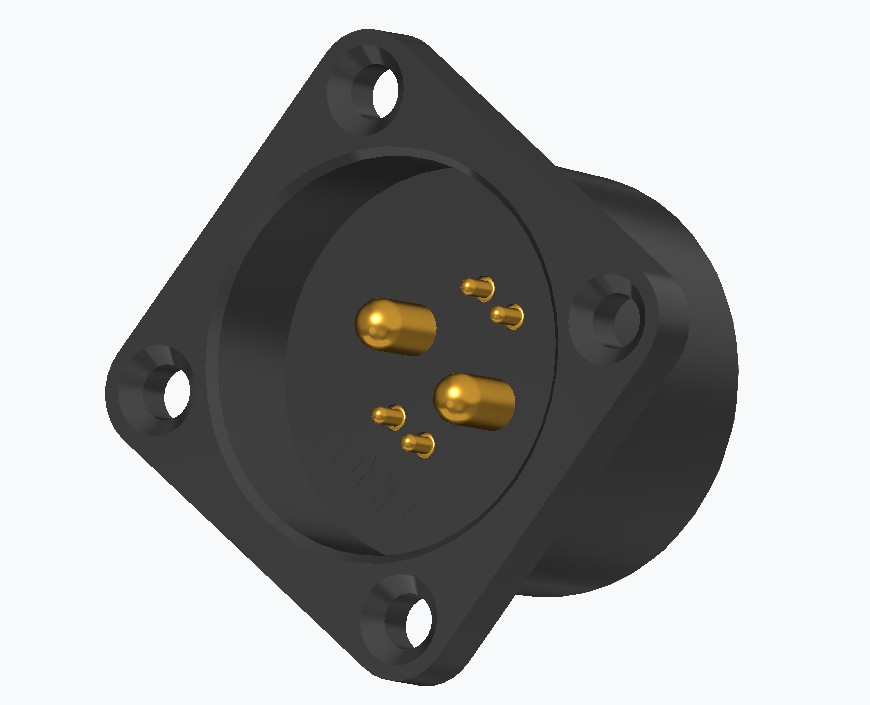

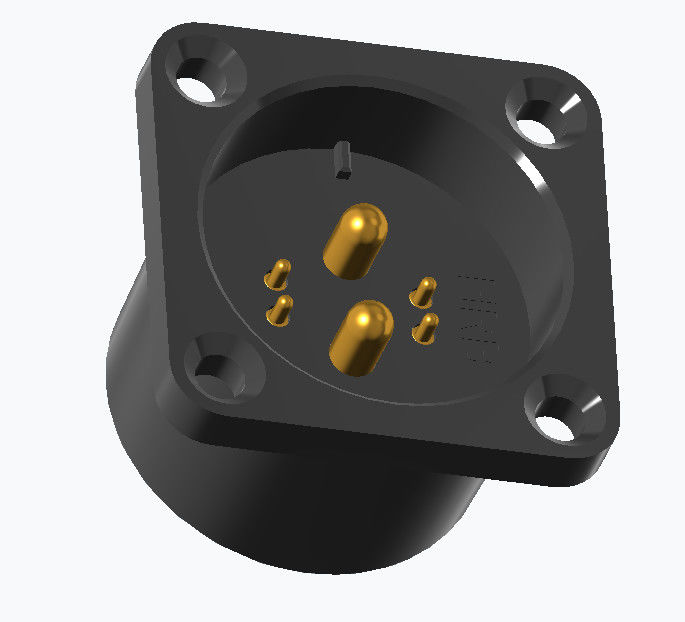

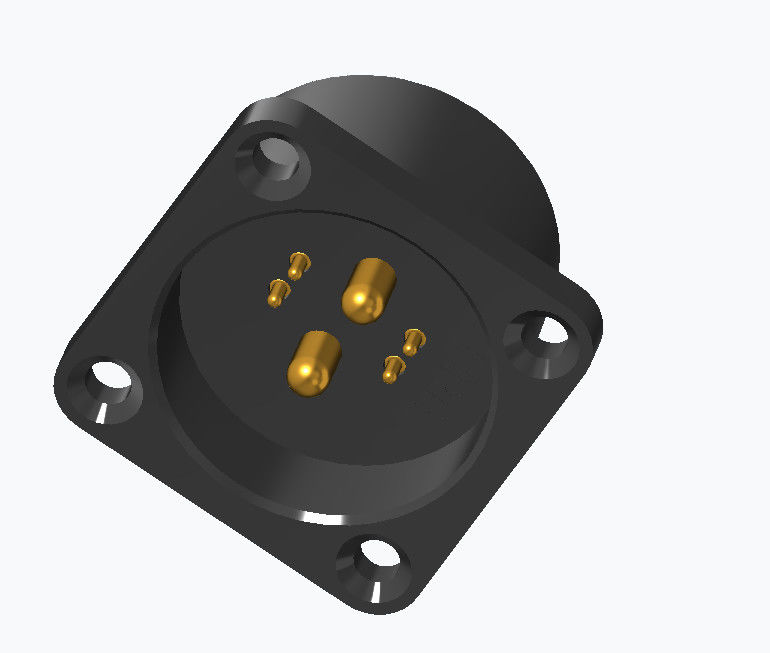

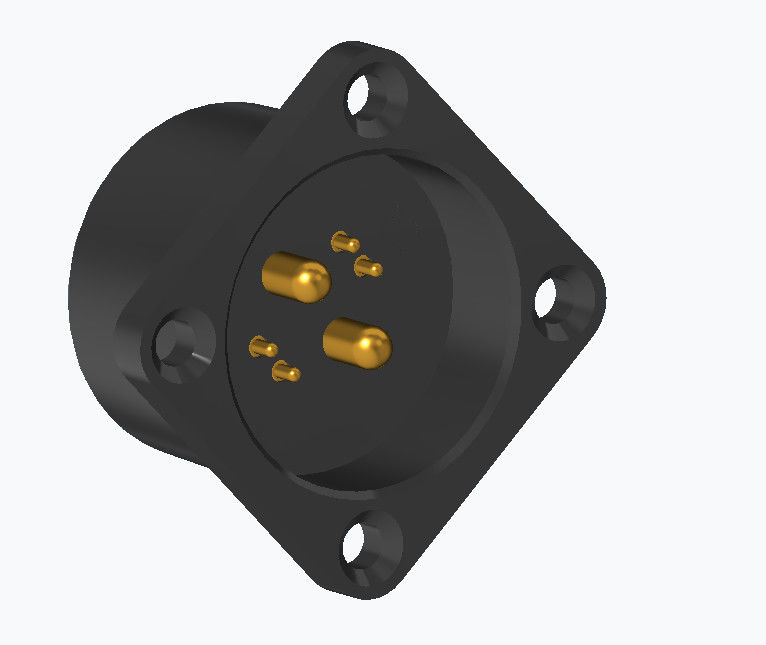

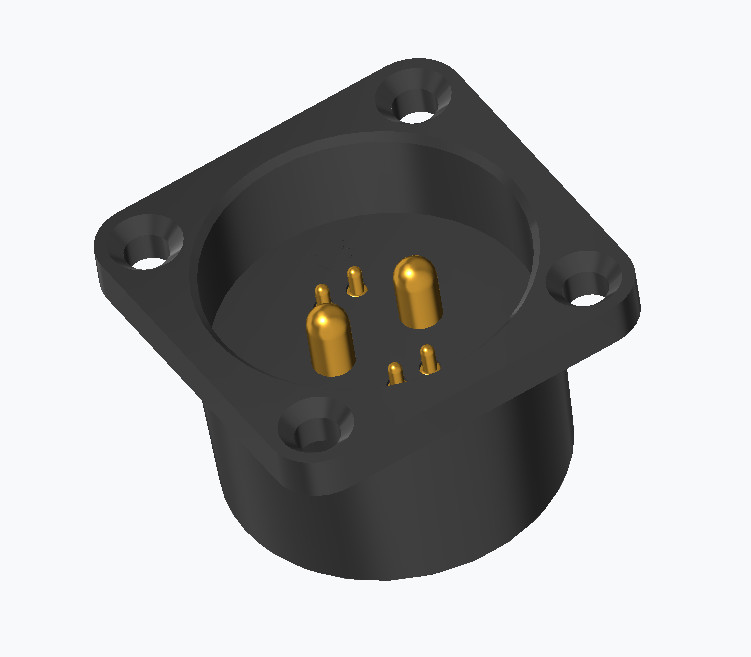

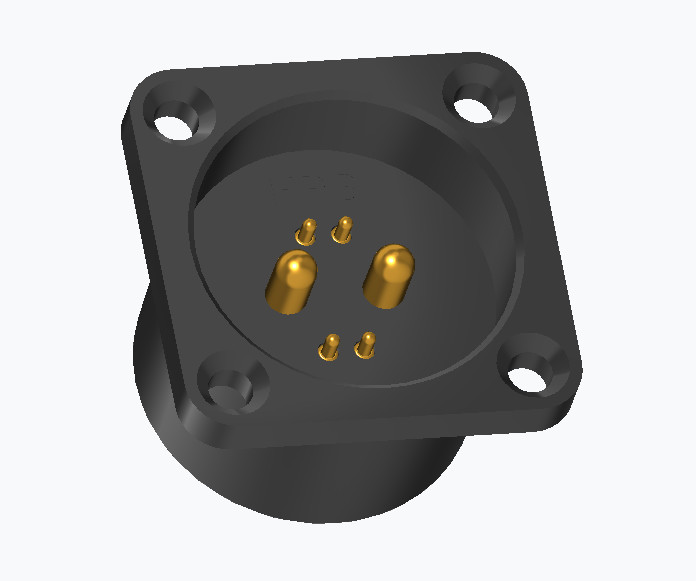

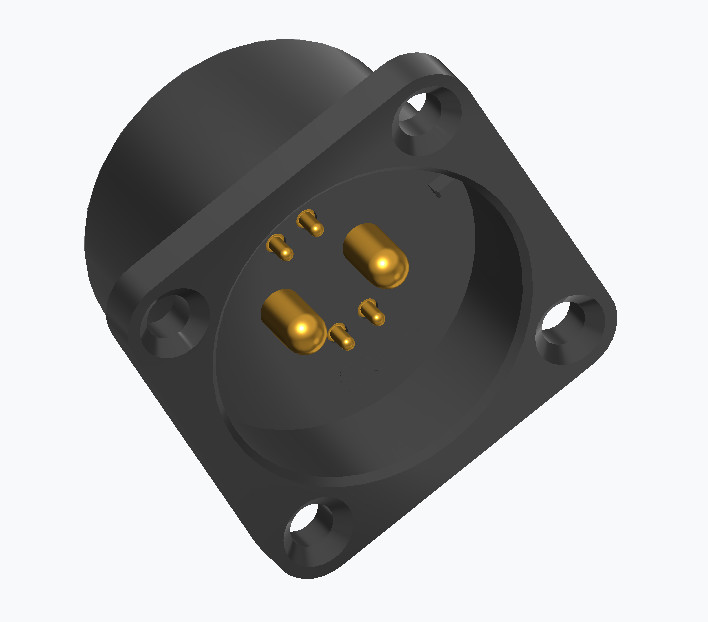

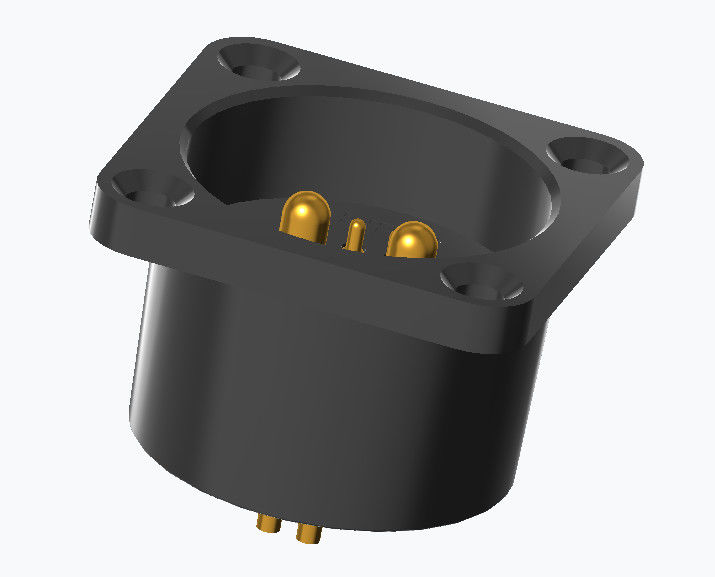

Customized circular 6pin male female solder cup spring loaded pogo pin connector.
Union Precision Electronic Limited (UPE) is a professional custom manufacturer specializing in Pogo Pins and Pogo Pin connectors with housings. The company is recognized as one of the most competitive suppliers in the spring-loaded connector industry in China, catering to a wide range of high-tech applications.
UPE has grown into a leading manufacturer of Pogo Pins and spring-loaded connectors, leveraging advanced production technology and strict quality control to serve global industries.
We aim to meet customer needs with safe and reliable products. We also provide customized services and as we have many experienced designers in POGO PIN, we can quickly customize the sample of stable quality to meet customer design needs with a short product development cycle.
Avantages of UPE Spring-Loaded Connectors:
Spring-loaded connectors, commonly known as spring pins or pogo pins, offer several advantages:
Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.
Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.
Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.
Ease of Use: They are user-friendly, with straightforward installation and maintenance.
Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable
Spring-Loaded Pogo Pin Connector parameter performance
|
Name of Parts
|
Parameter performance table
|
|
Barrel Materia
|
Brass
|
Beryllium copper
|
Phosphor Bronze
|
|
|
Plunger Material
|
Brass
|
Beryllium copper
|
Phosphor Bronze
|
Stainless steel
|
|
Spring options
|
Stainle
|
Music wire
|
|
|
|
Plating requirements
|
Gold-Au
|
Silver-Ag
|
Palladium-Nickel
(Pd-Ni)
|
|
|
Rated Current
|
1A, 2A, 3A ,5A,15A or 30A (different structures)
|
|
Rated Voltage
|
DC 12V 24V
|
|
Contact Resistance
|
30mΩ 50mΩ Max. (stillness)
|
|
Life test
|
50,000 cycles Min. 1000,000 cycles Max
|
|
Reflow Temp.
|
265°, 4~5sec
|
|
POGO PIN Reliability Test
|
|
Retention Force
|
At rated cycling of 500±50 per hour,50,000 cycles minimum
|
|
Humidity
|
EIA-364-31,Test method II, Condition A Subject mated connectors to relative humidity of 90% to 95%RH and a temperature of 40℃ ± 2℃ relative humidity for 96 hour.
|
|
Resistance to Solder Heat
|
EIA-364-56,Procedure 5,Level 2 265℃+10/-0℃for 30 to 35 seconds
|
|
Salt Spray
|
EIA-364-26,Test condition B Subject mated connectors to 5±1% salt-solution
concentration, 35+1℃/-2℃ for 48 hours.
|
|
Spring force test
|
Normal Force Test Procedure,100g±20g at working height
|
|
Temperature Life
|
EIA-364-17,Test method A,condition 4,Test time condition A Subject mated
connectors to 85℃± 2℃ for 96 hours.
|
|
Solderability
|
EIA-364-52 Dip into the 265±5℃, 60/40±5% Sn/pb solder for 4.0~5.0 second
|
|
Contact Resistance
|
EIA-364-23 Measure the contact resistance with a test current of 100 mA maximum and 20 mV voltage maximum
|
Pogo Pin Connector consists of 6 parts:Plunger,Barrel,Spring,Ceramic beads,housing,Cap
Some of customized Pogo Pin Connectors for reference:
Application of Spring Loaded Connector:
1.Consumer Electronics
.Smartphones, tablets, and wearables (for battery connections, docking stations).
.Laptops (for modular components like keyboards, touchpads).
2.Test & Measurement Equipment
.Automated test fixtures (ATE – Automated Test Equipment).
.In-circuit testing (ICT) and functional testing (FCT) of PCBs.
3.Medical Devices
.Portable medical equipment (e.g., glucose meters, ECG monitors).
.Disposable/reusable probes requiring reliable connections
4.Automotive & Aerospace
On-board diagnostics (OBD) connectors.
Avionics testing and in-flight entertainment systems.
5. Industrial & Robotics
Robotic arms and automation systems requiring quick-disconnect solutions.
Industrial sensors and control modules.
6.Energy & Battery Systems
Battery packs (e.g., drones, electric vehicles).
Solar panel interconnects.
7.Data & Telecommunications
.High-speed data transfer (e.g., server backplanes).
.RF and antenna connections.
FAQ
1.Why choose us ?
With 100% sincerity,our company will provide the best service for you whatever products or after sales.We will provide the most reasonable quotation and design high quality samples according to your drawings or requirements.We provide guarantee for every customer after sale.
2.Can you customize products for us?
We are very pleased to customize for you or design for you. Please provide us your drawing or samples, and tell us your special requirements about the products. We can customize as soon as possible according to your requirements.
3.How much will the sample cost?
If stock items, we provide samples to customers free of charge, but you should bear the freight.
If customize iterms, we will charge for properly cost and refund reasonable proportion of sample fee when you have order for us!
4.What about your delivery time?
The delivery time depends on the quantity and difficulty of the customer's order.Usually, the stock goods delivery within 3 days while customized products delivered within 2 week.
5.How bout your company quality control?
We will test and inspect the products to ensure the quality of the products to obtain your satisfaction.Quality is the most important in our company, from material to delivery, all will be double checked and company get IS09001 to ensure this.
How to place the magnetic cable connector order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
Payment Term: T/T,50% Deposit,50% Balance
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
