Customized Spring Loaded Connector Gold Plating 6 Pin Pogo Connector Male And Female

All Category

Precision Turning Parts

Ms. KIKI

union@upetech.net

13434524996

upetech

Contact Now

Customized Spring Loaded Connector Gold Plating 6 Pin Pogo Connector Male And Female

Brand Name:	UPE
Model Number:	VIS050A-4055XX-AXX-XXXX / VIS050B-4100XX-AXX-XXXX
MOQ:	5000
Price:	$5-$7
Packaging Details:	PE
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Document:

VIS050A-4055XX-AXX-XXXX.pdf

Name:

Spring Loaded Connector

Pitch:

2.54mm

Pin Number:

6pin

Material:

Lead-freeC6801,SUS304,Black HTN

Spring Force:

80g±20g,at 1.2mm Working Height.

Ful1 Storke:

1.4mm

Mechanical Life:

20000 Cycle Min..

Current:

Voltage:

DC12V

Contact Resistance:

50mΩ Max (PIN).

Salt Spray Test:

48H

Supply Ability:

5KPCS/Day

Highlight:

Customized Spring Loaded Connector

Gold Plating 6 Pin Pogo Connector

6 Pin Pogo Connector Customized

Product Description

Gold plating 6pin screw holes mnale and female spring loaded pogo pin connector.
Our design teams have vast experience in material sciences, electrical engineering, process engineering, and machine building. We apply this know-how to many diverse medical and industrial.

Avantages of UPE Spring-Loaded Connectors:

Spring-loaded connectors, commonly known as spring pins or pogo pins, offer several advantages:

Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.

Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.

Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.

Ease of Use: They are user-friendly, with straightforward installation and maintenance.

Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable

Our Advantage and your choice:

UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.

UPE developed 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.

Pogo Pin Life test up to 1000,000 cycles.

All products can pass HF, RoHS REACH standard.

100% electrical test provided report before delivery the goods.

Custom of various shapes is available, small structure and high current.

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

6pin screw male pogo pin connector size:

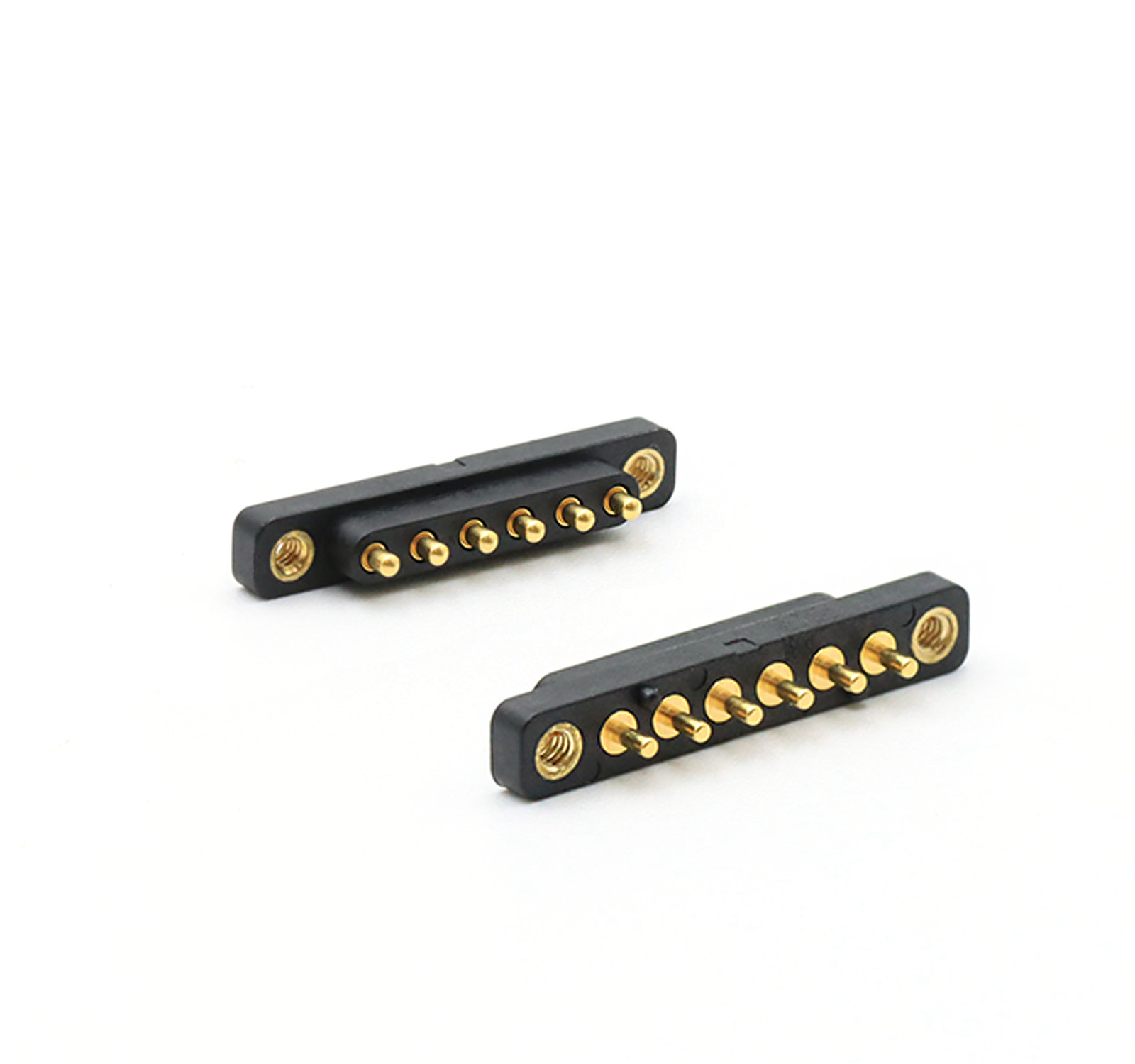

Customized Spring Loaded Connector Gold Plating 6 Pin Pogo Connector Male And Female 0

6pin screw female pogo pin connector size:

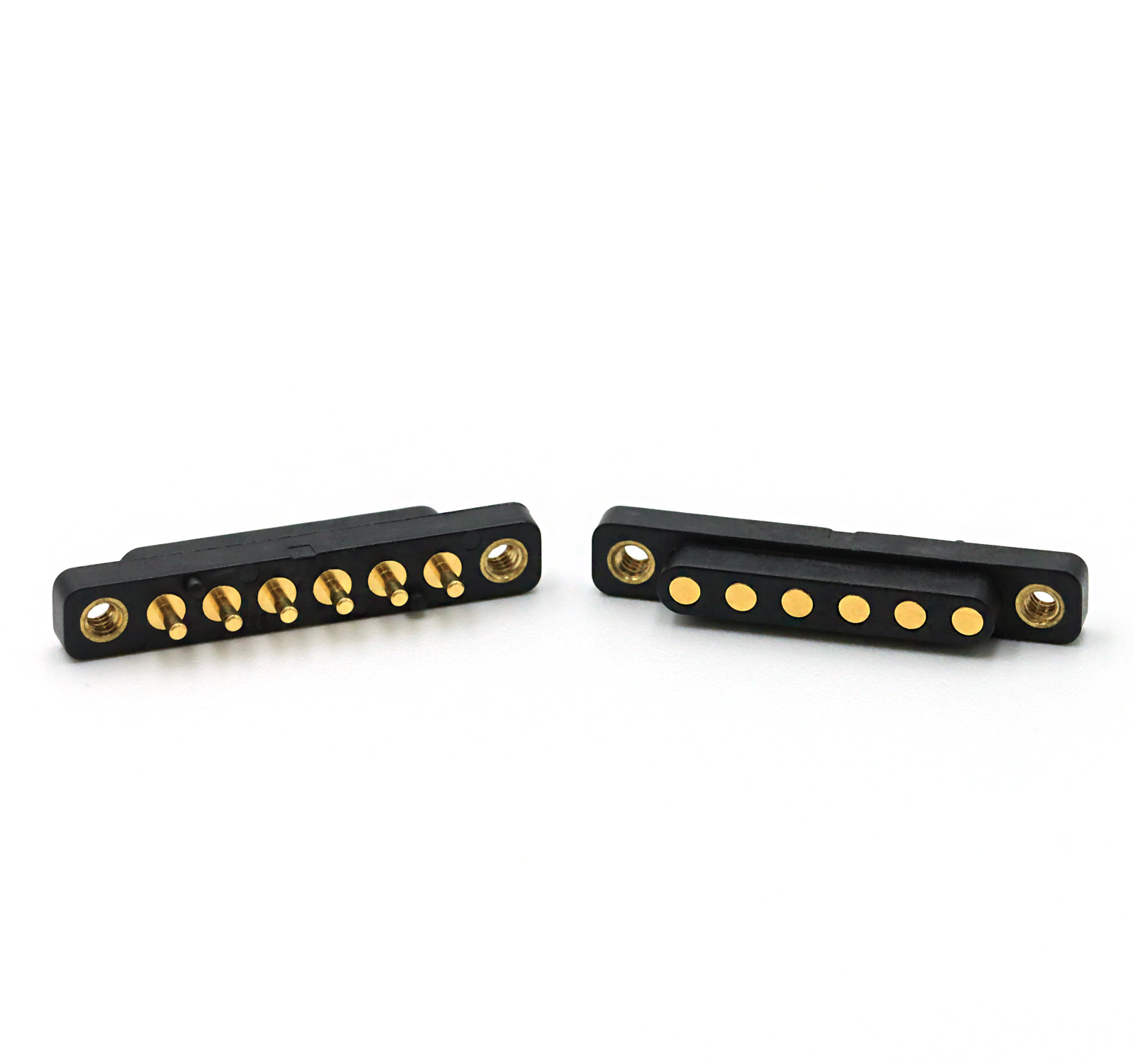

Customized Spring Loaded Connector Gold Plating 6 Pin Pogo Connector Male And Female 1

Recommended pcb layout

Customized Spring Loaded Connector Gold Plating 6 Pin Pogo Connector Male And Female 2 Layout tolerance:±0.05mm

Spring-Loaded Connector parameter performance

Name	6pin srew male and female pogo pin connector
Plunger	Lead-freeC6801,plating XXU" Min Au over 60~100U" Ni
Barrel	Lead-freeC6801,plating XXU" Min Au over 60~100U" Ni
Spring	SUS304
Housing	Black HTN+30%GF UL94 V-0
Screw	M1.60
Spring force	80g±20g,at 1.2mm working height.
Ful1 storke	1.4mm
Mechanical life	20000 cycle Min..
Current	3A
Voltage	DC 12V
Layout tolerance	±0.05mm
Contact resistance	50m Max (PIN).
Operating Temperature	-40℃~+130℃within 24 hours.
Resistance to Solding hear	260℃±5℃ 20s±2s
Salt spray test	48H
Certification	ROHS or REACH compliant product
Test	100% open and short test

Pogo Pin Connector consists of 6 parts:Plunger,Barrel,Spring,Ceramic beads,housing,Cap

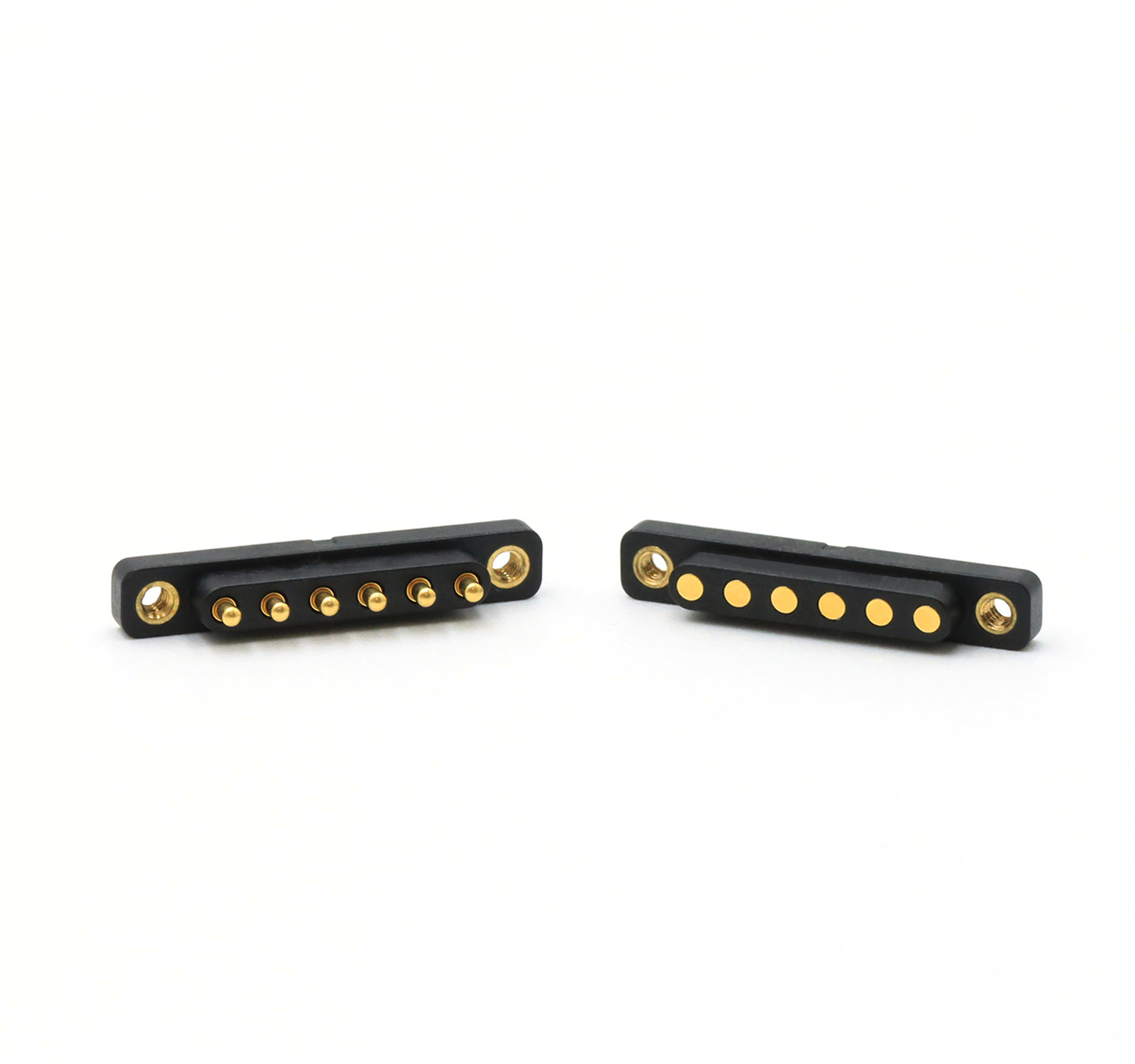

Customized Spring Loaded Connector Gold Plating 6 Pin Pogo Connector Male And Female 3

Some of customized Pogo Pin Connectors for reference:

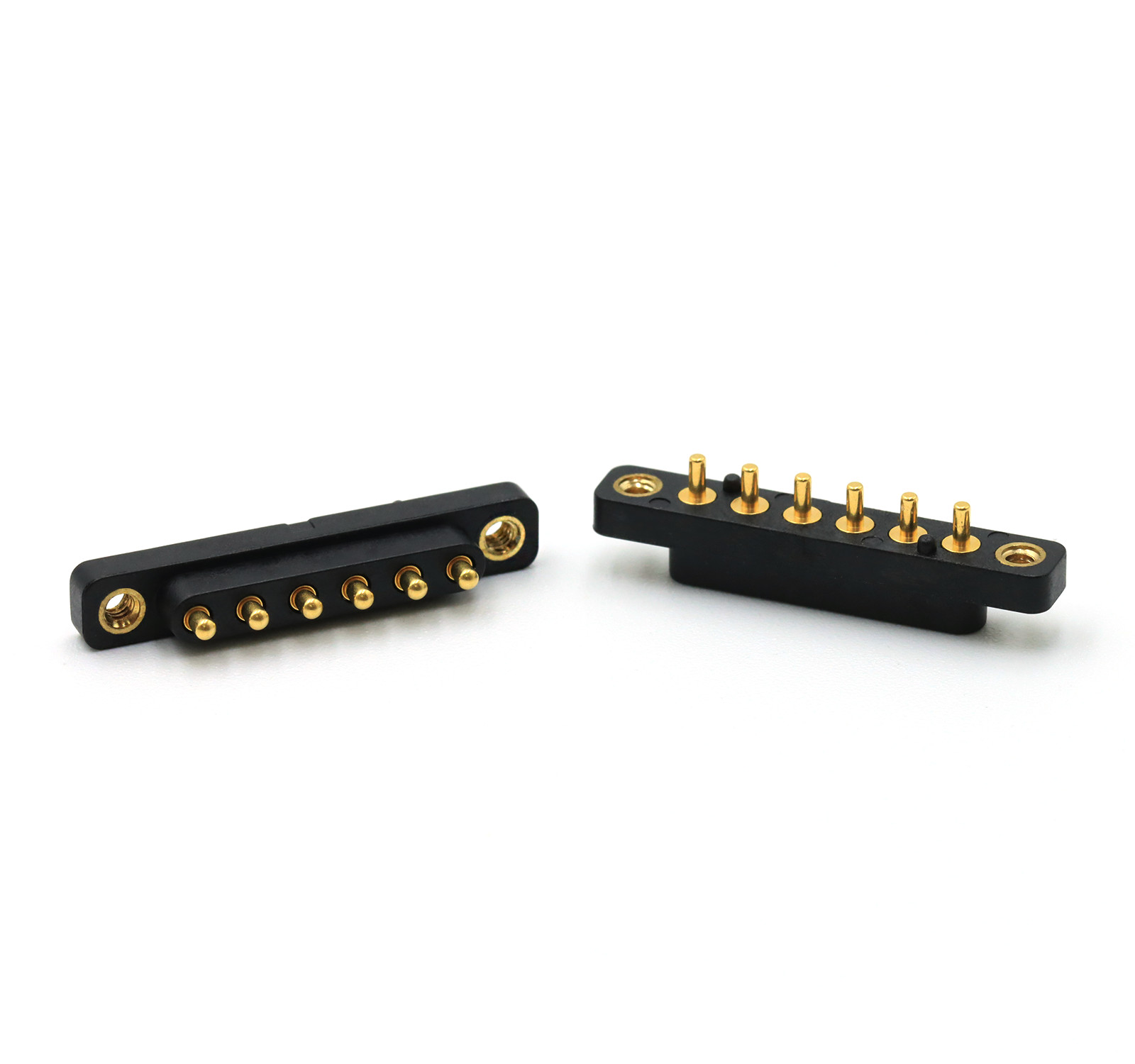

Customized Spring Loaded Connector Gold Plating 6 Pin Pogo Connector Male And Female 4

Product application field:

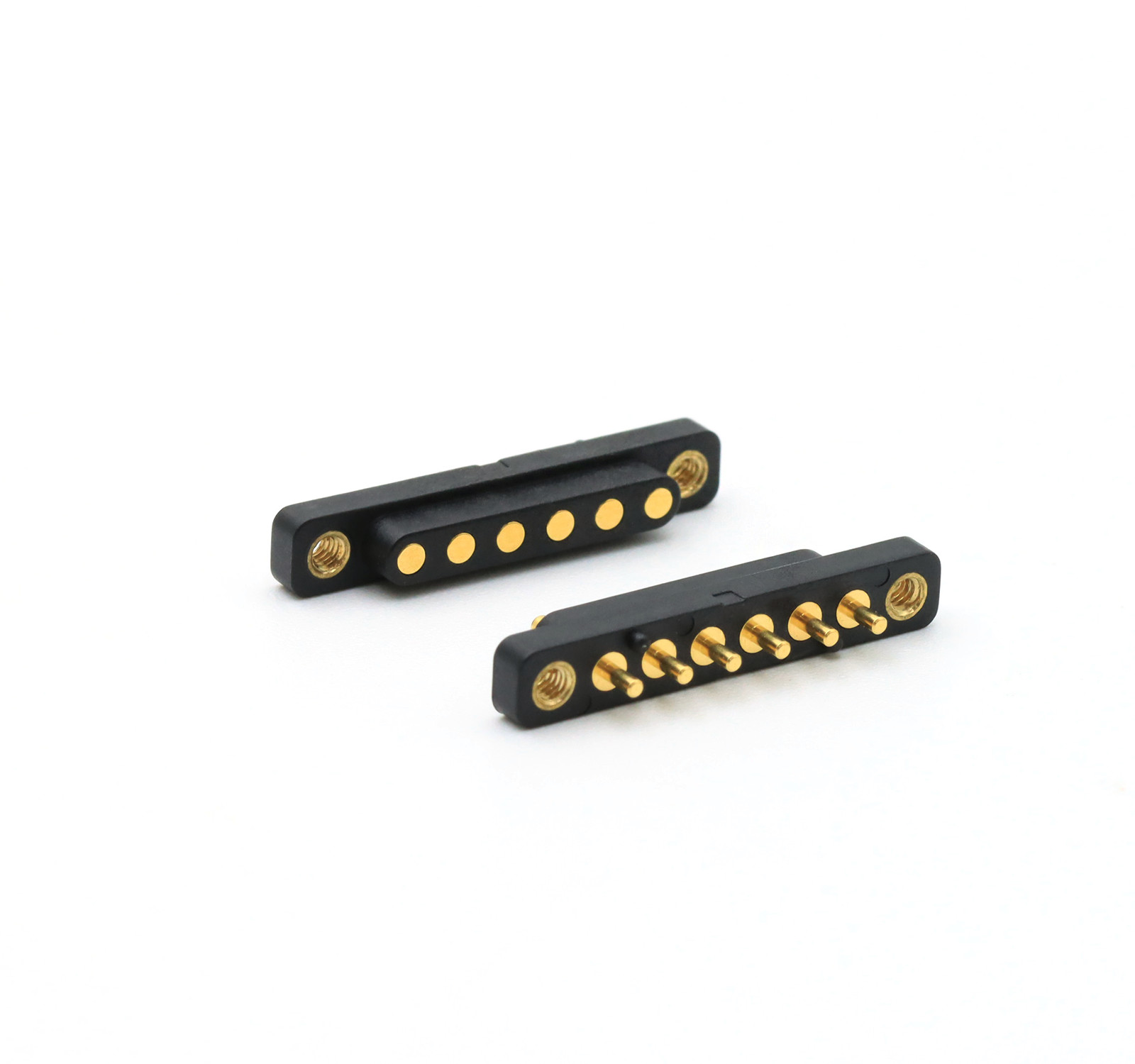

Customized Spring Loaded Connector Gold Plating 6 Pin Pogo Connector Male And Female 5

Pakaging & shipping

Customized Spring Loaded Connector Gold Plating 6 Pin Pogo Connector Male And Female 6

Any question, please send to union@upetech.net
