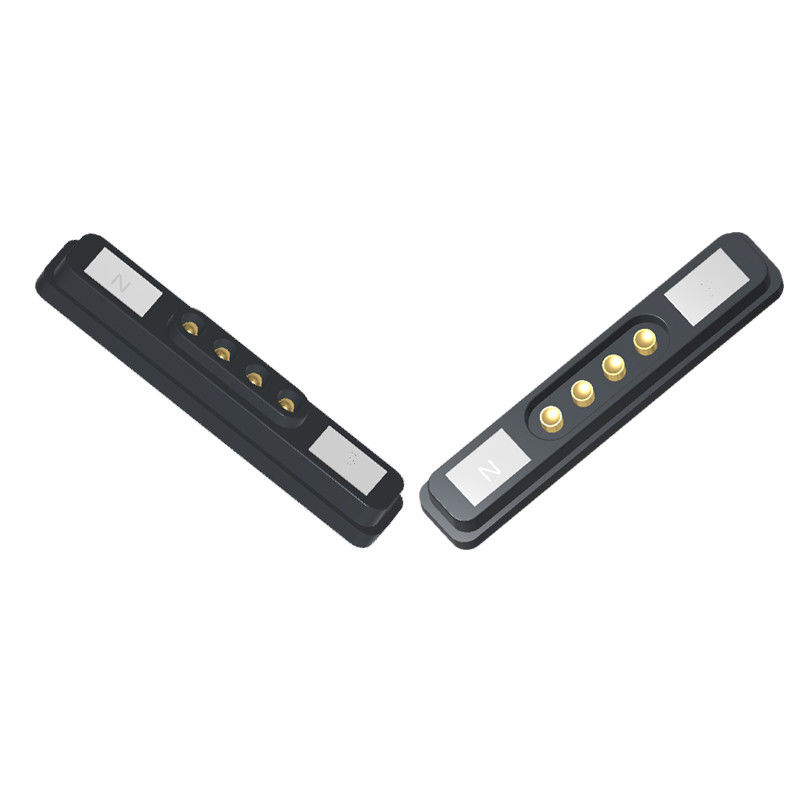

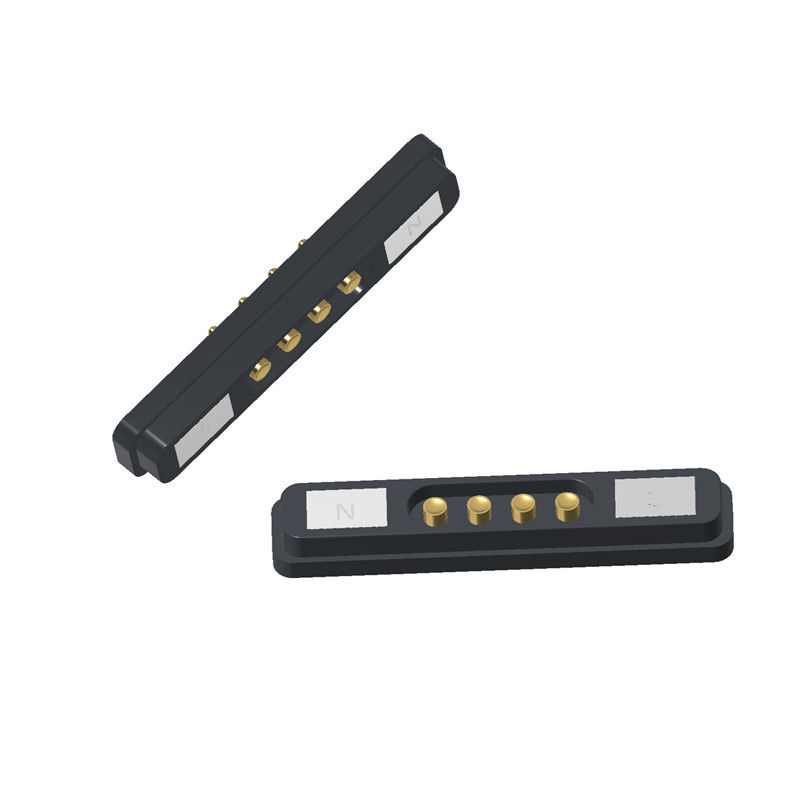

Standard 2.2mm pitch 4 pin male and female magnetic pogo pin connector .
Compliance Standards
ROHS and REACH compliant for all materials and coatings.
Materials
1.Pogo Pin:
Base Material: Brass C6801
Plating: Gold (Au) 0.125µm
2.Turning Parts:
Base Material: Brass
Plating: Gold (Au) 0.125µm
3.Housing:
Material: Black HTN (High-Temperature Nylon) + 30% filler
Flammability Rating: UL94 V-0 (flame retardant)
Feature: High-temperature resistant
4.Housing:
Material: Black HTN (High-Temperature Nylon) + 30% filler
Flammability Rating: UL94 V-0 (flame retardant)
Feature: High-temperature resistant
5.Magnet:
Material: Neodymium Iron Boron (NdFeB) N45 grade
Plating: Nickel (Ni)
Mechanical Specifications
Contact Force: 80g ±20g at 0.5mm working stroke.
Durability: 10,000 mating cycles (life test).
Adsorption Force:Female docking adsorption force: 400g ±20%.
Environmental Performance
Operating Temperature Range: -25°C to +80°C.
Salt Spray Test: 24 hours (corrosion resistance validation).
Electrical Specification
Rated Voltage: DC 12V.
Rated Current: 2A Max.
Contact Resistance: ≤50mΩ (milliohm) per spring pin.
4Pin Male Female Magnetic Connectors Parameter:
|
Name
|
Magnetic Connector
|
|
Type
|
Male/Female
|
|
Pin
|
4pin
|
|
Color
|
Black
|
|
Pogo pin
|
Brass C6801 Plating Au0.125um
|
|
TurningParts
|
Brass Plating Au 0.125um
|
|
Magnet
|
NdFeB N45 plating Ni
|
|
Housing
|
Black HTN UL94V-0
|
|
Spring force
|
80g±20g,at 0.5mm working storke.
|
|
Mechanical life
|
10000 cycle Min..
|
|
Current
|
2AMax
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
Operation Temperature
|
-25℃to +80℃
|
|
Salt spray test
|
24H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
4Pin Male Magnetic Connector Technical Drawing
4Pin Female Magnetic Connector Technical Drawing
Recommended pcb layout
Decompose the view of female magnetic connector
