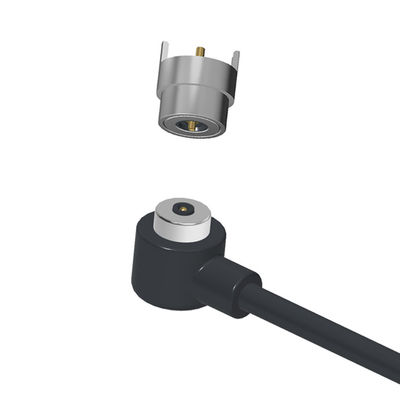

1A Magnetic Cable Connector USB Charging Round Magnetic Charging Cable For Electronic Locks

1A Rounded 2pin magnetic USB charging cable connector for electronic locks.

Key Features:
Magnetic Attachment – Automatically snaps into place when brought near the port, reducing wear on the device’s socket.

Reversible Design – Often works in any orientation (no "right side up").

Quick Disconnect – Safely detaches when pulled, preventing cable or device damage.

Variants Available:

Charging-only (for power transfer).

Common Uses:

Smartphones, tablets, wearables.

LED lights, drones, and other electronics.

Medical or industrial devices where secure connections are crucial.

Materil and coating conform to ROHS and REACH standards.

To ensure contact mechanica llife,NEVER compress pogo-pin OVER defined working stroke in drawing,which may damage the inside spring.

Materials:

Pogo pin/Female pin: Brass C3604,Plunger&Barrel  plating 5U"  Min Au over 60~100U"Ni min;

Copper: Brass C3604, plating 3U"

Spring:SUS 304Au;

Housing: Black HTN+30%UL94 V-0 black, which can withstand high temperatures

Shell: Brass plating Ni&SUS304;
Magnet: NdFeB N52 plating Ni;

USB2.0: USB/AM Integrated type (with overload and short-circuit protection of 12V 1A)

Inner mold material: PE

Cable Tie:White PVC Metal elliptic cable tie  White

Wire: 26AWG Black TPE

Magnet Plug: Magnetic Male Plug

Mechanical:

-Contact force:40g±10g at 0.6mm working storke

-Life test:10,000cycle

-Adsorption force test:The female docking adsorption is 300g±20%

Electrical:

-Rated voltage:DC12V;Rated voltage:1AMax.

-Contact resistance of spring pin:50milliohm Max.

Environmental performance:

-Operation Temperature:-25℃ to +80℃

-SaltSpray:48H

Circular 2Pin  Male Female Magnetic Connectors Parameter:

Circular 2Pin  Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Decompose the view of female magnetic connector

Circular 2Pin Magnetic Cable Connector Mnode of Connection

Packaging view:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission
