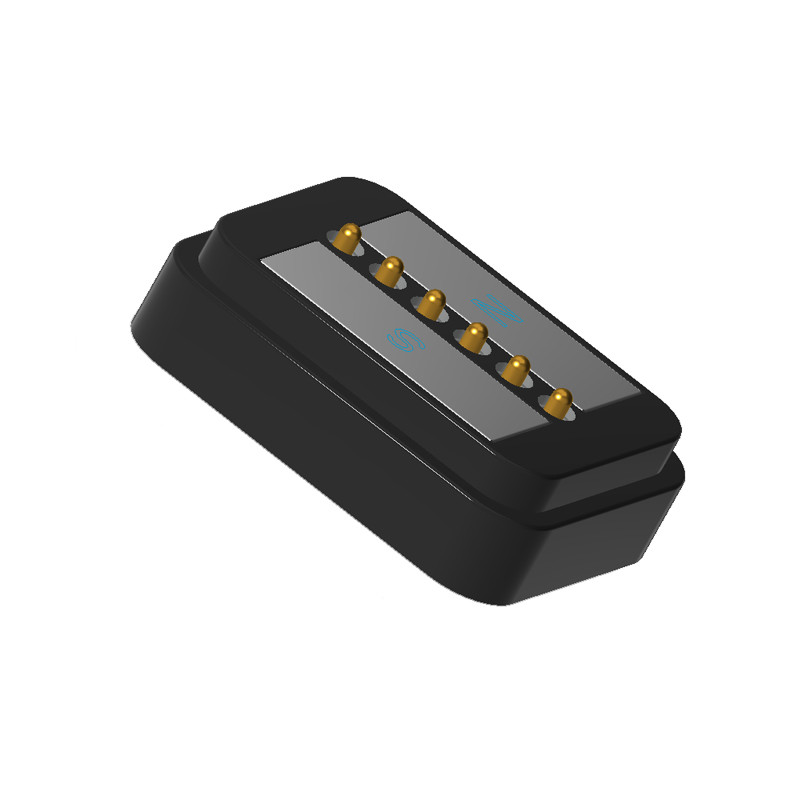

Customized Magnetic Power Connectors Black 6 Pin Magnetic Connector With High Adsorption Force

Customized male female 6pin magnetic power connector with high adsorption force.

Key Specifications:

1.6-Pin Configuration

Power Delivery: High-current pins (e.g., 3–10A per pin) for efficient power transfer.

Mixed Use: Assign pins for power (e.g., 2× +V, 2× GND) + 2 signal/data pins if needed.

2.High-Adsorption Magnetic Force

Magnet Grade: N52 neodymium magnets (strongest commercial option).

Pull Force: 5N–20N (adjustable based on need—prevents accidental disconnects).

Polarity Design: Custom polarity to ensure correct mating (anti-misalignment).

3.Pogo Pin Contacts

Material: Beryllium copper (high spring resilience) + gold plating (low resistance, <20mΩ).

Current Rating: Up to 10A per pin (for power-heavy applications).

Spring Stroke: 1.0–3.0mm (balance between contact stability and compactness).

4.Robust Housing

Shape: Round (typical diameters: 12mm–25mm) or custom form factor.

5.Material Options:

Plastic: PBT/PA66 (lightweight, cost-effective).

Metal: Stainless steel/aluminum (IP68, EMI shielding).

IP Rating: Up to IP68 (dust/waterproof for harsh environments).

6.Safety & Reliability

Breakaway Force: Adjustable detachment to protect cables/devices.

Spark-Resistant: Low-voltage arcing prevention for safe hot-plugging.

Quality Assurance & Compliance Testing:

1. Electrical Reliability
100% Open/Short Circuit Tested: Every unit undergoes rigorous electrical validation to ensure flawless connectivity and safety.

2. Environmental & Safety Compliance
RoHS & REACH Certified: Free from hazardous substances (e.g., lead, cadmium), meeting EU and global environmental standards.

3. Corrosion Resistance
Salt Spray Tested (48 Hours): Validates performance in harsh, humid, or saline environments (e.g., marine, industrial use).

Why Quality Assurance & Compliance Is  Important?
✅ Zero Defects: Ensures every connector delivers consistent performance.
✅ Global Approval: Compliant with stringent international regulations.
✅ Durability Guaranteed: Corrosion-resistant for long-term reliability.

The Benefits of Plating:

Plating Quality: The thin Au over Ni ensures reliable electrical performance while minimizing cost (thicker Au would increase cost but may not be necessary for this application).

Environmental Resistance: Ni plating on the shell/magnet and LCP housing provide protection against humidity, corrosion, and high temperatures.

Durability: The 50,000-cycle life and spring force tolerance (±20g) indicate a focus on long-term reliability.

Magnetic Connector Parameter:

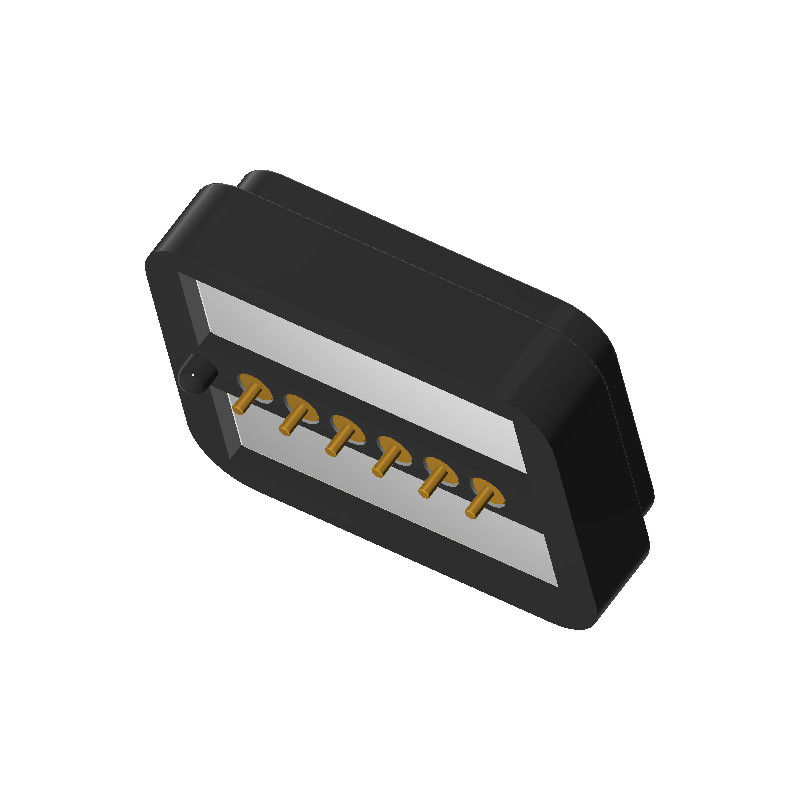

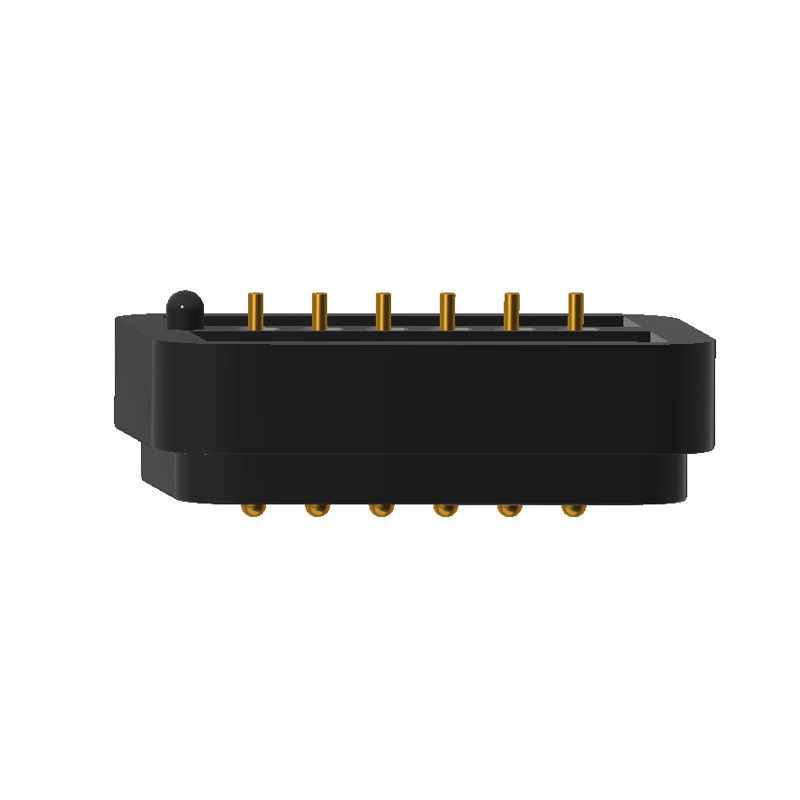

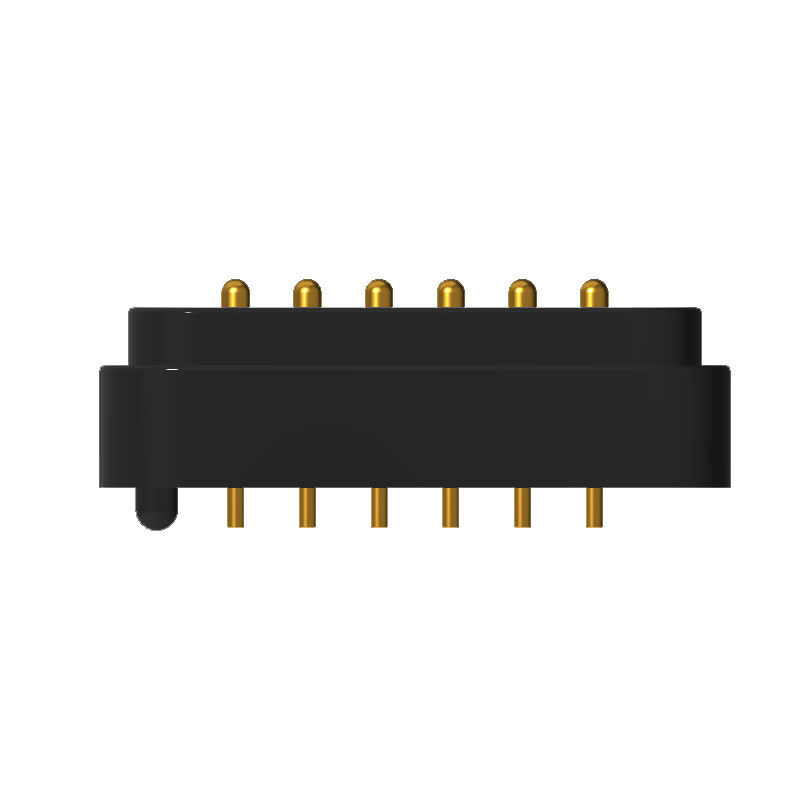

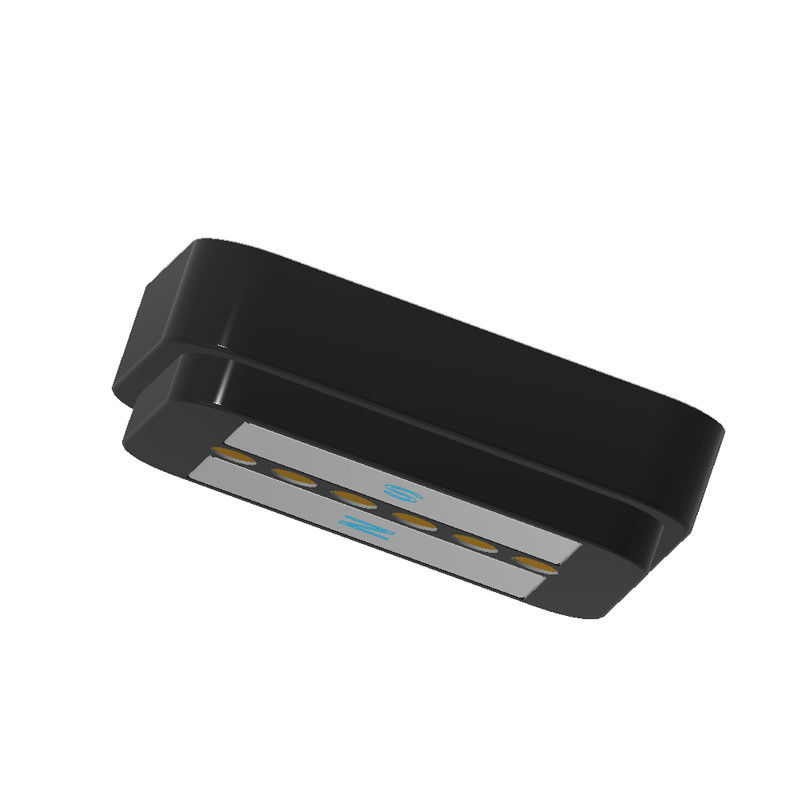

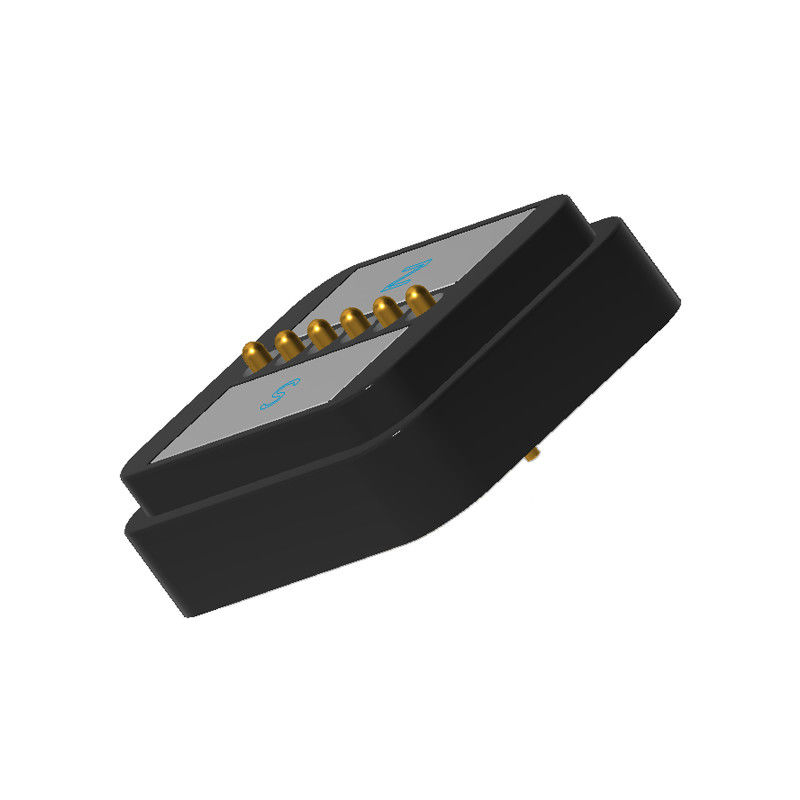

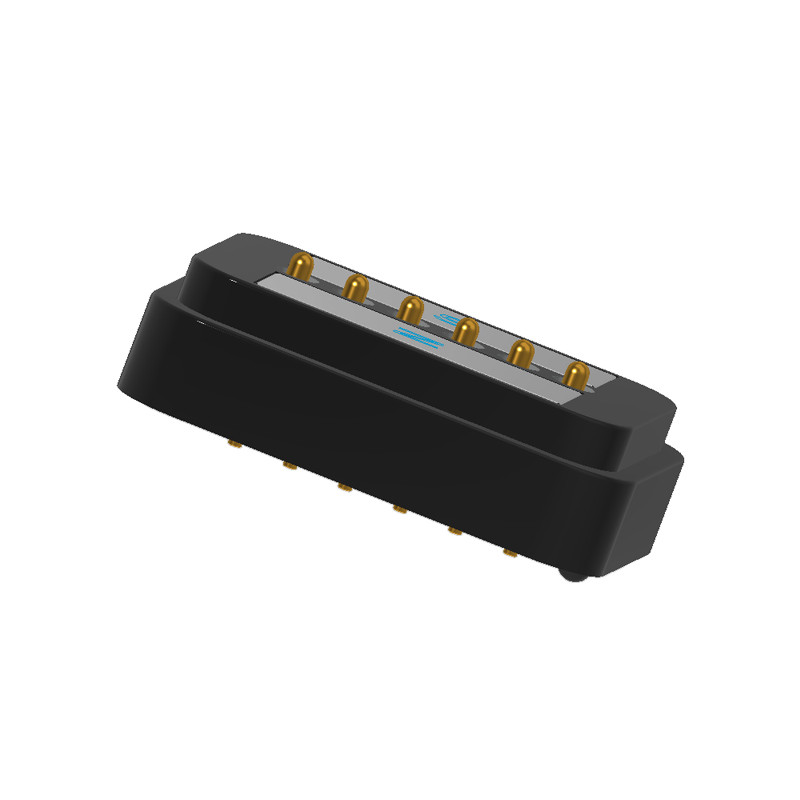

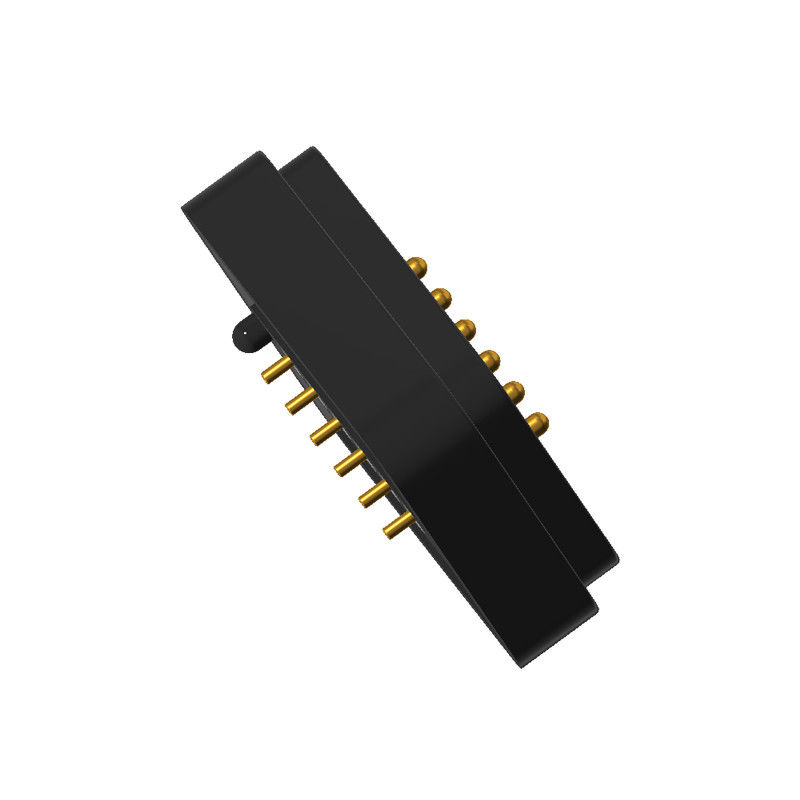

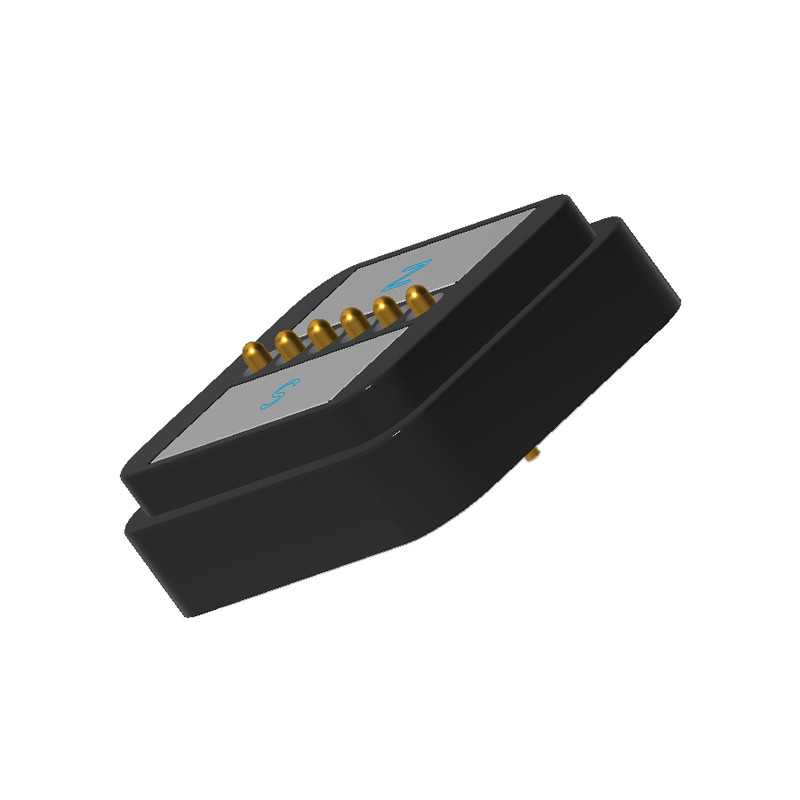

Product picture display

Advantages of Round Magnetic Connectors

1.Effortless Connection

Automatic adsorption enables quick, tool-free attachment; user-friendly operation.

2. Easy Removal

Magnetic interface allows seamless disconnection without physical strain.

3. High Durability

Supports 50,000–300,000 mating cycles for long-term reliability.

4. Robust Protection

Customizable IP68-rated waterproof and dustproof design (female end).

5. High-Current Support

Handles 3A–20A for fast charging and power-intensive applications.

6. Superior Corrosion Resistance

Withstands harsh environments (tested for 48–120 hours in salt spray).

7. Customizable Form Factor

Tailored shapes to match product aesthetics, enhancing market appeal.

8. Smart Orientation Detection

Magnet positioning + structural design ensure correct polarity and circuit protection.

9. Multifunctional Interface

Supports power, signal, video, audio, data (e.g., USB 2.0), and more.

10. Cost-Efficient Development

Short lead time and low mold costs for rapid customization.

11. High-Quality Signal Transmission

Reliable RF signal performance (e.g., compliant with USB 2.0 standards).

8. Customization Flexibility
Adjustable magnet strength, pin count, size, and materials to fit specific needs.

Magnetic connector products application:

FAQ

1.Why choose us ?
With 100% sincerity,our company will provide the best service for you whatever products or after sales.We will provide the most reasonable quotation and design high quality samples according to your drawings or requirements.We provide guarantee for every customer after sale.

2.Can you customize products for us?
We are very pleased to customize for you or design for you. Please provide us your drawing or samples, and tell us your special requirements about the products. We can customize as soon as possible according to your requirements.

3.How much will the sample cost?
If stock items, we provide samples to customers free of charge, but you should bear the freight.
If customize iterms, we will charge for properly cost and refund reasonable proportion of sample fee when you have order for us!

4.What about your delivery time?
The delivery time depends on the quantity and difficulty of the customer's order.Usually, the stock goods delivery within 3 days while customized products delivered within 2 week.

5.How bout your company quality control?
We will test and inspect the products to ensure the quality of the products to obtain your satisfaction.Quality is the most important in our company, from material to delivery, all will be double checked and company get IS09001 to ensure this.

How to place the magnetic cable connector order

* You send us drawing or sample

* We carry through project assessment

* We make the sample and send it to you

* You think the sample is good then place an order and pay us 30% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to courier company

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
