Round Magnetic Wire Connectors Customized Magnetic USB Connectors 3A

3A Round Magnetic wire connectors with 2 pin usb magnetic Cable connector.

Key Features:
Magnetic Attachment – Automatically snaps into place when brought near the port, reducing wear on the device’s socket.

Reversible Design – Often works in any orientation (no "right side up").

Quick Disconnect – Safely detaches when pulled, preventing cable or device damage.

Variants Available:

Charging-only (for power transfer).

Common Uses:

Smartphones, tablets, wearables.

LED lights, drones, and other electronics.

Medical or industrial devices where secure connections are crucial.

Materil and coating conform to ROHS and REACH standards.

To ensure contact mechanica llife,NEVER compress pogo-pin OVER defined working stroke in drawing,which may damage the inside spring.

Mechanical:

-Contact force:80g±20g at 1.1mm working storke

-Life test:10,000cycle

-Adsorption force test:The female docking adsorption is 400g±20%

Electrical:

-Rated voltage:DC12V;Rated voltage:3AMax.

-Contact resistance of spring pin:50milliohm Max.

Environmental performance:

-Operation Temperature:-25℃ to +80℃

-SaltSpray:24H

Cold Resistance (Down to -25°C):

The connector can function in freezing conditions without cracking or losing magnetic strength.

Ideal for outdoor use, automotive applications, or cold storage environments.

Heat Resistance (Up to +80°C):

Withstands high temperatures without melting or deformation.

Suitable for industrial settings, hot climates, or near heat-generating devices.

USB2.0: USB/AM Integrated type (with overload and short-circuit protection of 12V 3A)

Inner mold material: PE

Over molding:PVC Black

Cable Tie:White PVC Metal elliptic cable tie  White

Wire: OD3.5 2C 22AWG White PVC

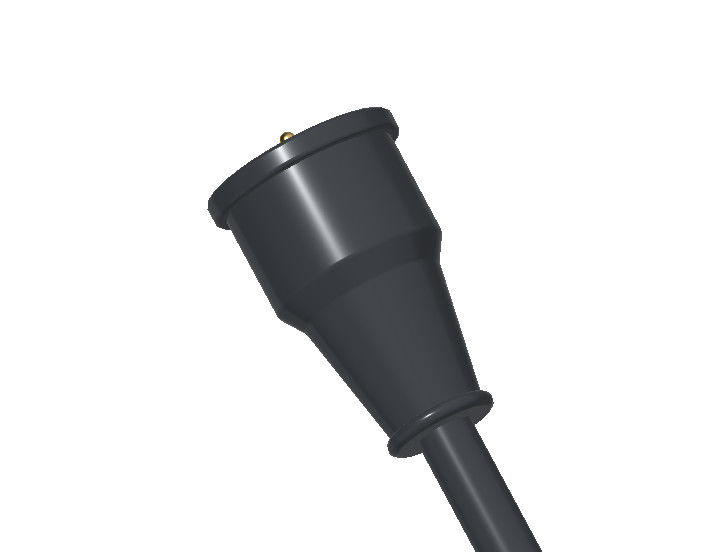

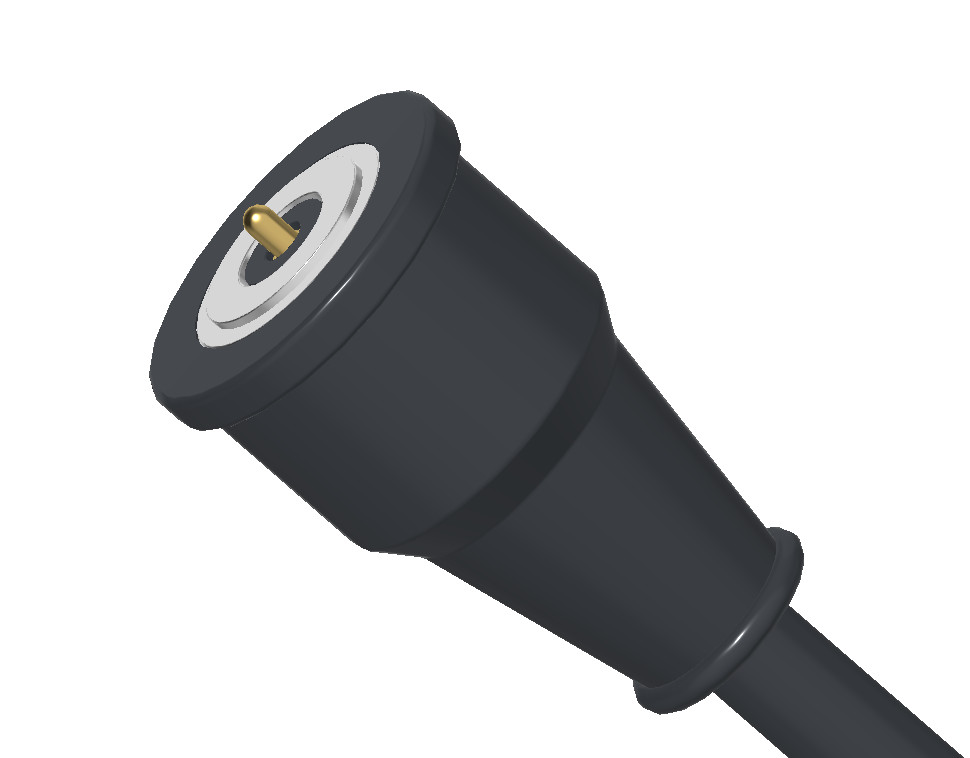

Magnet Plug: Magnetic Male Plug

Circular 2Pin  Male Female Magnetic Connectors Parameter:

Circular 2Pin  Cable Connector Technical Drawing

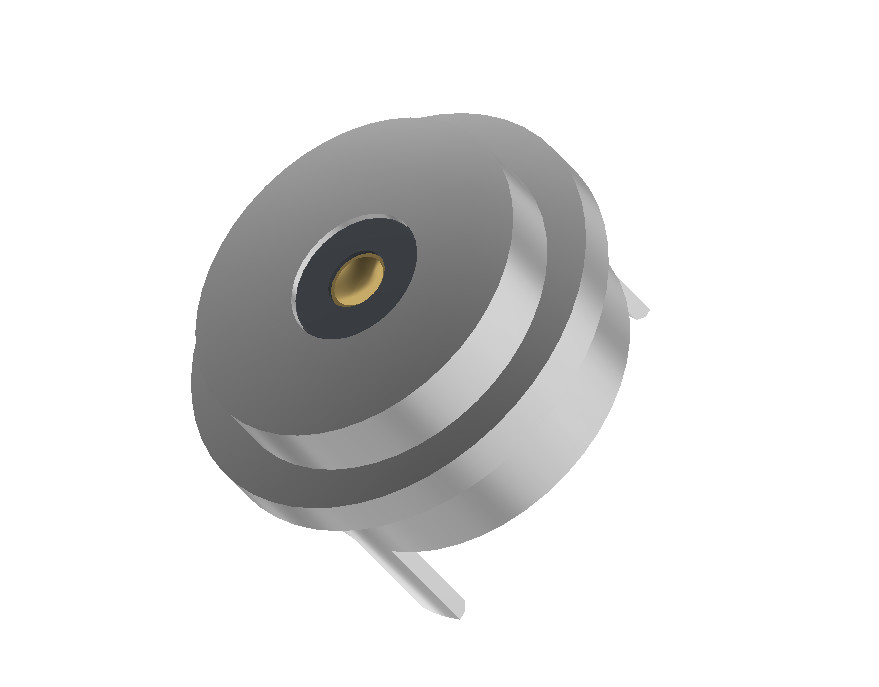

Circular 2Pin  Female Magnetic Connector Technical Drawing

Decompose the view of female magnetic connector

Circular 2Pin Magnetic Cable Connector Mnode of Connection

Packaging view:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Products application:

Why UPE shall be your partner?

●Professional customization service

●Fast sample production capability

●Strict quality control system

●Processing with imported components

●High-precision test equipment

●Reasonable cost control procedures

How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

*Negotiate pricing & terms (bulk discounts may apply).

*Confirm order details (connector type, quantity, customization).

*Make payment (via PayPal, bank transfer, or other secure methods).

*Shipping & Quality Check
*Track the shipment.

*Inspect the product upon arrival to ensure quality.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
