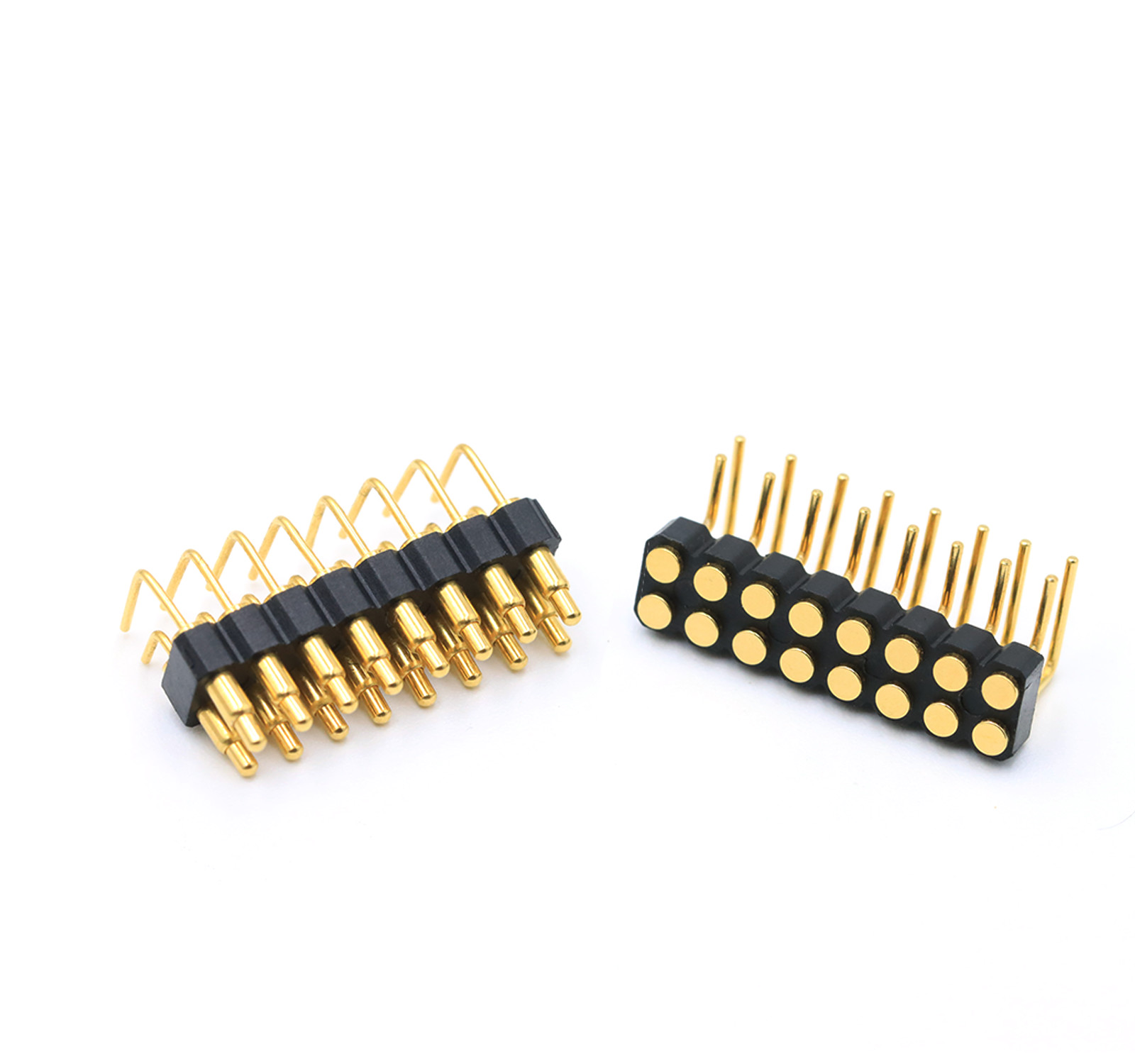

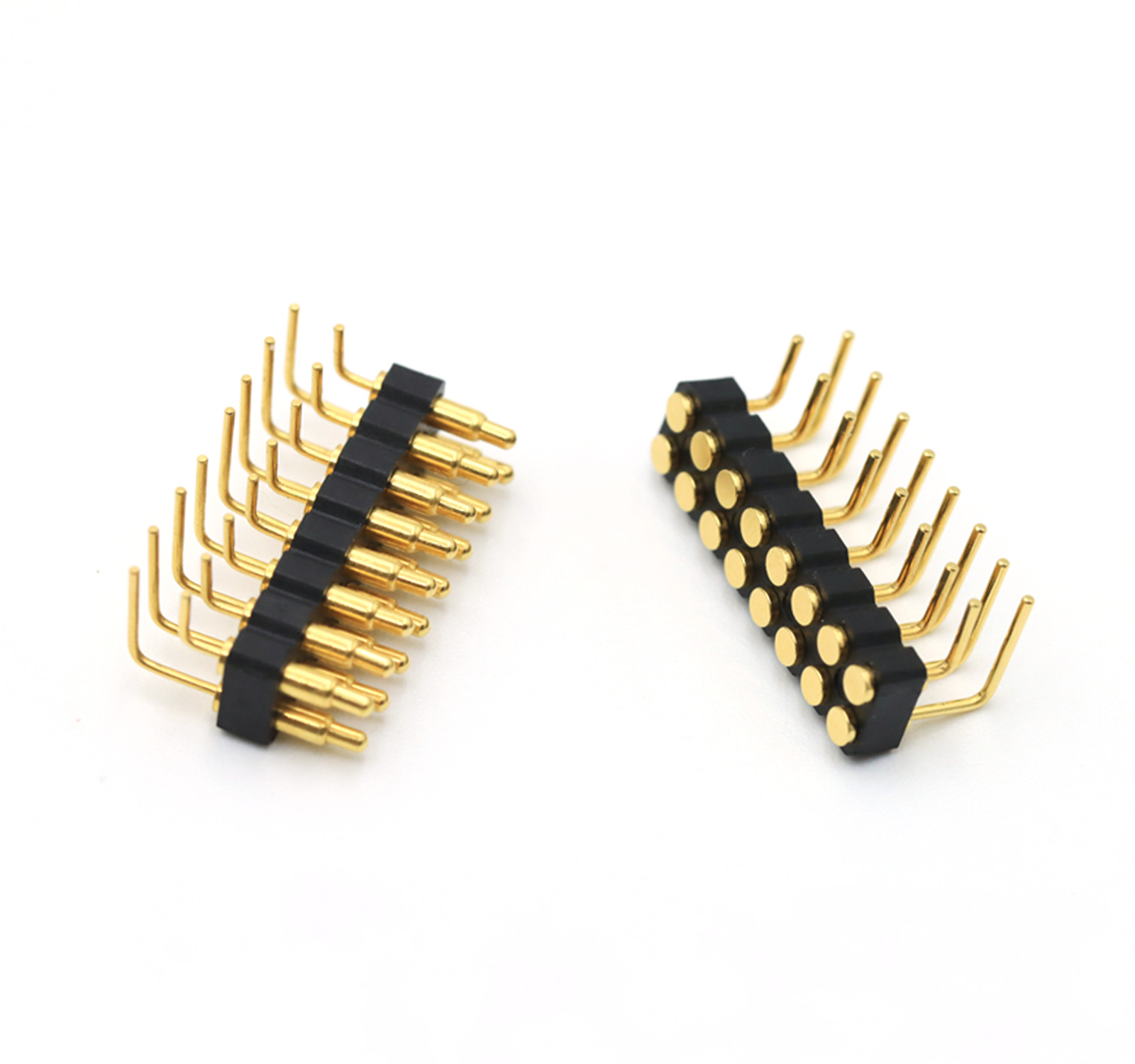

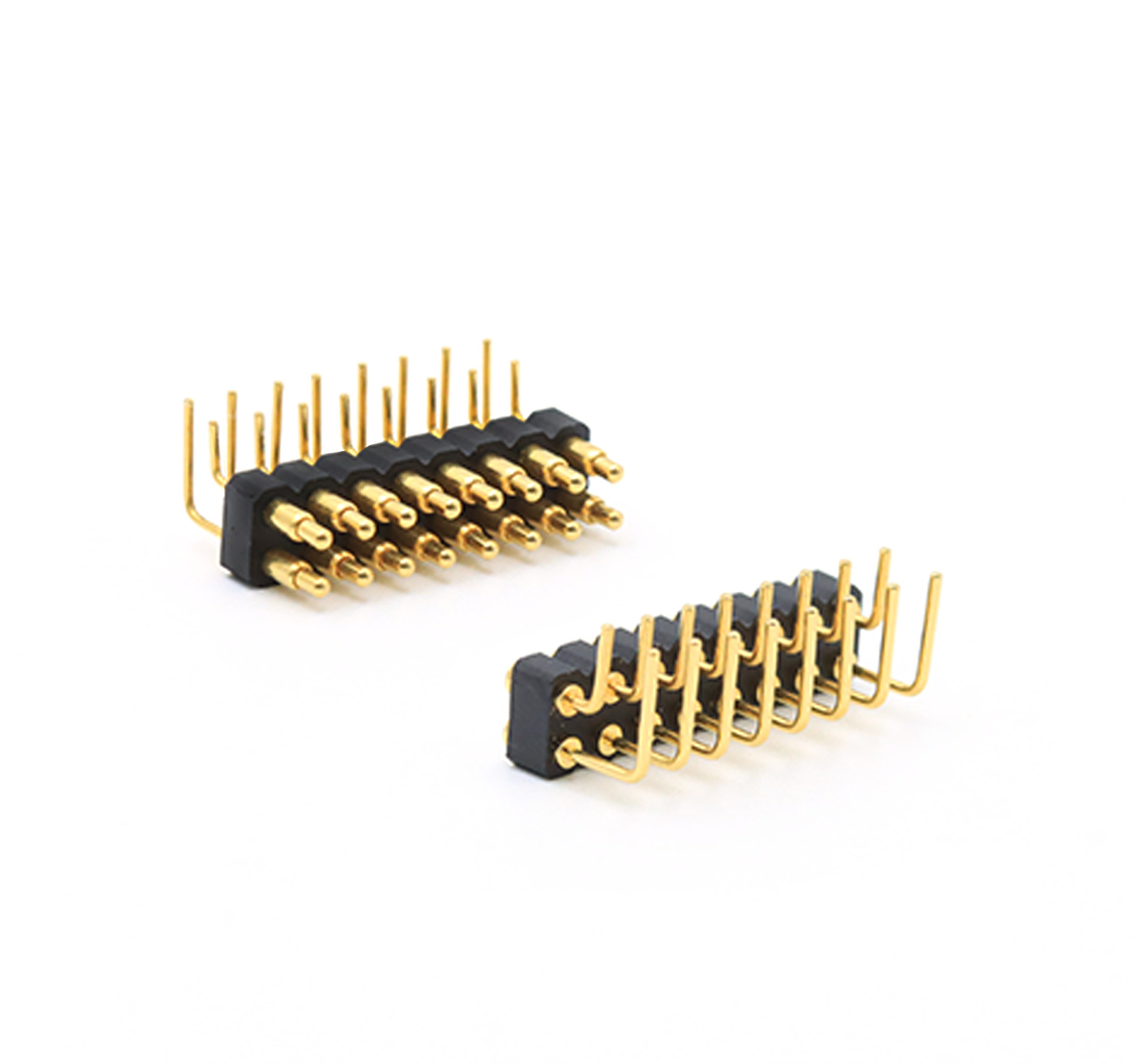

Brass Spring Loaded Connector 2.54mm Pitch Right Angle Pogo Pin Connector 16Pin Male Female

Brass Spring Probes Right Angle Pogo Pins Connector 2.54mm pitch 16Pin male female.

The pogo pin features a bent tail design, offering enhanced versatility for space-constrained applications.

Key advantages include:

1. Space Optimization
The bent tail allows for compact PCB layouts or flexible positioning in tight assemblies.

Ideal for designs where straight pins would interfere with other components.

2. Wiring Options
The tail can be soldered directly to a wire (instead of PCB pads), enabling:

.Custom cable connections.

.Modular or reworkable designs.

.Strain relief in movable parts (e.g., hinge mechanisms).

3. Mechanical Stability
Bent tails can improve stress distribution vs. straight pins in dynamic environments.

Materials
Plunger: Lead-free C6801, Plating: 01~99 μ" Au over 60~100 μ" Ni.

Barrel: Lead-free C6801, Plating: 01~99 μ" Au over 60~100 μ" Ni.

Spring: SUS 304 stainless steel, Plating: 1 μ" (likely Au or Ni for corrosion resistance).

Housing: Black HTN (High-Temperature Nylon) + 30% Glass Fiber, UL94 V-0 flammability rating.

Mechanical Specifications
Spring Force: 80g ±20g at 1.0mm working stroke.

Full Stroke: 1.2mm.

Mechanical Life: ≥10,000 cycles.

Electrical Specifications
Rated Current & Voltage: DC 12V, 3A max.

Contact Resistance: ≤50mΩ at working height.

Tolerances

Lengths: ±0.15mm.

Diameters: ±0.05mm.

Angles: ±2°.

Environmental Performance
Operating Temperature: -40℃ to +130℃ (within 24 hours).

Resistance to Soldering Heat: 260℃ ±5℃ for 20s ±2s.

Compliance: ROHS & REACH compliant.

Salt Spray Test: 48 hours (corrosion resistance validation).

Key Features & Applications
High Durability: 10,000+ cycles, robust plating (Au/Ni) for wear & corrosion resistance.

High-Temperature Resistance: Suitable for harsh environments (up to 130℃).

Precision Mechanics: Tight tolerances ensure reliable electrical contact.

Lead-Free & Compliant: Meets environmental regulations (ROHS/REACH).

Note:

1.To ensure the best usage effect, please operate according to the working height.

2. Precautions for product use
.According to the engineering drawings, the maximum allowable compression shall not be exceeded
.It is suitable for welding temperatures ranging from 380 to 420 degrees Celsius, with a welding time of 3 to 5 seconds. It is not allowed to process the product within a short period of time perform repeated welding multiple times
. Adapt to the furnace temperature range of 400 to 500 degrees Celsius
. When designing the application end, please reasonably avoid the pogopin compression space

3. For single-row pins greater than 20, double-row pins greater than 40, and other special requirements, please consult technical support

Composition of Pogo Pin Connector

2.54mm pitch pogo pin connector parameter list:

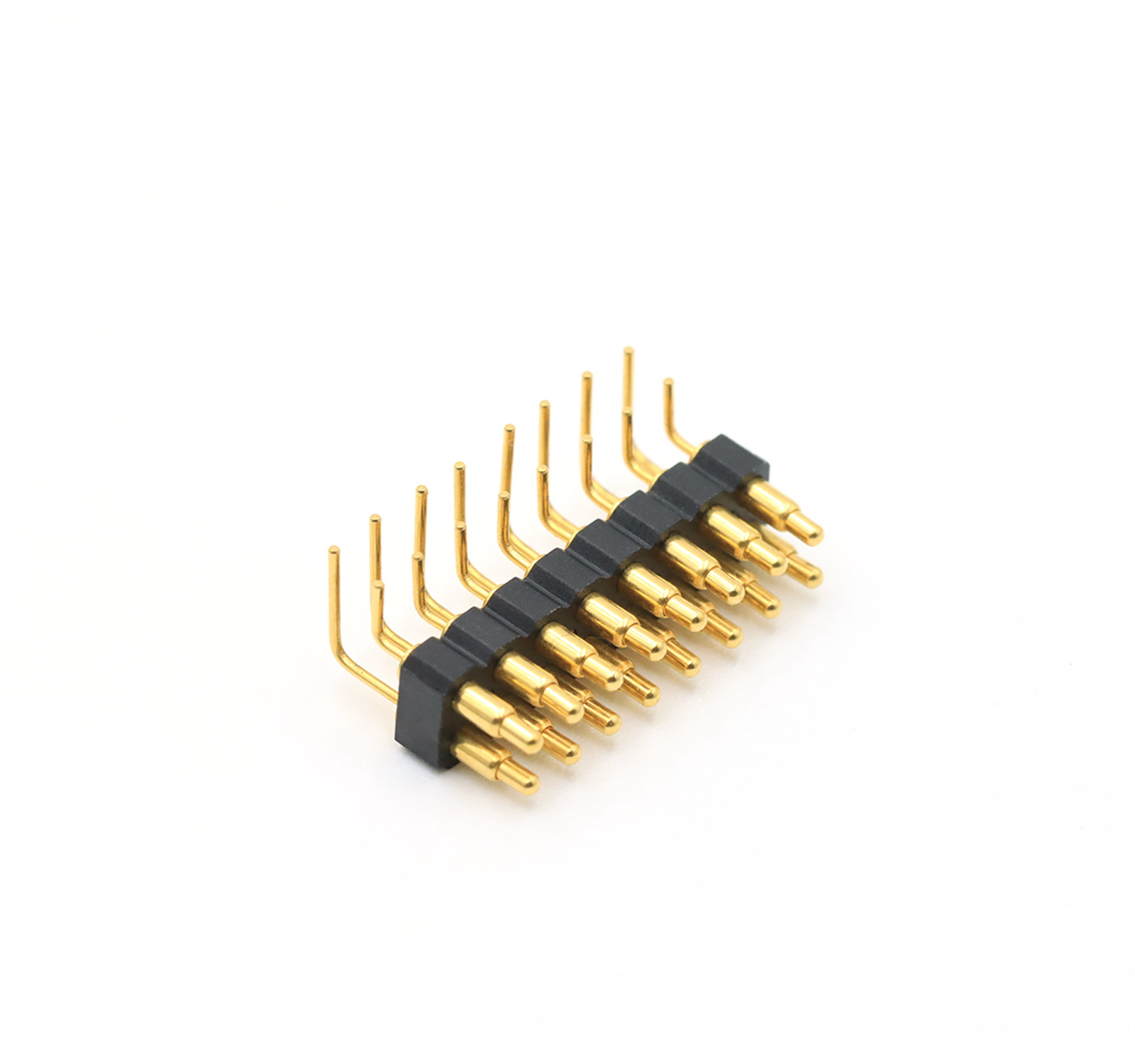

Double Row 2.5mm Housing Right Angle Male Spring Loaded Connector:

Double Row 2.5mm Housing Right Angle Female Loaded Connector:

Standard 2.54mm Pitch Pogo Pin Connector for customers reference:

Application field:

Our Advantage and your choice:

.UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.

.UPE developed 2.0mm and 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.

.Pogo Pin Life test up to 1000,000 cycles.

.All products can pass HF, RoHS REACH standard.

.100% electrical test provided report before delivery the goods.

.Custom of various shapes is available, small structure and high current.
