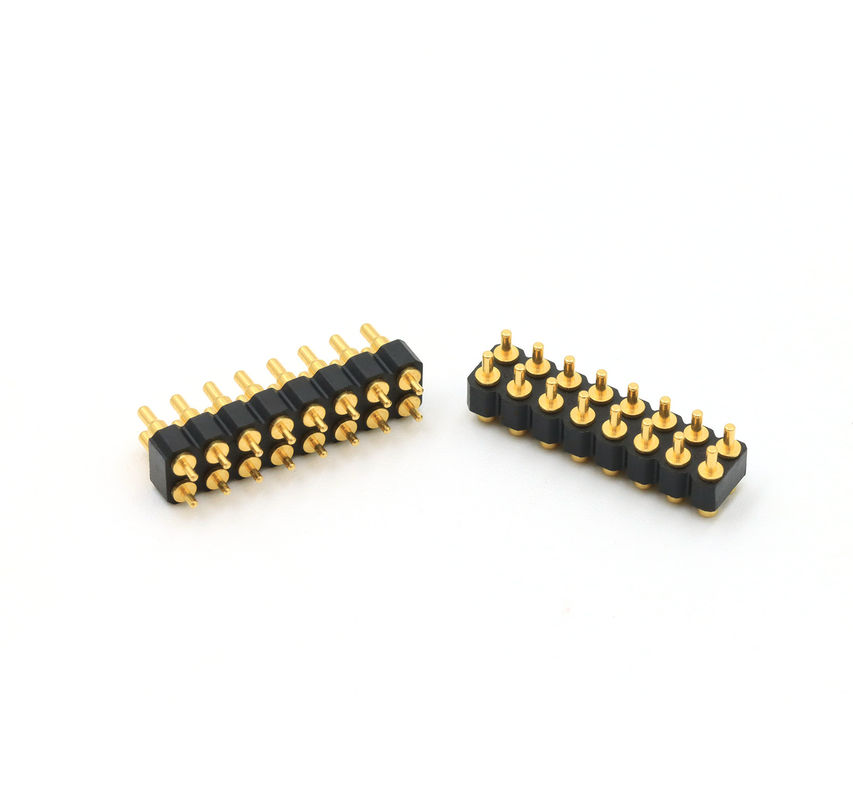

Double row 2.54mm pitch 16pin male female DIP spring pogo pin connector.
Union Precision Electronic Co.,Ltd (UPE) is committed to high-end Pogo Pin,Pogo Pin connectors,magnetic connector and the design, development, production and sales of supporting products as a high-tech company.
We have been adhering to continuous technological innovation and high-quality products as the core of the company's development, a professional and experienced technical team of experience in the relevant connector industry.UPE have many years of work experience in product development and manufacturing.UPE ensure product quality during product design, development and manufacturing. At the same time, it can also provide customers with technical support such as synchronous development.
Pogo Pin Connector Technical Specifications
Materials:
..Plunger:Lead-free C6801,Plating 01~99u"Au over 60～100u" Ni.
..Barrel :Lead-free C6801,Plating 01~99u"Au over 60～100u" Ni.
..Spring : SUS 304.Plating 1u"
..Housing:Bkack HTN+30GF UL94 V-0.
Mechanical:
..Spring force:80g±20g,at 1.0 working stroke. Full stroke:1.2mm.
..Mechanical life:10000cycle Min.
Electrical:
..Rated current & voltage: DC 12V,3A Max.
..Contact resistance:50mΩ max,At working height.
Tolerances ON:
..Lengths:±0.15mm.
..Diameters:±0.05mm.
..Angles:±2°.
Environment performance:
..Operating Temperature:-40℃～+130℃ within 24 hours.
..Resistance to Solding hear:260℃±5℃ 20s±2s
ROHS or REACH compliant product.
Salt spray test:48 H.
Composition of Pogo Pin Connector
2.54mm pitch pogo pin connector parameter list:
|
Name
|
Pogo Pin Connector
|
|
Gender
|
Male/Female
|
|
Pin number
|
16Pin
|
|
Insulator
|
Bkack HTN+30GF UL94 V-0.
|
|
Plunger
|
Lead-free C6801
|
|
Barrel
|
Lead-free C6801
|
|
Spring
|
SUS surface treatment
|
|
Plastic height
|
2.5mm
|
|
Spring force
|
80g+/-20g at 1.0mm working stroke
|
|
Full storke
|
1.2mm
|
|
Life test
|
100,000 cycles
|
|
Rated current
|
3A Max.
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50 milliohm Max
|
|
Salt spray test
|
48H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
Double Row 2.5mm Housing DIP Male Pogo Pin Connector:
Double Row 2.5mm Housing DIP Female Connector:
Standard 2.54mm Pitch Pogo Pin Connector for customers reference:
Application field:
Our Advantage and your choice:
.UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.
.UPE developed 2.0mm and 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.
.Pogo Pin Life test up to 1000,000 cycles.
.All products can pass HF, RoHS REACH standard.
.100% electrical test provided report before delivery the goods.
.Custom of various shapes is available, small structure and high current.
