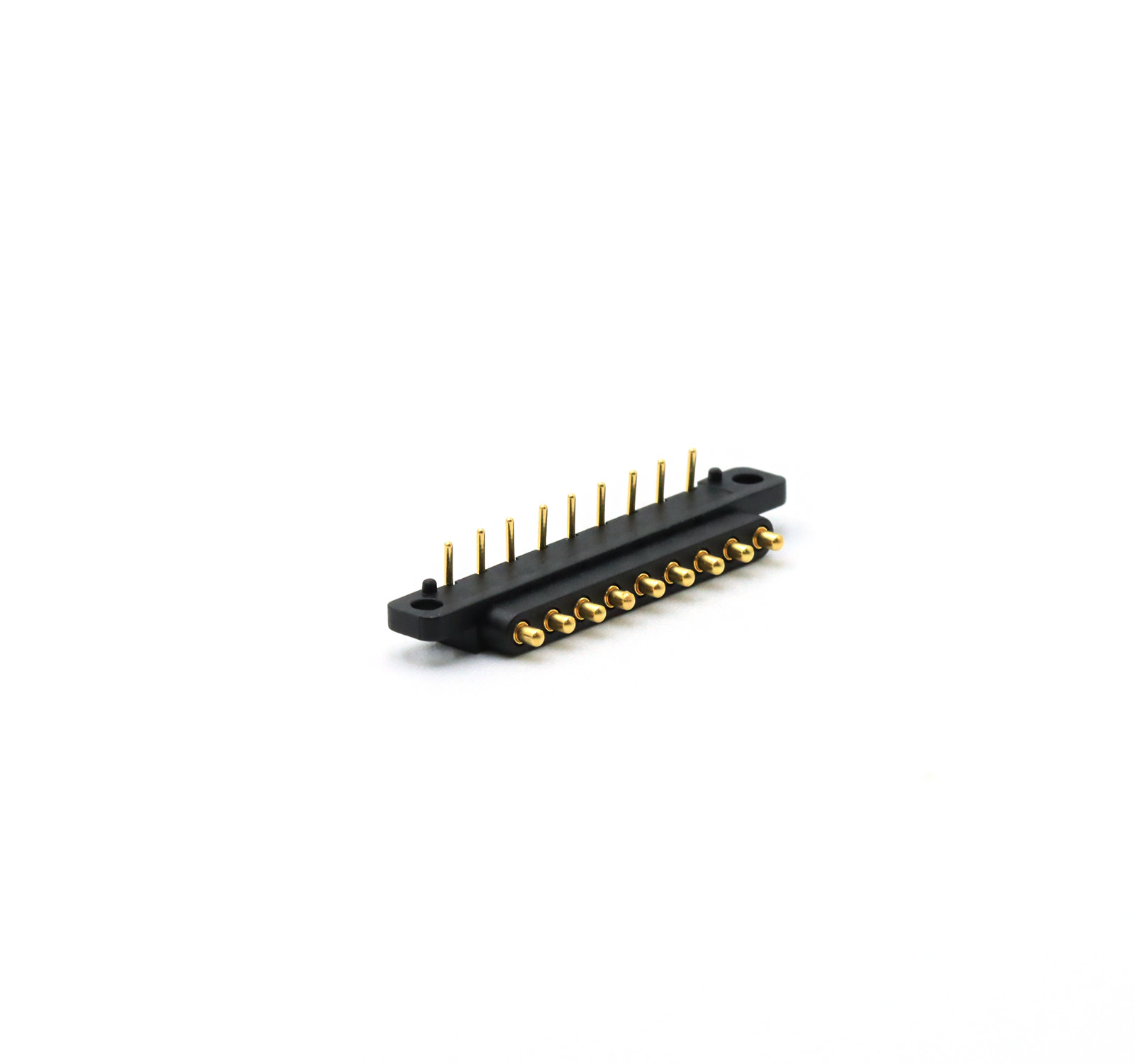

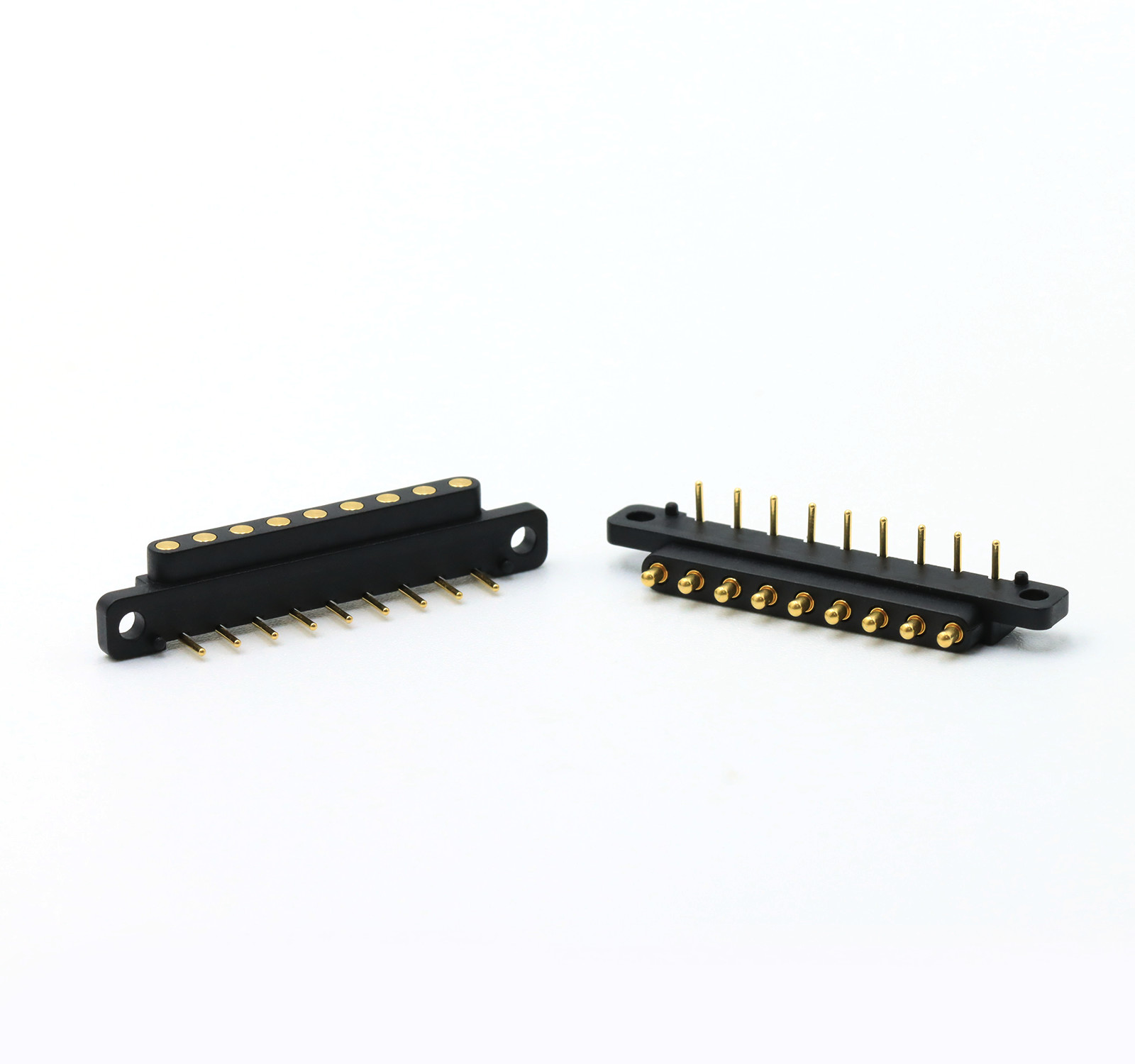

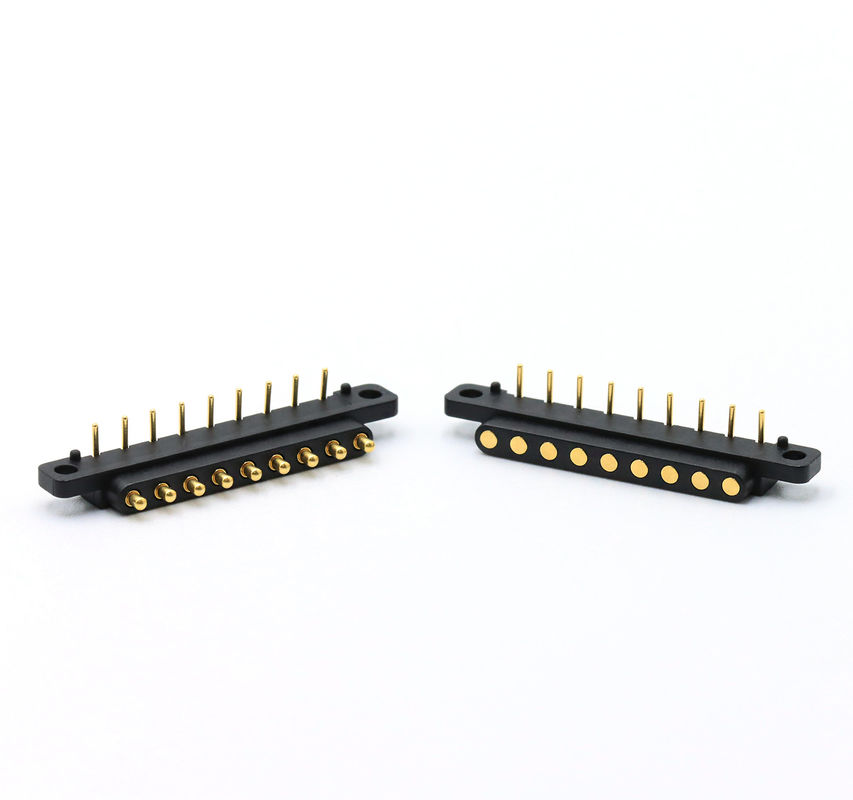

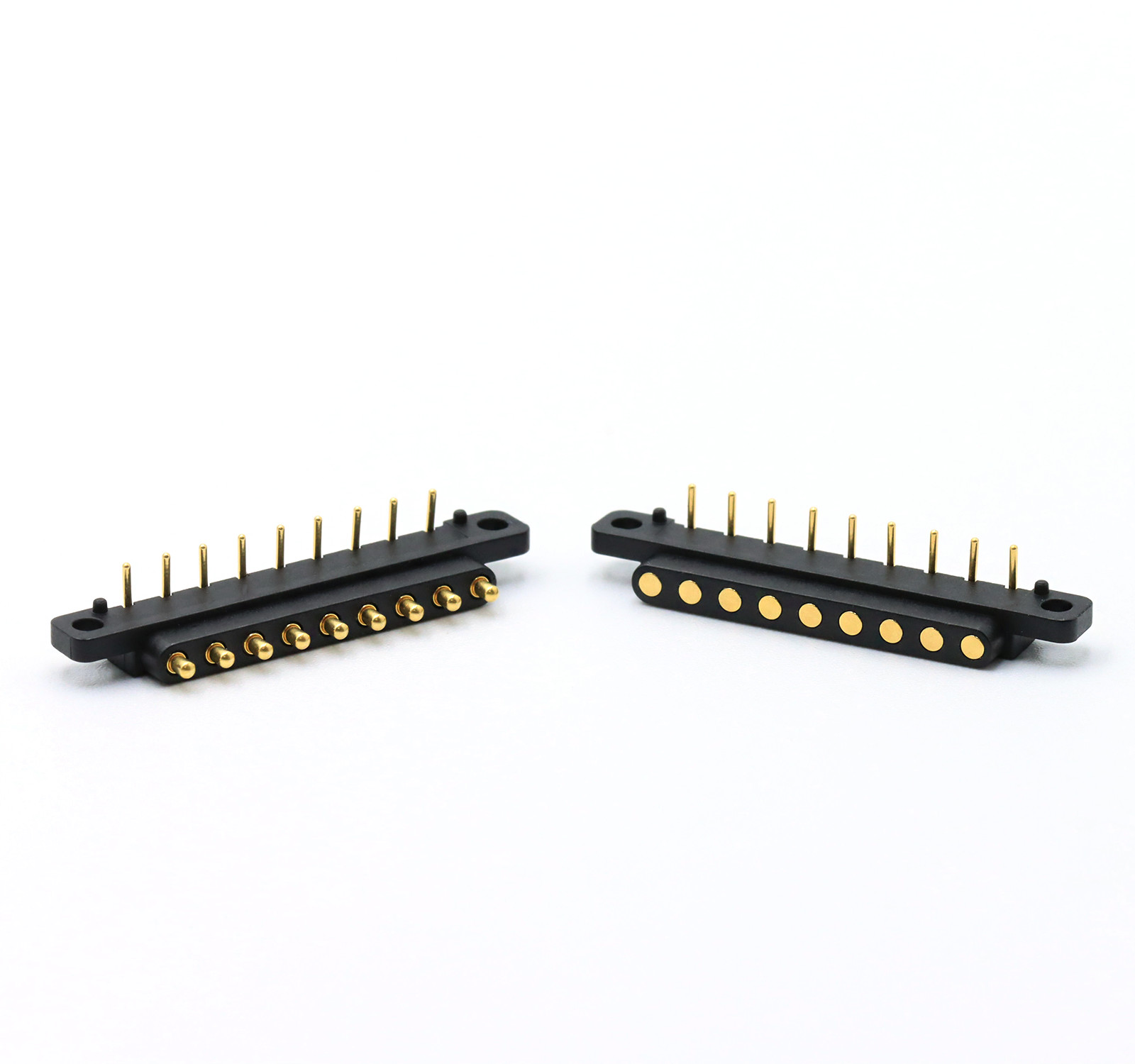

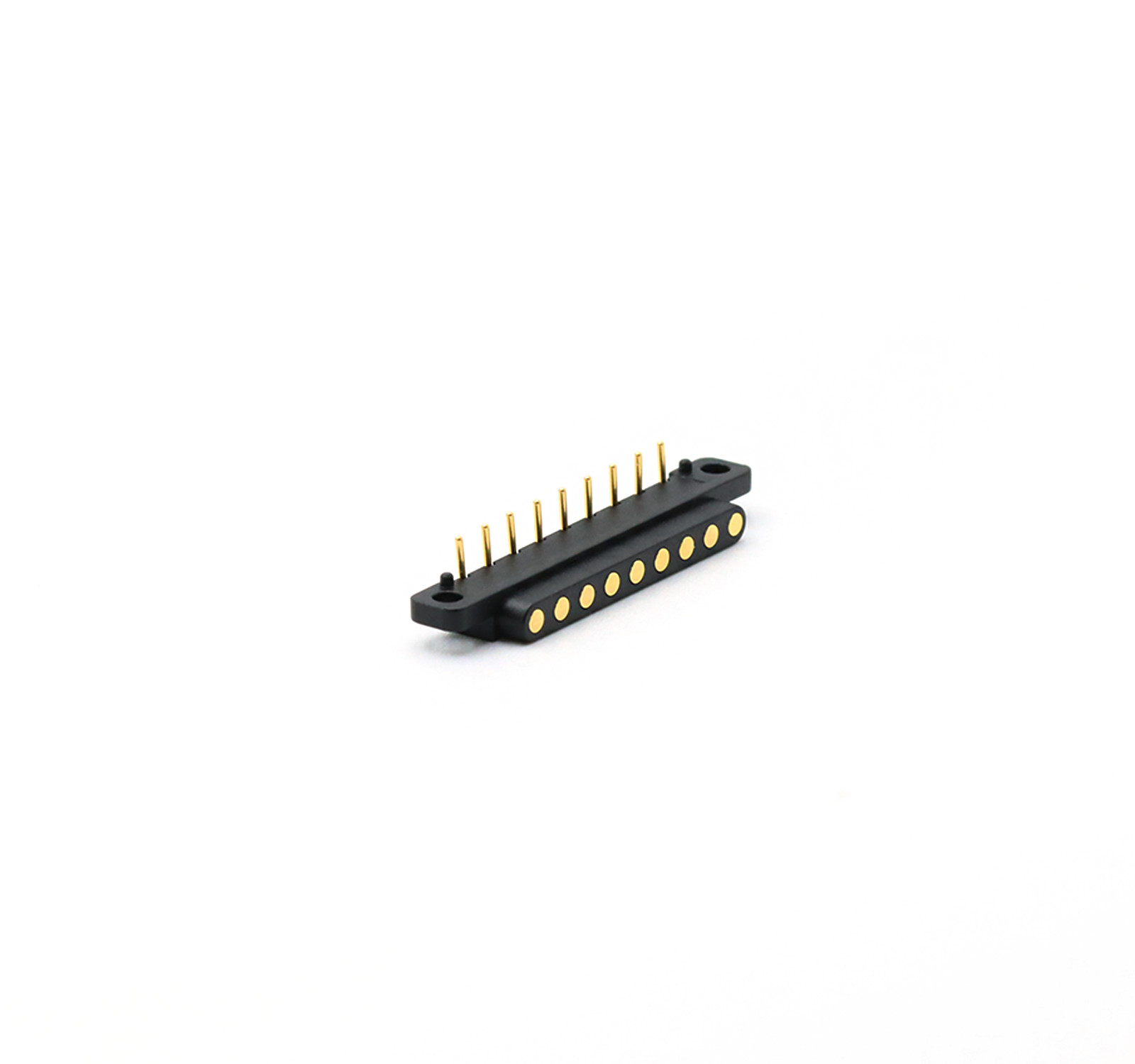

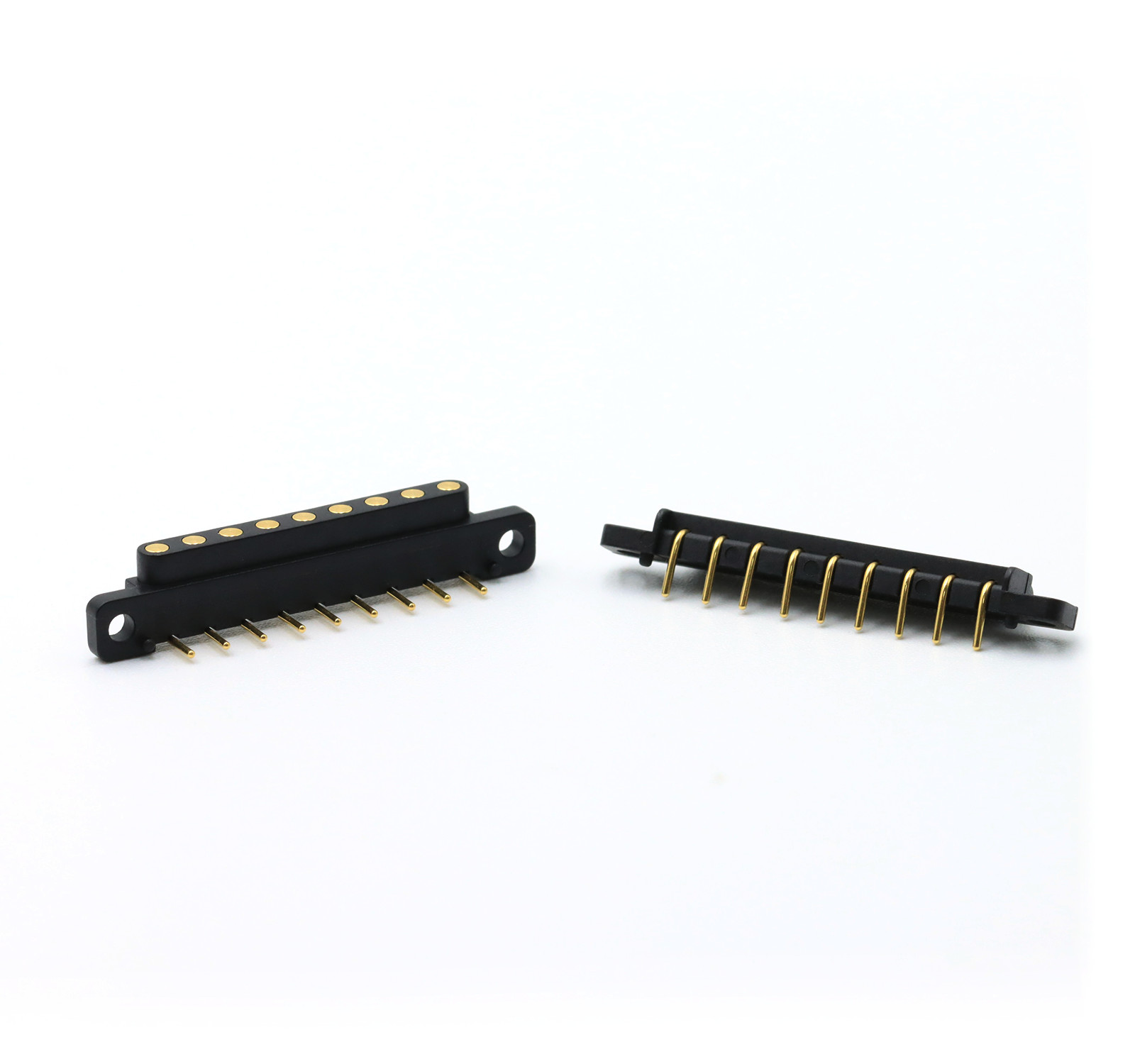

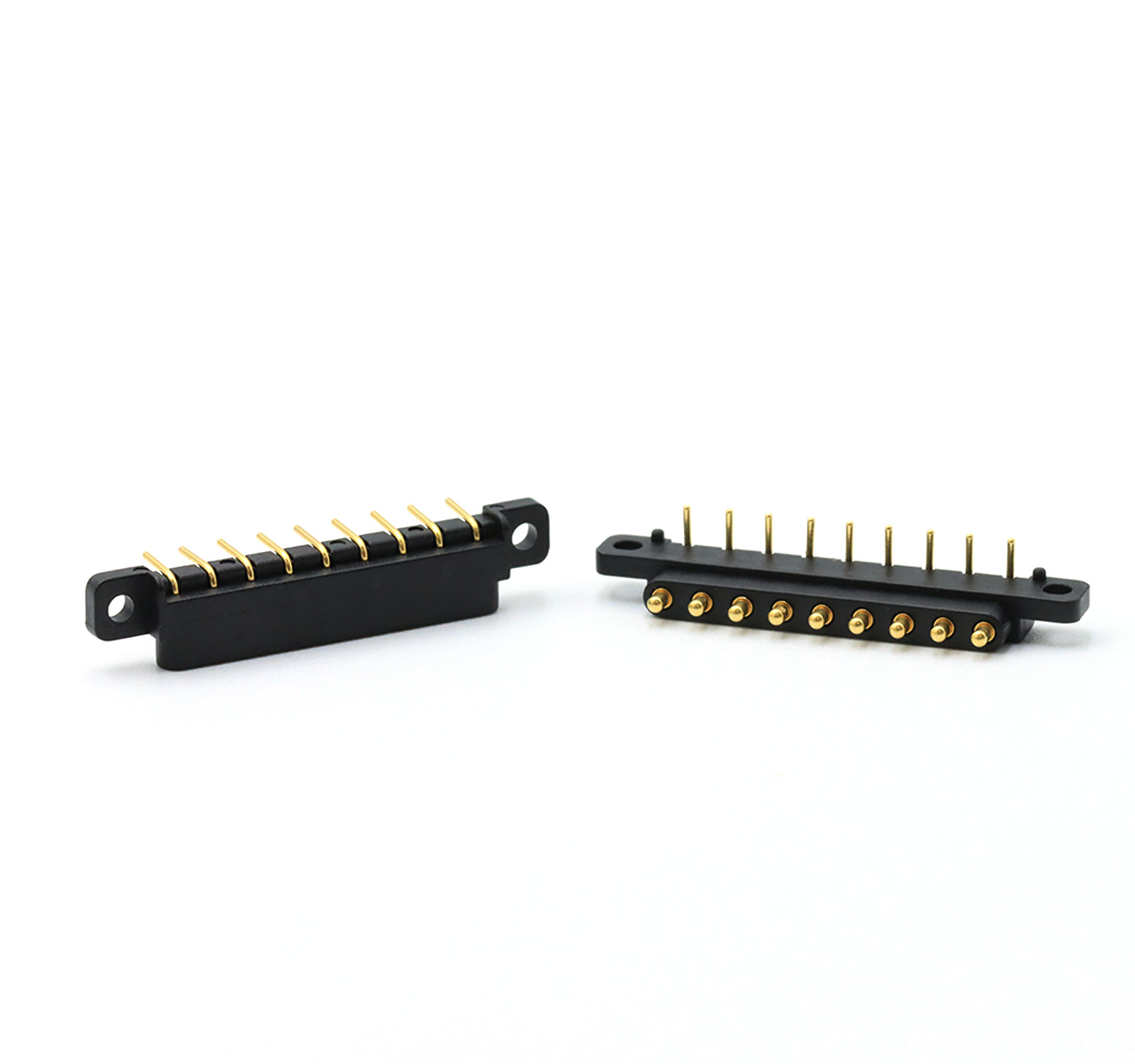

9Pin Right Angle POGO Pin Male female Pogo Pin connnector with 2.54mm pitch.
Union Precision Electronic Limited (UPE) is a leading custom manufacturer specializing in high-quality spring-loaded connectors, including POGO PIN connectors and POGO PIN connector housings. As one of the most competitive spring-loaded connector suppliers in China, we deliver precision-engineered solutions for demanding electronic applications.
Spring-Loaded Pogo Pins – Reliable, low-resistance contacts for secure electrical connections.
Pogo Pin Connectors with Housing – Customizable designs for various mating and PCB interfaces.
Spring Contact Technology – Engineered for durability, high cycle life, and consistent performance.
Our connectors are trusted by world-class customers across industries, including:
✔ Consumer Electronics – Smartphones, smartwatches, tablets, laptops, GPS devices
✔ Wearable & Medical – Hearing aids, health monitoring devices
✔ IoT & Industrial Equipment – Wireless charging, testing fixtures, automotive modules
Pogo Pin Connector consists of 6 parts:Plunger,Barrel,Spring,Ceramic beads,housing,Cap
Note:
|
Product Name
|
Pogo Pin Connector
|
|
Pin
|
9Pin
|
|
Type
|
Right Angle
|
|
Material
|
Lead-free C6801,Brass C3602,SUS304,Black HTN
|
| Finish |
Au plating, Ni plating
|
|
Spring force
|
80g+/-20g at working storke
|
|
Working torke
|
1.2mm
|
|
Full storke
|
1.4mm
|
|
Voltage
|
12V
|
|
Current
|
3.0A Max.
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
Salt spray test
|
48 H
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
Male Pogo Pin Connector Drawing Size:
Female Pogo Pin Connector Drawing Size:
Pogo Pin Connector Parameter Performance
|
Name of Parts
|
Parameter performance table
|
|
Barrel Materia
|
Brass
|
Beryllium copper
|
Phosphor Bronze
|
|
|
Plunger Material
|
Brass
|
Beryllium copper
|
Phosphor Bronze
|
Stainless steel
|
|
Spring options
|
Stainle
|
Music wire
|
|
|
|
Plating requirements
|
Gold-Au
|
Silver-Ag
|
Palladium-Nickel
(Pd-Ni)
|
|
|
Rated Current
|
1A, 2A, 3A ,5A,15A or 30A (different structures)
|
|
Rated Voltage
|
DC 12V 24V
|
|
Contact Resistance
|
30mΩ 50mΩ Max. (stillness)
|
|
Life test
|
50,000 cycles Min. 1000,000 cycles Max
|
|
Reflow Temp.
|
265°, 4~5sec
|
|
POGO PIN Reliability Test
|
|
Retention Force
|
At rated cycling of 500±50 per hour,50,000 cycles minimum
|
|
Humidity
|
EIA-364-31,Test method II, Condition A Subject mated connectors to relative humidity of 90% to 95%RH and a temperature of 40℃ ± 2℃ relative humidity for 96 hour.
|
|
Resistance to Solder Heat
|
EIA-364-56,Procedure 5,Level 2 265℃+10/-0℃for 30 to 35 seconds
|
|
Salt Spray
|
EIA-364-26,Test condition B Subject mated connectors to 5±1% salt-solution
concentration, 35+1℃/-2℃ for 48 hours.
|
|
Spring force test
|
Normal Force Test Procedure,100g±20g at working height
|
|
Temperature Life
|
EIA-364-17,Test method A,condition 4,Test time condition A Subject mated
connectors to 85℃± 2℃ for 96 hours.
|
|
Solderability
|
EIA-364-52 Dip into the 265±5℃, 60/40±5% Sn/pb solder for 4.0~5.0 second
|
|
Contact Resistance
|
EIA-364-23 Measure the contact resistance with a test current of 100 mA maximum and 20 mV voltage maximum
|
Avantages of UPE Spring-Loaded Connectors:
Spring-loaded connectors, commonly known as spring pins or pogo pins, offer several advantages:
Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.
Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.
Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.
Ease of Use: They are user-friendly, with straightforward installation and maintenance.
Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable
UPE Competitive Edge?
1. High-Current Expertise
✅ 15A–30A Pogo Pins – Custom-designed for high-power applications, mass-production proven in demanding industries.
2. Standardized & Custom Connectors
✅ 2.0mm/2.54mm Pitch Solutions – Comprehensive range of male/female Pogo Pin connectors (2pin–40pin), supporting:
SMT/DIP/Right Angle/Solder Cup terminations for flexible PCB integration.
3. Unmatched Reliability
✅ 1,000,000+ Life Cycles – Rigorously tested for durability in high-frequency mating applications.
✅ 100% Electrical Testing – Full inspection with test reports provided before delivery, ensuring zero defects.
4. Compliance & Safety
✅ Meets HF/RoHS/REACH Standards – Environmentally compliant for global exports (EU, US, Asia).
5. Tailored Innovation
✅ Compact & High-Current Designs – Custom shapes, miniaturized structures, and optimized current capacity for unique project needs.
Why do customers choose UPE?
1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
Some of customized Pogo Pin Connectors for reference:
Pogo Pin Connector Application Field:
.Mobile process data acquisition devices
.Medical devices
.Military devices
.PCB technology
.Mobile communication
.Audio-video applications
.Data acquisition devices
.Automotive equipment
.Heating control units
How to place the pogo pin connector order?
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
Payment Term: T/T,50% Deposit,50% Balance
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
Pakaging & shipping
